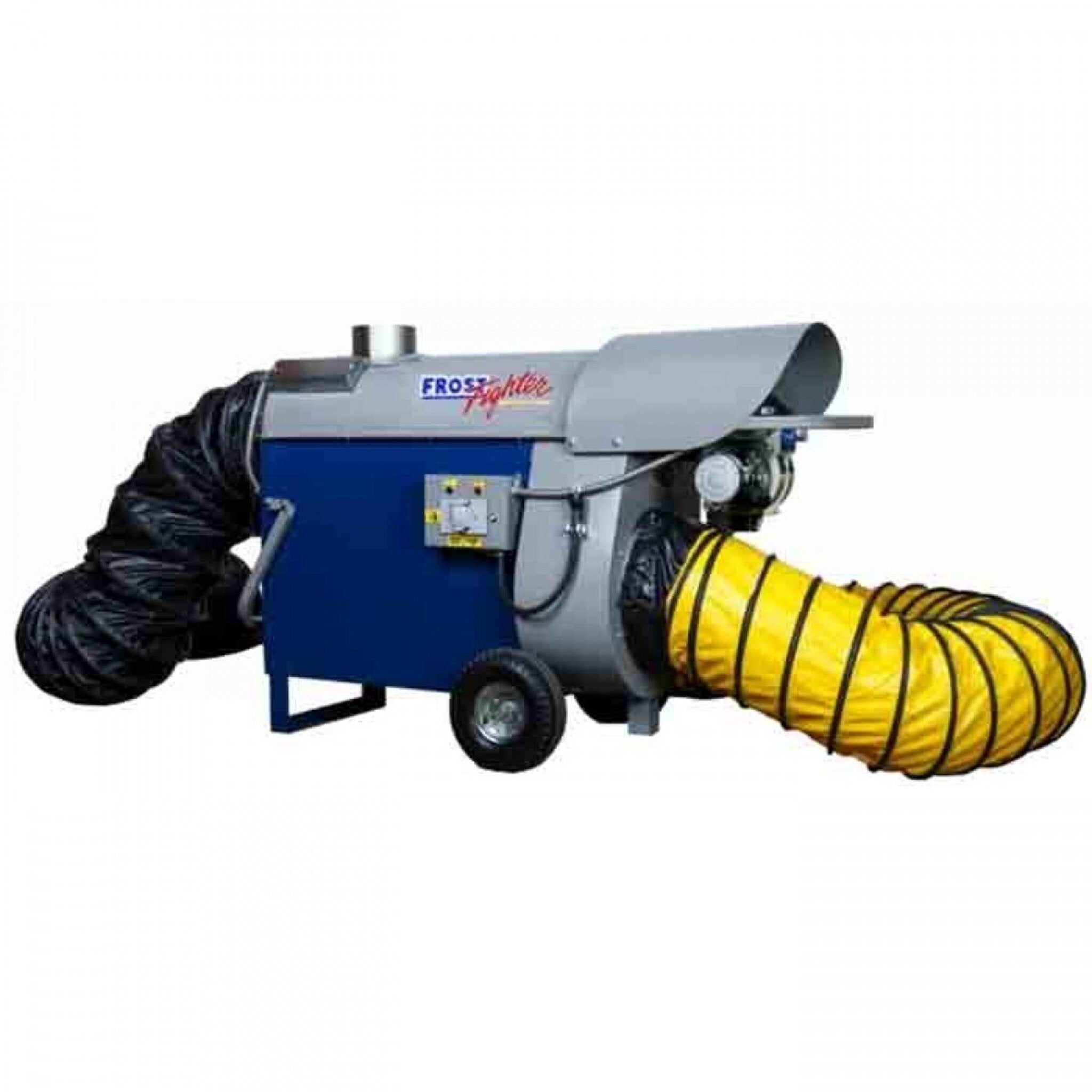

Compact, lightweight and extremely powerful, Frost Fighter's IDH200QR Indirect fired heater is equipped with standard recirculation, high static pressure, low dB noise level and is capable of up delivering hot air through up to 100 ft of total duct length.
-
Maximum heating capacity of 170,000 BTU/h.
-
Heated air volume of 1610 CFM.
-
Maximum static pressure 5.0".
-
Quiet running sound level < 74dB for noise sensitive areas.
-
12" single outlet that can accommodate up to 100 feet of supply duct
-
12" intake that can accommodate up to 50 feet of return duct to significantly reduce fuel consumption and heating times (length of intake duct attached requires equal reduction from 100 ft of supply duct; ex 25ft intake = 75ft supply)
-
Proven "Multi-Pass" stainless steel heat exchanger provides unsurpassed heat transfer and high 81% efficiency
-
Fully independent fan & combustion air provides consistent and dependable operation in cold weather and ensures pre-heating to eliminate cold air delivery at start-up.
-
High static pressure/high volume fan provides large volumes of air movement with or without ducting attached
-
Compact design with pneumatic wheels and handles to allow to easy transport. Durable powder coated finish.
-
Ball valve switchover from propane to natural gas (LP/NG model only)
-
Ducting not included. Shown in photo for illustrative purposes.
Meets all applicable CSA approvals/certifications.
|
Oil/Diesel Heater Specs |
Propane/Natural Gas Heater Specs |
Heating Capacity |
170,000 BTU/h |
170,000 BTU/h |
Fuel Requirement |
Oil/Diesel |
LP/NG |
Heated Air Volume |
1610 CFM |
1610 CFM |
Max. Static Pressure |
5.0" |
5.0" |
Discharge Temp |
Up to 230°F (110°C) |
Up to 190°F (88°C) |
Fuel Tank Cap. |
18 US Gallons |
N/A |
Approx. Run Time |
14-16 hrs |
N/A |
Supply Gas Pressure |
N/A |
7-14" wc (1/2 PSI) |
Manifold Pressure |
N/A |
3.5"/NG - 1.8"/LP |
Required Power |
120V/15amp/60Hz |
120V/15amp/60Hz |
Crated Dimensions |
64" x 36" x 42" |
64" x 36" x 42" |
Crated Weight |
320 lbs |
320 lbs |
Unit Dimensions |
52" x 22" x 36" |
52" x 22" x 36" |
Unit Weight Dry |
209 lbs |
209 lbs |
Unit Weight w/ Fuel |
328 lbs |
N/A |
For additional information, please watch the video under the Videos tab
