General Pipe Cleaners Gen-Eye Micro-Scope3
Discover the perfect solution to your pipe inspection needs with the Gen-Eye GM-G-3 Micro-Scope3 Compact Handheld Pipe Inspection System. This cutting-edge pipe inspection device is a superior tool from industry-leading General Pipe Cleaners, designed with advanced features to improve the effectiveness and ease of your pipe inspections.
Product features of the Gen-Eyee Micro-Scope3 Include:
-
USB Port: Enables recording of videos and images on a flash drive up to 128GB.
-
4X Digital Zoom: For detailed examination of inspected areas.
-
Voice-Over Recording: Built-in microphone and speaker for commentary addition to videos.
-
AC/DC Converter: Operate in the field with truck power alone.
-
100-ft Push Rod: Inspect 1-1/2" to 3" drain lines and toilet traps easily.
-
3-ft Probe Rod: Perfect for inspecting hard-to-reach areas.
-
Heavy-Duty Case: Offers superior protection for the LCD screen and electronics, safeguarding your investment.
Upgrade Your Drain Inspection Capabilities

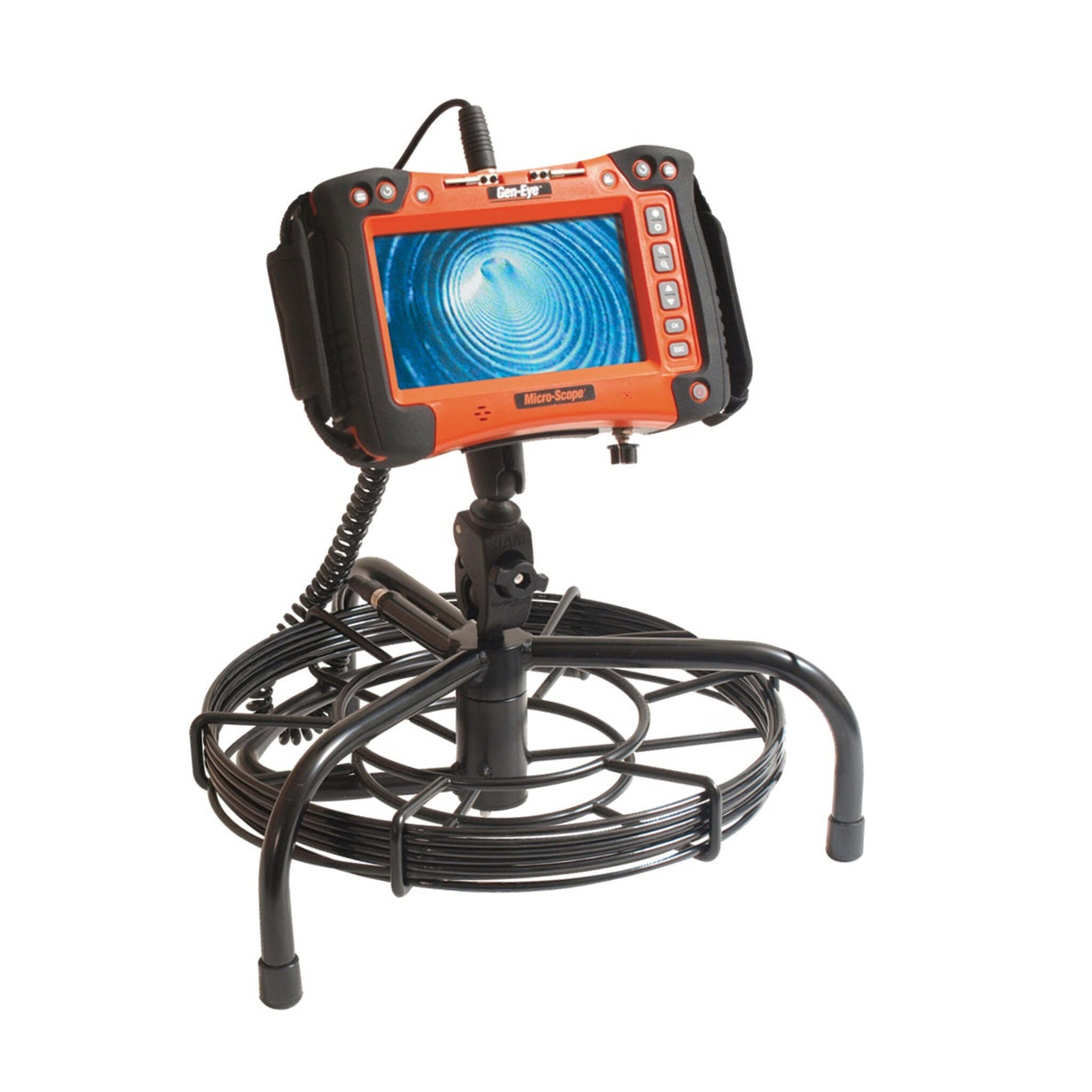

Your Gen-Eye GM-G-3 Micro-Scope3 system comes complete with a Command Module with built-in 7" LCD monitor, 3-ft probe rod with a color camera, 100-ft push rod with a color camera, an 8 GB USB flash drive, AC & DC power cords, and a carrying case. Trust in General Pipe Cleaners for advanced, reliable solutions to all your pipe inspection needs.
| Specifications |
|
| Line Capacity |
1-1/2" to 4" |
| Reel Capacity |
100-Ft |
| Probe Rod |
3-Ft |
| Push Rod Diameter |
- Push Rod: .350"
- Probe-Rod: .400"
|
| Camera Dimensions |
- Push Rod: 1" x 1.38" L
- Probe Rod: .425" x 1.15" L
|
| Sensitivity |
.5 Lux |
| Lighting |
- Push Rod: 12 White LEDs
- Probe Rod: 6 White LEDs
|
| White Balance |
Auto High Speed |
| Reel Dimensions |
17″ L x 16-1/2″ W x 7-1/2″ H |
| Command Module Dimensions |
10″ W x 7″ H x 2.75″ D |
| LCD Monitor Size |
7" |
| Video Format |
NTSC or PAL |
| Power |
110v/60Hz AC, 12 VDC |
| Operating Temperature |
14° F to 122° F (-10° C to 50° C)
|
