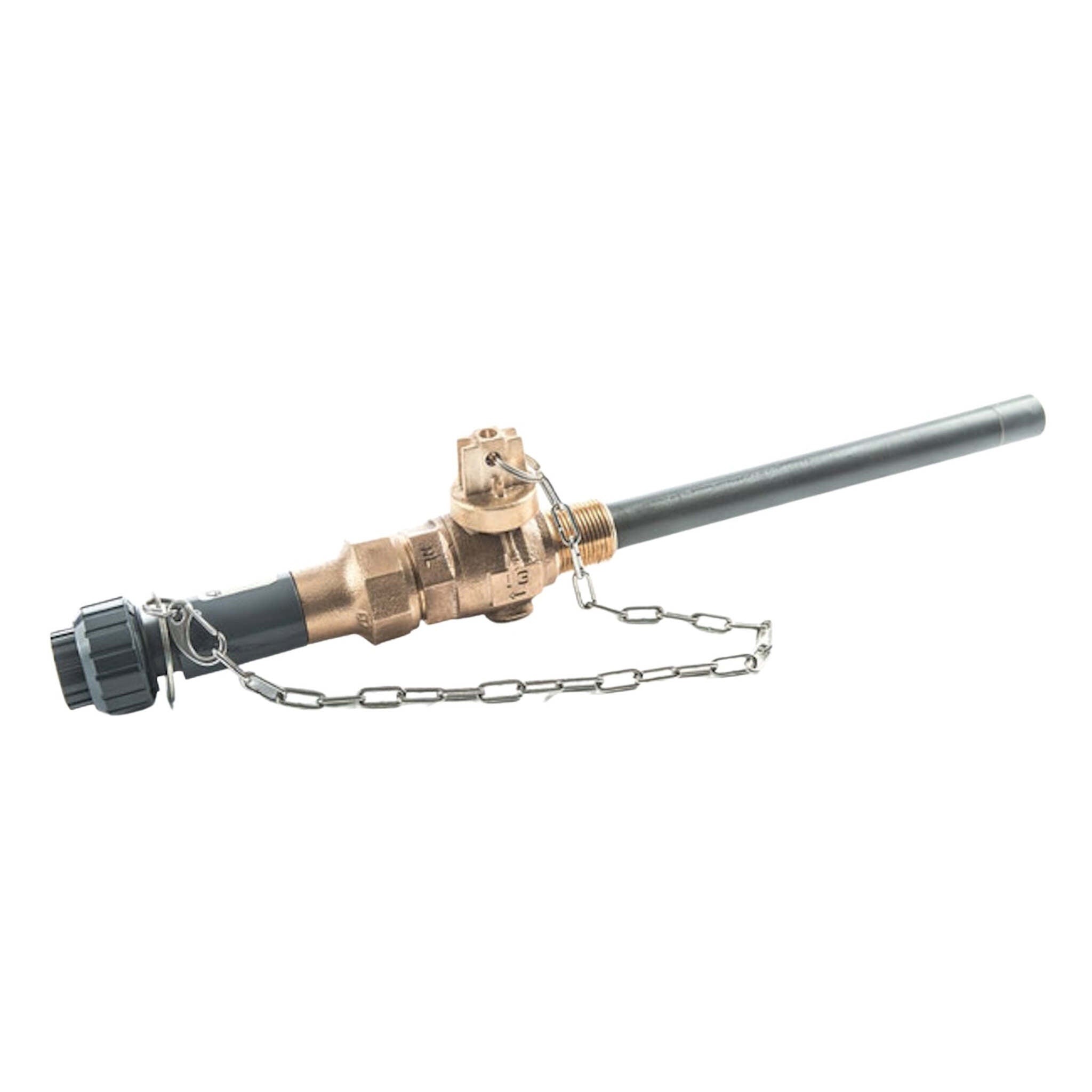

Griffco Brass Corporation Stop with PVC Nozzle
Griffco Corporation Stops (Corp Stops) are the ultimate solution for optimizing chemical feed systems, ensuring better mixing and preventing corrosion in process pipes. Designed for reliable performance in municipal and industrial applications, our Corp Stops allow for convenient quill servicing without the need to shut down the process or main line. The built-in check valve guarantees process fluid containment, preventing backflow into the chemical line. Experience the benefits of robust construction and seamless operation with Griffco Corporation Stops.
Key Features of the Griffco Corporation Stops:
- Precise chemical injection: Griffco Corp Stops are designed to inject chemicals directly into the center of a process stream for enhanced mixing and corrosion prevention.
- Hassle-free quill servicing: Perform quill maintenance without shutting down the process or main line, ensuring uninterrupted operations.
- Check valve protection: The integrated check valve stops process fluid from backflowing into the chemical line, maintaining system integrity.
- Robust construction: Built for rigorous municipal and industrial applications, our Corp Stops boast a durable design for long-lasting performance.
- Easy installation: Thread Griffco Corporation Stops into your process pipe or tank to seamlessly deliver chemicals to the desired application point.
- Fluid isolation: The ball valve allows for separation of process fluid and injected chemical, making servicing or isolation tasks simple.
- Improved chemical mixing: The integrated quill keeps chemicals away from tank or pipe walls, ensuring optimal mixing with process fluid.
- Positive shut-off: The ball check in the valve functions as a reliable shut-off mechanism, ensuring process fluid containment.
How It Works
- Connect injection fitting: Thread the injection fitting of the chemical metering pump into the 1/2" Schedule 80 CPVC female threaded end of the Corporation Stop & Nozzle Assembly.
- Attach brass corporation stop: Thread the 3/4" or 1/2" NPT brass corporation stop into the water pipe.
- Enable easy servicing: The arrangement allows for removal of the injection fitting for maintenance without shutting off the water supply.
- Adjust PVC pipe: Use the compression fitting on the corporation stop to accurately adjust the PVC pipe.
- Precise chemical injection: The adjusted PVC pipe ensures chemical injection directly into the middle of the water main.
Upgrade your chemical injection process
Invest in Griffco Corporation Stops for an efficient, reliable, and high-performing chemical feed system that meets the demands of both municipal and industrial applications. Upgrade your chemical injection process today!
|Max. Operating Pressure||150 PSI|
|Quill Length||6" Length|
|Quill Tip Configuration||Flat|
|Injection Quill Body||PVC|
- Target location: Install into the underside of a horizontal pipe, within the lower 1/3 of the pipe's horizontal cross section (between 4 o'clock and 8 o'clock).
- Drill and tap point: Ensure proper placement for optimal functionality.
- Apply sealant: Use pipe thread sealant before tightening the corporation stop and fitting to 20 foot-pounds.
- Loosen clamp screw: Gradually loosen the clamp screw using the appropriate tool. If the nozzle hasn't fully retracted, proceed to the next step.
- Adjust packjoint locknut: Slowly loosen the packjoint locknut using the proper tool.
- Final steps: Close the corporation stop, remove the safety cable at the injection check valve, and remove the nozzle.
