Description

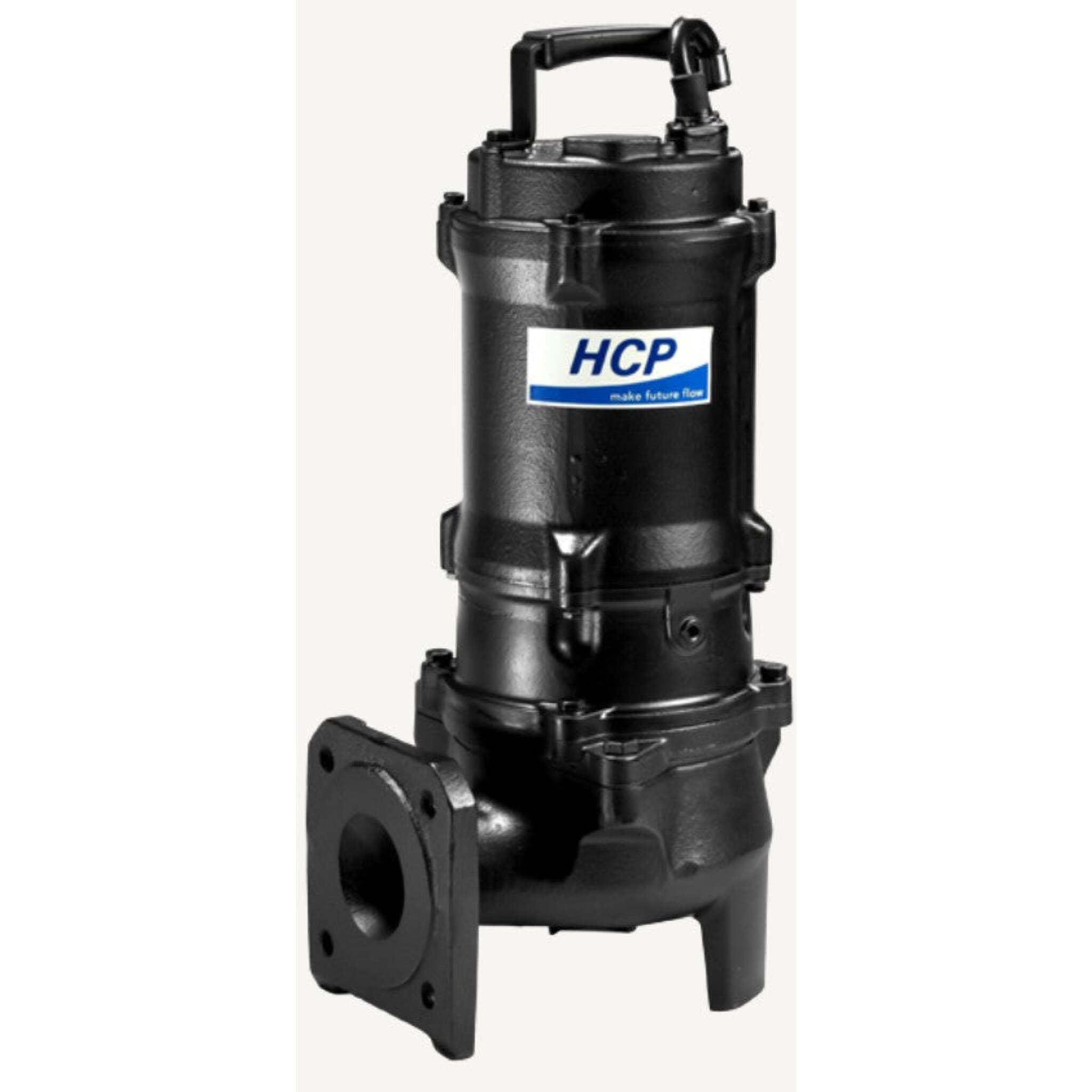

Heavy-Duty Submersible Pump for Wastewater Lift Stations and Industrial Effluent
The HCP 80AFU21.5L is a submersible sewage pump for transporting wastewater and sewage with solid particles. It is commonly installed in commercial, industrial, and municipal water treatment facilities, including lift stations. This cast-iron sewage pump features a high-efficiency motor for reliable performance. Its non-clog vortex impeller makes it ideal for handling fibrous liquids and solids without interruption.
Key Benefits of this Cast Iron Sewage Pump
- Handles difficult materials like cloth wipes and stringy objects with a specialized vortex impeller.
- Prevents pump failure by passing suspended solids up to 3 inches.
- Ensures extended operational life with a dual mechanical seal system in a food-grade oil-filled chamber.
- Prevents moisture from entering the motor through the core wires with an epoxy resin seal cable base.
- Adapts easily to most guide rail systems with a four-bolt horizontal discharge.
- Achieves a flow rate of up to 198 GPM for effective fluid transfer.
- Operates reliably in demanding environments thanks to its durable FC200 cast iron construction.
HCP 80AFU21.5L Pump Specifications
| Category | Details |
|---|---|
| Model Number | 80AFU21.5L |
| Motor Power | 2 HP |
| Voltage | 208-240 Volt (Single Phase or Three Phase), 575 Volt (Three Phase) |
| Motor Type | High-Efficiency, Dry Motor, 4-Pole |
| Discharge Size | 3" Horizontal Flange |
| Max Flow Rate | 198 GPM @ 5' head |
| Max Head | 21 Feet |
| Solids Handling | 3" (76mm) |
| Impeller Type | Vortex (U-Type), Non-Clog |
| Pump Construction | Cast Iron (FC200 / ASTM-30) |
| Seals | Dual Mechanical Seals (Carbon/Ceramic Upper, Silicon/Carbide Lower) |
| Liquid Temp. Range | 40°C (104°F) |
| Protection | IP68, Auto-cut Thermal Protector |
| Certification | CSA Certified |
What’s Included
- HCP 80AFU21.5L Submersible Sewage Pump
- Power Cable
Key Features of HCP 80AFU21.5L Submersible Sewage Pump
Vortex Impeller
The vortex impeller creates a whirlpool effect, allowing the pump to handle fibrous materials and large solids without clogging, which ensures continuous operation in demanding wastewater applications.
Cast Iron Construction
The robust FC200 cast iron casing, motor frame, and upper cover provide exceptional durability and resistance to wear in abrasive conditions, extending the pump's service life.
Dual Mechanical Seals
An upper carbon/ceramic seal and a lower silicon/carbide seal located in a food-grade oil-filled chamber prevent liquid from entering the motor, ensuring high reliability for long-term use.
High-Efficiency Motor
The 2 HP motor is rated for high efficiency, reducing energy consumption and delivering the power needed for consistent performance in a wastewater lift station.
Guide Rail System Compatibility
A four-bolt horizontal discharge flange makes this a guide rail-compatible sewage pump replacement, simplifying installation and maintenance procedures in existing lift station setups.
CSA-Certification
As a CSA-certified submersible wastewater pump, this model meets rigorous North American standards for safety and performance, assuring its quality and compliance.

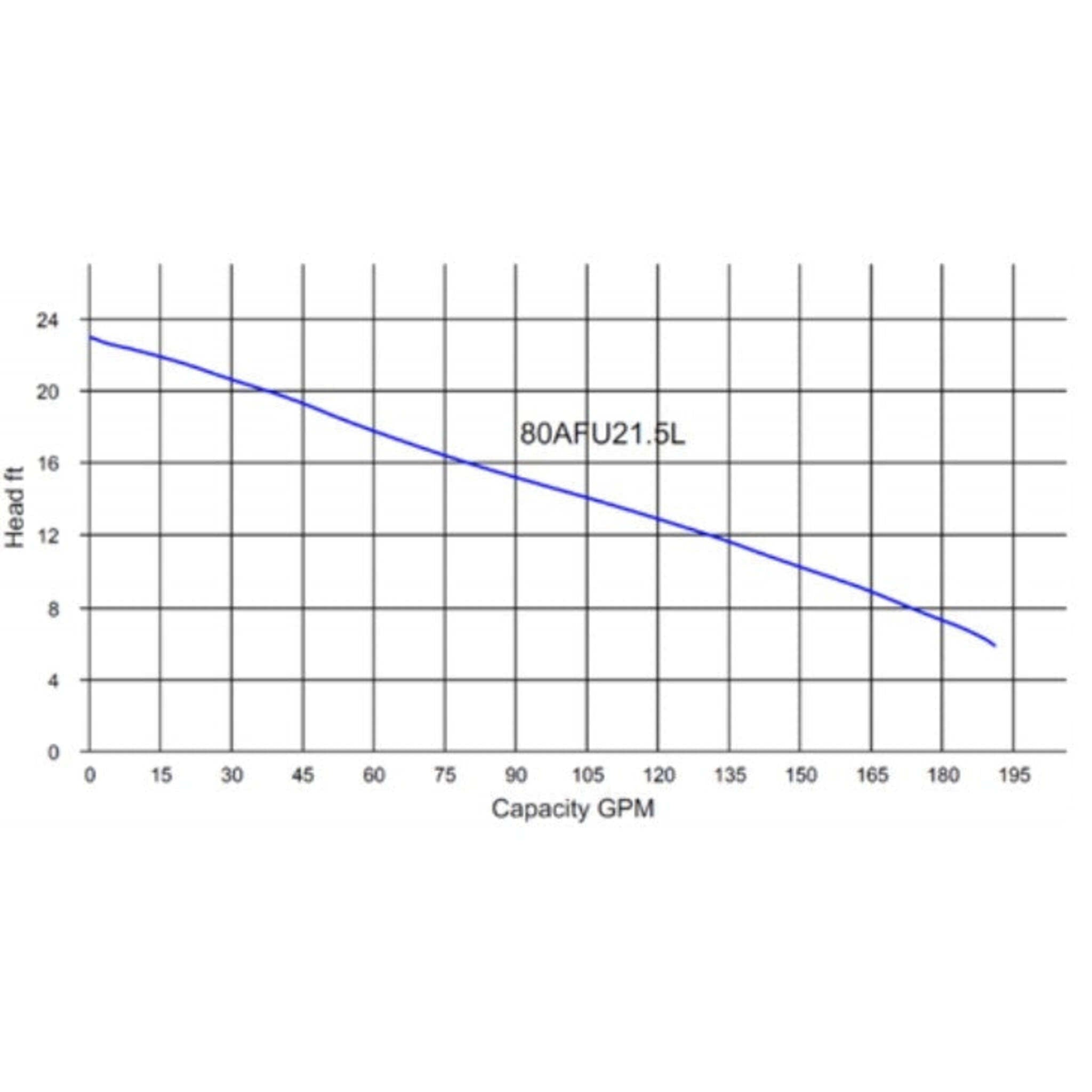

Performance Overview
This high-efficiency solids-handling sewage pump is suitable for continuous duty operation. It performs optimally under conditions with high solids content, moving up to 198 gallons per minute at a low head of 5 feet. The pump is ideal for temperature ranges between 32-104°F and is a reliable choice for lift station pump upgrades.
Applications
This 2 HP wastewater pump is a versatile solution for numerous applications, including:
- Wastewater treatment plants
- Sewage lift stations
- Municipal water treatment
- Industrial sewage pump for food processing plants
- Pulp and paper factory effluent management
- Submersible pump for mining wastewater applications
- Husbandry and poultry farm sewage
Setup & Operation Notes
- This is a submersible sewage pump and must be fully immersed during operation.
- The pump's four-bolt horizontal discharge is adaptable to most sewage pump manufacturers' guide rail systems.
- An auto-cut thermal protector is integrated to prevent motor damage from overheating during heavy use.
- For safe installation and retrieval, pair with compatible pump lifting equipment.
Accessories & Add-Ons
- Designed for use with a Guide Rail System (GRS) for easier maintenance.
- Browse our full range of sewage pump accessories to complete your installation.
Trust Cleanflow for Your Professional-Grade Pumping Needs
Cleanflow provides the full range of HCP pumps, offering durable, high-performance equipment to contractors and industrial operators across Canada and the USA. This includes the 2 HP lift station pump with a 3-inch discharge.
We help you find the right HCP pump for your needs, supported by expert guidance and reliable availability. We also offer a wide selection of other submersible dewatering pumps for various applications.
Frequently Asked Questions
What is the maximum solid size this pump can handle?
This pump features 3-inch solids handling capability, allowing it to pass solid particles up to 76 mm (3 inches) in diameter.
Is this pump suitable for continuous operation?
Yes, the HCP 80AFU21.5L submersible sewage pump is rated for continuous duty, making it a reliable non-clog pump for applications requiring constant wastewater transfer.
Can this pump be used in food processing facilities?
Yes. Its vortex impeller design and durable construction make it suitable for industrial wastewater applications, including food processing plants, pulp and paper facilities, and similar environments.
What makes a vortex impeller different?
A vortex impeller is recessed and does not make direct contact with most solids. It creates a vortex that moves fluid and debris through the casing, significantly reducing the risk of clogs from fibrous or stringy materials.
Is this model a direct replacement for other brands?
The 80AFU21.5L is well suited for lift station upgrades and replacements. Its four-bolt horizontal discharge flange is compatible with most major guide rail systems used by other manufacturers.
What does CSA-certified mean?
CSA certification means the pump has been independently tested and meets applicable Canadian and U.S. safety and performance standards for electrical and mechanical equipment.
What are the motor specifications for the HCP 80AFU21.5L?
The pump features a 2 HP high-efficiency, 4-pole dry motor with built-in thermal protection. It is available in 208–240V (single-phase or three-phase) and 575V (three-phase) configurations.
