Description

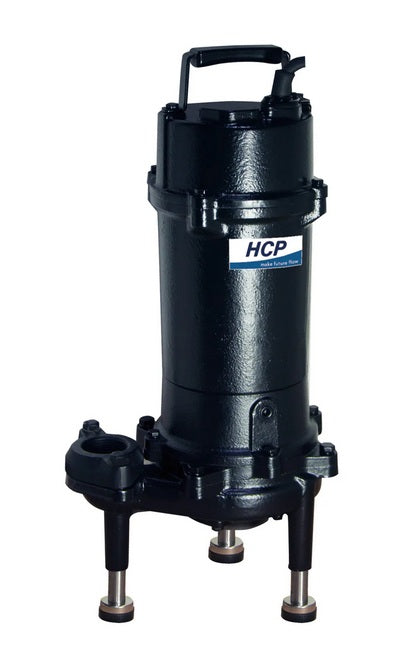

HCP 32GF21.0 Grinder Pumps | 1.3 HP Power for Demanding Sewage Applications
Engineered for the most challenging sewage environments, the HCP 32GF21.0 Grinder Pumps deliver powerful performance with unmatched durability. These 1.3 HP industrial sewage grinders are designed to effortlessly handle raw sewage, grinding solids into a fine slurry that can be pumped through long distances and small diameter pipelines with ease. Built from heavy-duty cast iron and equipped with advanced grinding technology, the HCP 32GF21.0 ensures smooth, reliable operation where ordinary sewage pumps fall short. With options available in both single-phase and three-phase voltages, these pumps are versatile solutions for residential, commercial, and industrial wastewater needs.
Key Features: Unmatched Durability and Efficiency
Robust Design: All-cast iron construction provides maximum durability and resilience for demanding applications.
High-Performance Grinding: SUS440C hardened steel radial cutter ring and cutter deliver exceptional grinding capabilities.
Versatile Motor Options: 1.3 HP, 3600 RPM motors available in both single-phase and three-phase options; single-phase motors feature built-in thermal protection.
Extended Operational Life: Dual mechanical seal system with carbon/ceramic upper and silicon carbide lower seals ensures superior motor protection.
Advanced Seal Protection: Integrated lip/oil seal offers additional defense against water, grease, and dirt ingress.
Convenient Specifications: Fitted with a 1-1/4" Female Pipe Thread discharge and a 30' power cable for flexible installation.
Accessories Available: Complement your system with sewage pump accessories including check valves, float switches, control panels, alarm panels, and hose adapters.
Upgrade Your Wastewater Management with HCP 32GF21.0 Grinder Pumps!
For reliable, heavy-duty performance in residential, commercial, or industrial sewage applications, trust the HCP 32GF21.0 Grinder Pumps. Their powerful grinding action, rugged construction, and versatile motor options ensure long-term reliability and efficiency, even in the toughest environments. Keep your wastewater systems flowing smoothly—choose HCP for proven performance.
| SPECIFICATIONS | 208/240V 1 Phase | 208/240V 3 Phase | 575V 3 Phase |
| HP | 1.3 HP | 1.3 HP | 1.3 HP |
| FLA | 6.7/6.2 Amp | 4.2/4.0 Amp | 1.6 Amp |
| Cable Length | 30 Feet | 30 Feet | 30 Feet |
| Weight | 55 Lbs | 55 Lbs | 55 Lbs |
| RPM | 3600 RPM | 3600 RPM | 3600 RPM |
| Discharge Outlet | 1-1/4" | 1-1/4" | 1-1/4" |
| Motor Frame | Cast Iron FC200 (ASTM-30) |
Cast Iron FC200 (ASTM-30) |
Cast Iron FC200 (ASTM-30) |
| Impeller | Cast Iron FC200 (ASTM-30) |
Cast Iron FC200 (ASTM-30) |
Cast Iron FC200 (ASTM-30) |
| Radial Cutter/Ring | SUS440C + Harden (HRC 55~60) |
SUS440C + Harden (HRC 55~60) |
SUS440C + Harden (HRC 55~60) |
Electrical Requirements
| Voltage | Phase | Motor | Full load amps (FLA) | Input power (W) |
|---|---|---|---|---|
| 208 V | Single phase | 1.3 HP | 6.7 A | Pending HCP sheet |
| 240 V | Single phase | 1.3 HP | 6.2 A | 1,380 W |
| 240 V | Three phase | 1.3 HP | 4 A | 1,360 W |
| 575 V | Three phase | 1.3 HP | 1.6 A | 1,360 W |
60 Hz. FLA is the rated current HCP lists for each motor; use it to size the breaker, wiring and overload protection. Input power is the rated input (P1) HCP lists for each motor, the electrical power drawn at rated load, not shaft output.
