HCP 5 HP 3" Sewage Lift Station Pump - 2" Solids Handling | Cast Iron | Vortex Impeller | High-Efficiency Motor | Dual Seal | CSA Certified

HCP Cast Iron Municipal 3" Sewage Pump with Vortex Impeller: High Efficiency, Durable, Ideal for Lift Station Pump Replacements and Upgrades

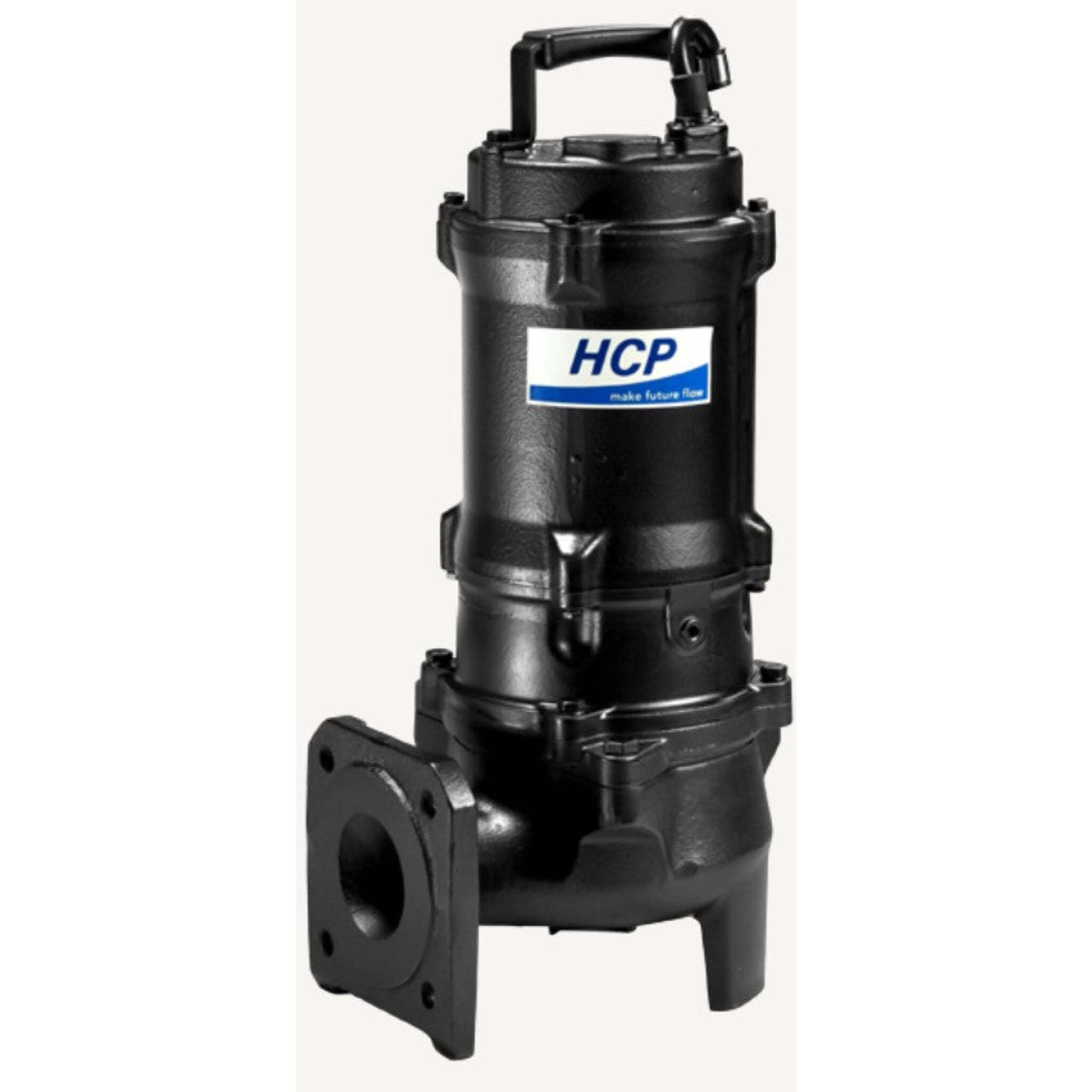

The HCP 80AFU23.7A Sewage Pump is a 5 HP municipal quality cast iron pump with a 3" horizontal flange discharge. It features a high-efficiency dry motor and is compatible with common voltages and phases, making it ideal for small lift station pump replacements. The four-bolt horizontal discharge is adaptable to most guide rail systems, including Flygt, Hydromatic, Myers, Barnes, and Grundfos. These pumps are available off-the-shelf for quick delivery at an attractive price. The cast iron vortex impeller efficiently handles cloth wipes and stringy objects. It has a dual seal design with carbon/ceramic upper seal and silicon/carbide lower seal in a food-grade oil-filled chamber, a lip/oil seal for protection and an epoxy resin seal cable base to prevent moisture entry.

Key Features: Reliable and Efficient

• High Efficiency Dry Motor: Ensures optimal performance and energy savings.
• Versatile Compatibility: The four-bolt horizontal discharge adapts easily to most sewage pump manufacturer's guide rail systems.
• Quick Delivery: Stocked in common flow and hydraulic head configurations and readily available for fast delivery.
• Durable Construction: Made with robust FC200 Cast Iron (ASTM-30) designed to handle cloth wipes and other stringy objects that commonly clog standard sewage pumps.
• Dual Seal Design: Features carbon/ceramic upper seal and silicon/carbide lower seal bathed in a food-grade oil-filled chamber, with a lip/oil seal to prevent water, grease, and dirt ingress, extending the mechanical seals' life.
• Epoxy Resin Seal Cable Base: Prevents moisture from entering the motor through the core wires.

• Easy to Install: Dimensions are 11-1/4" x 8-3/4" x 23-1/4" tall, weighing 99 lbs, making it straightforward to handle and set up.

Specifications:

• Cable Length: 30'

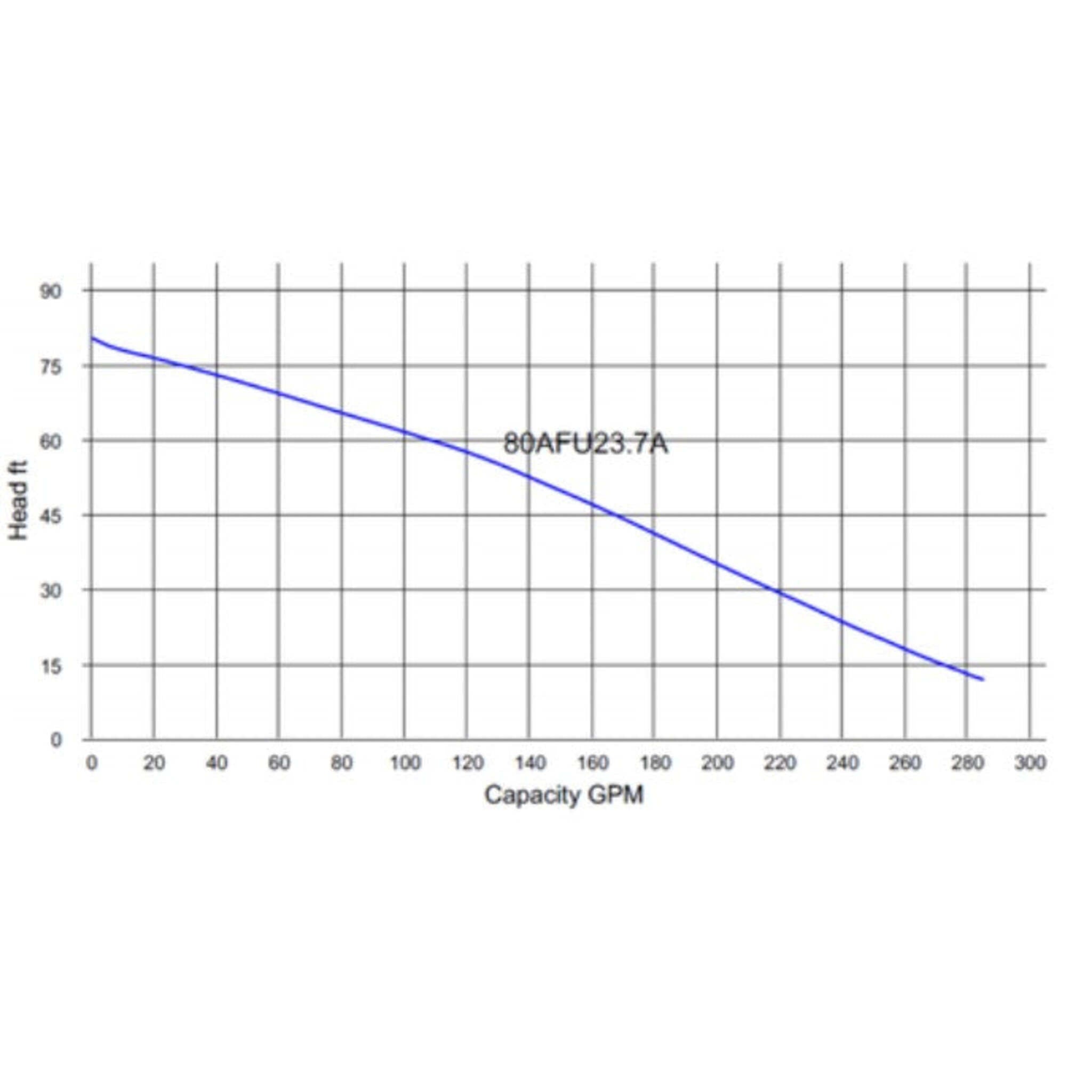

• Maximum Flow: 290 GPM @ 11' head
• Maximum Head: 75 Feet / 24 GPM
• Certification: CSA certified
• Solids Handling: Capable of handling 2" solids

• Available Accessories:

  See our Sewage Pump Accessories collection for hose nipples, hose clamps, check valves, pump adapters and control panels.

  See out Pump Lifting Equipment collection for grip eyes and pump chains, lifting davits and hoists, and guide rail pump removal systems.

Elevate Your Sewage System Efficiency

Upgrade your sewage system with the HCP 80AFU23.7A Sewage Pump. Designed for durability and efficiency, this cast iron sewage pump ensures your lift station operates smoothly and reliably, handling large solids effortlessly.
