Description

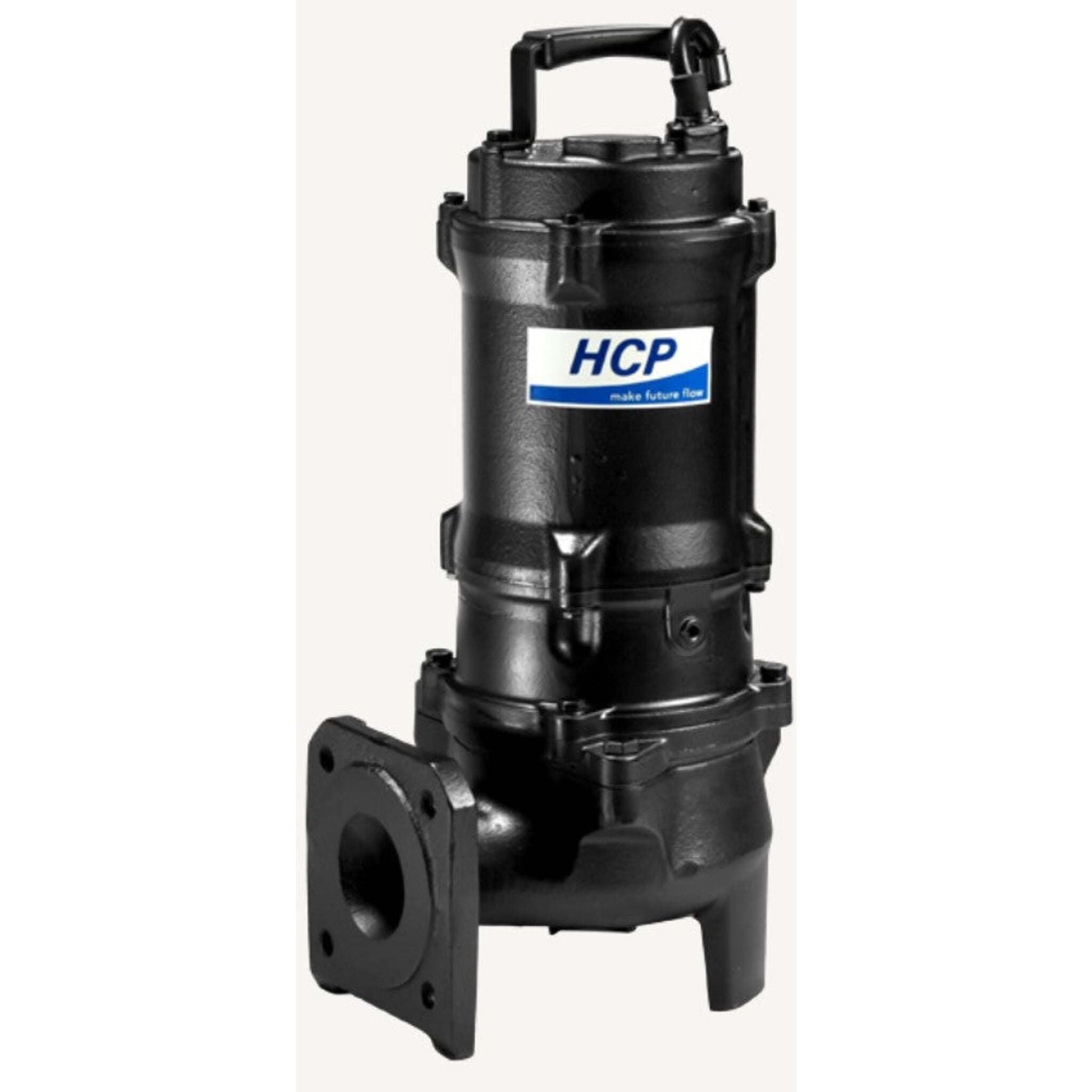

Heavy-Duty Submersible Sewage Lift Station Pump for Municipal and Industrial Wastewater Applications
Upgrade your wastewater management with the HCP 80AFU23.7A Sewage Pump, a reliable and efficient 5 HP municipal-grade solution. Built with durable cast iron, it’s perfect for small lift station pump replacements and system upgrades, offering top quality at a great price.
The HCP 80AFU23.7A is adaptable to most guide rail systems, including Flygt, Hydromatic, Myers, Barnes, and Grundfos, thanks to its 3" four-bolt horizontal flange discharge. Its high-efficiency dry motor, available in common voltage and phase options, ensures easy installation and minimal downtime.
Key Benefits of this 5 HP Sewage Lift Station Pump
- Handles solids-laden fluids efficiently, passing solids up to 2 inches (50mm) to prevent clogs and maintain flow.
- Ensures long-term reliability with a durable dual mechanical seal system.
- Withstands harsh sewage and industrial conditions with rugged FC200 cast iron construction.
- Prevents motor burnout with a built-in automatic thermal protector.
- Performs consistently during continuous duty cycles in wastewater systems.
- Simplifies installation and maintenance as a replacement pump for sewage lift station guide rails.
- Offers superior corrosion resistance with an epoxy protective coating for industrial wastewater and chemicals.
HCP AF Series 5 HP Sewage Pump Specifications
| Category | Details |
|---|---|
| Product Series | AF Series |
| Horsepower (HP) | 5 HP (3.7 kW) |
| Discharge Size | 3" (80mm) |
| Solids Handling | Up to 2" (50mm) |
| Impeller Type | Vortex (U-Type) |
| Motor Type | 3-Phase, High-Efficiency Dry Motor |
| Motor Speed | 1800 RPM (4-Pole) |
| Voltage | 3 Phase (Various options available) |
| Construction | Cast Iron (FC200) |
| Sealing System | Dual Mechanical Seals |
| Protection Class | IP68 |
| Insulation Class | F |
| Liquid Temperature | 0-40°C (32-104°F) |
| Certification | CSA Certified |
What’s Included:
- HCP AF Series 5 HP Submersible Sewage Pump
- Power Cable (length varies by specific model)
Key Features of the HCP AF Series Sewage Pump
Cast Iron Vortex Impeller
The FC200 cast iron vortex impeller creates a whirlpool effect, allowing fibrous material and solids to pass through the pump without direct contact, significantly reducing the risk of clogging and wear in your 3 Inch Lift Station Pump.
High-Efficiency Dry Motor
This submersible wastewater pump 5 HP features a premium dry-type motor with Class F insulation and an integrated auto-cut protector. This ensures reliable power, prevents overheating, and extends the motor's operational life.
Dual Mechanical Seal System
An advanced dual mechanical seal configuration provides superior protection against water ingress into the motor chamber, a critical feature for any dual seal submersible pump for industrial use.
IP68 Protection Class
The pump is fully submersible and dust-tight, certified to the IP68 standard. This robust sealing ensures dependable operation even when completely submerged in sewage lift stations or wastewater basins.
Durable Cast Iron Construction
The pump casing, motor frame, and upper cover are all made from FC200 cast iron, providing exceptional durability and abrasion resistance required for a municipal sewage pump. The epoxy protective coating adds a layer of corrosion resistance.
Performance Overview
This 3 inch discharge vortex impeller sewage pump is built for continuous duty, reliably managing flow under the high-head conditions found in lift stations. Its vortex impeller design allows it to maintain performance even when handling wastewater with significant solid content, making it an excellent choice for demanding industrial and municipal applications.
Applications
- Municipal sewage lift stations
- Industrial effluent pumping
- Wastewater treatment plants
- Commercial building sewage management
- Livestock and poultry farm sewage systems
- Pulp, paper, and mining industry wastewater
Installation & Usage Guidelines
- This pump is designed for fully submersible operation.
- Compatible with guide rail systems (GRS) for easy installation and removal, making it a perfect replacement pump for sewage lift station guide rails.
- Ensure the voltage and phase match your electrical supply before installation.
- Professional installation is highly recommended to ensure safety and optimal performance.
Accessories & Add-Ons
- Compatible Accessories: Enhance your system with our collections of sewage pump accessories and pump lifting equipment.
- Other Pump Options: For different applications, explore our wide range of submersible dewatering pumps.
Your High-Performance Pumping Solution from Cleanflow
Cleanflow offers a complete lineup of the HCP pump collection, providing contractors and industrial operators across Canada and the USA with durable, high-performance equipment. We ensure you get the right pump for your job, backed by expert support and reliable availability. This HCP AF Series cast iron submersible sewage pump is a proven solution for your toughest wastewater challenges.
Frequently Asked Questions
What is the maximum solid size this 5 HP sewage pump can handle?
This sewage pump is equipped with a vortex impeller capable of handling solids up to 2 inches (50 mm) in diameter.
Is this sewage pump suitable for continuous operation?
Yes, the high-efficiency 3-phase motor and robust cast iron construction are designed for continuous duty when properly submerged and operated within its performance curve in municipal sewage systems.
What materials is the pump made from?
The pump casing, motor frame, and impeller are constructed from FC200 cast iron for durability and abrasion resistance. A high-solids epoxy coating provides additional corrosion protection.
Can this pump be used with a guide rail system?
Yes, the pump is designed for installation on guide rail systems (GRS), simplifying maintenance and replacement in sewage lift station applications.
What does the IP68 protection rating mean?
An IP68 rating indicates the pump is completely protected against dust ingress and can be continuously submerged in water beyond 1 meter in depth under specified conditions.
Is this a CSA-certified municipal wastewater pump?
Yes, this model carries CSA certification and meets North American electrical safety standards for municipal and industrial wastewater applications.
What is the main advantage of a vortex impeller?
A vortex impeller creates a whirlpool effect that moves fluid and solids without direct contact with the impeller vanes, significantly reducing the risk of clogging from fibrous or stringy materials in wastewater.
