Description

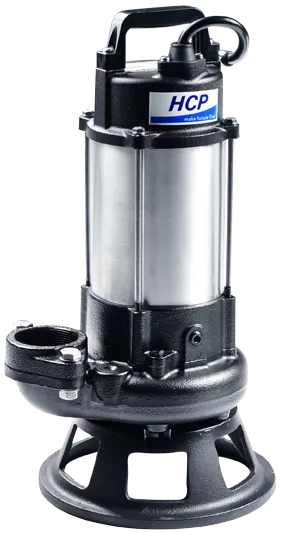

HCP FN-2.5U Effluent Pump for Low-Pressure Sewer and Light Sewage
Product Overview
In septic systems, low-pressure sewer lines, and below-grade basins, the HCP FN-2.5U submersible effluent pump moves effluent and light sewage on 120V power. Its 0.5 HP motor delivers up to 70 GPM (about 4,200 GPH), and a non-clog vortex impeller passes solids up to 1-3/8 inches (35 mm).
Quick Specs
- Horsepower: 0.5 HP (0.4 kW)
- Voltage / Phase: 120V 1-phase (also 208/240V and 575V 3-phase), 6 A at 120V, 60 Hz
- Discharge: 2 inch (50 mm), Female NPT
- Max Flow: 70 GPM (about 4,200 GPH)
- Max Head: 34 ft
- Solids Handling: 1-3/8 inch (35 mm)
- Impeller: Non-clog vortex
- Cord: 30 ft, 3-prong 120V plug
Key Features of HCP FN-2.5U Submersible Effluent Pumps
- The non-clog vortex impeller passes solids up to 1-3/8 inch (35 mm), so the FN-2.5U moves effluent and light sewage that would jam a clean-water pump.
- An open inlet with no bottom strainer lets stringy solids pass straight into the volute instead of catching on a screen.
- A cast-iron (FC200) casing with a 304 stainless steel motor frame stands up to continuous wastewater duty.
- Twin mechanical seals, carbon/ceramic over silicon carbide, run in an oil-filled chamber to keep sewage out of the motor. On the 120V model, a thermal protector and moisture sensor add a second layer of protection.
- The IP68 sealed motor is rated for full submersion to 33 ft (10 m), for permanent basin and chamber installs.
Specifications
| Category | Details |
|---|---|
| Brand | HCP |
| Model | FN-2.5U |
| SKU (by voltage) | FN-2.5U-6117EPE3NX (120V), FN-2.5U-63AOEXE4NX (240V), FN-2.5U-635OEXE4NX (575V) |
| Product Type | Submersible effluent / light-sewage pump |
| Motor Output | 0.5 HP (0.4 kW); input 0.67 kW |
| Voltage Options | 120V 1-phase, 208/240V 3-phase, 575V 3-phase, 60 Hz |
| Rated Current | 6 A (120V 1-phase) |
| Start Method | Capacitor (120V) |
| Speed | 3380 rpm (2 pole) |
| Insulation Class | B |
| Discharge | 2 inch (50 mm), Female NPT |
| Max Flow | 70 GPM (about 4,200 GPH) |
| Max Head | 34 ft |
| Solids Handling | 1-3/8 inch (35 mm) |
| Inlet | Open (no strainer), passes solids |
| Impeller | Non-clog vortex, PA+G50 (glass reinforced) |
| Mechanical Seal | Double (carbon/ceramic upper, silicon carbide lower), oil-filled (VG32, 190 cc) |
| Casing / Volute | Cast iron (FC200) |
| Motor Frame | 304 stainless steel (SUS304) |
| Shaft | SUS410 stainless |
| Cooling | External |
| Protection Devices | Thermal protector and moisture sensor (120V 1-phase) |
| Ingress Protection | IP68 |
| Max Submersion Depth | 33 ft (10 m) |
| Max Liquid Temp | 104F (40C) |
| Max Starts per Hour | 10 |
| Cord | 30 ft, SJOW, 3-prong 120V plug |
| Weight | 31 lb (14 kg), less cable |
| Certifications | cUL (UL778), CSA C22.2 No. 108-14 |
| Manufacturer | HCP Pump Manufacturer Co., Ltd. |
Performance Overview
The FN-2.5U delivers up to 70 GPM and lifts to about 34 ft. It fits effluent transfer and low-pressure sewer runs that need steady flow through a 2-inch line more than high lift.
Where the FN-2.5U fits by solids handling
Solids passage separates these pump types. The FN-2.5U sits between a filtered-effluent pump and a full sewage ejector.
| Pump type | Solids passed | Typical use |
|---|---|---|
| Effluent pump | up to about 3/4 inch | Filtered septic effluent |
| HCP FN-2.5U | up to 1-3/8 inch (35 mm) | Effluent and light sewage |
| Sewage ejector | up to 2 inch | Raw residential sewage |
Applications
- Effluent transfer from septic and treatment tanks
- Low-pressure sewer (LPS) and pressurized dosing systems
- Below-grade sewage basins in homes and small commercial buildings
- Mound and aerobic on-site wastewater systems
- Effluent chambers and pump vaults
Set it in a basin with a check valve and control panel from the sewage pump accessories collection.
Buy the HCP FN-2.5U Submersible Effluent Pump Online from Cleanflow
For effluent transfer, low-pressure sewer, and light sewage, the HCP FN-2.5U submersible effluent pump moves up to 70 GPM and passes 1-3/8 inch solids on standard 120V power. Cleanflow Utility Supply Company is an authorized HCP dealer, stocking and shipping HCP pumps across Canada and the continental USA, with free shipping on orders over $199.
Browse the full effluent pumps range, then add the FN-2.5U to your cart or contact us to size the right pump for your system.
Frequently Asked Questions
Does the HCP FN-2.5U replace the F-05U?
Yes. The FN-2.5U is HCP's replacement for the discontinued F-05U, with the same 0.5 HP, 2 inch effluent format and an updated FN-series motor. It comes in 120V, 240V, and 575V, so an F-05U swaps out without changing the discharge.
What size solids does the FN-2.5U pass?
Up to 1-3/8 inch (35 mm), through a non-clog vortex impeller. That covers effluent and light sewage. For raw sewage with solids up to 2 inches, step up to a full sewage ejector.
Effluent pump or sewage pump, what is the difference?
An effluent pump like the FN-2.5U moves liquid with smaller solids (here, up to 1-3/8 inch) from septic and low-pressure sewer systems. A sewage ejector handles raw sewage with solids up to 2 inches. Match the pump to the solids your system produces.
How much does the FN-2.5U move, and how high?
Up to 70 GPM (about 4,200 GPH), with a maximum head near 34 ft. Flow is highest at low lift and falls as the head rises.
Is the FN-2.5U certified, and does it have motor protection?
Yes. It carries CSA C22.2 No. 108-14 and cUL (UL778), with an IP68 sealed motor. The 120V model includes a built-in thermal protector and a moisture sensor.
