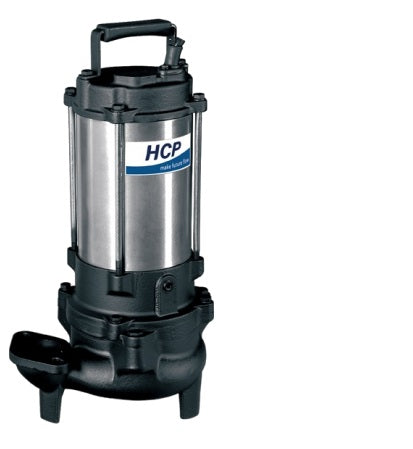

HCP FN-22UL Submersible Sewage Pump – 2 HP, 208-575V, 175 GPM

Heavy-Duty 2 Inch Solids Handling Pump for Septic and Industrial Wastewater

Product Overview

The HCP FN-22UL is a submersible sewage pump for demanding effluent drainage applications. It handles wastewater containing solids up to 2 inches in residential, commercial, and industrial settings. Constructed with a cast iron volute and stainless steel motor frame, it resists corrosion while managing heavy loads. The non-clogging vortex impeller allows stringy materials to pass without blockage, making it ideal for septic tanks and sewage pits. HCP is Taiwan's most successful submersible pump manufacturer, known for reliability.

Key Benefits of the HCP FN-22UL Submersible Sewage Pump

• Delivers efficient wastewater removal with a maximum flow rate of 175 GPM.
• Processes 2-inch solids handling easily to prevent system clogs and downtime.
• Resists corrosion in harsh environments thanks to a cast iron and stainless steel motor frame construction.
• Protects against motor burnout with built-in thermal protection on single-phase models.
• Ensures extended operational life with double mechanical seals in a food-grade oil-filled chamber.
• Reduces maintenance needs with a vortex impeller pump for handling stringy solids efficiently.
• Meets safety standards as a CSA-certified submersible sewage pump for commercial use.

HCP FN-22UL Sewage Pump Specifications

What’s Included

• HCP FN-22UL Submersible Sewage Pump
• 30-ft Power Cable

Key Features of HCP FN-22UL Sewage Pump

Vortex Impeller Design

The U-type vortex impeller creates a whirlpool effect to pass stringy materials and sewage solids without contact, preventing clogging in the pump volute.

Double Mechanical Seals

Carbon/ceramic and silicone carbide seals housed in an oil-filled chamber ensure superior leak protection and durability against abrasive liquids.

Auto-Cut Thermal Protector

Single-phase models automatically shut off the motor during overheating or excess amperage draw to prevent failure and extend motor life.

Epoxy Resin Cable Base

The cable entry features an epoxy resin seal that prevents moisture from wicking into the motor through the core wires, protecting internal components.

Stainless Steel Motor Frame

The 304 stainless steel housing provides excellent heat dissipation and superior corrosion resistance compared to standard cast iron frames.

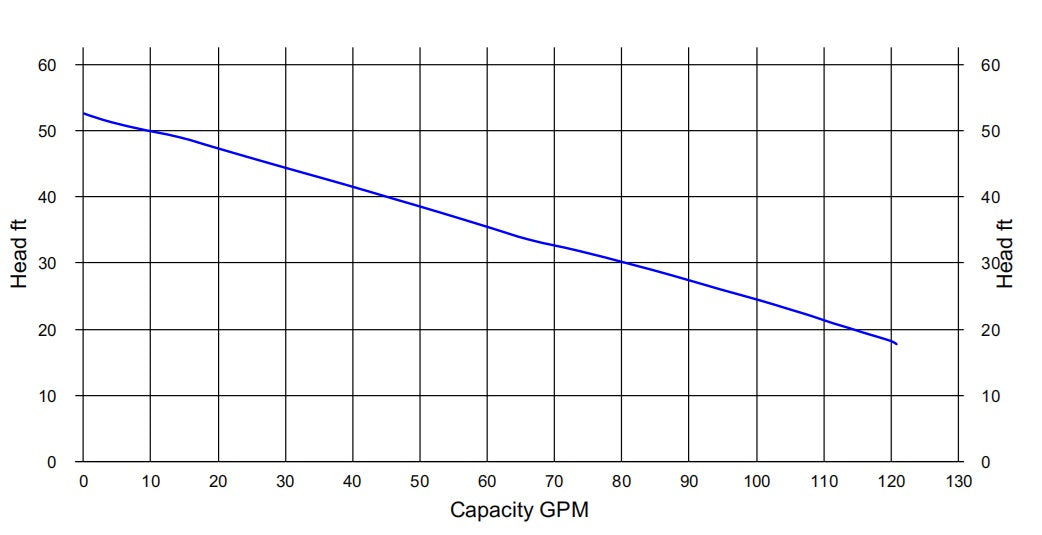

Performance Overview

This sewage pump maintains stable flow performance across varying lift conditions, with reduced discharge as head pressure increases. It is suitable for continuous submerged duty and operates reliably within wastewater temperature ranges between 32°F and 104°F (0–40°C).

Applications

• Residential septic tanks
• Industrial wastewater pump stations
• Commercial building sewage drainage
• Agricultural waste management
• Basement sewage pits and ejector systems
• Effluent transfer systems
• Low-pressure sewer systems

Common Use

• Emptying septic tanks
• Pumping residential sewage pits
• Transferring industrial wastewater
• Managing effluent in commercial buildings
• Handling solids-laden drainage systems

Installation & Use Notes

• Requires a check valve on the discharge line to prevent backflow.
• Must be operated within the liquid temperature range of 0~40°C.
• Do not run dry; ensure the pump remains submerged during operation to maintain cooling.
• Single-phase models include internal thermal protection; three-phase models require external overload protection.
• Confirm your voltage requirements (208/240V or 575V) before installation.

Accessories & Add-Ons

• Automate your system with a 240-volt float switch.
• Find necessary fittings in our Sewage Pump Accessories collection.
• Safely install and retrieve your unit with Pump Lifting Equipment.
• For applications that require only clear water removal, consider our submersible dewatering pumps.

Get the HCP FN-22UL Professional-Grade Sewage Pump

Cleanflow provides the HCP FN-22UL as a robust solution for contractors and facility managers. As a trusted supplier of the HCP pump line, we ensure you receive authentic, cUL listed sewage pumps for basement drainage and industrial use backed by technical expertise. We stock parts and pumps to minimize your downtime.

Frequently Asked Questions
