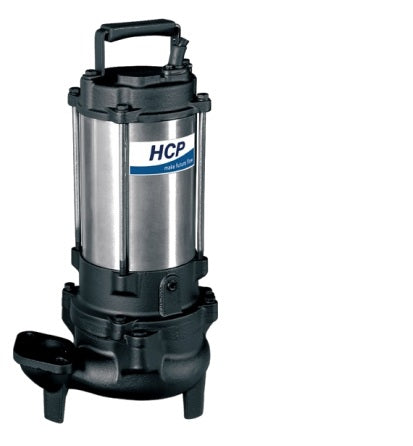

HCP FN-23UL Submersible Sewage Pump – 3 HP, 208-575V, 140 GPM

Heavy-Duty Sewage Pump for Industrial Wastewater and Lift Stations

Product Overview

The HCP FN-23UL sewage pump is a submersible wastewater pump built for moving sewage and effluent in residential and industrial settings. It operates efficiently in lift stations, septic tanks, and factory drainage systems. Constructed with a cast iron volute and 304 stainless steel motor frame, it features a vortex impeller for clogging resistance.

Key Benefits of the HCP FN-23UL Sewage Pump

• Passes stringy materials and waste without clogging using a vortex impeller sewage pump design.
• Handles difficult debris with a 2-inch solids handling pump capacity to prevent system blockages.
• Resists corrosion in harsh environments thanks to cast iron and stainless steel vortex pump construction.
• Protects the motor from burnout with a built-in auto-cut thermal protector.
• Prevents leaks and extends service life via dual mechanical seals in an oil-filled chamber
• Adapts to various power supplies as available in 208–240V single or three-phase and 575V three-phase configurations.
• Simplifies maintenance with a compact design weighing 73 lbs.

HCP FN-23UL 3 HP Pump Specifications

What’s Included

• HCP FN-23UL Submersible Sewage Pump
• 30-ft Power Cable
• Epoxy Resin Sealed Cable Base

Available Voltage & Phase Options

The FN-23UL is available in 208–240V single-phase, 208–240V three-phase, and 575V three-phase configurations. Confirm available service voltage and phase before installation.

Key Features of HCP FN-23UL

Vortex Impeller

Creates a whirlpool effect to pass stringy solids up to 2 inches without contacting the impeller vanes, reducing wear and clogging.

Dual Mechanical Seals

Carbon/ceramic upper and silicone carbide lower seals isolate the motor in an oil-filled chamber for superior durability and leak prevention.

Auto-Cut Protector

Automatically shuts off the motor during overheating or excess amperage to prevent failure and ensure safety.

Epoxy Cable Base

Blocks moisture from wicking into the motor through the core wires, a common cause of pump failure in submerged conditions.

Cast Iron & Stainless Construction

Combines a rigid cast iron pump end with a corrosion-resistant 304 stainless steel motor housing for long-term reliability.

Performance Overview

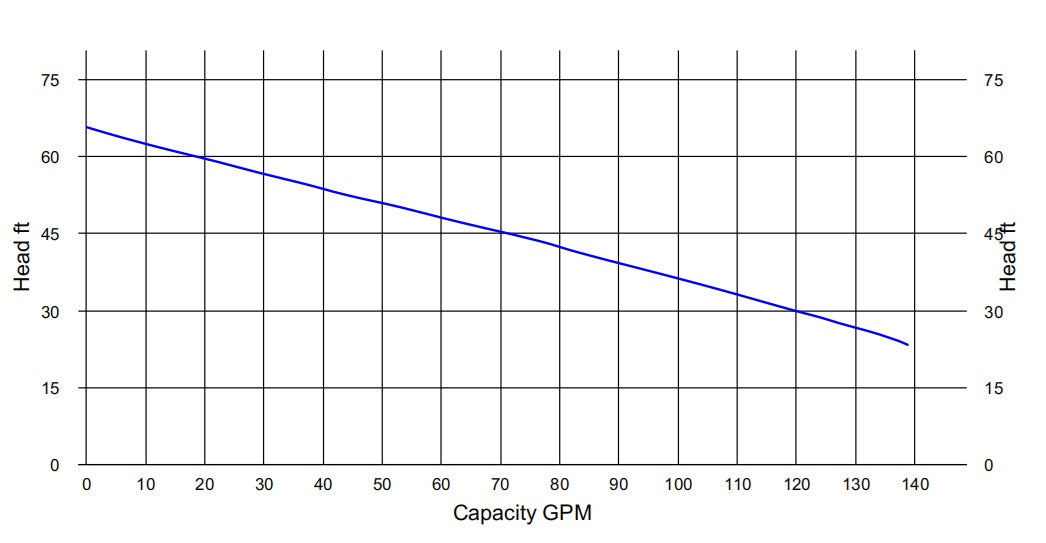

This 3 HP submersible sewage pump delivers high head performance up to 65 feet and flows reaching up to 140 GPM. It is suitable for continuous duty when fully submerged and operated within its performance curve.

Applications

• Sewage pump for factory wastewater drainage
• Septic tank pumping and effluent transfer
• Residential and commercial lift stations
• Industrial drainage pump systems
• Agricultural waste management
• Basement sewage ejection
• Heavy-duty septic pump replacement

Installation & Usage Instructions

• Requires a 2-inch discharge pipe connection.
• Must be submerged to ensure proper motor cooling; do not run dry for extended periods.
• Verify voltage matches the specific model (Single or Three Phase) before connection.
• Use with a check valve to prevent backflow in vertical lifts.
• This is a submersible pump for 2-inch stringy solids only; not designed for grinding hard objects like stones.

Accessories & Add-Ons

• Pair with Sewage Pump Accessories like check valves and hose clamps for secure installation.
• Use Pump Lifting Equipment, such as stainless steel chains, for safe maintenance removal.
• For clear water applications without solids, consider submersible dewatering pumps.

The Cleanflow Professional Pumping Solution

Cleanflow supplies the robust HCP FN-23UL pump to contractors demanding a reliable CSA-certified 3 HP industrial sewage pump. We provide quick shipping across Canada and the USA. Trust an HCP pump for your critical infrastructure needs.
