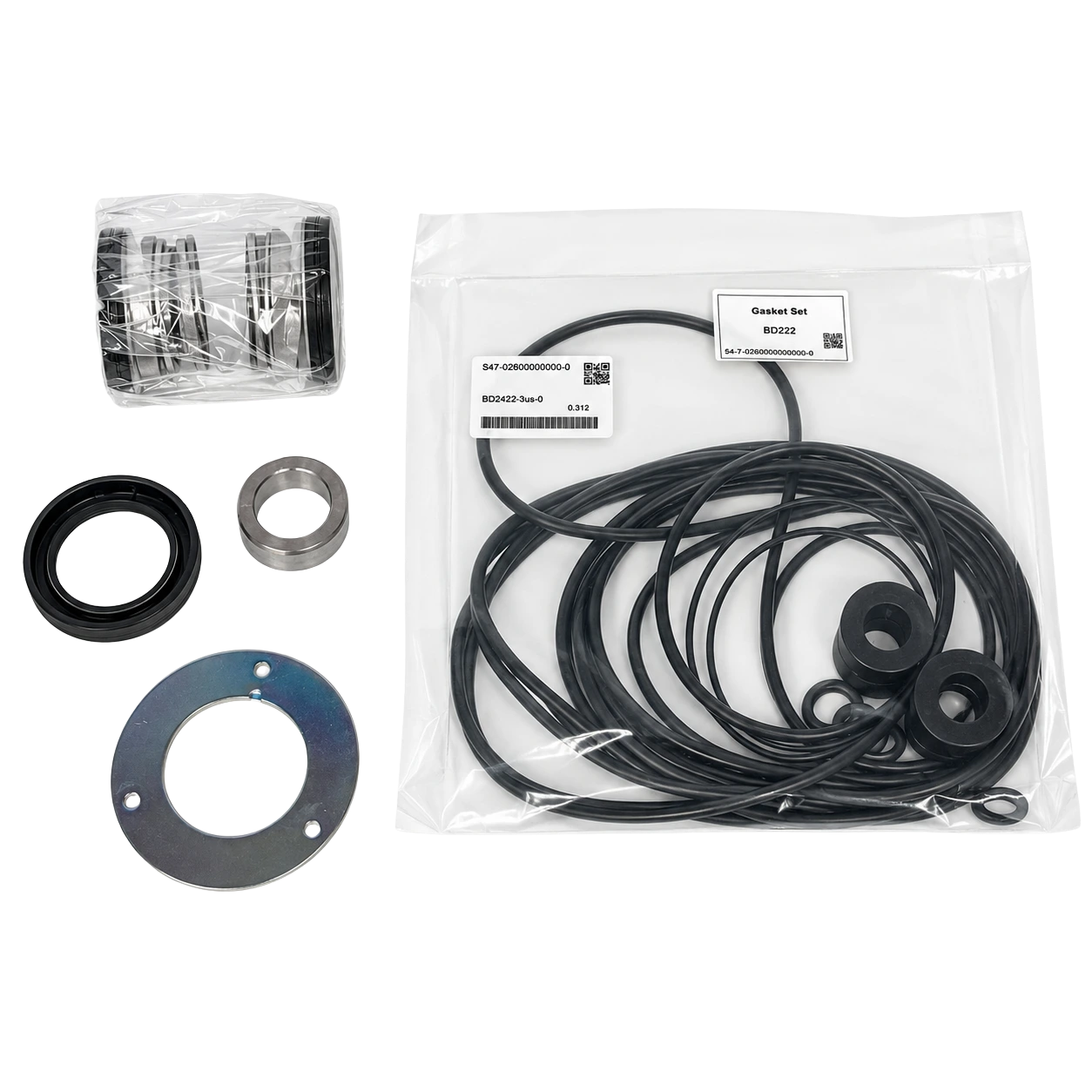

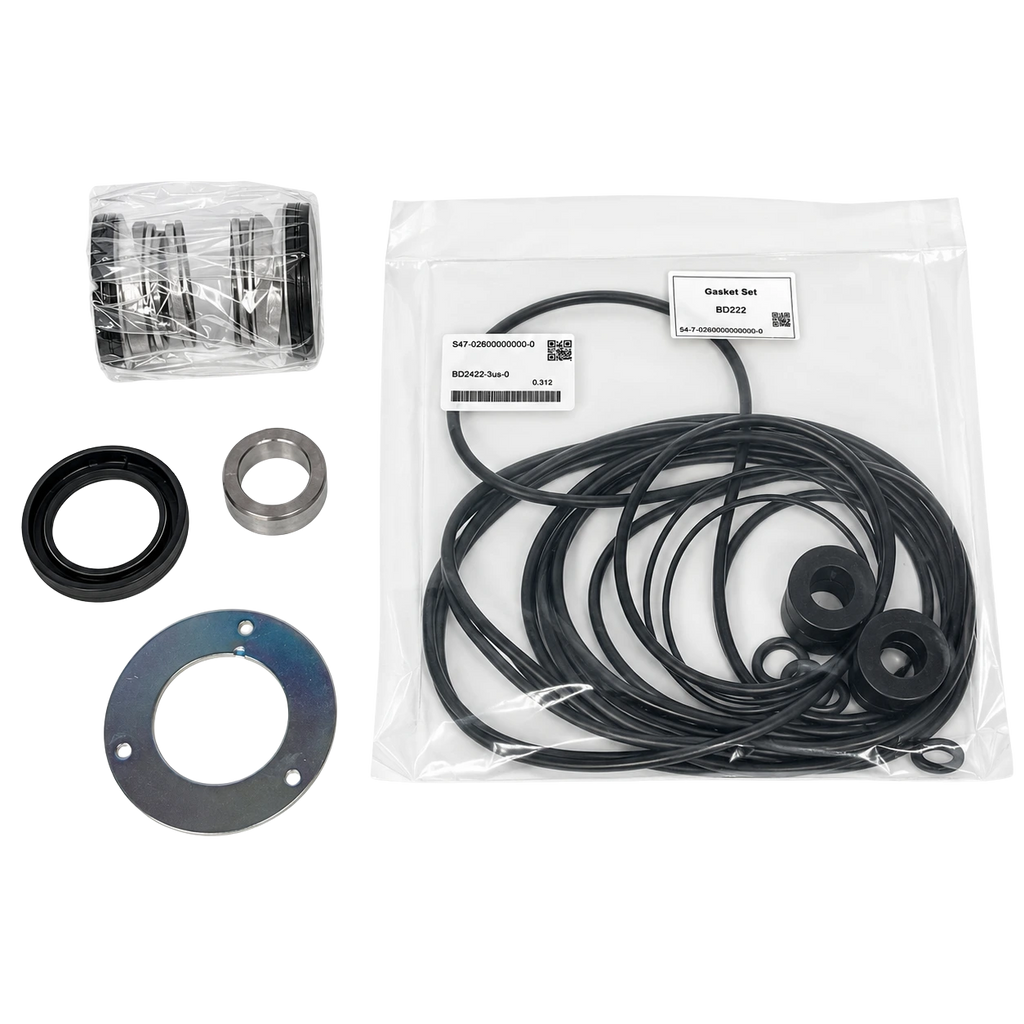

HCP Mechanical Seal Kit S21B200G05

HCP GD/GDN Grinder Pumps for Low-Pressure Sewer Systems and Long-Distance Sewage Transfer

Product Overview

When a gravity sewer is not available and the discharge line has to run hundreds of feet through a small-diameter pressure pipe, a standard sewage ejector cannot do the job. The HCP GD and GDN grinder pumps macerate sewage into a fine slurry and push it through 1-1/4 inch lines at heads up to 90 ft. Two motor sizes cover residential through light-commercial loads.

Quick Specs

Key Features of HCP GD/GDN Grinder Pumps

• The hardened steel cutter and shredder ring macerate sewage, rags, wipes, and soft solids into a fine slurry that passes through a 1-1/4 inch discharge line. This is what separates a grinder pump from a sewage ejector: grinders reduce waste to slurry, ejectors pass solids whole through a larger pipe.
• At 57 ft (1 HP) and 90 ft (2 HP) of head, the GD/GDN pumps push slurry through small-diameter pressure lines over distances that stall a vortex ejector. This makes them practical for low-pressure sewer systems, rural properties, and buildings far from the gravity main.
• A cast-iron (FC200) casing and volute with a 304 stainless steel motor frame handle continuous sewage duty. Double mechanical seals (carbon/ceramic upper, silicon carbide lower) run in an oil-filled chamber to keep sewage out of the motor.
• The 120V and 240V single-phase models include an auto-cut thermal protector and moisture sensor. Three-phase models use external overload protection. All models are IP68 sealed and rated for permanent submersion to 33 ft (10 m).
• cUL (UL778) and CSA C22.2 No. 108-14 certified across all variants.

Specifications

Performance Overview

Grinder pump curves are steep: high head at low flow, with flow dropping off quickly as head rises. The GD-2.5 / GDN-2.5 reaches 57 ft; the GD-21 / GDN-21 reaches 90 ft. Size the pump to the total dynamic head (vertical lift plus friction loss) of your pressure line.

Grinder pump vs sewage ejector

Both move sewage, but they work differently and fit different piping systems.

Applications

• Low-pressure sewer (LPS) systems where gravity sewer is not available
• Rural and semi-rural properties with long runs to the municipal connection
• Basement bathrooms and below-grade basins where the discharge must travel through small-diameter pressure pipe
• Seasonal properties, cottages, and remote buildings
• Light-commercial sewage grinding for restaurants, shops, and small office buildings

Build it into a basin with a check valve and control panel from the sewage pump accessories collection.

Buy HCP GD/GDN Grinder Pumps Online from Cleanflow

When the sewer main is far away and the pipe has to be small, the HCP GD and GDN grinder pumps macerate sewage and push it through 1-1/4 inch lines at heads up to 90 ft. Cleanflow Utility Supply Company is an authorized HCP dealer, stocking and shipping HCP pumps across Canada and the continental USA, with free shipping on orders over $199.

Browse the full sewage pumps and grinder pumps range, then add the GD or GDN to your cart or contact us to size the right grinder for your pressure line.
