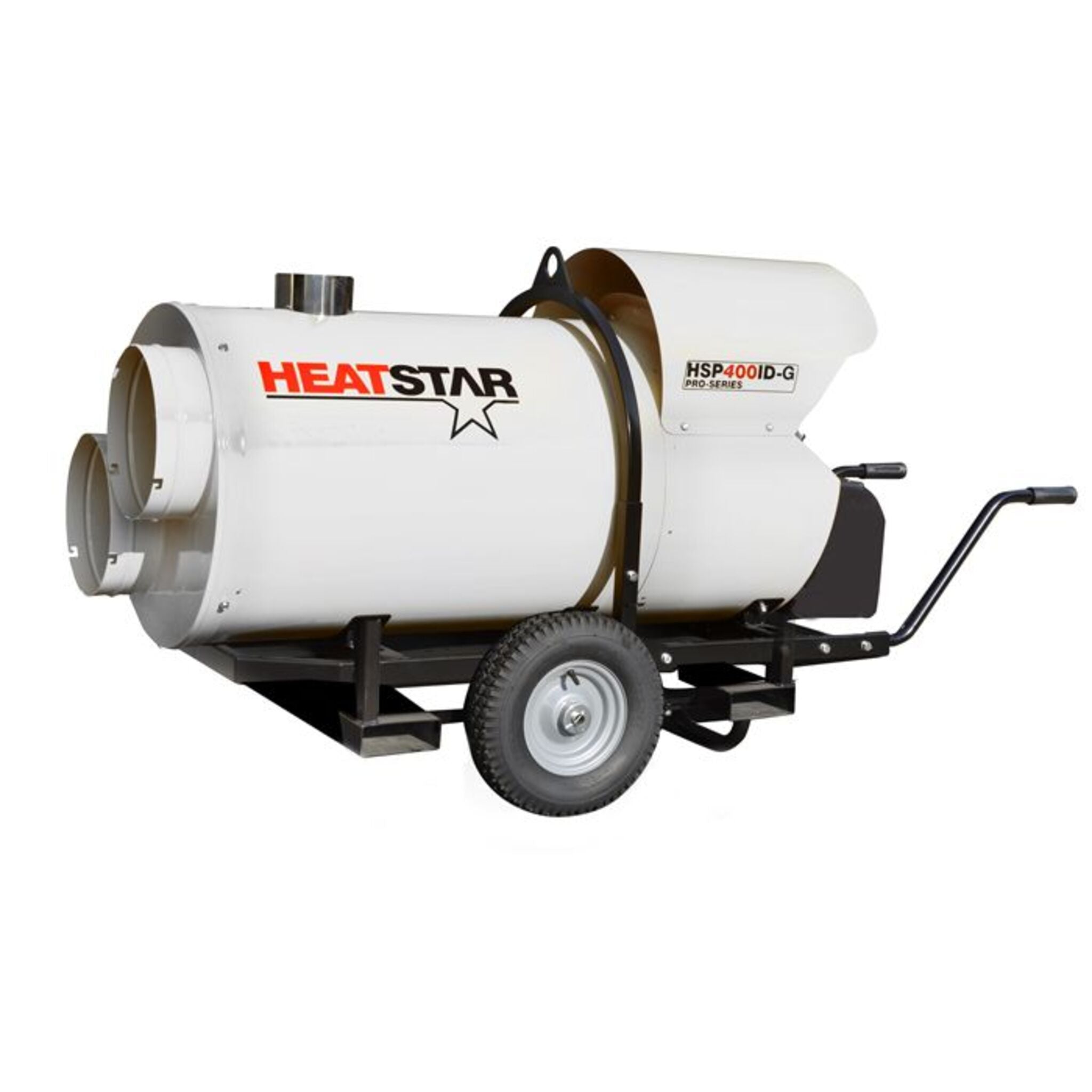

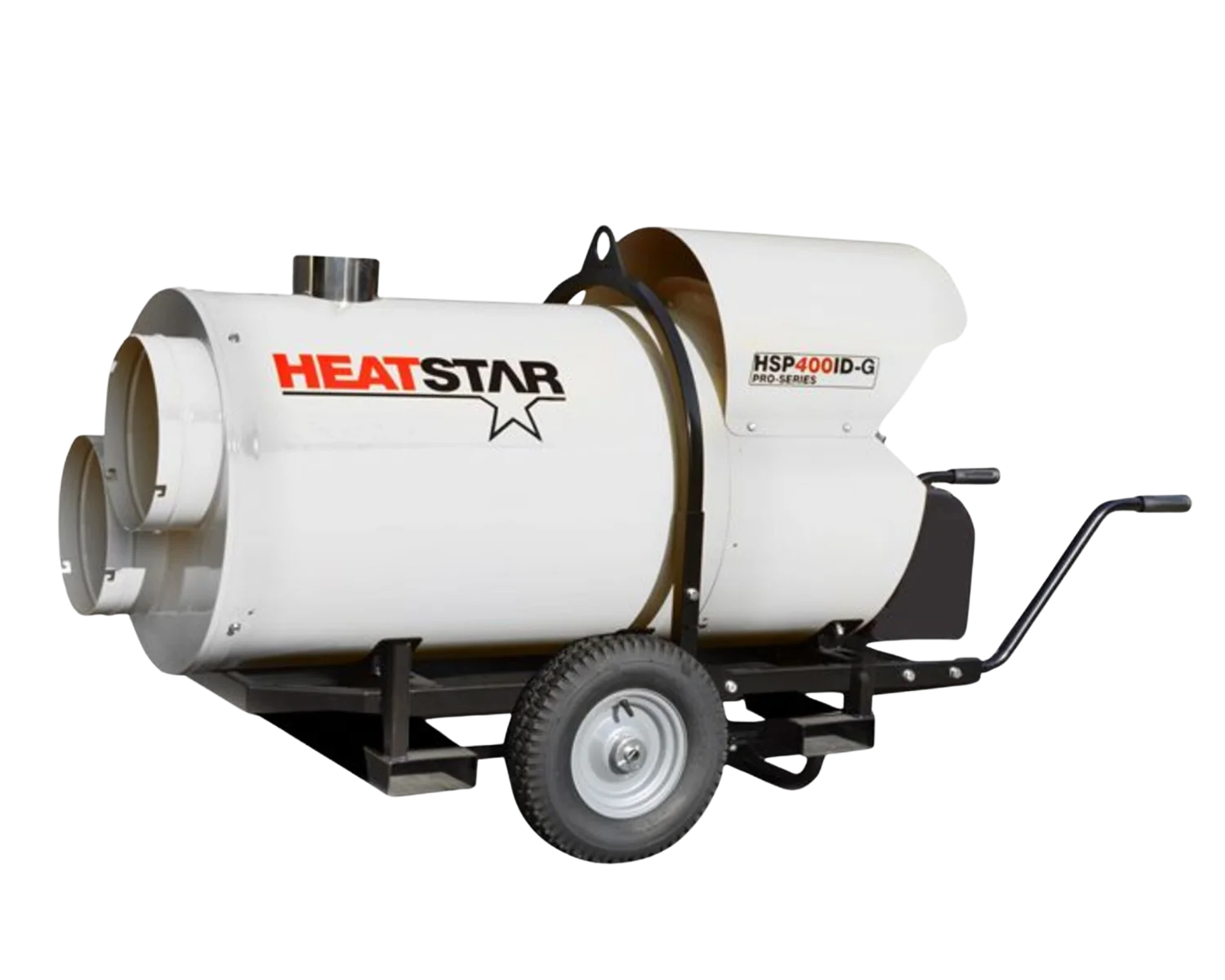

Heatstar HSP400ID-G Pro-Series Propane/Natural Gas Indirect Fired Heater - 400,000 BTU/HR
The Heatstar PRO-SERIES 399,000 BTU/HR Indirect Fired Heater (HSP400ID-G, F105135) is the ultimate heating solution for large industrial or rental applications. Capable of using either natural gas or propane, this heater offers unmatched versatility and efficiency. With factory-installed dual 12" duct adapters, it pairs seamlessly with up to 100 feet of high-quality, high-temperature ducting to deliver even heat to event tents, construction sites, and more, providing clean, fresh, heated air. Whether you place the unit outside and duct the warm air in or position it inside and vent the exhaust out, you will experience the unparalleled comfort and safety of indirect heat.
Key Features: Powerful Heating Solution
-
Heavy Duty Frame: Ensures durability and stability for industrial use.
-
Lift Bracket: Facilitates easy transportation and setup.
-
Heat Exchanger: Keeps exhaust gases and heated air separate for safety.
-
Powerful Fans: Guarantee high static pressure for effective air distribution.
-
Stainless Steel Combustion Chamber: Long-lasting and reliable performance.
-
Electronic Flame Control: Offers precision and safety in flame management.
-
Water Resistant Flame Control Box: Protects against moisture and harsh conditions.
-
Automatic Safety and Control Devices: Enhance operational safety.
-
Optional Thermostat: Available for constant temperature control.
-
Durable Powder Coated Finish: Provides added protection and longevity.
-
Heavy Duty Duct Adapter: Available for enhanced functionality.
-
UL Certified: Meets stringent safety standards.
Your Ideal Heating Solution for Industrial Applications
Invest in the Heatstar HSP400ID-G Pro-Series Indirect Fired Heater for a robust, efficient, and versatile heating solution. Perfect for delivering consistent and safe heat in large spaces, this heater ensures comfort and reliability in even the most challenging environments. Whether for event tents or construction sites, the HSP400ID-G stands out with its superior performance and advanced safety features. Experience the difference with Heatstar's top-of-the-line heating technology.
| Specifications |
|
| Weight |
473 |
| Fuel Type |
Natural Gas or Propane |
| Minimum LP Tank Size |
See Manual for Guidelines |
| Minimum NG Line Size |
See Manual for Guidelines |
| Electrical Rating |
120V/60 Hz, 13 Amps |
| Air Volume (CFM) |
4032 |
| Gas Inlet Connection |
1/2in |
| Gas Inlet Pressure Min |
NG (7in w.c.) / LP (8in w.c.) |
| Gas Inlet Pressure Max |
NG (10in w.c.) / LP (13in w.c.) |
| Clearance to Combustibles: Horizontal |
6 ft |
| Recirculating Ducting |
F105127 Adapter Ring / F105128 24in x 25ft Duct and Clamp |
| Duct Length Max |
100 ft |
| Duct Diameter |
Standard Dual (12in) or Single F105126 (16in) |
| Multiple Ducting Optional |
F150040 12in x 25ft / F150050 16in x 25ft |
| Wheel Type |
Pneumatic |
| Thermostat Optional |
F105108 Analog (33') / F105106 Digital (33') |
| Item Length (in) |
68 |
| Item Width (in) |
27 |
| Item Height (in) |
60 |
| Warranty |
1 Year Limited |
