Description
A Durable Cast Iron Effluent Pump for Septic Tank Distribution, Septic Field Pumping, and Low-Pressure Sewage Systems

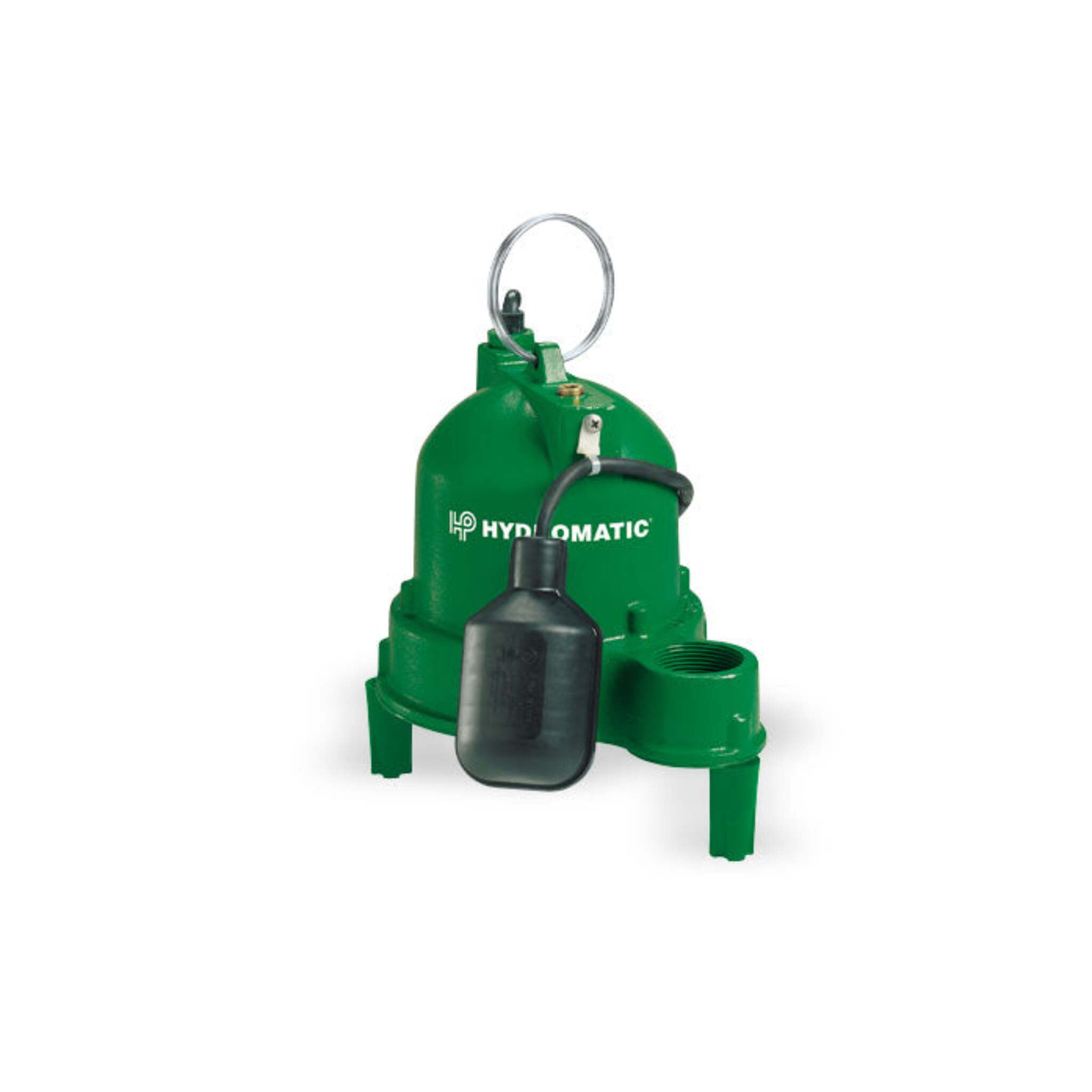

The Hydromatic SHEF30 effluent pump effectively moves septic tank effluent to drainage fields or low-pressure sewage systems. This 1/3 HP effluent pump, 115V, operates reliably in residential wastewater environments. Install this submersible effluent pump in an 18-inch minimum diameter sump pit for optimal performance.
Quick Specs
- Horsepower: 1/3 HP
- Voltage: 115V
- Discharge Size: 1-1/2" NPT
- Solids Handling: 3/4"
- Cord Length: 20 ft
- Max Head: 24 ft
- Flow Rate: 35 GPM @ 10 ft
Key Features of Hydromatic SHEF30 Submersible Effluent Pump
- The oil-filled motor provides superior cooling characteristics to extend the lifespan of the hydromatic sewage pump.
- Automatic thermal overload protection safeguards the 1/3 HP motor during high-demand pumping conditions.
- This effluent pump with a piggyback float switch allows easy conversion to manual operation and simplifies maintenance.
- A thermoplastic vortex impeller efficiently handles up to 3/4-inch solids to prevent clogging in the pump volute.
- The rugged cast-iron effluent pump body ensures durability in demanding wastewater effluent pump environments.
- A 20-foot SJTW power cord gives you installation flexibility for varying septic tank depths.
Hydromatic SHEF30 Specifications
| Category | Details |
| Pump Type | Submersible Effluent Pump |
| Model | SHEF30A1 (Automatic) |
| Horsepower | 1/3 HP |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Motor Type | Shaded Pole (4 pole), Oil-Filled |
| RPM | 1550 |
| Max Flow Rate | 35 GPM @ 10 ft TDH |
| Max Head | ~24 ft |
| Discharge Size | 1-1/2" FNPT |
| Solids Handling | 3/4" (19 mm) |
| Full Load Amps | 8.0 |
| Minimum Sump Diameter | 18" |
| Max Liquid Temp | 140°F |
| Switch Type | 20-Ft Wide Angle Piggyback |
| Agency Listing | CSA and cUL |
Performance Overview
This submersible effluent pump delivers up to 35 GPM at 10 feet of total dynamic head, providing consistent flow for your septic field pump system.

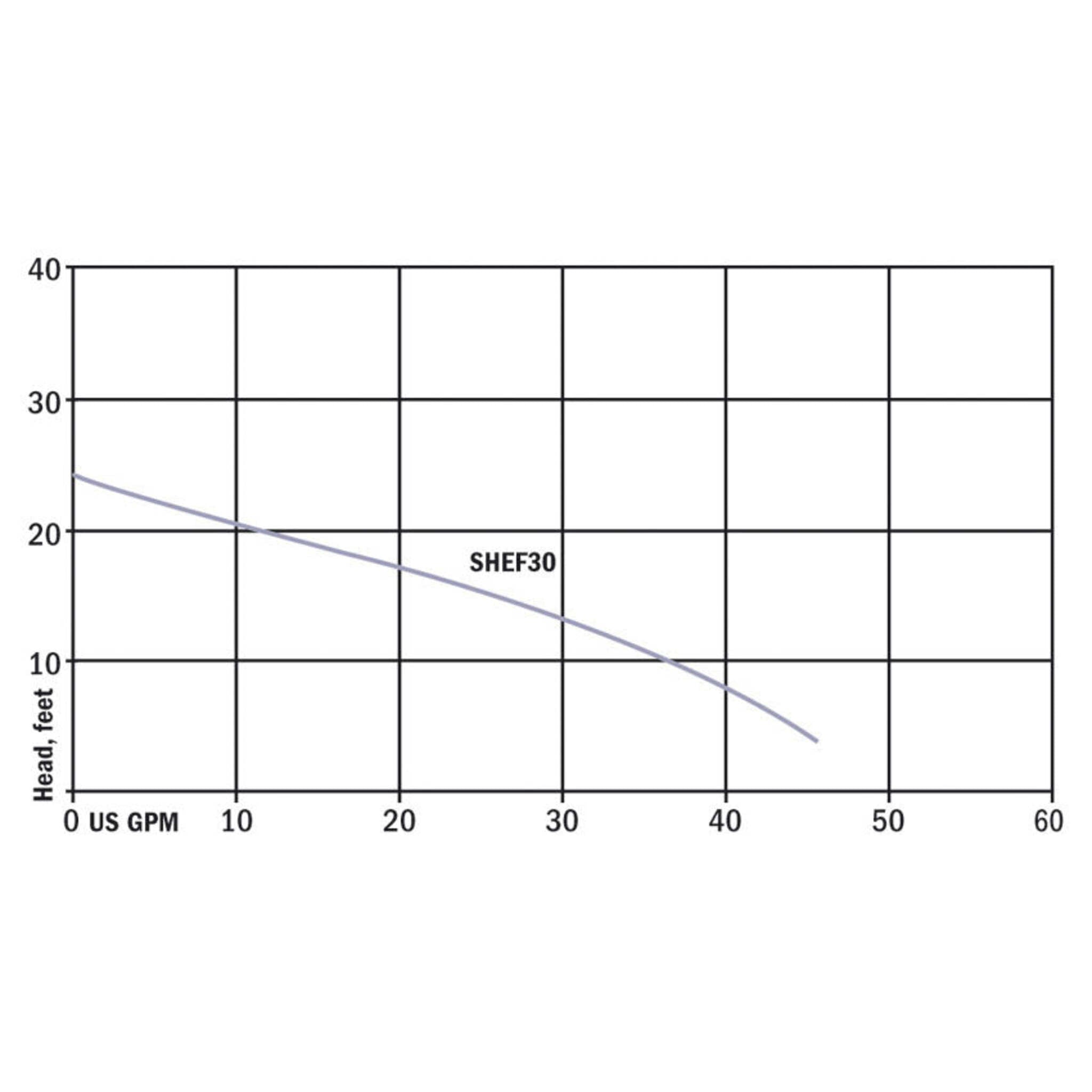

Pump Performance – Head (ft) vs Flow Rate (GPM)
| Flow Rate (GPM) | Head (ft) |
|---|---|
| 0 | 24 |
| 10 | 21 |
| 20 | 18 |
| 30 | 13 |
| 40 | 8 |
| 45 | 4 |
Construction & Design
| Part | Material |
| Motor Housing | Cast Iron |
| Pump Volute | Cast Iron |
| Impeller | Thermoplastic Vortex |
| Shaft | Steel |
| Handle | Stainless Steel |
| Fasteners | Stainless Steel |
| O-Rings | Buna-N |
| Mechanical Seal | Carbon/Ceramic |
| Seal Body | Anodized Steel |
| Seal Spring | Stainless Steel |
| Seal Bellows | Buna-N |
| Upper Bearing | Cast Iron Sleeve |
| Lower Bearing | Single Row Ball Bearing |
| Lubrication | Dielectric Oil |
| Coating | Water-Reducible Enamel |
Applications
- Septic tank effluent distribution
- Septic drainage fields
- Low-pressure sewage systems
- Residential wastewater effluent pumping
- Dewatering in sumps with 3/4" solids
Why Choose the Hydromatic SHEF30 Submersible Effluent Pump
The Hydromatic SHEF30 provides a measurable 35 GPM flow rate for your septic tank system. With its cast-iron construction, single-row ball bearing, and automatic thermal protections, it reduces maintenance frequency. The included wide-angle piggyback plug setup lets you easily manage operation or replace the switch without removing the entire pump from the basin.
Available through Cleanflow. We are a trusted Hydromatic pumps supplier, offering distribution across Canada and the USA.
FAQs
What size solids can the Hydromatic SHEF30 handle?
This hydromatic effluent pump handles solids up to 3/4-inch (19mm) in diameter, making it suitable for standard septic tank effluent.
Can I run this pump manually?
Yes. Because it is an effluent pump with a piggyback float switch, you can unplug the pump from the switch cord and plug it directly into a grounded 115V receptacle for manual operation.
What is the minimum sump pit size required?
The minimum required sump diameter for the SHEF30 submersible effluent pump is 18 inches. This ensures the wide-angle float switch operates freely without hitting the pit walls.
How does the thermal overload protection work?
The motor features automatic reset thermal overload protection. If the motor overheats, the overload protector stops the pump until the unit cools down, preventing permanent damage.
What is the maximum vertical lift (head) for this pump?
This 1/3 HP effluent pump, 115V, has a maximum vertical lift of 24 feet. It cannot deliver water over a 24-foot vertical head.
How do I prevent air locking?
Hydromatic pumps have a small air vent hole in the impeller cavity to release trapped air. Ensure this hole remains clear of debris. In continuous operations, air locking rarely occurs.
What type of pipe should I use for the discharge line?
Use steel or plastic pipe for the 1-1/2" NPT discharge, depending on your local plumbing codes. You should also install a check valve at least 12 inches above the pump's discharge outlet.
