6/10 HP Cast Iron Sewage Pump for Residential Use and Light Commercial Applications
Product Overview

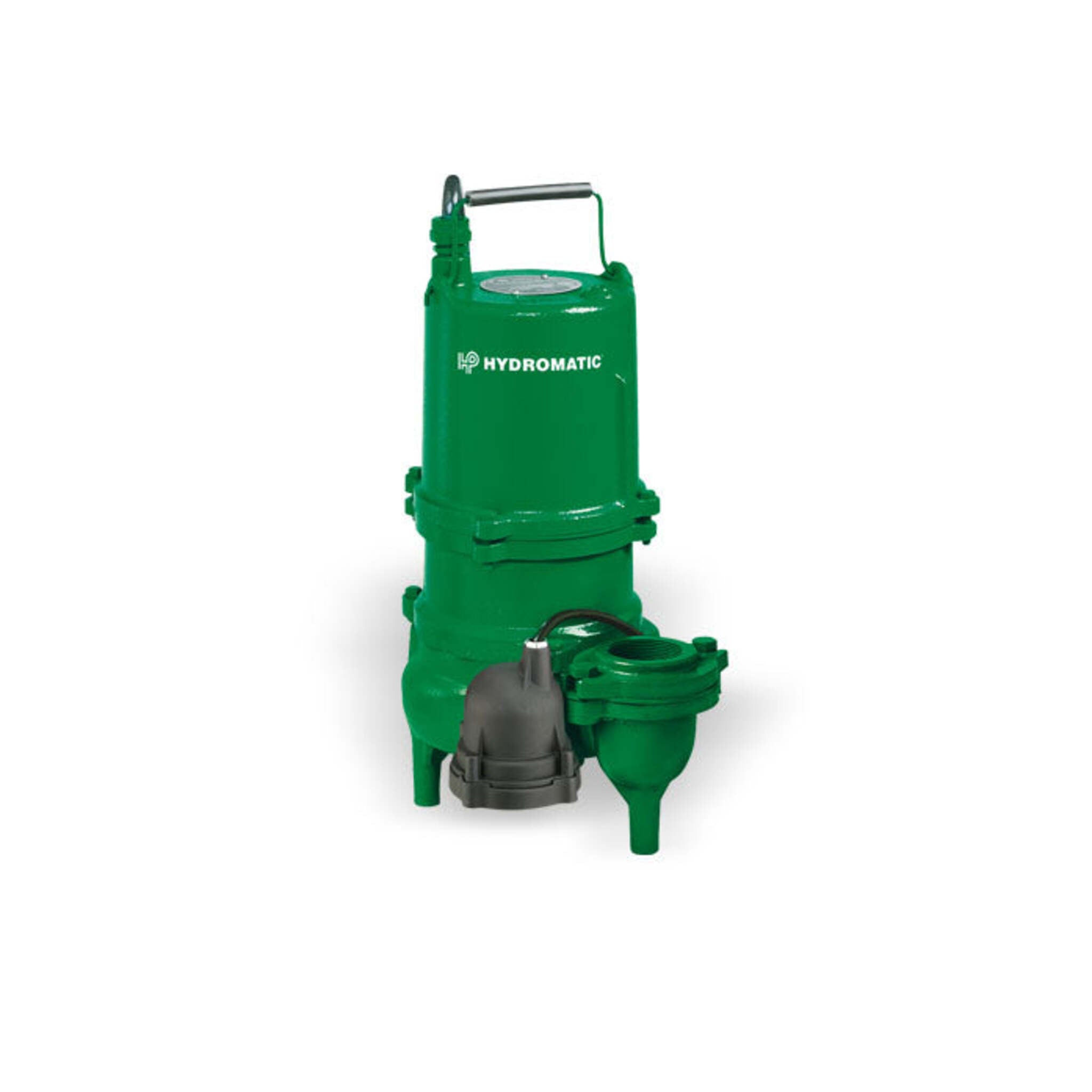

This Hydromatic SK60A1 sewage pump handles residential wastewater removal and light commercial effluent transfer. You can install this 2-inch solids handling pump in basement sewage basins or septic systems. The Hydromatic SK60 pump with piggyback float switch provides reliable automatic operation for demanding sewage systems.
Quick Specs
- Horsepower: 6/10 HP
- Voltage: 115V
- Discharge Size: 2" NPT
- Solids Handling: 2"
- Cord Length: 20 ft
- Max Head: 32 ft
- Flow Rate: 110 GPM @ 5 ft
Key Features of Hydromatic SK60A1 20 Sewage Ejector Pump
- The heavy-duty cast iron wastewater pump 6/10 HP provides superior corrosion resistance for long-term use.
- You can easily manage wastewater since the two-vane semi-open cast iron impeller allows for effective 2-inch solids handling.
- The oil-filled motor ensures constant bearing lubrication and optimal heat dissipation during operation.
- Automatic thermal overload protection prevents overheating and includes an automatic reset to keep the submersible wastewater pump safe.
- The wide-angle piggyback float switch enables automatic operation and simplifies maintenance when replacement is necessary.
Hydromatic SK60A1 20 Sewage Ejector Pump Specifications
| Category | Details |
|---|---|
| Motor | 6/10 HP, 1750 RPM, 115V, 1 Phase |
| Pump Type | Submersible Sewage Ejector Pump |
| Horsepower | 6/10 HP |
| Full Load Amps | 12.0 Amps |
| Max Liquid Temp | 140°F |
| Maximum Flow | ~100+ GPM* |
| Maximum Head | Up to ~75 ft* |
| Voltage/Phase | 115V, 1 Phase |
| Power Cord | 20-Foot STW-A (16/3) |
| Discharge Size | 2" NPT Female Standard (3" Optional) |
| Certifications | CSA & CUL Listed |

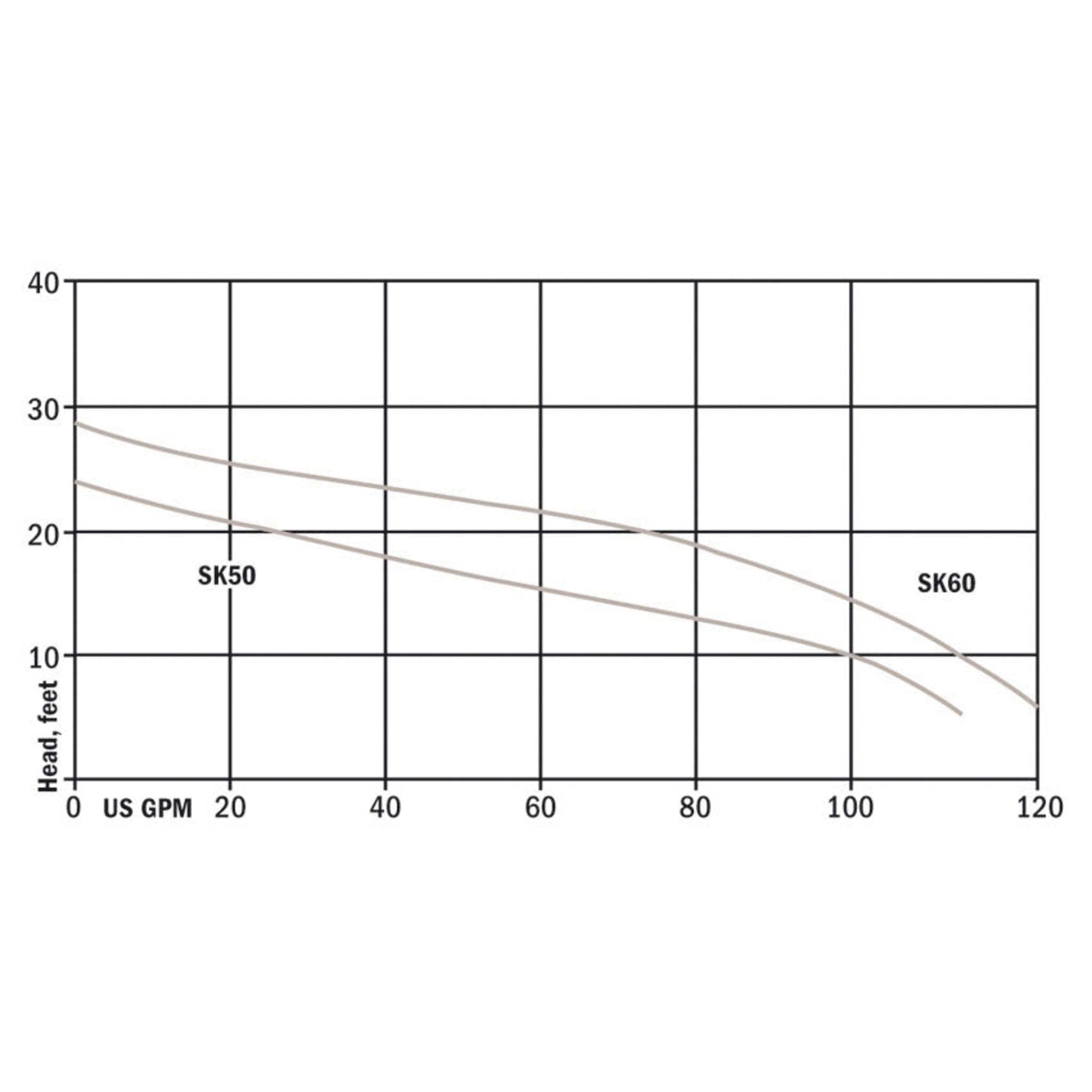

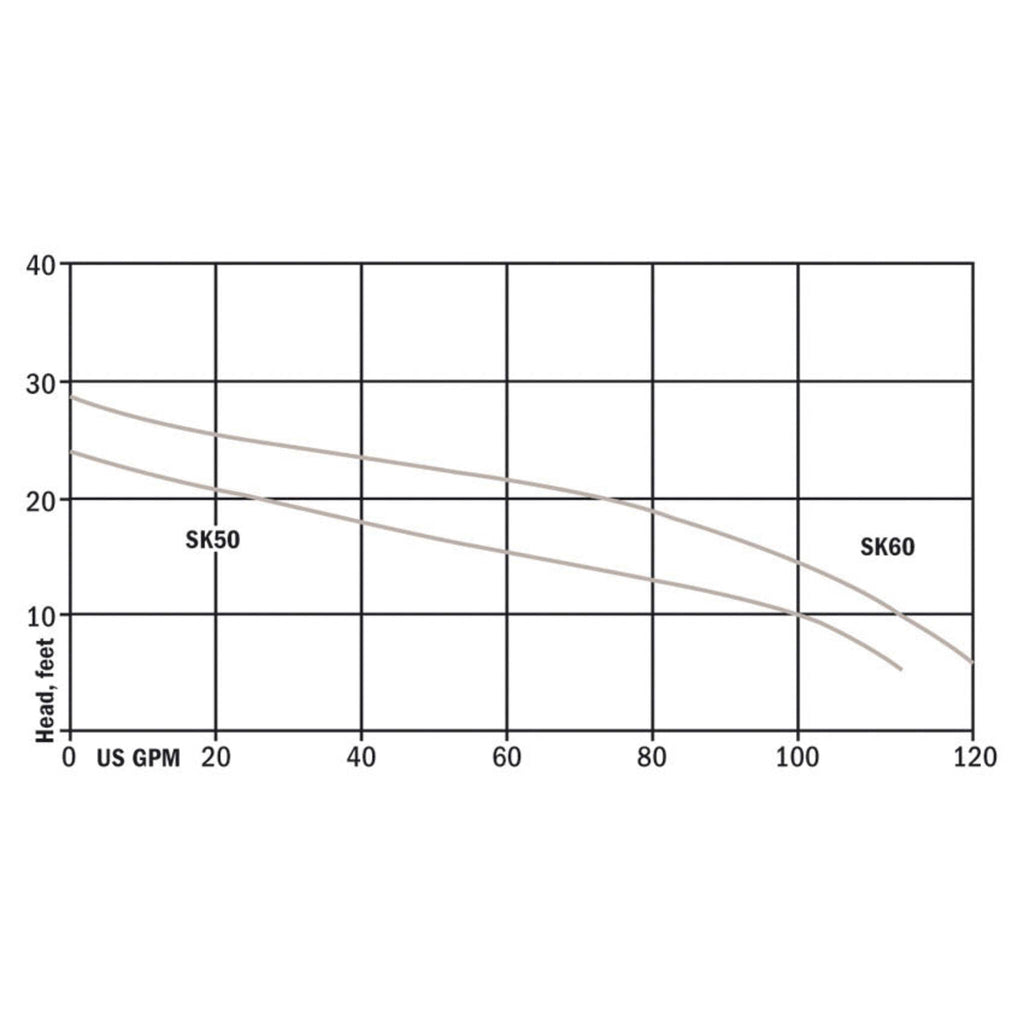

Performance Overview
The Hydromatic 6/10 HP ejector pump delivers consistent fluid transfer with a 1750 RPM motor, serving as the best 120V sewage ejector pump for 2-inch solids.
Construction & Design
| Component | Material Specification |
|---|---|
| Motor Housing & Casing | Class 30 Gray Cast Iron |
| Impeller | Two-Vane Semi-Open Cast Iron |
| Motor Shaft | 416 Stainless Steel |
| Motor Type | Oil-filled, Split-Phase |
| Mechanical Seal | Carbon / Ceramic |
| Upper & Lower Bearings | Single Row-Ball |
| Hardware | 300 Series Stainless Steel |
| O-Rings | Buna-N |
Applications
- Residential sewage ejector systems
- Light commercial wastewater transfer
- Basement plumbing fixture drainage
- High-capacity septic tank effluent pumping
- Fluid transfer containing up to 2-inch spherical solids
- General wastewater removal applications
Why Choose the Hydromatic SK60A1 20 Sewage Ejector Pump
When you need a reliable 6/10 HP cast iron sewage pump for residential use, Hydromatic SK60A1 delivers consistent performance. It handles challenging wastewater tasks through heavy-duty cast iron construction and an efficient oil-filled motor.
Available through Cleanflow, a trusted Hydromatic pumps supplier providing distribution across Canada and the USA.
Frequently Asked Questions
What size solids can this sewage ejector pump handle?
The pump handles spherical solids up to 2 inches in diameter.
Does this submersible wastewater pump run automatically?
Yes, it features a wide-angle piggyback float switch for automatic operation.
What kind of maintenance does the oil-filled motor require?
It does not require regular manual oil changes or lubrication.
How do I install the Hydromatic SK60 pump with a piggyback float switch?
Connect the 2-inch discharge, position the pump, and plug into a 115V outlet.
What happens if the cast-iron sewage pump overheats?
The thermal overload protection stops the pump and resets automatically.
Can this pump handle high-temperature liquids?
Yes, it can handle temperatures up to 140°F.
What is the advantage of the piggyback float switch sewage pump setup?
It allows manual testing and operation without removing the pump.
