Jet 310008 Auto Ranging Digital Multimeter

Jet 310008 Auto Ranging Digital Multimeter

(0 reviews)

Questions about this item? Be the first to ask here

310008

Jet 310008 Auto Ranging Digital Multimeter

Questions about this item? Be the first to ask here

310008

Secure transaction
X
Your transaction is secure

We work hard to protect your security and privacy. Our payment security system encrypts your information during transmission. We don’t share your credit card details with third-party sellers, and we don’t sell your information to others.

We Accept

American express American express
Apple pay Apple pay
Diners club Diners club
Discover Discover
Google pay Google pay
Master Master Card
Paypal Paypal
Shopify pay Shopify pay
Visa Visa

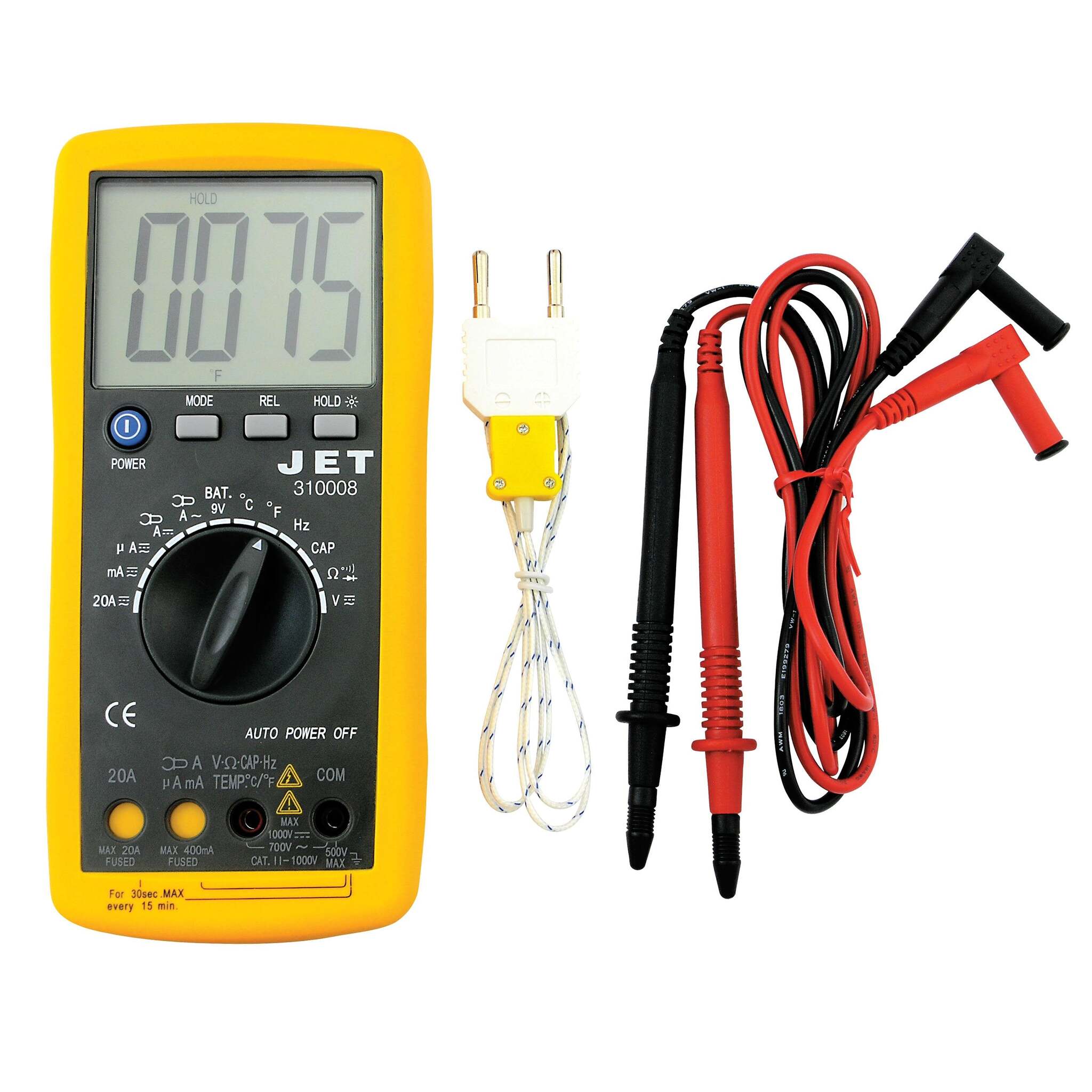

Jet 310008 Auto Ranging Digital Multimeter is a versatile meter for a wide range of electrical tests. It features auto shut-off, large LCD display, low battery indicator, overload protection. The TPR shroud protects meter.

This multi meter can be used with clamp on adapter for expanded versatility Includes test leads, K-type thermo-coupler and 9V battery. Automatically sets correct range when test function is selected. Mechanically prevents incorrect connection of test leads. Data hold function.

Designed to safety standard EN61010-1; CAT II 600V



 Specifications
Application AC/DC current, AC/DC voltage, resistance, capacitance, frequency, temperature, diode check, transistor hFE
AC Current 400u-4000u-40m-400m-4A-20A
DC Current 400u-4000u-40m-400m-4A-20A
AC Voltage 400mV-4V-40V-400V-750V
DC Voltage 400mV-4V-40V-400V-1000V
Resistance 200-2k-40k-400k-4 Mohms-40 Mohms
Frequency 9.999Hz - 9.999MHz
Diode Check Test current of 0.3mA, open circuit voltage of 1.5V
Duty Cycle 0.1% - 99.9%
Continuity Check Threshold 30 ohms, continuity beeper 2.7 kHz
Polarity Detection N/A
Single Pole Phase Test N/A
Continuity Test N/A
Rotary Field Indication N/A
Capacitance 40nF-400nF-4uF-40uF-100uF
Temperature -20°C to 760°C
hFE Vce ~3V; 1b ~ 10Ua
