Description

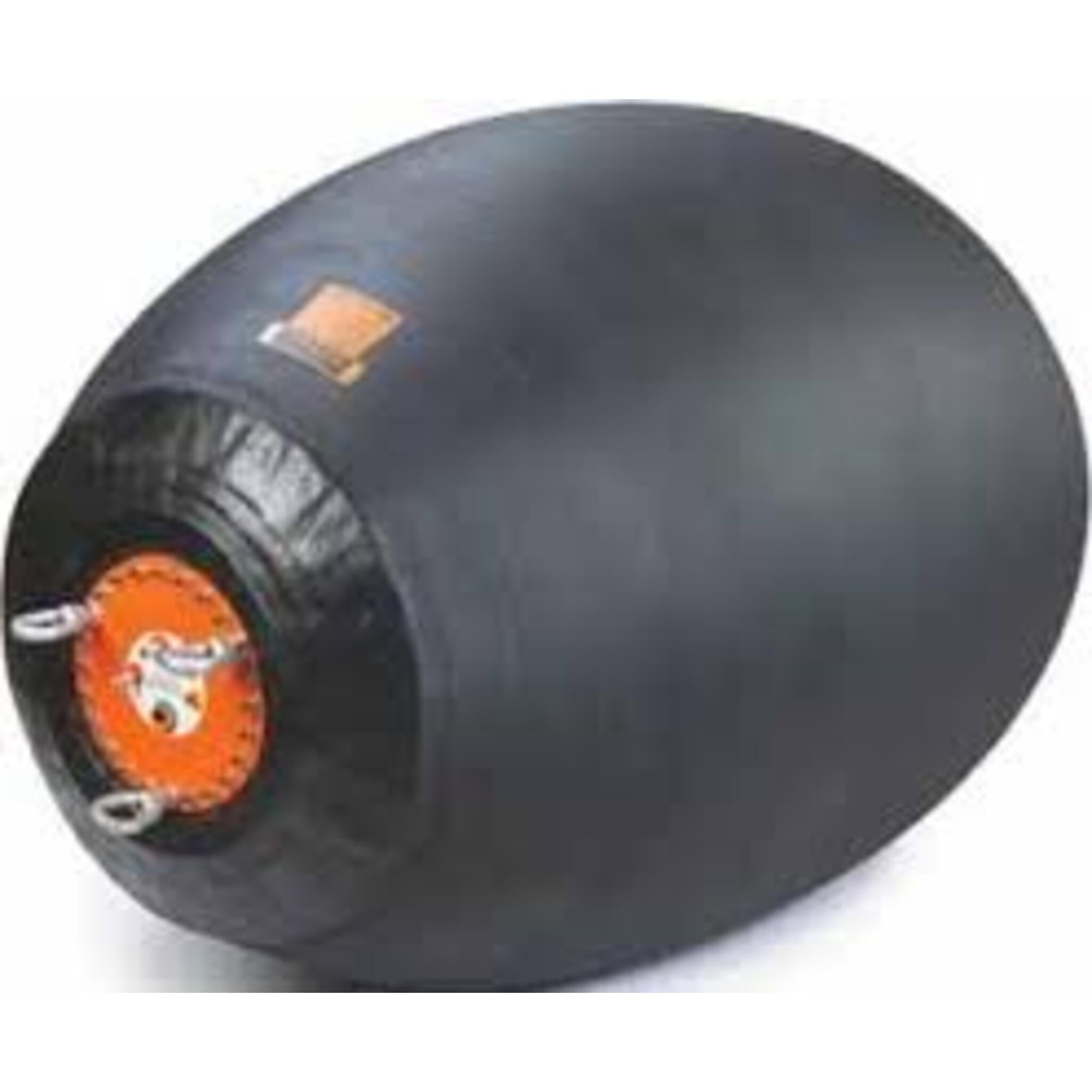

Patented Inflatable Pipe Plug Designed for Air Testing and Pressure Monitoring
The Lansas Multi-Size Domehead Front Plug is the ultimate professional solution for air testing and pressure monitoring in municipal, industrial, and plumbing systems. This inflatable pipe plug is engineered with patented reinforcement technology and built from premium ozone-protected natural rubber with advanced structural reinforcements that ensure controlled expansion, reduced side-wall stress,.
Features of Lansas Multi-Size Domehead Front Plug
- 2-Ply Cross-Biased Tire Cord Reinforcement: Each plug includes two plies of cross-biased tire cord reinforcement that ensure controlled expansion during inflation.
- Steel “Spider-Ring™” End Design: The reinforced steel Spider-Ring™ end, wrapped in cord-reinforced fabric, transfers inflation stress efficiently and maintains structural integrity under pressure.
- Lightweight and Flexible: Up to 50% lighter and significantly more flexible than competing plugs, allowing easier handling and installation in tight spaces.
- High-Quality Materials: Manufactured with Lansas’ standard ozone-protected natural rubber outer layer to deliver enhanced durability and long-lasting performance.
- Practical Design: Equipped with lifting eye(s) on both ends and a 1/4" inflation port for convenient positioning, inflation, and retrieval.
- Comprehensive Testing Capability: 051 Series Multi-Size Front Plugs include 1/4" and 3/4" Test Thru or Bypass ports to support precise air testing and accurate pressure monitoring.
Available Multi-Size Options
The Lansas Multi-Size Domehead Front Plug is available in multiple diameter ranges, allowing one plug to cover several pipe sizes and reduce inventory requirements.
Typical multi-size ranges include:
| Nominal Size | Min. Dia. | Max. Dia. | Required Inflation PSI | Max Back Pressure (PSI) | Length | By-Pass Sizes |
|---|---|---|---|---|---|---|
| 4"–6" | 3.50" | 6.25" | 30 PSI | 15 PSI | 9.5" | 1/4" NPT |
| 6"–10" | 5.25" | 10.25" | 30 PSI | 15 PSI | 19.7" | 1/2" + 1/4" |
| 8"–12" | 7.25" | 12.25" | 25 PSI | 15 PSI | 20.0" | 3/4" + 1/4" |
Always verify minimum and maximum pipe diameter specifications before installation.
What Lansas Front Plug Can Do
- Perform precise air testing
- Monitor pipeline pressure accurately
- Support sewer line pressure verification
- Assist in water infrastructure testing
- Isolate pipe segments during inspections
- Provide secure internal pipe sealing
- Improve efficiency in municipal testing programs
This inflatable front plug is specifically engineered for pressure monitoring and air testing accuracy.
Designed for Professional Applications
The Domehead Front Plug is widely used in:
- Municipal sewer systems
- Water treatment facilities
- Plumbing contractor testing
- Infrastructure maintenance
- Wastewater system inspections
- Pipeline integrity verification
Its lightweight and flexible construction makes it easier to install in confined spaces.
Installation & Safety Guidelines for Lansas Pipe Plugs
Step 1: Prepare the Work Area
Review manufacturer guidelines, confirm the correct plug size and pressure ratings, inspect the plug for damage, and ensure the pipe interior is clean and free of debris.
Step 2: Insert the Plug Properly
Fully position the plug inside the pipe so no part protrudes, and connect approved inflation equipment while remaining outside the designated danger zone.
Step 3: Inflate to Required Pressure
Inflate the plug slowly to the specified inflation PSI, continuously monitoring the gauge and never exceeding rated limits.
Step 4: Monitor During Testing
Check pressure levels regularly throughout the test and use proper blocking or bracing to prevent movement under back pressure.
Step 5: Deflate and Remove Safely
Release all system back pressure first, fully deflate the plug to zero PSI, then carefully remove it from the pipe.
Why Choose a Multi-Size Front Plug?
Unlike single-size plugs, multi-size domehead plugs:
- Cover wider diameter ranges
- Reduce equipment inventory
- Improve field flexibility
- Simplify jobsite logistics
- Lower equipment replacement frequency
This makes them ideal for contractors handling varied municipal and industrial pipe systems.
Ensure Maximum Efficiency and Reliability
Invest in the Lansas Multi-Size Domehead Front Plug from Cleanflow for industry-leading air testing and pressure monitoring performance. This multi-size domehead plug is part of the Lansas collection that provides durability, flexibility, and precision in every application. It comes with patented reinforcement technology, ozone-protected rubber construction, and integrated bypass options.
Order this today to advance your pipeline testing capabilities and experience professional-grade reliability.
Frequently Asked Questions
What is a front plug used for in air testing?
A front plug seals one end of a pipeline during air pressure testing. It isolates a section of pipe so contractors can monitor system integrity, verify leak detection, and confirm overall pipeline performance.
What makes this plug different from standard inflatable plugs?
This plug features patented cross-biased tire cord reinforcement and a reinforced steel Spider-Ring end design. These structural enhancements provide controlled expansion during inflation and improved reliability under pressure.
Can this plug be used for pressure monitoring?
Yes. The 051 Series includes integrated 1/4 inch and 3/4 inch test-thru or bypass ports, allowing accurate air testing and controlled pressure monitoring without removing the plug.
Is this plug reusable?
Yes. It is engineered for repeated professional use. Proper installation, inspection, and adherence to manufacturer guidelines help maintain performance and extend service life.
Why is controlled expansion important?
Controlled expansion reduces side-wall stress during inflation, helping prevent longitudinal tearing and uneven wear. This improves operational safety and increases overall plug durability.
Is this plug lightweight compared to competitors?
Yes. It is up to 50 percent lighter than comparable plugs and offers improved flexibility, making handling and installation easier in confined spaces.
What material is used in construction?
The plug is manufactured from ozone-protected natural rubber reinforced with cross-biased tire cord and steel structural components. These materials provide durability and dependable performance in demanding municipal and industrial environments.
Where can I buy Lansas inflatable test plugs in Canada?
Lansas inflatable test plugs are available through authorized Canadian suppliers such as Cleanflow. Purchasing from a trusted supplier ensures reliable product support and proper specification verification before installation.
