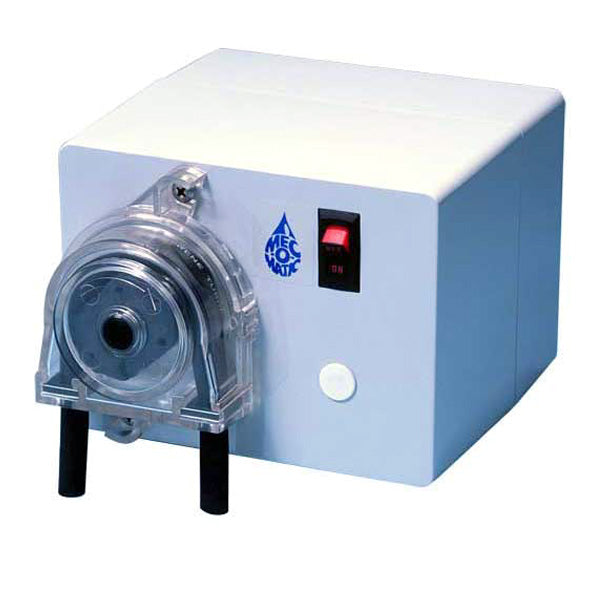

MEC-O-MATIC VSP Peristaltic Metering Pump – Variable Speed Chemical Feed | 0.13–97 GPD | Chlorine, pH, Coagulant Dosing | Self-Priming, Low Maintenance

MEC-O-MATIC VSP Series Peristaltic Metering Pumps with Variable Speed Control

The MEC-O-MATIC VSP Series Peristaltic Metering Pumps deliver precise, adjustable chemical dosing for chlorine, fluoride, enzymes, and a wide range of other treatment chemicals. Designed for low-pressure applications, these self-priming tubing pumps provide reliability, accuracy, and long service life—all while requiring minimal maintenance.

Built with a rugged, chemical-resistant ABS housing and heat-treated all-metal gearing, the VSP Series stands up to demanding environments. A variable-speed gearmotor with potentiometer control allows operators to adjust feed rates from 10% to 100%, providing flexibility for exact dosing requirements in municipal water treatment, pool and spa maintenance, and industrial chemical processes.

Key Features: Precise, Reliable Chemical Dosing

• Variable Speed Control – Potentiometer adjustment from 10% to 100% for highly accurate feed rates.

• Durable Design – Chemical-resistant ABS case, heat-treated all-metal gearing, and heavy-duty bearings for long-term performance.

• Quick-Release Pump Head – Exclusive twist-off, clear polycarbonate head resists acids and allows for fast tubing replacement.

• Self-Lubricating Roller Assembly – No tube adjustments required; reduces maintenance and downtime.

• Continuous-Duty Motor – Heavy-duty shaded pole gearmotor with lifetime lubrication ensures reliable 24/7 operation.

• Flexible Feed Rates – VSP-12 dispenses up to 12 gallons per day, and VSP-20 up to 20 GPD. Variable-speed control allows 10%–100% adjustment for precise dosing.

• Full One-Year Warranty – Backed by manufacturer support for peace of mind.

Chemical Compatibility

The MEC-O-MATIC VSP Series is compatible with a wide range of chemicals, including:

• Disinfection & Treatment Chemicals: Sodium hypochlorite (20%), calcium hypochlorite, chlorine solutions, alum, ferric sulfate, hydrogen peroxide, potassium permanganate.

• pH Adjustment & Corrosion Control: 80% sodium hydroxide (caustic soda), sodium bisulfate, sulfuric acid (10%).

• Industrial Applications: Methanol, magnesium hydroxide, ammonium chloride, ammonium hydroxide, ammonium sulfate.

Contact us for compatibility information regarding additional chemicals.

Wetted Materials & Included Components

• Pump Tube: Viton

• Suction/Discharge Tubing: Polyethylene

• Injection Check Valve: PVC

• Suction Strainer: Polypropylene with ceramic weight

• Included with Pump: 15 ft. polyethylene suction/discharge tubing, suction foot valve/strainer with ceramic weight, and injection check valve assembly

Common Applications

• Municipal Water Treatment – For chlorine, caustic, and coagulant dosing.

• Swimming Pools & Spas – Accurate chemical feed for disinfection and pH balance.

• Industrial Processes – Controlled dosing of treatment chemicals for process water.

• Food & Beverage – Suitable for select NSF-approved chemical dosing tasks.

Precision Control with Proven Reliability

The MEC-O-MATIC VSP Series is trusted by operators worldwide for its precision, rugged construction, and low-maintenance operation. With variable-speed flexibility, a quick-release pump head, and compatibility with a broad range of chemicals, the VSP is the perfect solution for applications that demand accuracy and reliability.
