Description

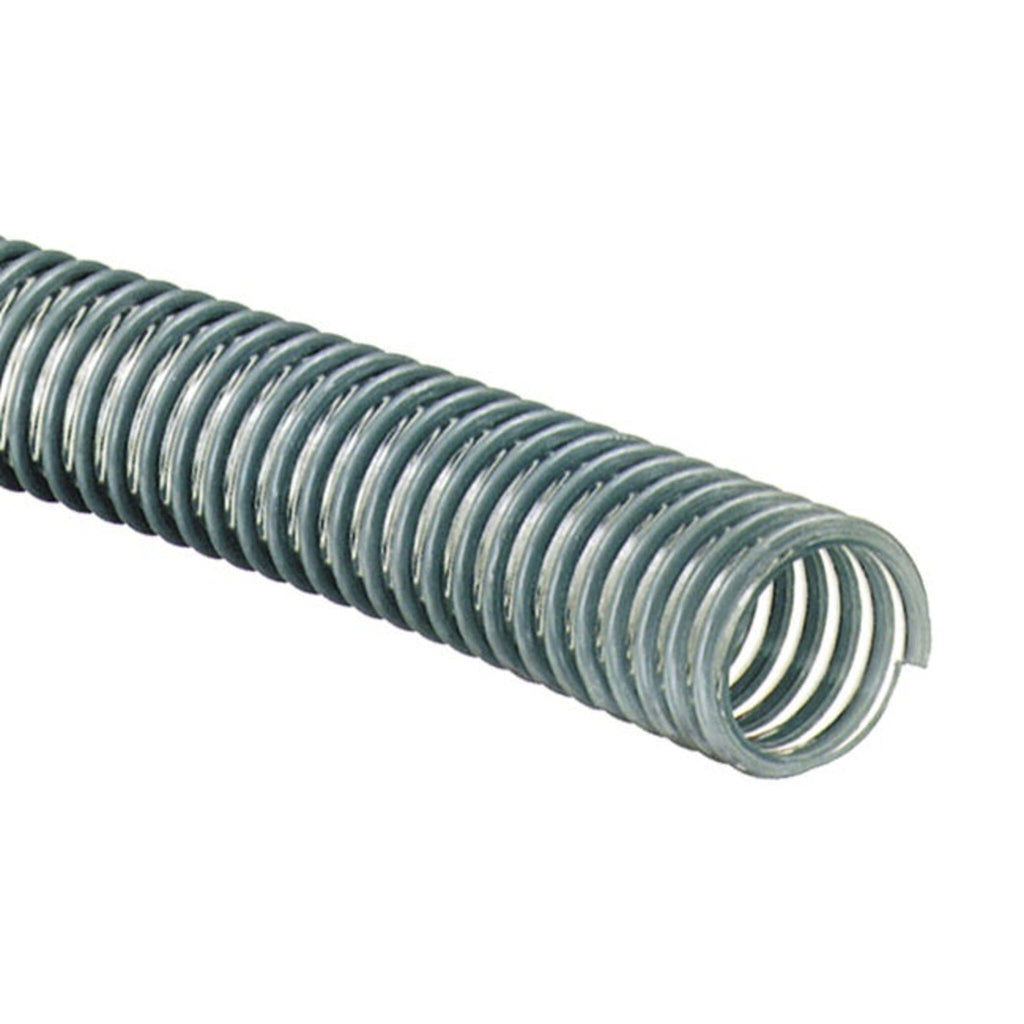

Clear, High-Flex PVC Suction Hose for Transfer & Vacuum Applications
This ultra flexible PVC suction hose is designed for applications where strong suction, tight bend radius, and hose visibility matter. Made from clear, flexible PVC with a rigid PVC helix, this PVC suction hose maintains its shape under vacuum while remaining easy to handle, route, and install in demanding environments.
The clear PVC construction allows operators to visually monitor flow and material movement, helping detect blockages, air pockets, or inconsistencies during operation. Whether used in industrial transfer, marine pumping, or material conveying, this clear PVC suction hose delivers reliable performance where flexibility and durability are required.
Product Overview
This clear PVC suction hose is manufactured using flexible PVC supported by a thick, rigid grey PVC helix. The helix provides structural strength, allowing the hose to maintain its round profile during suction while remaining easy to route around equipment and obstacles.
- Interior: Smooth PVC liner resistant to abrasion and mild chemicals
- Exterior: Corrugated PVC for improved flexibility, abrasion resistance, and weather durability
- Visibility: Clear PVC wall enables quick identification of blockages, flow changes, or material movement
For sizes 4 inches and larger, a high-molecular-weight PVC compound is used to enhance wear resistance and cold-temperature flexibility, making this high-flex PVC suction hose suitable for colder operating environments.
Key Benefits – Industrial PVC Suction Hose
- PVC suction hose suitable for vacuum and transfer applications
- High flexibility for tight bends and confined spaces
- Clear PVC wall for easy flow monitoring
- Rigid PVC helix prevents collapse under suction
- Smooth interior supports efficient material movement
- Size-dependent cold-weather flexibility for harsh environments
- Available in a wide range of diameters for varied applications
This industrial PVC suction hose is a dependable solution for operations that require both flexibility and durability without sacrificing vacuum performance.
PVC Suction Hose Specifications
| Specification | Details |
| Hose Type | Ultra Flexible PVC Suction Hose |
| Construction | Clear flexible PVC with rigid grey PVC helix |
| Interior | Smooth PVC, abrasion and mild chemical resistant |
| Exterior | Corrugated PVC, weather and abrasion resistant |
| Temperature Range (1"–3") | -20°C to +65°C (-4°F to 150°F) |
| Temperature Range (4" and up) | -40°C to +65°C (-40°F to 150°F) |
| Vacuum Rating | Up to 29" Hg (size dependent) |
| Working Pressure | Varies by size and temperature |
| Bend Radius | Tight bend radius relative to hose diameter |
| Visibility | Clear PVC for full flow visibility |
| Sizes Available | 1" to 12" I.D. |
| Standard Manufacturing Length | 100 ft |
| Supply Options | Cut-to-length per foot or full rolls |
| Suitable Media | Water, ice, wood shavings, PVC pellets, light solids |
| Not Recommended For | Fuel, oil, aggressive chemicals, compressed air |
Applications
This PVC suction hose is commonly used in:
- Pump suction and transfer systems
- Marine and fish pump operations (herring, salmon, groundfish)
- Conveying ice, wood shavings, and PVC pellets
- Industrial and agricultural fluid transfer
- Material handling where hose visibility is important
- Temporary or semi-permanent transfer setups
Its flexibility, visibility, and vacuum resistance make it suitable for both routine operations and demanding transfer tasks.
Sizes, Lengths & Ordering Options
| Hose Size | Working Pressure @ 20°C | Working Pressure @ 40°C | Bend Radius | Outside Diameter |
| 1" | 55 PSI | 35 PSI | 1" | 1.30" |
| 1-1/4" | 50 PSI | 30 PSI | 2" | 1.60" |
| 1-1/2" | 50 PSI | 30 PSI | 2" | 1.85" |
| 2" | 50 PSI | 35 PSI | 3" | 2.40" |
| 3" | 65 PSI | 55 PSI | 6" | 3.64" |
| 4" | 35 PSI | 18 PSI | 8" | 4.76" |
| 6" | 30 PSI | 15 PSI | 14" | 7.00" |
Notes:
- Working pressure ratings are based on 20°C and decrease as temperature increases
- Hose is intended for suction and transfer applications
- Vacuum performance is size dependent
Hose Fittings & Accessories
For a complete setup, pair this PVC suction hose with compatible fittings and clamps:
- Browse our Camlock Hose Connectors for fast, secure, tool-free connections
- Explore Hose Clamps and Insert Fittings to ensure a tight, leak-free fit across all hose sizes
Using the correct connectors and clamps helps maintain suction integrity, improves safety, and extends hose service life.
Key Features – Flexible PVC Suction Hose
- Maintains flexibility without sacrificing suction strength
- Clear construction improves safety and operational awareness
- Performs reliably in cold and variable temperature environments
- Reduces downtime caused by kinking or hose collapse
- Suitable for repeated movement and repositioning
This high-flex PVC suction hose is a practical solution where standard PVC hoses fall short.
Get the Ultra Flexible PVC Suction Hose from Cleanflow
Cleanflow supplies this ultra flexible PVC suction hose providing reliable suction performance, clear flow visibility, and easy handling in demanding environments. With multiple sizes available and cut-to-length options, Cleanflow makes it easy to select the right solution from its range of suction hoses for your specific application.
Order today to secure a clear, durable, and flexible PVC suction hose that performs consistently in real-world transfer and suction tasks.
Frequently Asked Questions
What type of applications is this PVC suction hose used for?
This hose is used for suction and transfer applications involving liquids and lightweight solids where flexibility and flow visibility are important.
Is this hose suitable for vacuum applications?
Yes. It is rated for near full vacuum performance, up to 29" Hg depending on hose size.
Can I see material flowing through the hose?
Yes. The clear PVC construction allows full visibility of hose contents during operation.
Is this hose flexible in cold temperatures?
Yes. Larger sizes are rated down to -40°C, while smaller sizes perform down to -20°C.
Does hose size affect temperature performance?
Yes. Sizes 1"–3" are rated from -20°C to +65°C, while sizes 4" and larger use a high-molecular-weight PVC compound and are rated down to -40°C, providing improved cold-weather flexibility.
Can this PVC suction hose handle lightweight solids?
Yes. This hose is commonly used to convey ice, wood shavings, and PVC pellets, in addition to water and other compatible fluids, thanks to its smooth interior and rigid helix support.
