Product Overview

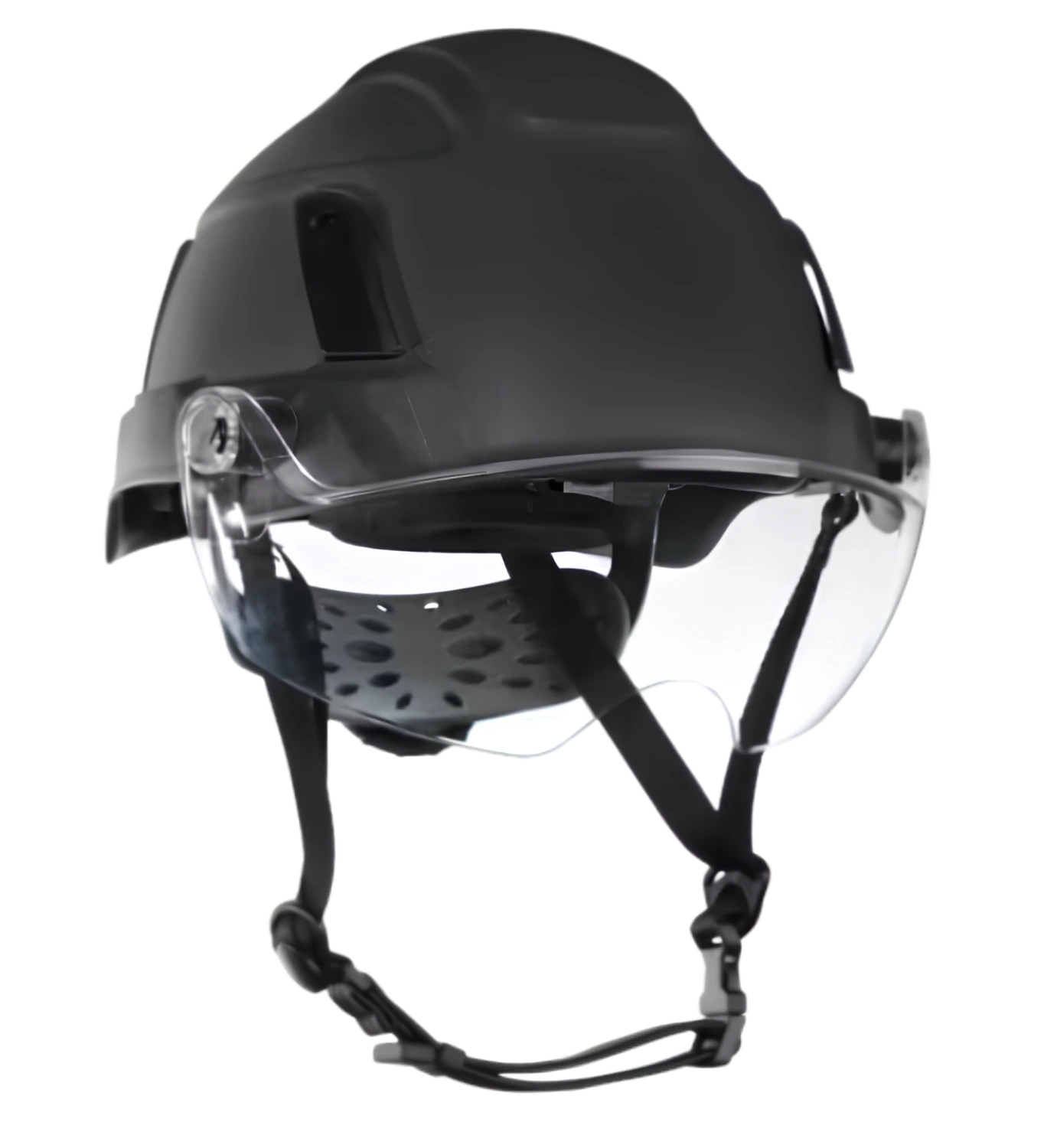

The Jackson Safety XS2-500 Class E safety helmet carries two ratings: a dielectric shell rated Class E, and a wrap-around polycarbonate visor rated ANSI Z87.1+ for high impact. The shell will not carry current, which is what dielectric means. It is not rated for arc flash or chemical splash.
A 1 year limited commercial warranty covers the non-vented Class E helmet. The ABS shell, EPP liner, 6-point Comfort Plus suspension and 370 Speed Dial adjustment are shared with the rest of the XS2-500 range, in sizes 6-1/2 to 8-1/2. Part of the Jackson Safety line from SureWerx.
Key Features
- Two ratings on one helmet: The shell carries ANSI Z89.1 Type 2 Class E and the visor carries ANSI Z87.1+ for high impact. A Class E helmet with flip up visor gives eye and head protection in one helmet rather than a shell plus a bracket plus a separate shield.
- Dielectric shell, no vent openings: SureWerx lists the shell as dielectric, and a solid shell is what makes the Class E rating possible. A non-vented Class E helmet runs warmer than a vented one, which is the trade for electrical protection.
- Visor drops and flips clear: The visor pulls down when sparks or fragments are in play and stows above the sightline the rest of the time. An ANSI Z87.1+ visor is rated for flying fragments, not for chemical splash and not for arc.
- What neither rating covers: Class E is tested for contact with an energized conductor and ANSI Z87.1+ is tested for impact. Arc flash and chemical splash each carry separate standards, and neither appears in the SureWerx specification for this helmet.
Specifications
These cover the Jackson Safety XS2-500 Class E safety helmet with the visor fitted.
| Brand | Jackson Safety, a SureWerx brand |
|---|---|
| Model | XS2-500 |
| Type | Type 2 safety helmet, non-vented, with flip-up visor |
| Standards | ANSI Z87.1+ High Impact. ANSI Z89.1, Type 2, Class E, HT, LT, EN12492 4.2.4. Meets CSA Z94.1, Type 2, Class E. |
| Electrical protection | Class E. Shell listed as dielectric. |
| Not rated for | Arc flash. Chemical splash. |

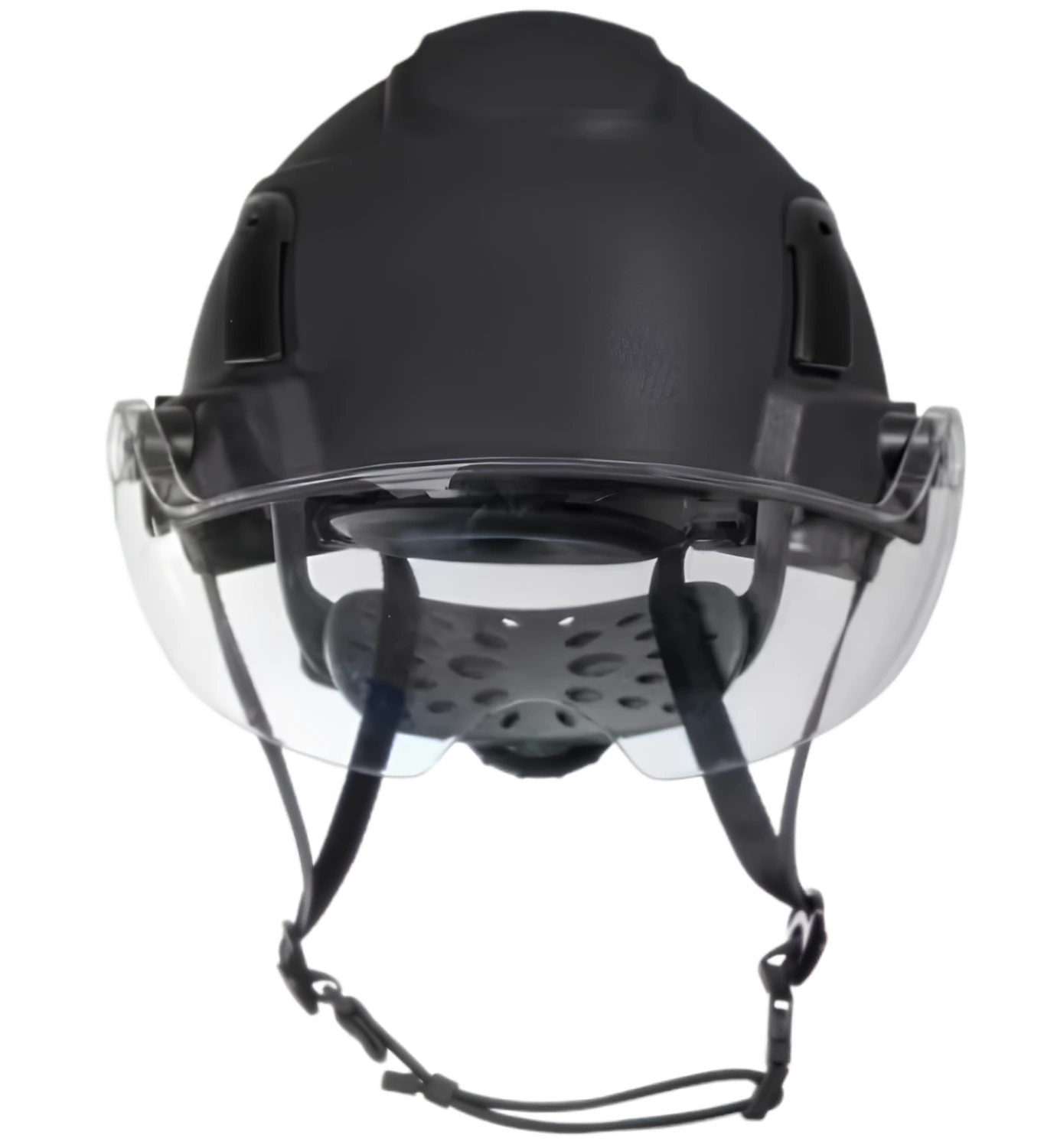

| Visor | Wrap-around polycarbonate, flip-up |
| Shell material | ABS |
| Energy absorption material | EPP |
| Suspension type | 6 pt. Comfort Plus |

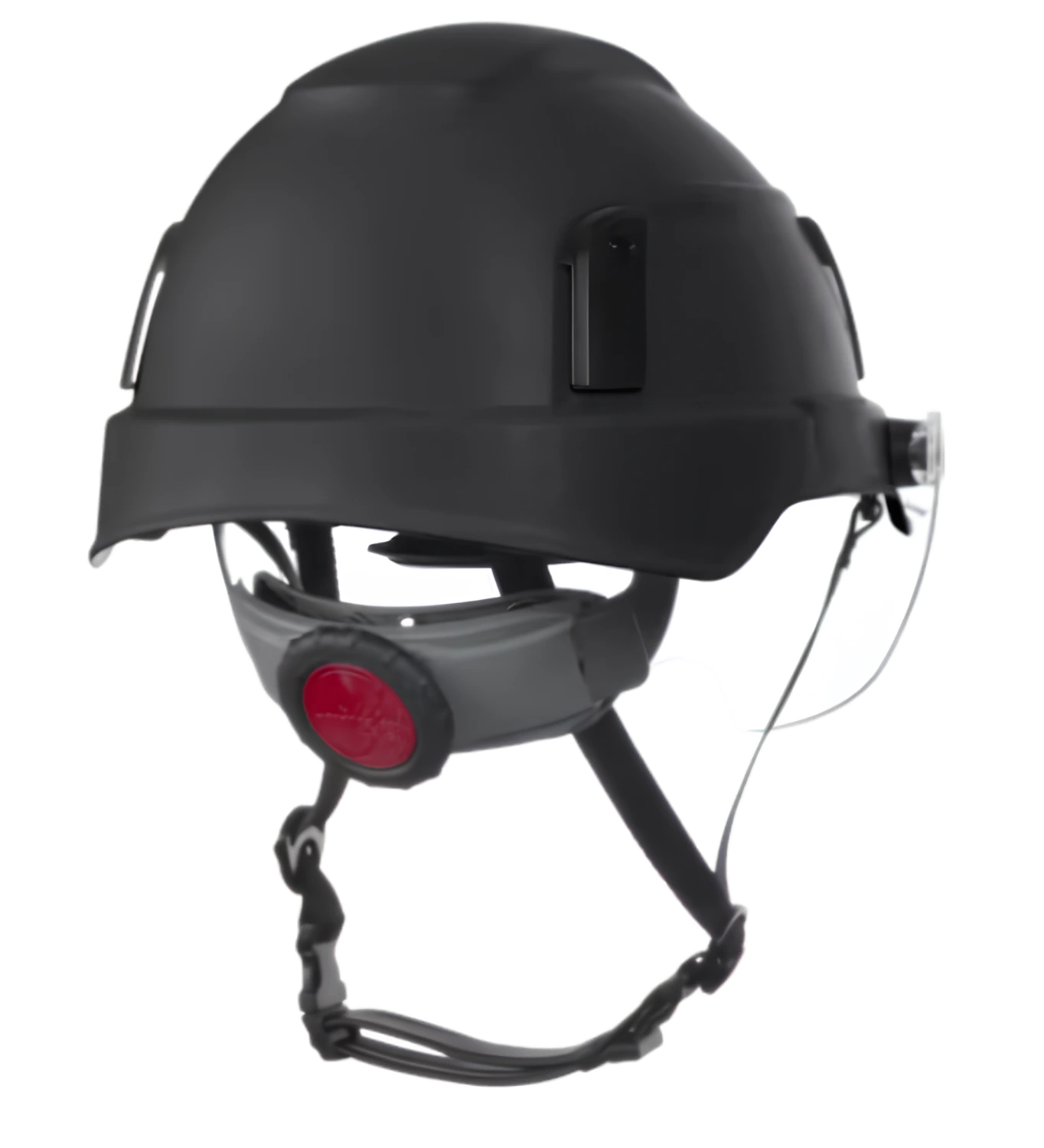

| Suspension adjustment | 370 Speed Dial ratcheting headgear |
| Headband | Cushioned, antimicrobial, moisture-wicking |
| Chin strap | 4-point, synthetic leather band |
| Head size | 6-1/2 to 8-1/2 |
| Accessory slot | Yes, slotted |
| Headlamp clips | Not listed for this model |
| Warranty | 1 year limited commercial warranty |
Colours

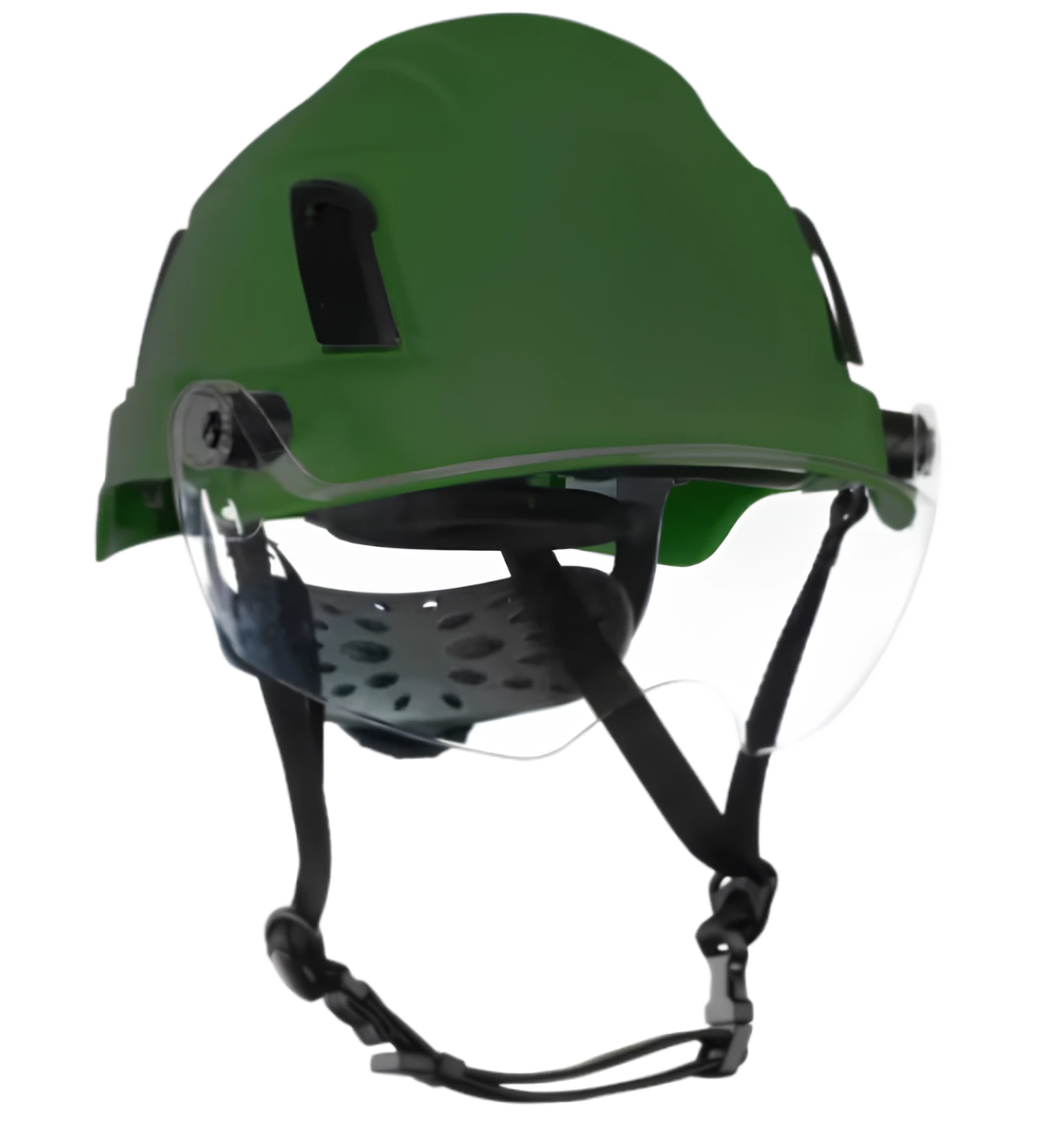

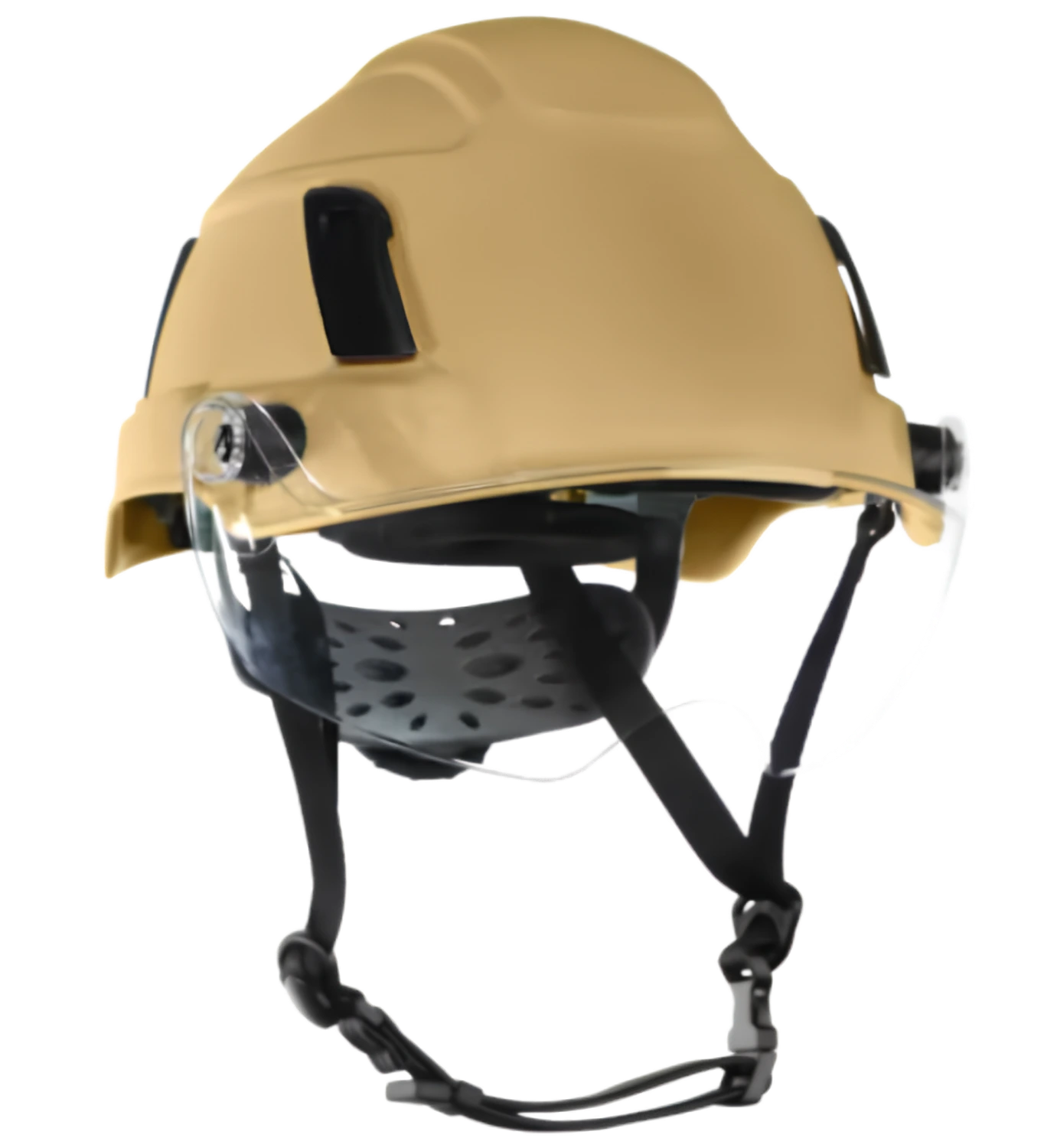

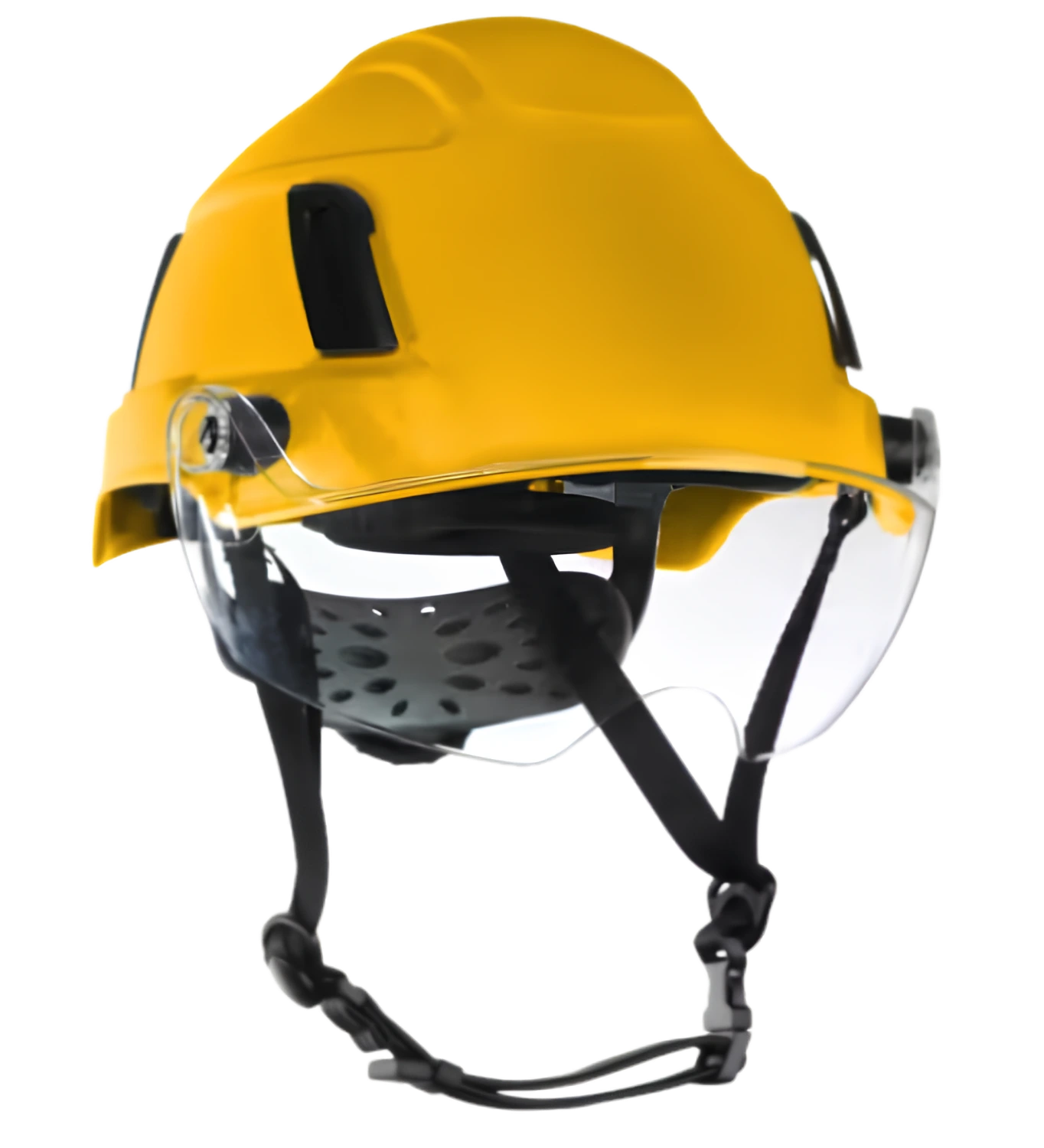

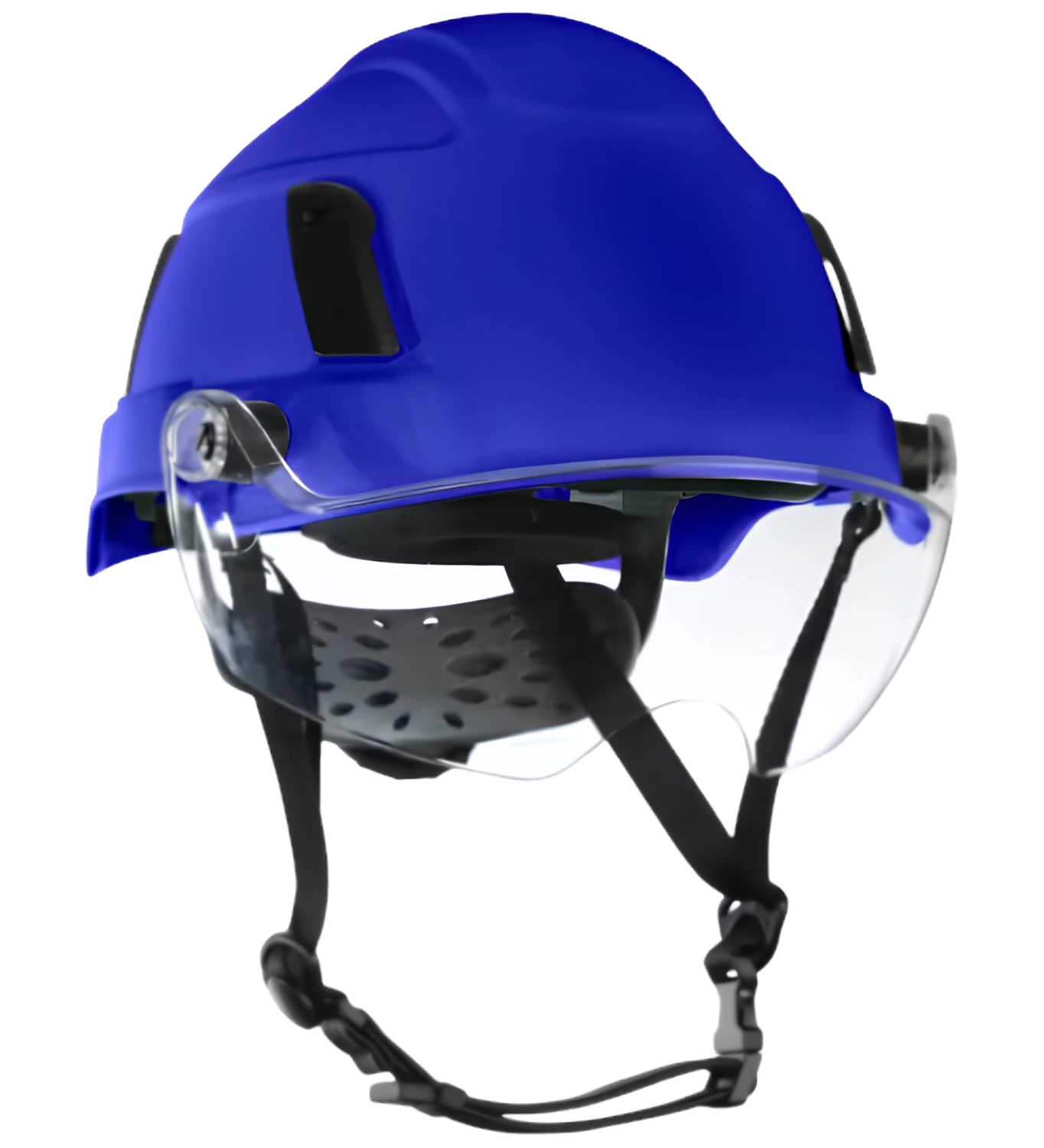

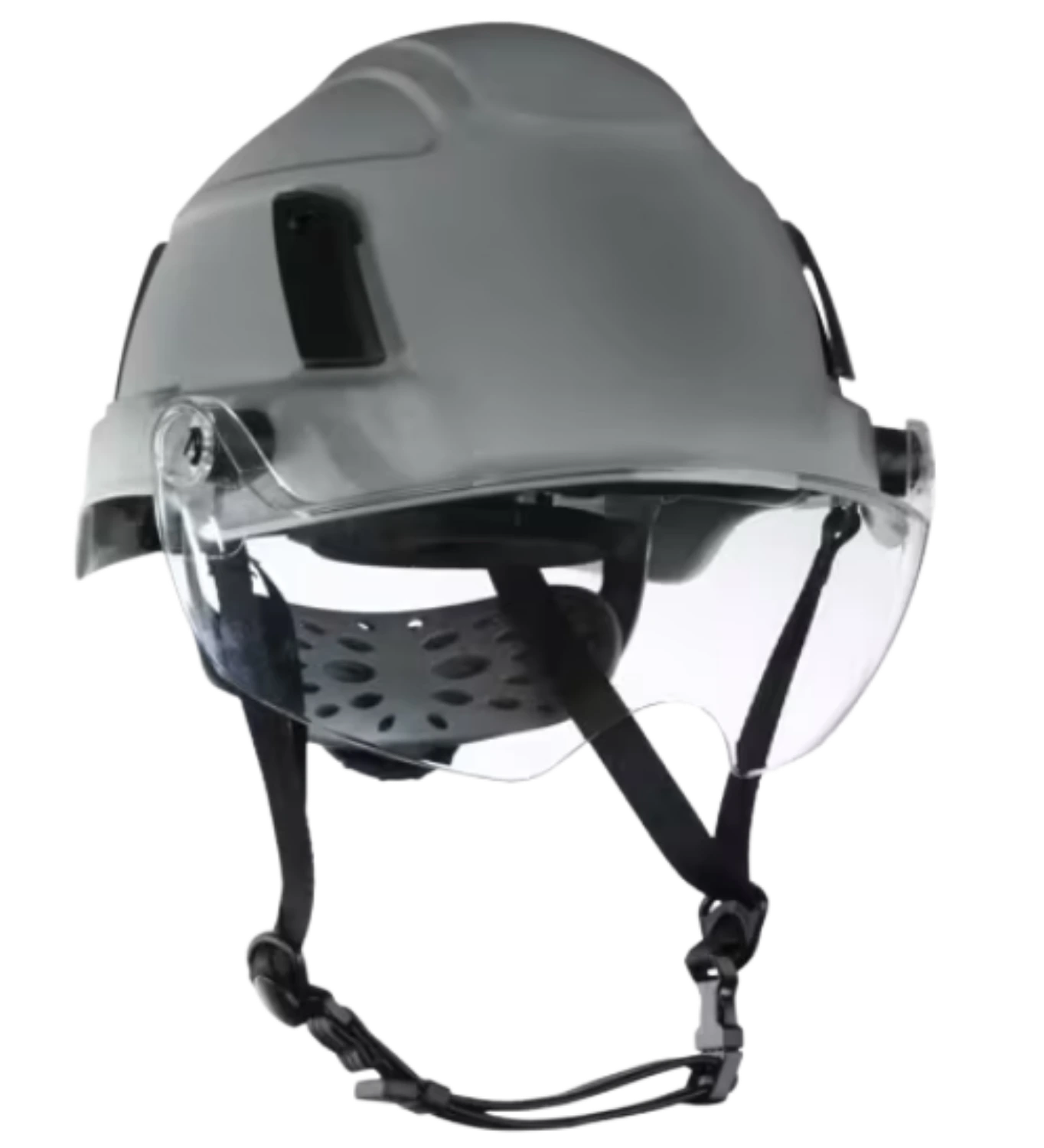

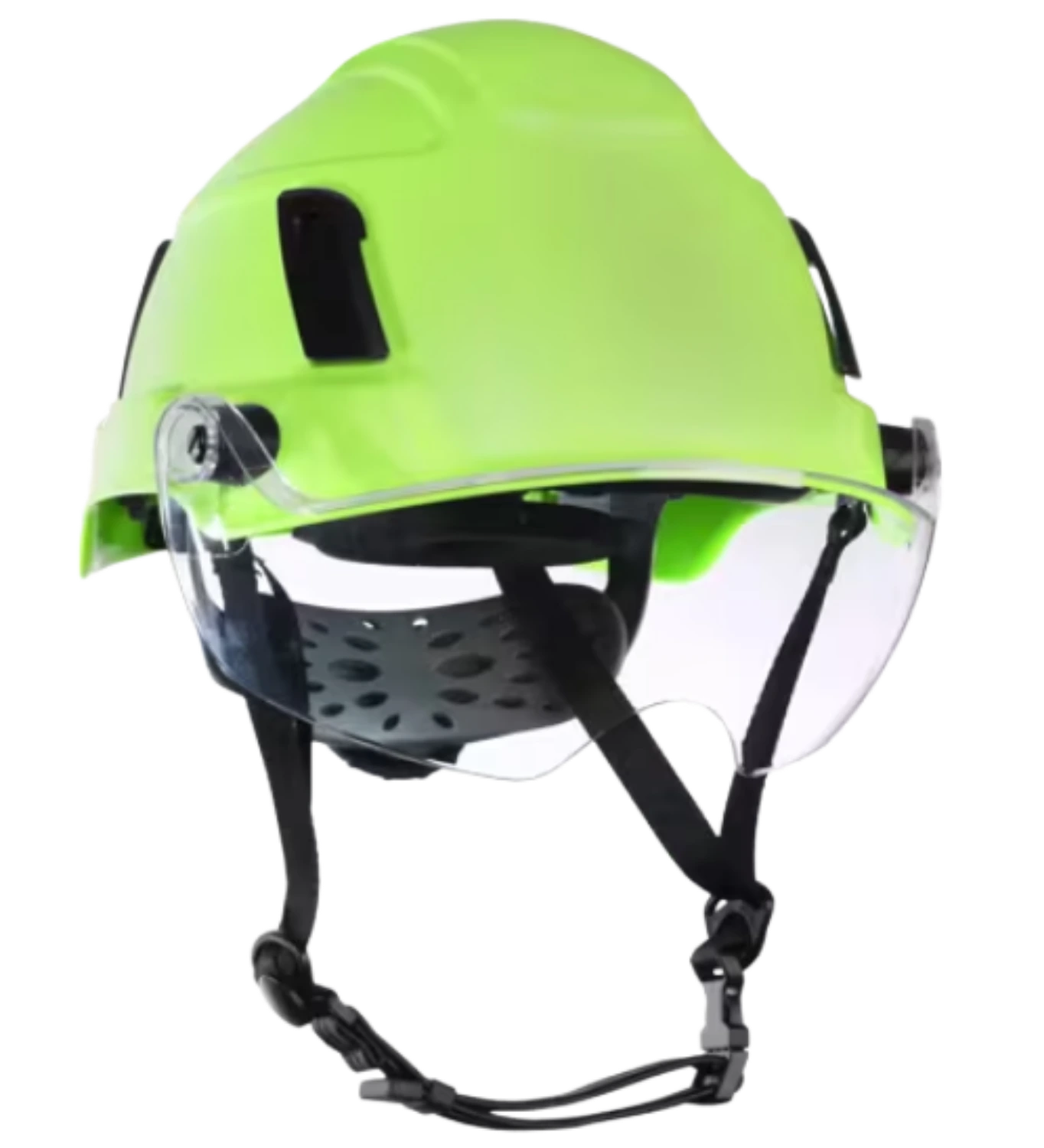

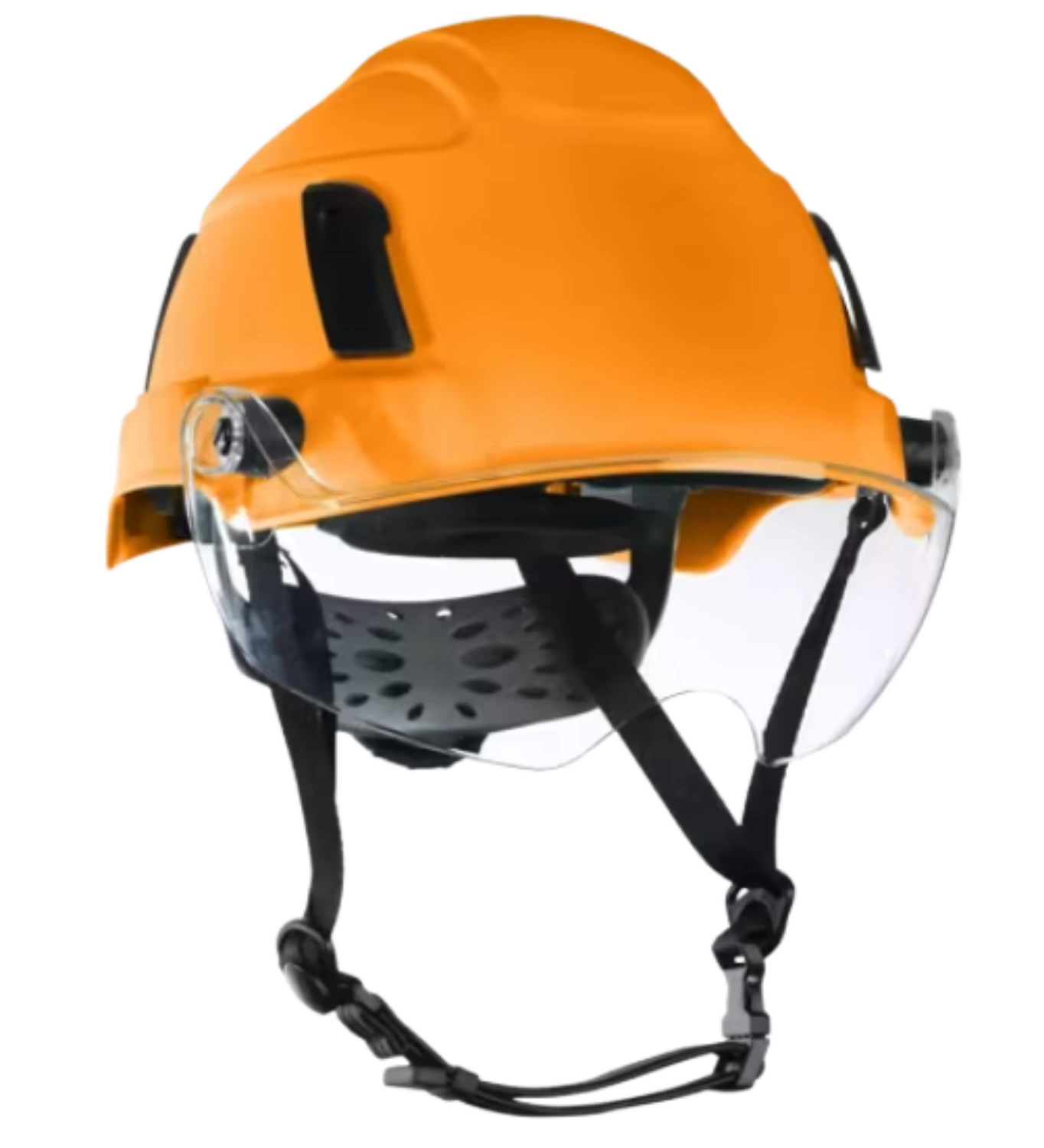

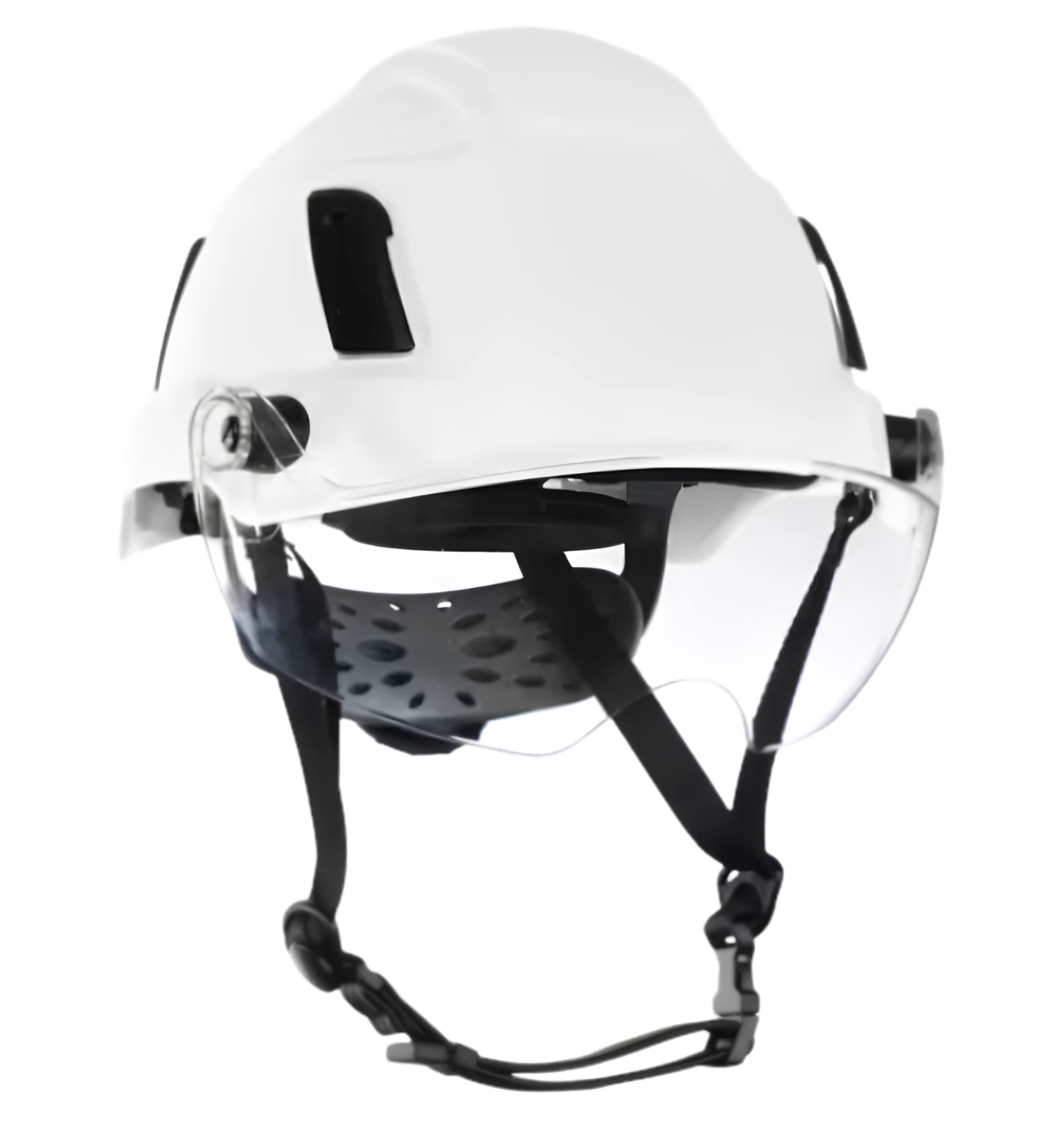

Black, White, Tan, Yellow, Red, Blue, Green, Hi-Vis Orange, Grey and Hi-Vis Green. Both ratings hold across every colour on the Jackson Safety XS2-500 Class E safety helmet.
Applications
A Class E helmet with flip up visor suits work that puts debris at the face and live conductors within reach. A helmet with an integrated face shield also removes one item from the pre-job check.
- Panel and control cabinet work involving cutting or grinding
- Breaker, starter and switchgear servicing
- Conduit and cable tray work at height
- Utility and municipal maintenance around energized gear
- Crews trading a separate shield for a helmet with an integrated face shield
A Class E helmet with flip up visor is not arc-rated face protection, and arc work needs gear that is. With no electrical exposure in the task, the vented visor model is Class C. Where a helmet-mounted light matters more than a face shield, the XS2-500 without a visor is the one to order. All are under hard hats and bump caps at Cleanflow.
Buy the Jackson Safety XS2-500 Class E Safety Helmet from Cleanflow Utility Supply Company
Cleanflow Utility Supply Company stocks the Jackson Safety XS2-500 Class E safety helmet with the flip-up visor and ships across Canada and the USA. Free shipping on orders over $199. Returns accepted within 30 days at returns.cleanflow.net.
Call 1-866-335-1078 (Canada) or 1-204-888-8469 (USA), or email [email protected]. A Class E helmet with flip up visor is not a substitute for arc-rated gear, so settle the hazard assessment before standardizing a crew. Ask about bulk quantities and net terms.
Frequently Asked Questions
Is a Class E helmet with a visor arc rated?
No. Class E covers contact with an energized conductor. ANSI Z87.1+ covers impact from flying fragments. Arc flash protection is a separate standard with its own cal per square centimetre rating, and nothing in the SureWerx specification for this helmet mentions it. Arc work needs arc-rated face protection.
Does a polycarbonate visor conduct electricity?
SureWerx publishes no electrical rating for the visor. The Class E rating covers the helmet, and an ANSI Z87.1+ visor is rated for impact only. Do not treat the visor as electrical protection, and follow your site rules for anything it may contact.
Can you wear a face shield with a Class E helmet?
A Class E helmet with flip up visor has one fitted already. Eye and head protection in one helmet means one item to inspect rather than two, and nothing to lose off the truck. Many sites still require primary eye protection underneath a face shield, so check the hazard assessment before treating the visor as a replacement for safety glasses.
What is the difference between the vented and non-vented visor models?
The electrical rating. The non-vented Class E helmet has a dielectric shell. The vented visor model is Class C, which carries no electrical rating at all. Same visor, same suspension, same chin strap, same size range.
Does the visor model have headlamp clips?
No. SureWerx lists headlamp and headband clips on the XS2-500 without the visor and does not list them on either visor model. A crew needing both a helmet-mounted light and a face shield should confirm the configuration before the order goes in.
