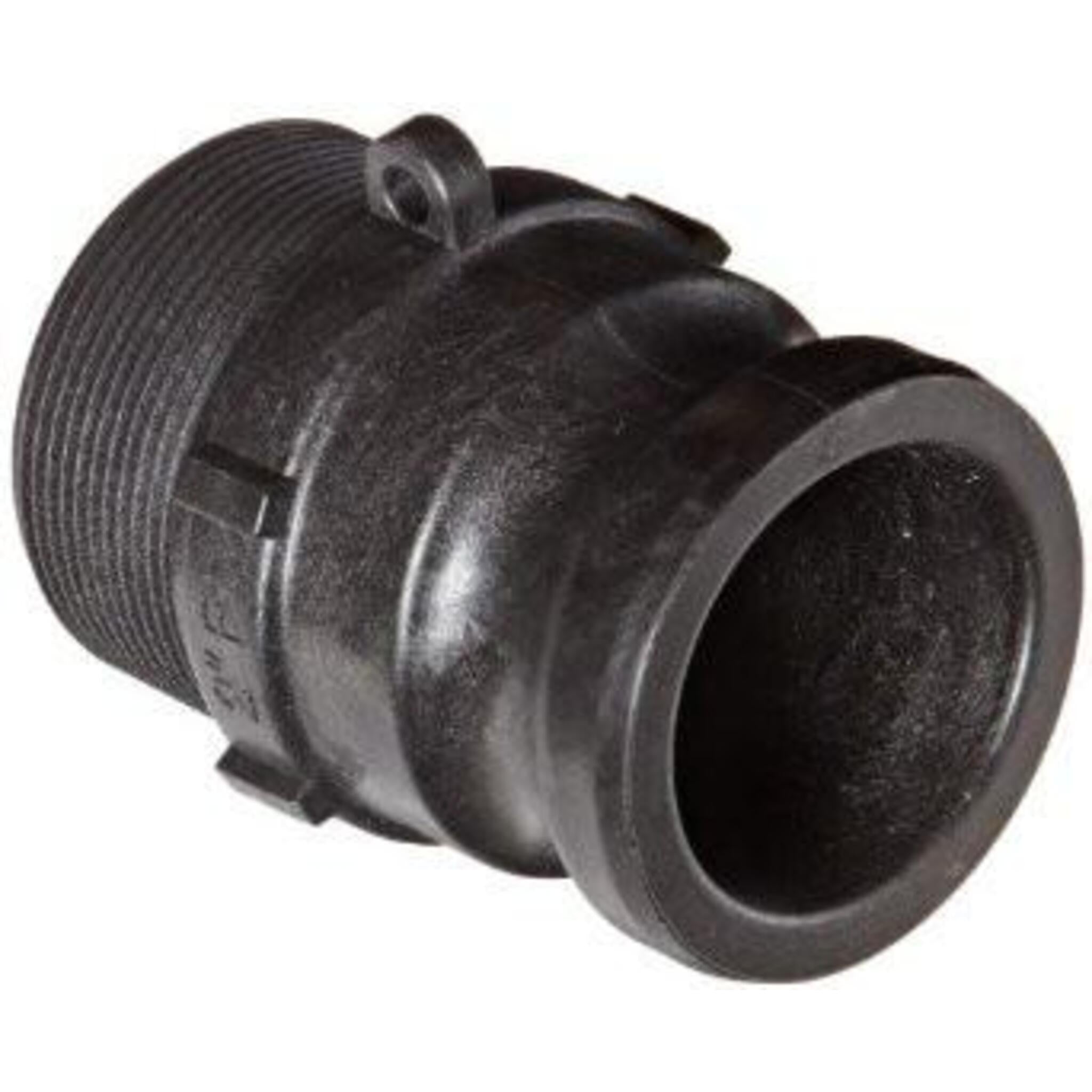

Streamline Connections with Polypropylene Camlock Type F
Type F Black Polypropylene Camlocks provide a robust and cost-effective solution for connecting hoses in a variety of settings. These camlocks feature a male camlock insert on one end and male NPT threading on the other, offering flexibility and ease in making hose connections. The black polypropylene material is suitable for a wide range of chemicals, making these camlocks versatile for different environments, especially where chemical resistance is crucial.
Key Features: Chemical Resistance, Cost-Effectiveness, and Appropriate Pressure Ratings
- Male Camlock to Male NPT Threading: Enables versatile connections between hoses and threaded fittings.
- Polypropylene Construction: Resistant to a broad spectrum of chemicals.
- Working Pressure and Temperature Range: Suitable for up to 100 PSI (sizes 3/4" to 2") and 50 PSI (sizes 3" and 4"), with a temperature range from -20°C to 70°C.
- Size Options: Available in sizes from 1" to 4".
Camlock Size Identification Guide
| Nominal Camlock Size | Type F — Male Adapter OD* |
|---|---|
| 3/4" | approx. 1.26" |
| 1" | approx. 1.44" |
| 1-1/4" | approx. 1.79" |
| 1-1/2" | approx. 2.10" |
| 2" | approx. 2.48" |
| 2-1/2" | approx. 2.98" |
| 3" | approx. 3.60" |
| 4" | approx. 4.70" |
* For male camlock adapters, measure straight across the outside of the adapter end that connects into the female coupler.
** For female camlock couplers, measure straight across the outside of the coupler body, excluding the handles.
Enhance Your Fluid Handling with Polypropylene Camlock Type F
Type F Black Polypropylene Camlocks are an essential tool for efficient fluid management, especially in applications that require resistance to various chemicals. Whether used in agricultural, industrial, or laboratory settings, these camlocks offer a reliable, cost-effective solution for connecting hoses to threaded fittings in systems encountering a range of chemicals.
