Description

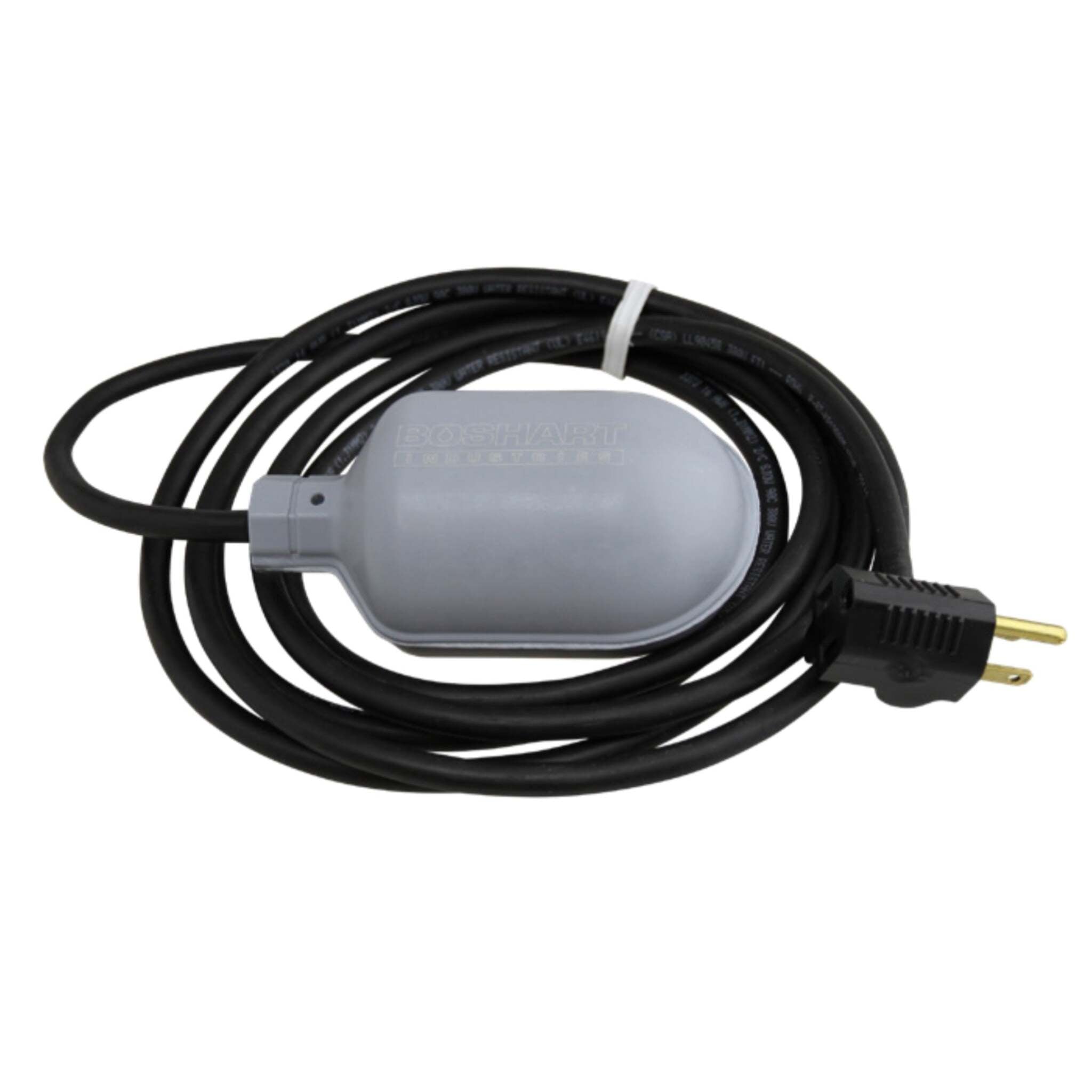

Pump Up Pump Switch Piggyback Wide Angle 120V AC 13 Amp 1/2 HP
Enhance your pump control with our 13 Amp Pump Up Wide-Angle Piggyback Plug Pump Float Switch, expertly designed for precise on and off control in a wide range of liquid tank environments. With a focus on exceptional performance and compatibility, this versatile pump float switch is ideal for cisterns, water tanks, and any other filling or low liquid level alarm applications. This float switch operates efficiently by turning a pump on as the liquid level falls, featuring normally closed (NC) contacts for filling tank applications. The contacts remain closed while the switch hangs down and open as the liquid level rises. Its robust design and reliable operation make it perfect for diverse applications, ensuring your tank systems are always optimally managed.
Key Features: Reliable and Versatile Liquid Control
- Wide-Angle 13 Amp Pump Switch: Efficiently manage liquid levels with the wide-angle 90° switching differential, offering reliable performance in various applications.
- Versatile Compatibility: Compatible with most pumps up to 1/2 HP, thanks to the 120VAC piggyback plug configuration.
- Durable Float Housing: The robust Polypropylene float housing ensures longevity and reliable operation in environments with temperatures ranging from 0-140° F.

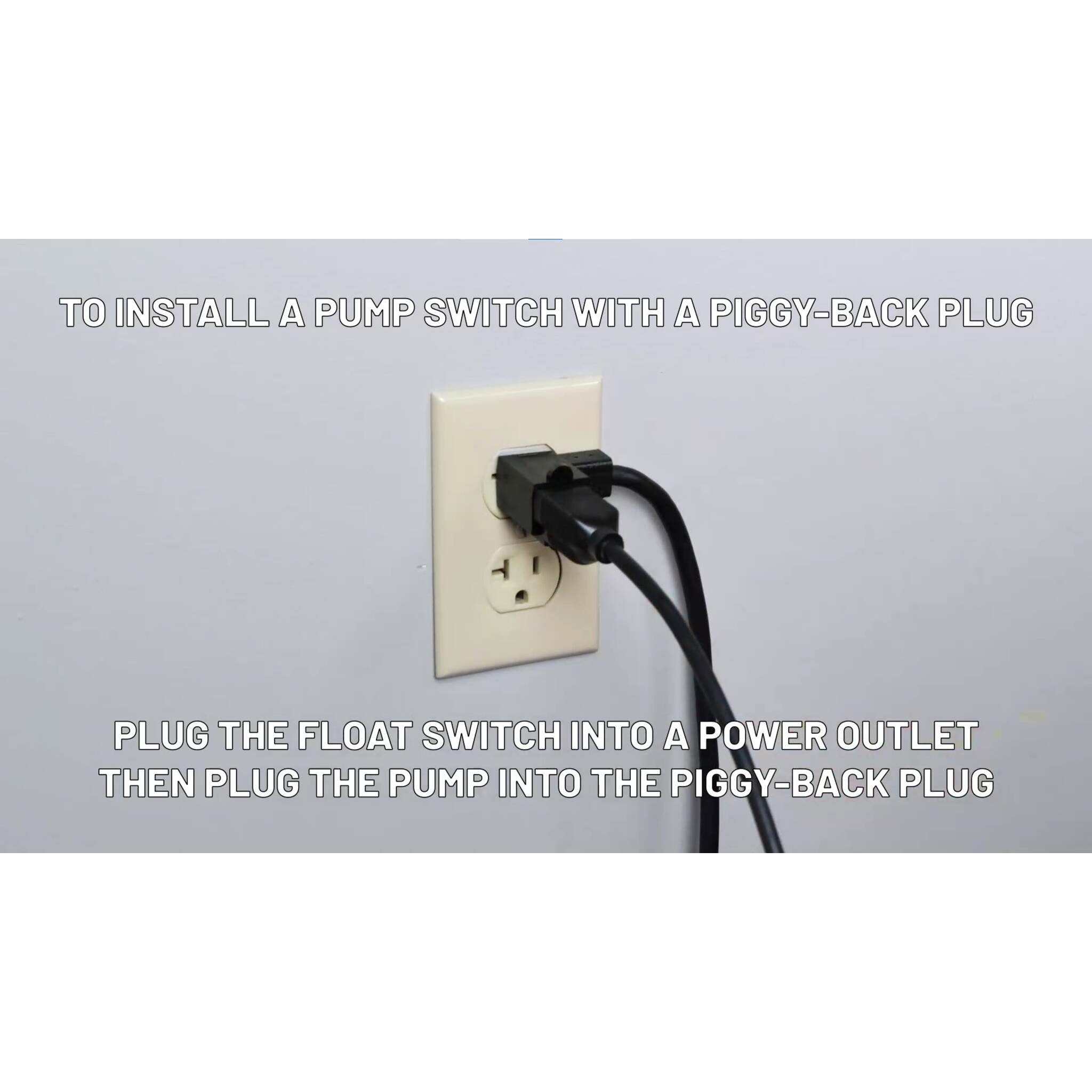

- Easy-to-Use Connection: The piggyback plug connection offers a convenient and user-friendly installation process.
- Certified Quality: UL certified for both US and Canada, ensuring the highest level of safety and performance standards.
- Flexible Cable: Includes a flexible 16-gauge, 2-conductor (UL, CSA) SJOOW cable, water-resistant and oil-resistant.
- Pivot Point Options: Supplied with a stainless steel clamp to secure the float switch cable to the pump discharge pipe. Alternatively, an optional cable weight is available.
Upgrade Your Pump Controls with Confidence
Upgrade your liquid tank management system with the Pump Up 13 Amp Wide-Angle Piggyback Plug Pump Float Switch and experience reliable, efficient performance in a wide variety of applications. Order yours today and take control of your pump operations like never before!
Specifications | |
Cable | Flexible 16 gauge, 2 conductor (UL, CSA) SJOOW, water resistant, oil resistant |
Float | 3.0 inches diameter x 4.35 inches long high impact, corrosion resistance, PVC housing for use in sewage and water up to 140°F (49°C). Non-mercury, wide angle. |
Electrical 120V AC 60 Hz Single Phase | Maximum Pump Running Current: 13 amps Maximum. Pump Starting Current: 85 amps Recommended Pump HP: 1/2 HP or less. |
Switching Differential | 90° total (wide angle) |
Switch Configuration | Single Pole, Single Throw |
Certifications | CSA (US and Canada) |
