Description
Spiral Pipe Reamer for Steel Pipe Burr Removal, 1/8" to 2"
Overview

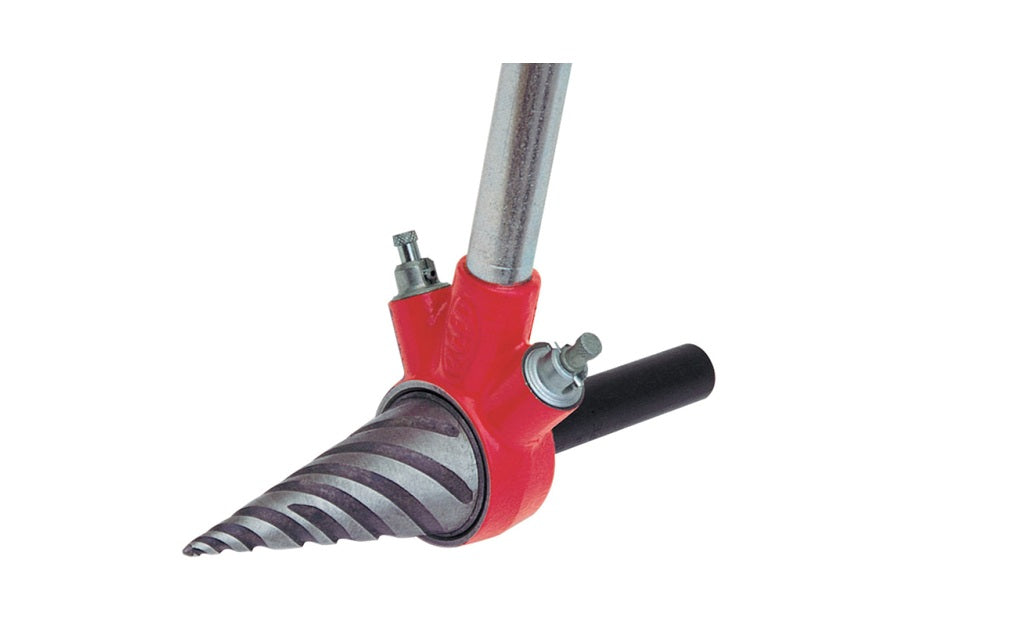

Cut, ream, thread. The reaming step between cutting and threading determines whether pipe joints seal cleanly or leak under pressure. The Reed 2-71 pipe reamer is a self-feeding pipe reamer that removes internal burrs from 1/8" to 2" steel pipe using a hardened tool steel cone and ratchet drive. This manual pipe reamer covers standard threaded pipe sizes without power.
Specifications
| Specification | Details |
|---|---|
| Catalog No. | 2-71 |
| Item Code | 06060 |
| Description | Pipe Reamer |
| Pipe Capacity (Nominal) | 1/8" to 2" |
| Pipe Capacity (Actual I.D.) | 3 to 50 mm |
| Type | Spiral ratchet pipe reamer |
| Cone Material | Hardened tool steel |
| Weight | 6.7 lbs (3.0 kg) |
| Manufacturer | Reed Manufacturing, Erie, PA |
Key Features
- Self-Feeding Spiral Flutes. The spiral cutting edge draws the cone into the pipe as the ratchet handle turns. The operator controls the speed without continuously forcing the tool forward.
- Dual-Pawl Ratchet Mechanism. Two pawls engage 13 equally spaced teeth on the ratchet ring. This design engages the cutting edge on every half-rotation.
- Hardened Tool Steel Cone. The heat-treated tool steel cone maintains a sharp cutting edge for reliable burr removal. The cone can be replaced when it becomes worn or damaged.
- 1/8" to 2" Pipe Capacity. One Reed 2-71 pipe reamer covers nominal steel pipe sizes from 1/8" through 2", or 3 to 50 mm actual inside diameter.
How to Use the Reed 2-71 Pipe Reamer

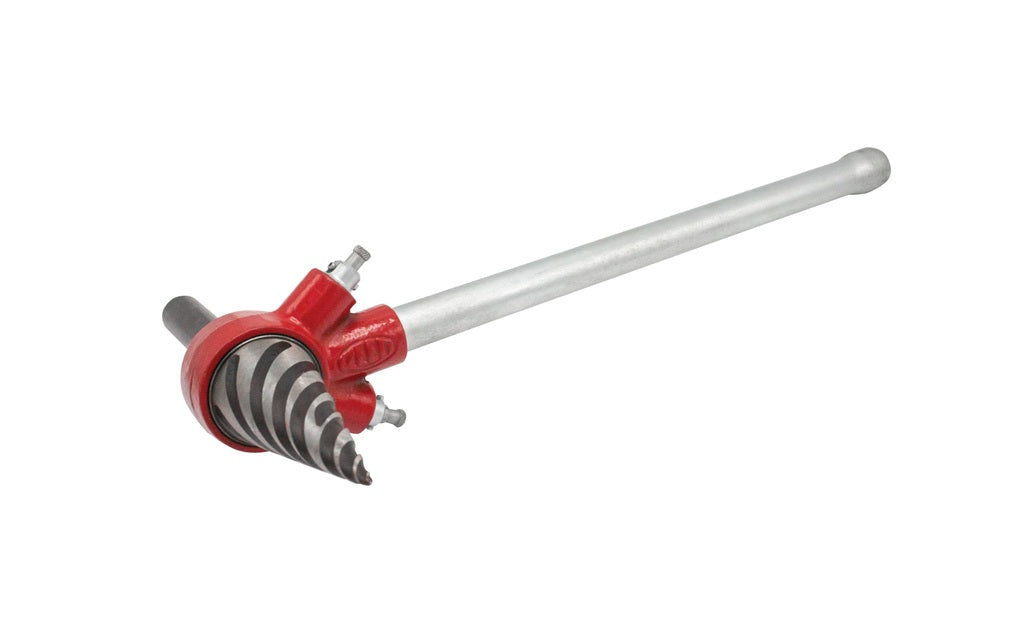

The Reed 2-71 has two handles: a short reamer handle attached to the cone assembly and a long ratchet handle that drives rotation.
- Assemble the reamer. Lift both pawls from the ratchet ring and rest them across the slotted sleeve. Insert the cone into the ratchet ring from either side. Return the pawls to the slots with their arrows pointing downward in the cutting position.
- Position the cone. Hold the short reamer handle and press the cone lightly against the burr inside the pipe.
- Ream the pipe. Turn the long ratchet handle with your other hand. The spiral flutes will engage and draw the cone into the pipe.
- Remove the burr. Continue turning the handle until the internal burr has been fully removed.
- Release the cone. Press steadily downward on the short handle to move the cone off-center. Complete a downward stroke with the long handle. If the cone does not release, lift the short handle while making another ratchet stroke.
Caution: Do not connect the Reed 2-71 to a power drive. This pipe reamer is designed for manual operation only.
Reed 2-71 Replacement Parts
Each main component of the Reed 2-71 pipe reamer can be replaced individually. Common replacement parts include the 2-71RC reamer cone and the 2-71RP pawl assembly.
| Ref. | Part Description | Item Code | Catalog No. |
|---|---|---|---|
| 1 | Pawl Assembly | 96189 | 2-71RP |
| 2 | Ratchet Ring | 95064 | 2-71R |
| 3 | Reamer Handle | 96039 | 2-71UH |
| 4 | Machine Screw | 30047 | 2-71MS |
| 5 | Reamer Stud | 96017 | 2-71RUS |
| 6 | Reamer Head | 96040 | 2-71RUH |
| 7 | Reamer Cone | 96660 | 2-71RC |
| 8 | Reamer Unit Complete | 96662 | 2-71RUC |
| 9 | Handle | 97218 | S81H |
Applications
- Removing internal burrs from 1/8" to 2" cut steel pipe before threading
- Preparing pipe ends before roll grooving to help protect coupling seals
- Deburring pipe at job sites where electrical power is unavailable
- Daily steel-pipe preparation for plumbing, HVAC, fire protection, and gas line crews
- Bench use in maintenance shops between pipe-cutting and threading jobs
Buy the Reed 2-71 Spiral Pipe Reamer Online from Cleanflow
Cleanflow Utility Supply Company is an authorized Reed supplier. The Reed 2-71 is a manual, self-feeding spiral pipe reamer with a hardened tool steel cone for 1/8" to 2" steel pipe.
Order online for delivery across Canada and the United States. Free shipping is available on orders over $199, and returns are accepted within 30 days. Email info@cleanflow.ca for product questions, returns, or exchanges.
Browse more pipe reamers and deburring tools from Reed.
Frequently Asked Questions
What is a pipe reamer used for?
A pipe reamer removes the internal burr left after steel pipe is cut. Removing the burr restores the opening, reduces flow restrictions, and prepares the pipe for threading or grooving. The Reed 2-71 handles steel pipe from 1/8" to 2".
Why should you ream pipe before threading?
Cutting can leave a raised metal lip inside the pipe. Reaming removes this obstruction before threading, helping the dies cut clean threads while maintaining the pipe’s internal opening.
What is the difference between a spiral and straight pipe reamer?
A spiral pipe reamer uses helical cutting edges that draw the cone into the pipe as the handle turns. A straight reamer generally requires more forward pressure from the operator. The self-feeding spiral design reduces the effort required during manual reaming.
Can I use the Reed 2-71 with a power drive?
No. The Reed 2-71 is designed for manual operation and should not be connected to a power drive. Use a compatible machine reamer when powered rotation is required.
Are replacement parts available for the Reed 2-71?
Yes. Reed lists individual replacement parts for the 2-71, including the 2-71RC reamer cone, 2-71RP pawl assembly, ratchet ring, handles, reamer head, and complete reamer unit.
