Description
Valve Turning Handle for Power Drive with Anti-Torque Support
Product Overview

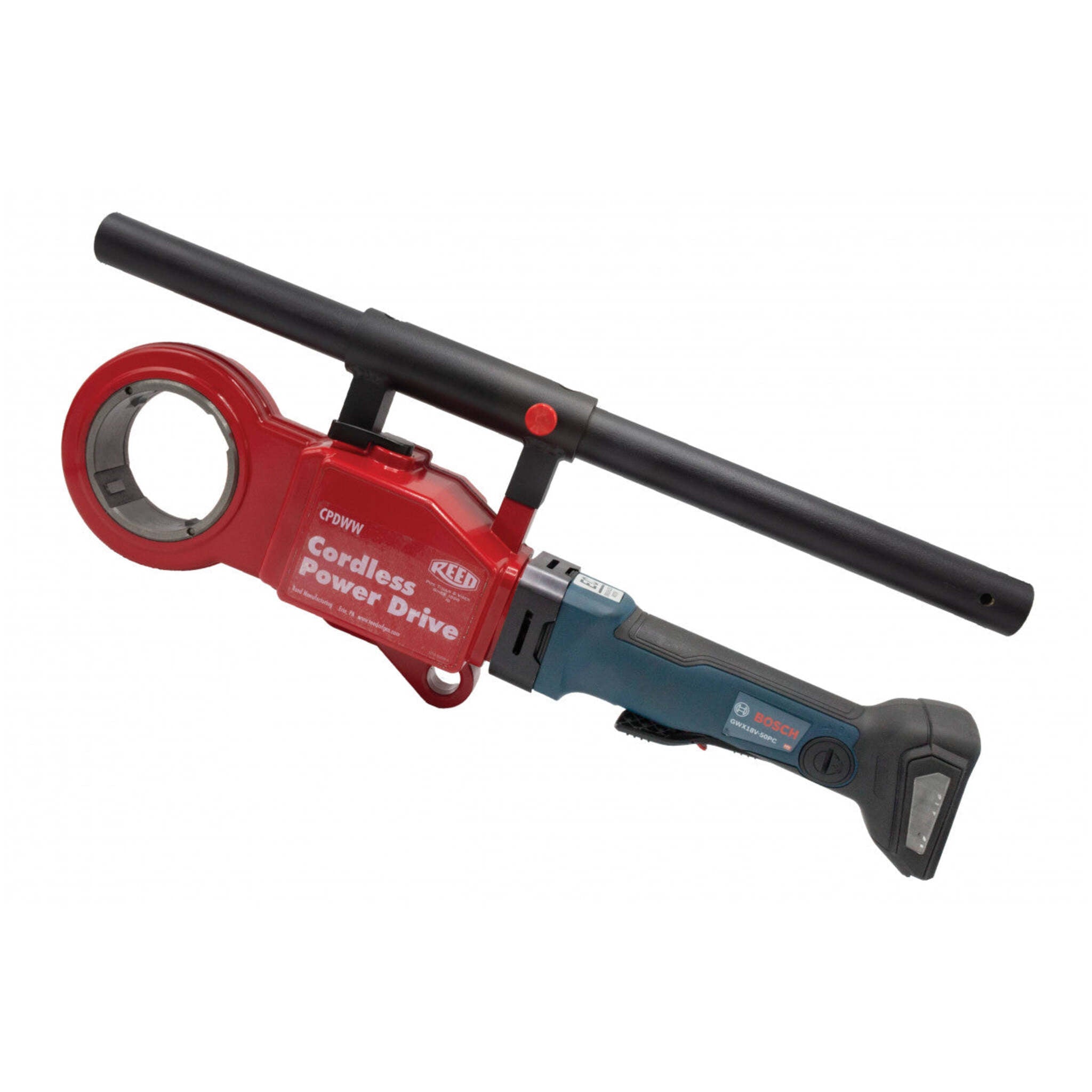

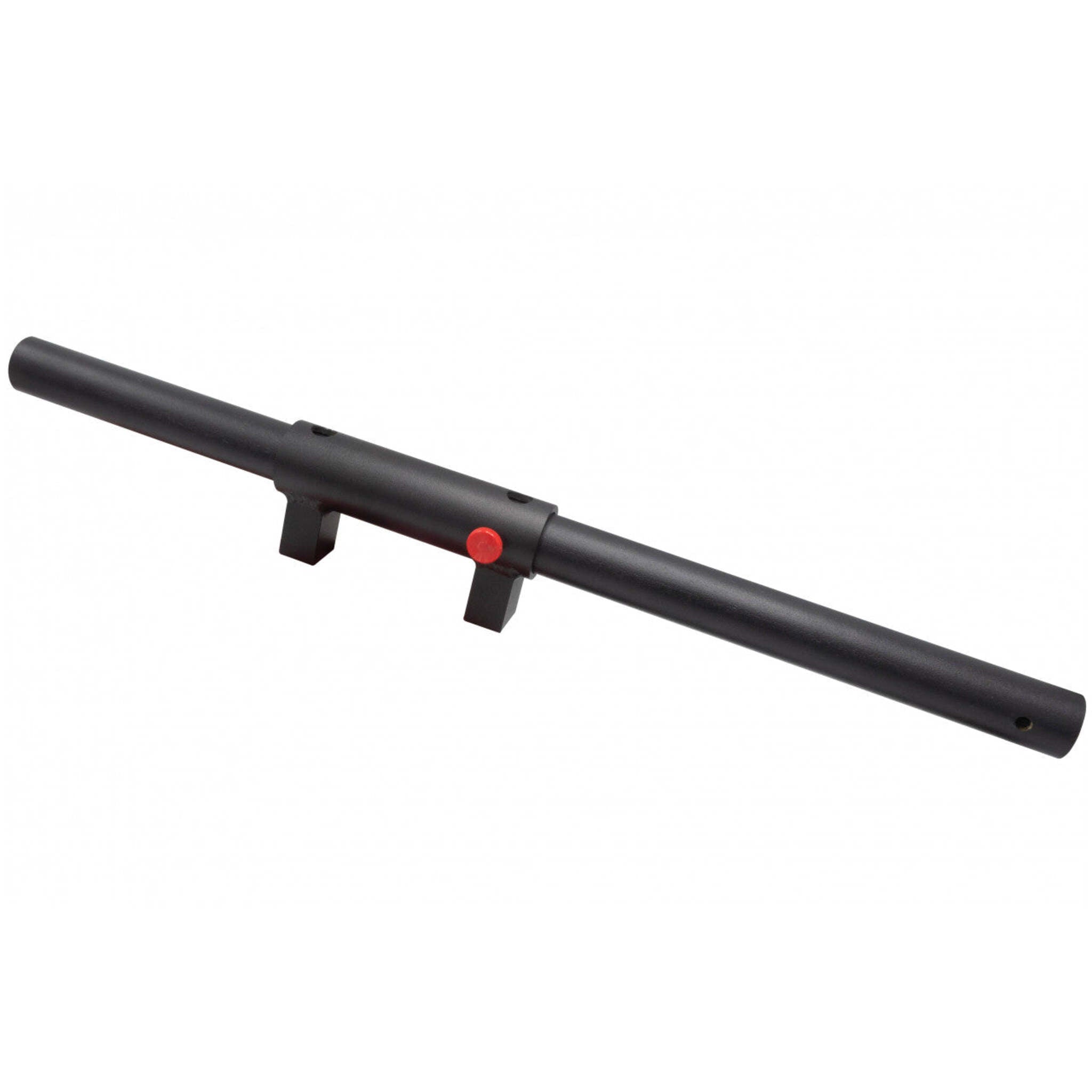

The Reed CPDWWLVHN expandable leverage handle replaces the standard handle on the CPDWW Cordless Power Drive for Waterworks. It slides open to provide a second grip position, giving the operator two-handed control during valve turning and other high-torque tasks. As an anti-torque handle for valve maintenance, the CPDWWLVHN manages reactive force so the power drive stays stable and aligned under load.
Specifications
| Specification | Details |
|---|---|
| Catalog No. | CPDWWLVHN |
| Item Code | 05296 |
| Description | Expandable leverage handle for CPDWW |
| Weight | 3.7 lbs (1.7 kg) |
| Compatibility | Reed CPDWW Cordless Power Drive (Item Code 05258) |
| Installation | Direct replacement for standard CPDWW handle |
Key Features
- Expandable Second Grip. The handle slides open to create a second hand position away from the drive body. This gives the operator two points of contact for better balance and control when the CPDWW power drive handle is under load.
- Anti-Torque for Valve Work. During powered valve turning, the drive generates reactive torque that pushes back against the operator. The Reed CPDWWLVHN expandable leverage handle absorbs this reaction through the extended grip, reducing strain on the operator's wrists and arms.
- Direct Handle Swap. The CPDWWLVHN replaces the standard CPDWW handle without adapters or modifications. Remove the original, install the expandable leverage handle for power drive, and the CPDWW is ready for valve work.
- Cordless Power Drive Leverage Handle. At 3.7 lbs, the cordless power drive leverage handle adds minimal weight to the 15 lb CPDWW unit while significantly improving operator stability during extended valve exercising sessions.
Standard Handle vs. Expandable Leverage Handle
The Standard CPDWW Handle
The Reed CPDWW Cordless Power Drive ships with a single carrying handle positioned on top of the unit. This handle works for lifting, positioning, and general operation during drilling and tapping tasks where torque loads are predictable. For valve turning, the single handle provides one point of contact.
What the Expandable Handle Changes

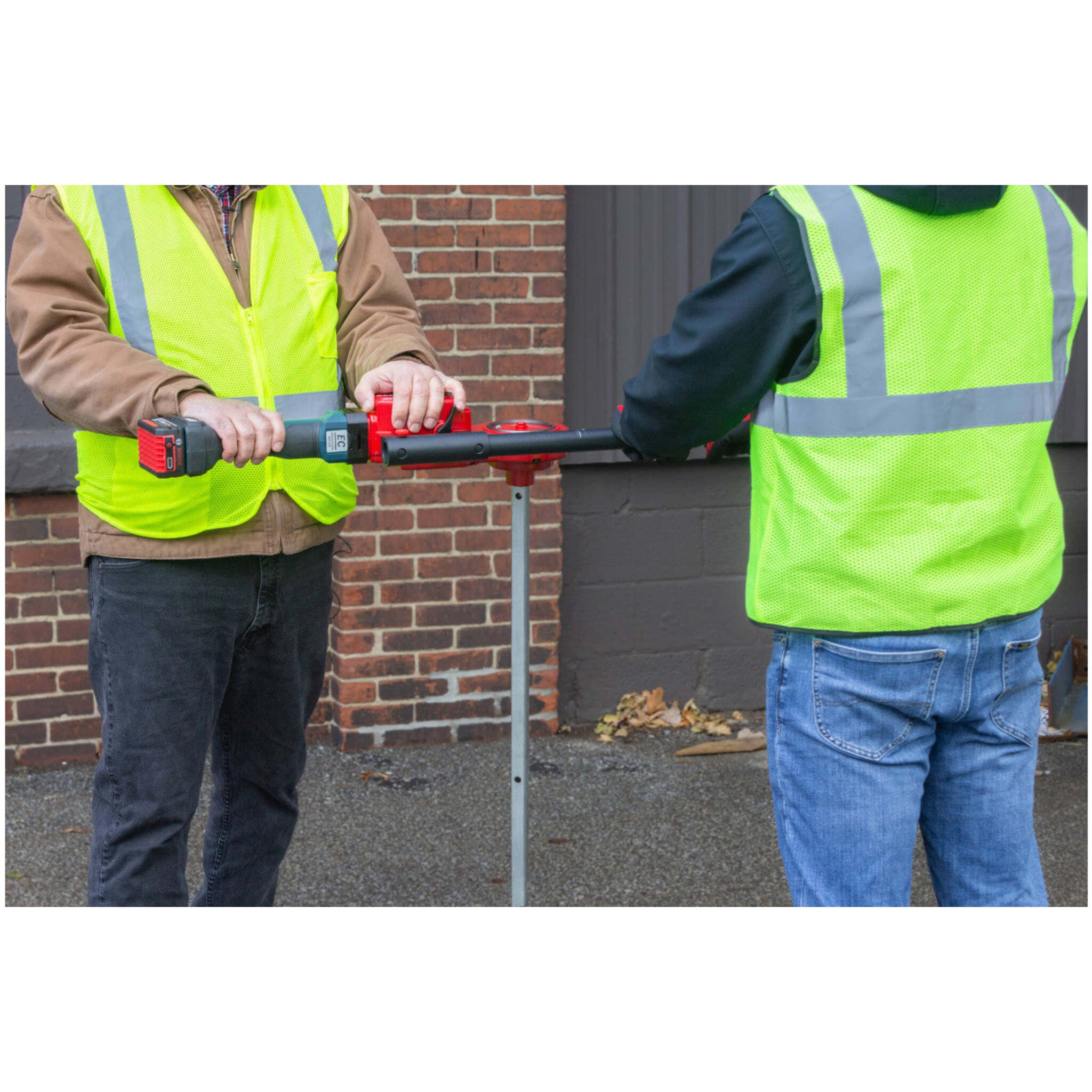

The CPDWWLVHN adds a sliding extension that opens outward from the drive body. As an expandable leverage handle for power drive work, the operator grips one end and braces against the extension with the other hand. This two-point hold does three things: it distributes the weight of the unit across both arms, it counteracts the twisting force during valve turning, and it keeps the power drive aligned with the valve stem. For municipal crews running valve exercising programs where operators turn dozens of valves per shift, the expandable handle for cordless waterworks drive reduces fatigue and improves control on every turn.
When to Use Each
The standard handle is adequate for drilling, tapping, and short-duration valve operations. The expandable leverage handle for power drive is the better choice for dedicated valve maintenance work, seized or stiff valves, and any application where the CPDWW will be running under sustained torque. The anti-torque handle for valve maintenance becomes particularly important when the Reed VOKUCLUTCH Utility Clutch is also installed, since the clutch allows higher torque output that the operator must manage.
Applications
- Municipal valve exercising programs where crews turn multiple gate valves per day using a valve turning handle for power drive
- Utility crews operating the CPDWW on seized or hard-to-turn valves that generate high reactive torque
- Waterworks operations pairing the CPDWW with a VOKUCLUTCH for controlled high-torque valve turning
- Field crews upgrading their CPDWW power drive handle from the standard single-grip configuration to a two-handed setup
Buy the Reed CPDWWLVHN Expandable Leverage Handle Online from Cleanflow
Cleanflow Utility Supply Company is an authorized Reed supplier. This expandable leverage handle for power drive work ships across Canada and the USA. The CPDWWLVHN upgrades any CPDWW Cordless Power Drive for valve maintenance with anti-torque support and two-handed control. Free shipping on orders over $199. Returns accepted within 30 days. Email info@cleanflow.ca for returns or exchanges.
Browse more pipe tools from Reed and other brands.
Frequently Asked Questions
What is the Reed CPDWWLVHN handle used for?
The CPDWWLVHN is an expandable leverage handle for power drive valve work that replaces the standard CPDWW grip. It provides a second hand position and anti-torque support during valve turning, improving operator balance and reducing fatigue on extended valve maintenance shifts.
Does the CPDWW power drive have an anti-torque handle?
Not by default. The CPDWW ships with a standard carrying handle. The CPDWWLVHN is a separate accessory that adds anti-torque handle for valve maintenance capability. It slides open to give the operator a second hand position for managing reactive torque during powered valve turning.
How to improve balance on a cordless power drive?
Install the CPDWWLVHN, an expandable handle for cordless waterworks drive units. It replaces the standard grip and slides open to provide a second contact point. Two-handed control distributes the weight of the cordless power drive leverage handle and unit across both arms, improving balance during operation.
What Reed CPDWW valve maintenance accessories are available?
Reed offers three main CPDWW accessories for valve work: the CPDWWLVHN expandable handle replacement for torque management, the VOKUCLUTCH utility clutch for adjustable over-torque protection, and the CPDWWCNT digital counter for tracking valve turns during exercising programs.
Can I buy a CPDWWLVHN expandable handle replacement separately?
Yes. The CPDWWLVHN (Item Code 05296) is sold as a standalone accessory. It replaces the standard CPDWW handle directly with no additional parts or modifications required. Order the Reed CPDWWLVHN expandable leverage handle to upgrade an existing CPDWW unit.
