Reed IC1S Internal Pipe Cutter

Saw Tooth Blade for Fast Cuts from Inside Plastic Pipe

Overview

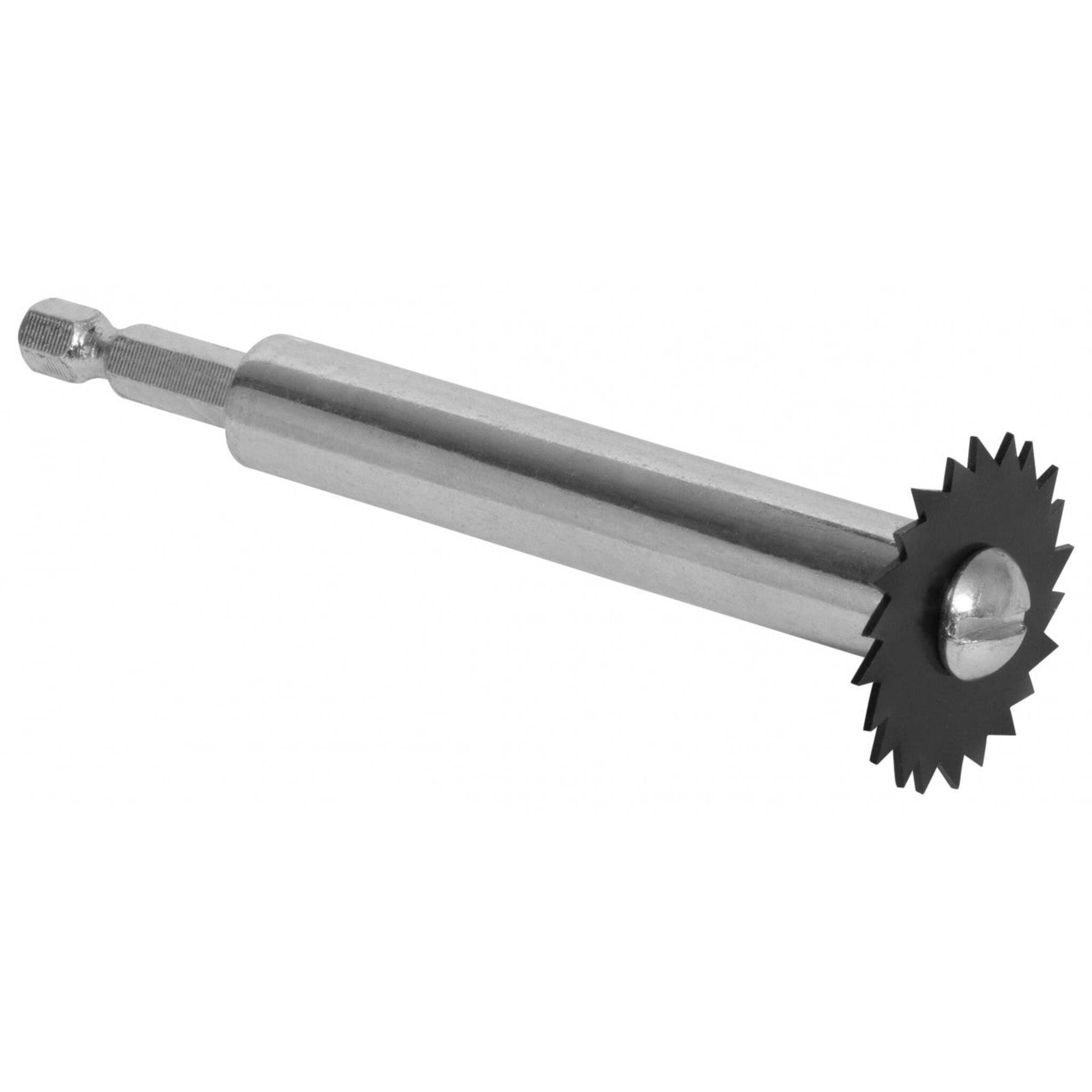

Pipes buried in concrete slabs, hidden behind finished walls, or set below tiled floors cannot be reached with external cutters. The Reed IC1S is an internal pipe cutter that cuts plastic pipe from the inside using any standard 3/8-inch drill. Its 1.26-inch saw-tooth blade handles PVC, CPVC, ABS, PEX, PE, and PP with a minimum pipe I.D. of 1-1/4 inches.

Specifications

Key Features

• The heat-treated saw tooth blade on the Reed IC1S cuts through plastic pipe aggressively and can also cut wood for sink lugs. The 1.26-inch blade reaches a cutting depth of 0.38 inches (9.6 mm).
• With a minimum pipe I.D. of 1-1/4 inches, this inside pipe cutter fits smaller drain lines where the Reed IC1A abrasive model (1-1/2 inch minimum) cannot reach.
• The 4-inch shaft fits any standard 3/8-inch drill chuck, making the IC1S a compact plastic pipe cutter for tight spaces. Flats on the shaft prevent slippage in the drill chuck during cutting.
• At 0.2 lbs (0.1 kg), the Reed IC1S adds almost no weight to the drill. The compact shaft keeps the tool manageable in confined work areas above ceilings and below floors.
• When the internal pipe cutter blade wears down, swap in a new IC1RS replacement blade (item code 04503, sold in 2-packs). The shaft and hardware are reusable.

How to Use the Reed IC1S

Understanding how to cut pipe from the inside requires proper setup and a drill-powered internal pipe cutter. As a pipe cutter for PVC and other plastics, the Reed IC1S completes a cut in one full rotation.

1. Wear safety glasses or full face protection before starting.
2. Insert the IC1S shaft into a standard 3/8-inch drill chuck and tighten securely.
3. Set the drill to forward rotation only. Do not run the Reed IC1S in reverse.
4. Lower the blade into the pipe, squeeze the trigger, and hold the drill straight at a right angle to the pipe. Let the blade penetrate completely through the pipe wall, then rotate 360 degrees to finish the cut.
5. Keep the blade away from concrete and other hard surfaces. For cuts near concrete, switch to the Reed IC1A with its abrasive blade.
6. Replace the internal pipe cutter blade immediately if it shows excessive wear or chipping.

Reed Internal Pipe Cutter Models

Reed makes several internal pipe cutter models for different pipe sizes and job conditions. Use the comparison below to decide whether the Reed IC1S vs IC1A or the longer IC1SL is the right inside pipe cutter for your application.

The IC1S is the preferred plastic pipe cutter for jobs where concrete contact is not expected. Choose the IC1A when the blade will touch concrete or masonry. Choose the IC1SL when you need a longer shaft or an adjustable depth guide to control cut depth precisely.

Applications

The Reed IC1S is a pipe cutter for PVC, CPVC, ABS, PEX, PE, and PP in any job where the pipe cannot be cut from the outside.

• Cutting drain pipes flush with finished floors for closet flange replacement. An internal pipe cutter for closet flange work avoids disturbing surrounding tile or flooring.
• Trimming sprinkler drops and drain pipes above ceiling level in new construction.
• Removing pipe stubs from concrete slabs during bathroom and kitchen remodels.
• Cutting PVC or ABS pipe inside walls where external access is blocked.
• Cutting wood for sink lugs during countertop installation.
