V-Head Pipe Stand with Folding Legs and 2,500 lb Capacity
Product Overview

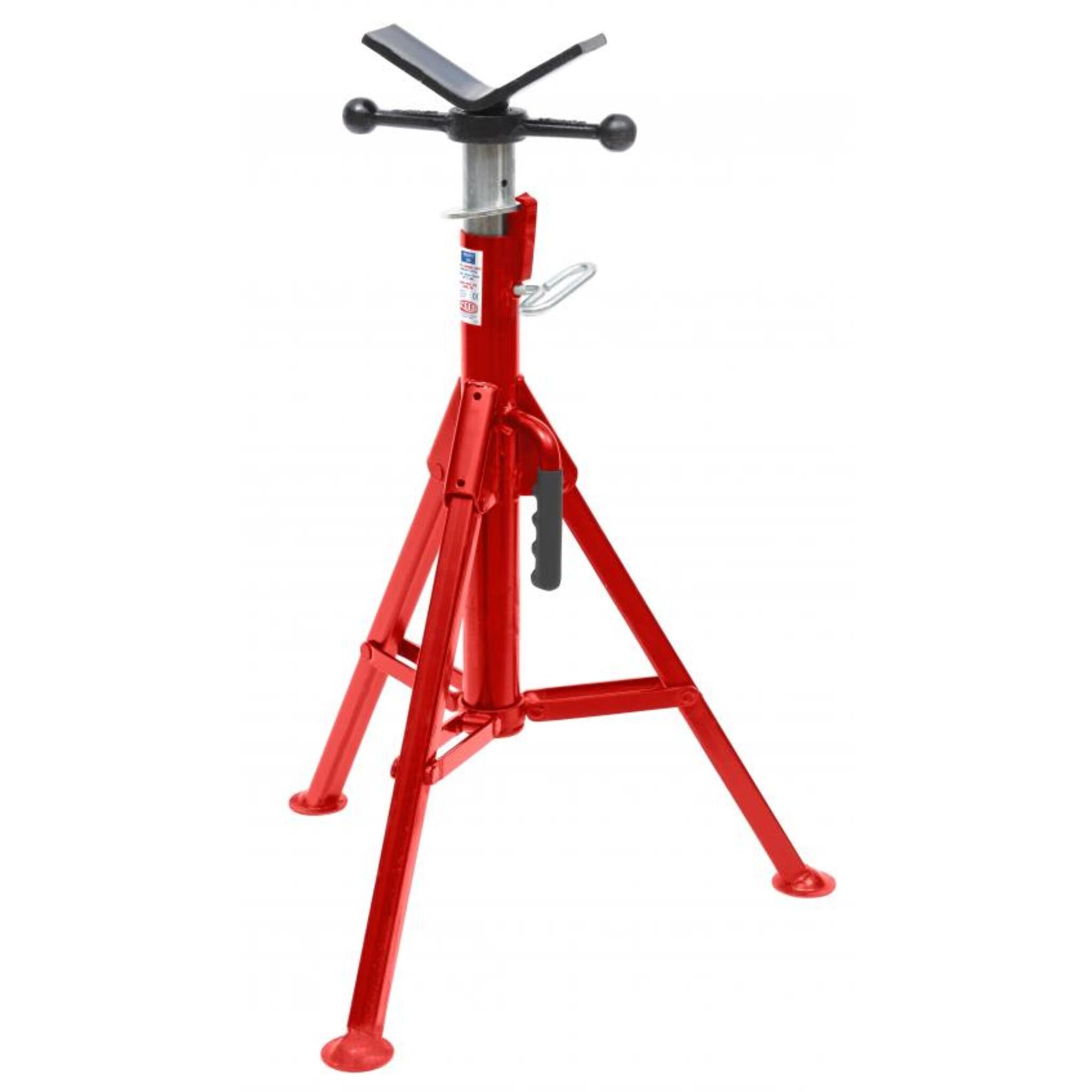

Supporting pipe during threading, welding, or grooving on a mobile job site requires a stand that sets up fast and packs down for the truck. The Reed JFV pipe jack is a folding pipe stand with a V-head cradle, adjustable height from 28 to 49 inches, and 2,500 lb capacity. A patented internal safety stop creates a 1-inch zone that prevents hand injuries during adjustment.
Folding Pipe Stand Features
- Patented Internal Safety Stop. The height-adjusting screw locks at a 1-inch gap above the hardened steel locking ring, preventing hands and fingers from being crushed during adjustment. Most v-head pipe stand models in this price range use a simple locking washer. The JFV adds a physical barrier that keeps the gap open regardless of how fast the screw is lowered.

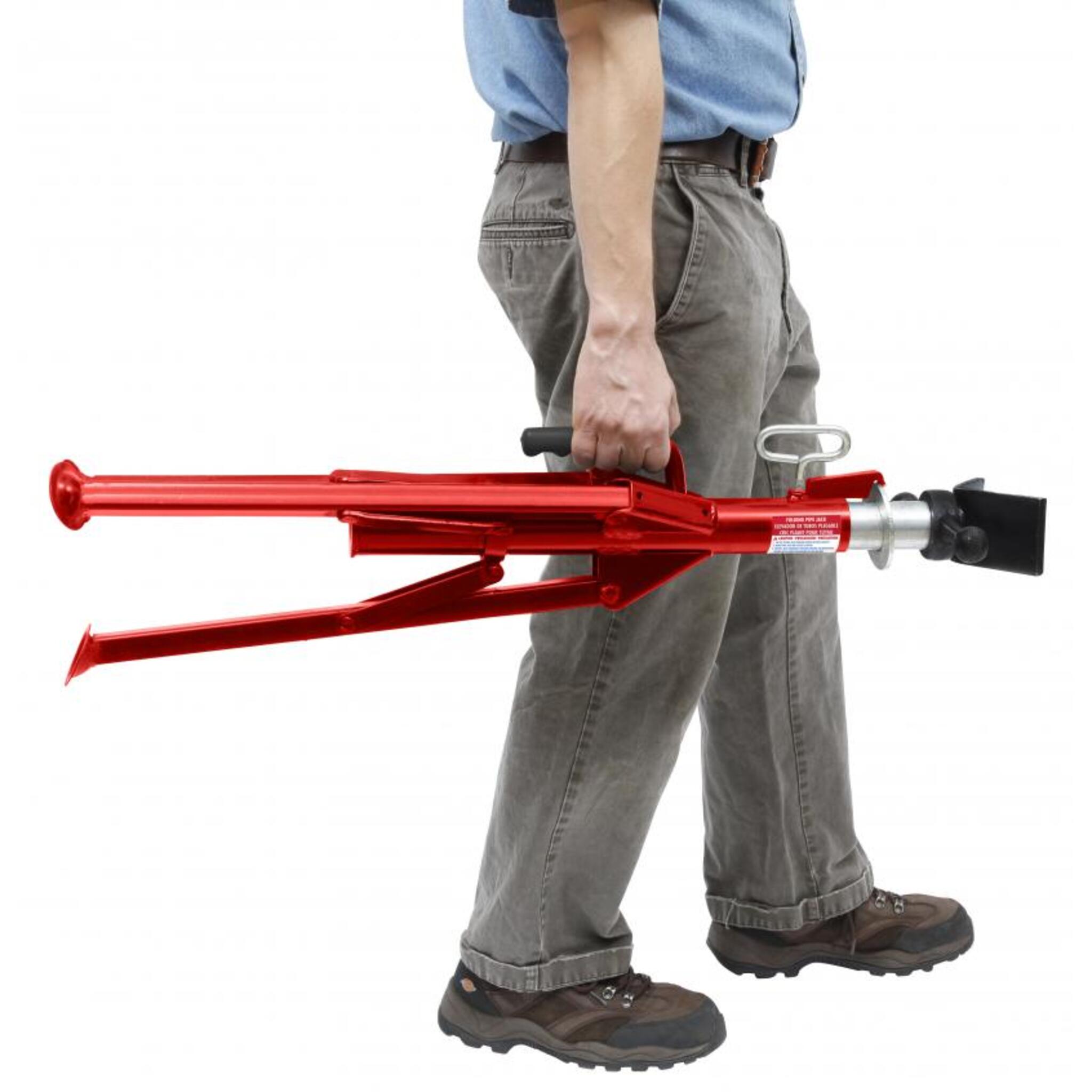

- Folding Tripod Legs with Carrying Handle. The tripod base folds flat for transport and storage. At 25 lbs with a centered carrying handle, this folding pipe jack moves between job sites without a dolly. Rounded feet add stability on concrete, asphalt, and uneven ground.
- 2,500 lb Capacity with Alternate Heads. The JFV supports pipe from 1/8 to 24 inches on its V-head cradle and accepts roller or flat-top alternate heads for different pipe work. As an adjustable pipe support stand rated at 2,500 lbs, it handles heavy commercial and industrial pipe runs without deflection.
Specifications
| Spec | Value |
|---|---|
| Catalog No. | JFV |
| Item Code | 06370 |
| Height Range | 28 to 49 in (711 to 1245 mm) |
| Weight Capacity | 2,500 lbs (1,135 kg) |
| Pipe Capacity | 1/8 to 24 in (3 to 610 mm) |
| Weight | 25.0 lbs (11.4 kg) |
| Leg Type | Folding tripod |
| Safety Feature | Patented internal safety stop (1-inch zone) |
| Locking Ring | Hardened steel |
| Head Type | V-head (ships standard); roller and flat-top alternate heads available |
| Other Features | Carrying handle, rounded feet |
Reed JFV vs JHV: Folding vs Fixed Leg Pipe Stand
In a Reed JFV vs JHV pipe jack comparison, the choice between a folding vs fixed leg pipe stand comes down to portability versus pipe size. The JFV folds for transport and holds 2,500 lbs on pipe up to 24 inches. The Reed JHV V-Head Pipe Jack has fixed legs, 2,000 lb capacity, and fits pipe up to 36 inches. Both share the patented internal safety stop and 28 to 49 inch height range.
Portable Pipe Jack Stand Applications
What is a v-head pipe stand used for? Holding pipe steady during threading, grooving, cutting, and weld fit-up. The JFV works as a pipe stand for welding when joining pipe sections at grade or overhead. Municipal crews and irrigation contractors carry this portable pipe jack stand to trench sites for field cuts on water and gas mains.
Buy Reed JFV Pipe Jack Online from Cleanflow
Cleanflow Utility Supply Company is an authorized Reed supplier. The JFV is a V-head pipe stand with folding legs, 2,500 lb capacity, a patented safety stop, and alternate head compatibility. Use it as a pipe stand for welding, threading, or field pipe support. Contractors across Canada and the USA buy this adjustable pipe support stand and other Reed pipe tools and Reed vises from Cleanflow.
Free shipping on orders over $199. Returns accepted within 30 days. Email info@cleanflow.ca for returns or exchanges.
Frequently Asked Questions
How much weight can a pipe jack hold?
The JFV is rated at 2,500 lbs, which handles steel, cast iron, and large-diameter plastic pipe. Capacity varies by model. Budget pipe stands typically hold 1,500 lbs. At 2,500 lbs, the JFV sits at the top of the folding pipe jack category.
What is the difference between the Reed JFV and JHV?
The JFV is a folding pipe jack with 2,500 lb capacity for mobile work. The JHV has fixed legs, 2,000 lb capacity, and accepts pipe up to 36 inches. Pipefitters who move between sites prefer the JFV. Shop-based crews with large pipe choose the JHV.
What is the best folding pipe stand for pipe threading?
The best folding pipe stand for pipe threading depends on pipe size and weight. For pipe up to 24 inches and 2,500 lbs, the Reed JFV pipe jack provides a stable V-head cradle with a safety stop. Match the stand's height range to your threading machine.
Does the Reed JFV pipe jack accept alternate heads?
Yes. The JFV ships with a V-head but accepts roller heads and flat-top heads. V-head for general pipe support, roller for feeding pipe through a threader, flat top for square tubing or structural steel.
What does the safety stop on a pipe jack do?
The patented safety stop on the Reed JFV creates a 1-inch gap between the adjusting screw and the locking ring. This prevents hands and fingers from being crushed when lowering the v-head pipe stand. Most budget pipe stands do not include this feature.
