Description
Thru-Bolt Ratchet Wrench Set with 6 Cast Ductile Iron Sockets for Waterworks
Product Overview
Pipe wrenches and adjustable wrenches slip, scratch bolt threads, and slow crews down on waterworks fasteners. The Reed L514 thru-bolt utility socket set replaces both with an adjustable angle ratchet wrench and six ductile iron sockets. Each thru-bolt socket lets the bolt pass through the head, so you can work any threaded length without switching between regular and deep sockets.
Key Features and Benefits
- Six cast ductile iron sockets cover 3/4", 7/8", 15/16", 1-1/16", 1-1/8", and 1-1/4" hex nuts, the six most common sizes on waterworks fasteners. This socket set for service saddles, repair clamps, and flanges replaces carrying individual wrenches for each bolt size.
- The L564 cast malleable iron handle adjusts to multiple angles, giving crews an adjustable-angle ratchet wrench that reaches fasteners in confined valve pits and tight mechanical joint assemblies. The angle lock repositions in seconds.
- Thru-bolt sockets eliminate the need for separate standard and deep sockets. The thru-bolt passes entirely through the socket and arm head, so one utility socket works on any threaded length from short flange bolts to long saddle studs.
- A quick-release mechanism on the handle lets operators swap between sockets in the field without extra tools. The ratchet action reverses with a switch on the arm head.
- The complete thru-bolt ratchet wrench set ships in a metal carrying case that stores all six sockets and the handle. The case fits in a truck toolbox or behind a seat.

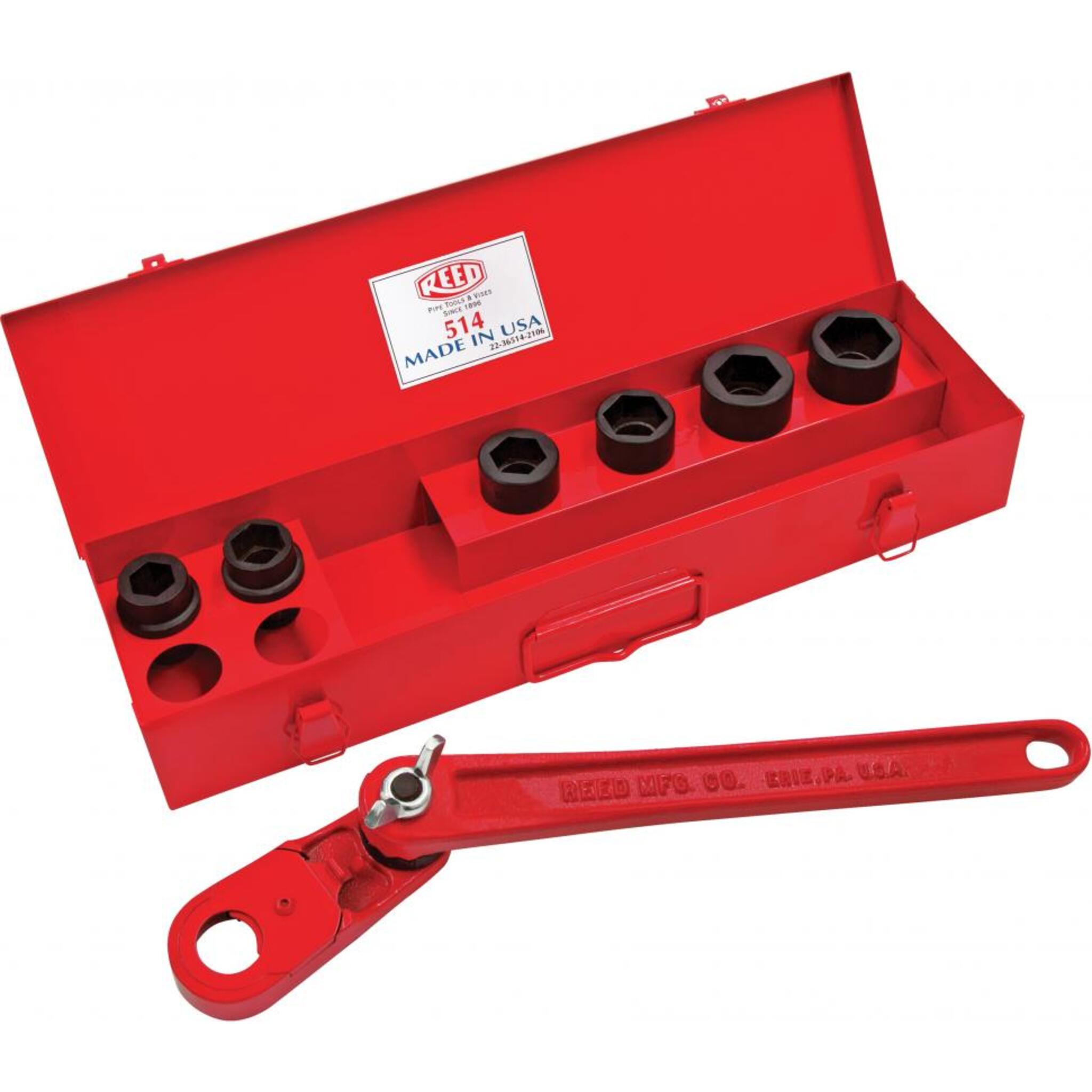

What's Included
| Component | Description |
|---|---|
| Handle | L564 Cast Adjustable Angle Handle with Quick Release and Ratchet |
| Sockets (6) | Cast Ductile Iron Thru-Bolt Hex: 3/4", 7/8", 15/16", 1-1/16", 1-1/8", 1-1/4" |
| Carrying Case | Metal toolbox |
Specifications
| Specification | Value |
|---|---|
| Catalog Number | L514 |
| Item Code / SKU | 02286 |
| Handle Model | L564 (Cast Adjustable Angle, Quick Release) |
| Handle Material | Malleable iron |
| Socket Material | Cast ductile iron |
| Socket Sizes | 3/4", 7/8", 15/16", 1-1/16", 1-1/8", 1-1/4" |
| Number of Sockets | 6 |
| Socket Type | Thru-bolt hex |
| Weight | 9.5 lbs (4.3 kg) |
| Carrying Case | Metal toolbox included |
| Country of Origin | Made in USA |
| Manufacturer | Reed Manufacturing, Erie, PA (est. 1896) |
Applications

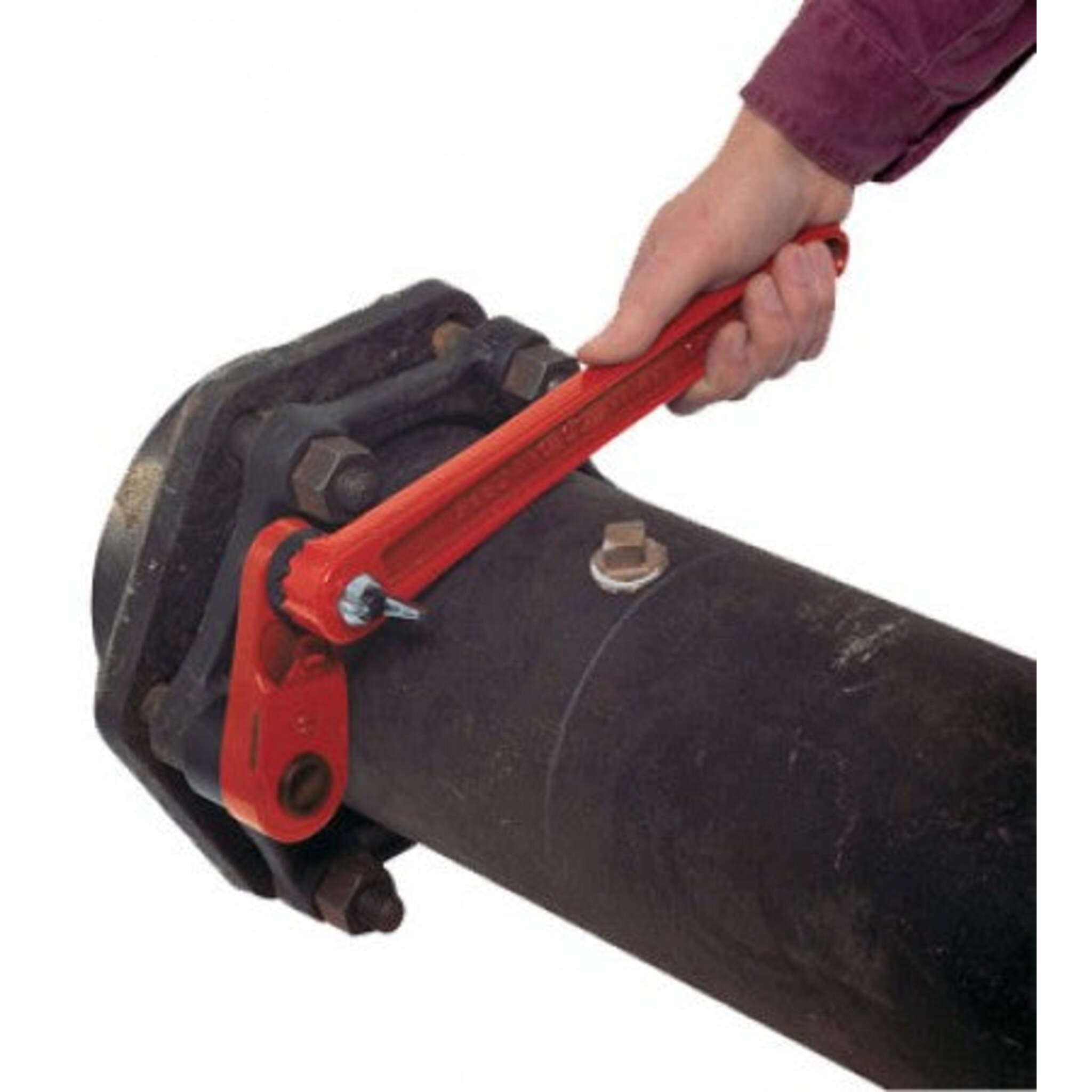

Municipal water crews and contractors use the Reed L514 thru-bolt utility socket set as their ratchet wrench for flange bolts, service saddle installations, and repair clamp tightening. This adjustable angle ratchet wrench clears pipe barrels and obstructions that straight-handle wrenches cannot reach. The socket set for service saddles covers all six standard hex sizes in the 3/4" through 1-1/4" range.
For a fixed-handle set with a seventh socket (1"), the Reed L515 Thru-Bolt Utility Socket Set carries all seven sizes.
The thru-bolt socket vs. adjustable wrench difference is grip: each thru socket contacts all six hex faces, while an adjustable wrench contacts only two and rounds corroded nuts. Pump station and treatment plant crews use this set for flanged valve connections and coupling assemblies where speed and bolt protection matter.
Buy Reed L514 Thru-Bolt Utility Socket Set Online from Cleanflow
Cleanflow Utility Supply Company is the authorized Reed dealer and the source for the Reed thru-bolt socket set that Canadian utility crews rely on. This thru-bolt socket set for sale at Cleanflow ships across Canada and the USA with free shipping on orders over $199.
Cleanflow stocks the full Reed ratcheting wrench lineup, including thru-bolt utility sets, dual-socket wrenches, and the Reed L4N1 4-in-1 Ratchet Wrench for crews who need fewer socket sizes in a single tool.
For questions about this thru-bolt socket set for sale, or to set up a net-terms account, email info@cleanflow.ca.
Frequently Asked Questions
What is a thru-bolt socket?
A thru-bolt socket is a hex socket with an open back that lets the bolt pass all the way through the wrench head. This means one socket works on any threaded length, from short flange bolts to long service saddle studs, without needing separate standard and deep sockets.
How to use a thru-bolt ratchet wrench set
Select the socket that matches the bolt size, snap it into the quick release fitting, and lower it onto the nut. Ratchet back and forth to tighten or loosen. Flip the switch on the arm head to reverse direction. Adjust the handle angle for clearance in tight spaces.
Reed L514 vs L515: which set do I need?
The Reed L514 has an adjustable-angle handle and six sockets. The L515 has a straight handle and seven sockets, adding a 1" size. Choose the L514 for confined spaces where handle angle matters. Choose the L515 for the extra socket and a lighter carry at 8.9 lbs.
What is the best ratchet wrench set for waterworks?
The best ratchet wrench set for waterworks depends on how many bolt sizes the crew encounters. The Reed L514 is a thru-bolt ratchet wrench set that covers six sizes with an adjustable angle handle. Reed thru-bolt socket set Canada orders ship from Cleanflow.
Why use a thru-bolt socket instead of an adjustable wrench on waterworks bolts?
A ratchet wrench for flange bolts grips all six faces of the hex nut, while an adjustable wrench contacts only two. That full-hex grip prevents rounding on corroded nuts and delivers faster torque through the ratchet mechanism.
