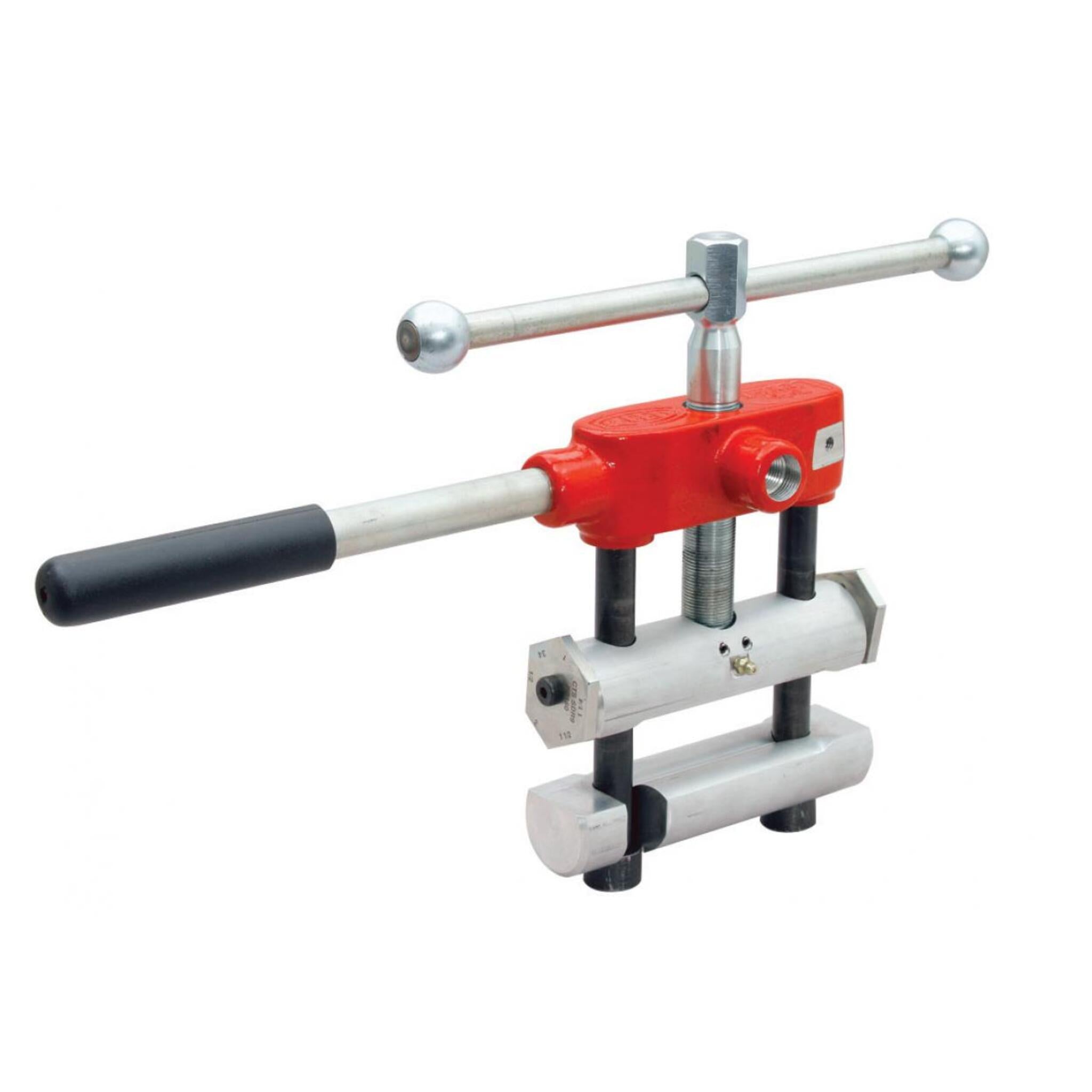

Reed PES2 Manual PE Squeeze-Off Tool for 1/2" to 2" PE Pipes

PE Squeeze-Off Tool for 1/2" to 2" CTS and IPS Polyethylene Pipe, Heavy Duty, Precise Pipe Control with Rotating Stops and Fine Thread Mechanism

A PE squeeze-off tool temporarily stops flow in a polyethylene pipe by compressing it flat between two parallel squeeze bars. This manual squeeze-off tool handles 1/2" to 2" CTS and IPS PE pipe, covering residential water service through mid-range gas distribution mains. A fine-thread feed screw controls compression while rotating safety stops prevent over-squeezing, protecting pipe integrity during maintenance, tie-ins, and planned shutdowns.

Specifications

Key Features

• Fine-thread feed screw compresses PE pipe at a controlled rate of up to 2 inches per minute
• Rotating pipe/SDR stops prevent over-squeezing and match to the pipe diameter for CTS and IPS PE pipe
• Double bar design applies two squeeze points for even compression and improved quality of flow control
• Swing-out bottom bar mounts onto live pipe without lifting or disconnecting the line
• Two-position assist handle adapts to tight work locations and awkward dig angles
• Aluminum construction at 11.2 lbs keeps the tool portable for field crews
• Two grease fittings at the nut and bearing cavity reduce wear between jobs
• Threaded connection on the head accepts a static grounding device for PE gas pipe work

Applications

• Gas utility crews use this PE pipe squeeze-off tool during planned maintenance and tie-in work on distribution lines
• Water utility operators perform controlled shutoffs on 1/2" to 2" polyethylene service lines without a valve
• Pipeline contractors rely on a manual squeeze-off tool for PE pipe replacement and new service connections
• Municipal public works departments carry this squeeze-off tool for gas pipe during emergency and scheduled repairs
• Utility inspectors use the PE squeeze-off tool to isolate pipe sections for pressure testing and leak surveys

How to Use a PE Squeeze Off Tool

A polyethylene squeeze-off tool works by compressing PE pipe flat between two parallel bars to stop flow temporarily. The following steps are based on ASTM F1041 and the manufacturer's operating instructions.

1. Raise the top bar using the feed screw and sliding handle. Attach the two-position helper handle.
2. Follow static discharge procedures before contacting the pipe. A static grounding device (PEGR7, #04621) threads into the connection on the tool head.
3. Swing out the bottom bar and mount the tool onto the pipe. Seat the rod nuts in the bottom bar pockets. Center the pipe along the full width of both bars and square it to the tie rods.
4. Select both rotating stops for the pipe diameter and SDR. Position each stop with the flat side facing the bottom bar. Both stops must match.
5. Turn the feed screw to compress the pipe. Pause momentarily between turns to let the pipe relax. Do not exceed 2 inches per minute. Squeeze until the stops contact the bottom bar or until flow control is satisfactory.
6. To release, slowly unscrew the feed screw at no more than 1/2 inch per minute. When the bars no longer hold the pipe under pressure, remove the tool.
7. Optionally, rotate the tool 45 to 90 degrees and apply light force to reround the pipe. Inspect the squeezed section for damage. Never squeeze the same location twice.

Cold Weather

Below 50°F (10°C), PE pipe becomes stiffer and more susceptible to damage. Reduce squeeze and release rates. Allow 5 to 15 minutes or more for the pipe to relax between pauses. In cold conditions, a double squeeze-off using two tools in series may be needed for complete flow control.

Double Squeeze-Off

If a single PE pipe squeeze-off tool doesn't provide satisfactory flow control, place a second tool on the same line. Maintain at least 12 inches or 3 pipe diameters of separation from the first tool, from any fitting, and from any previous squeeze point.

Buy PE Squeeze Off Tool Online from Cleanflow

Cleanflow Utility Supply Company is an authorized Reed Manufacturing dealer. The Reed PES2 squeeze-off tool ships across Canada and the USA with free shipping on orders over $199. Returns accepted within 30 days. Email info@cleanflow.ca for product questions or volume pricing.

For 1/2" to 1" PE pipe in tighter spaces, see the Reed PES1 PE Squeeze-Off Tool. For emergency water shut-off on 3/4" to 1" PE lines, see the Reed PESO1 PE Water Shut-Off Tool.

Browse the full Pipe Tools collection for additional PE pipe tools.
