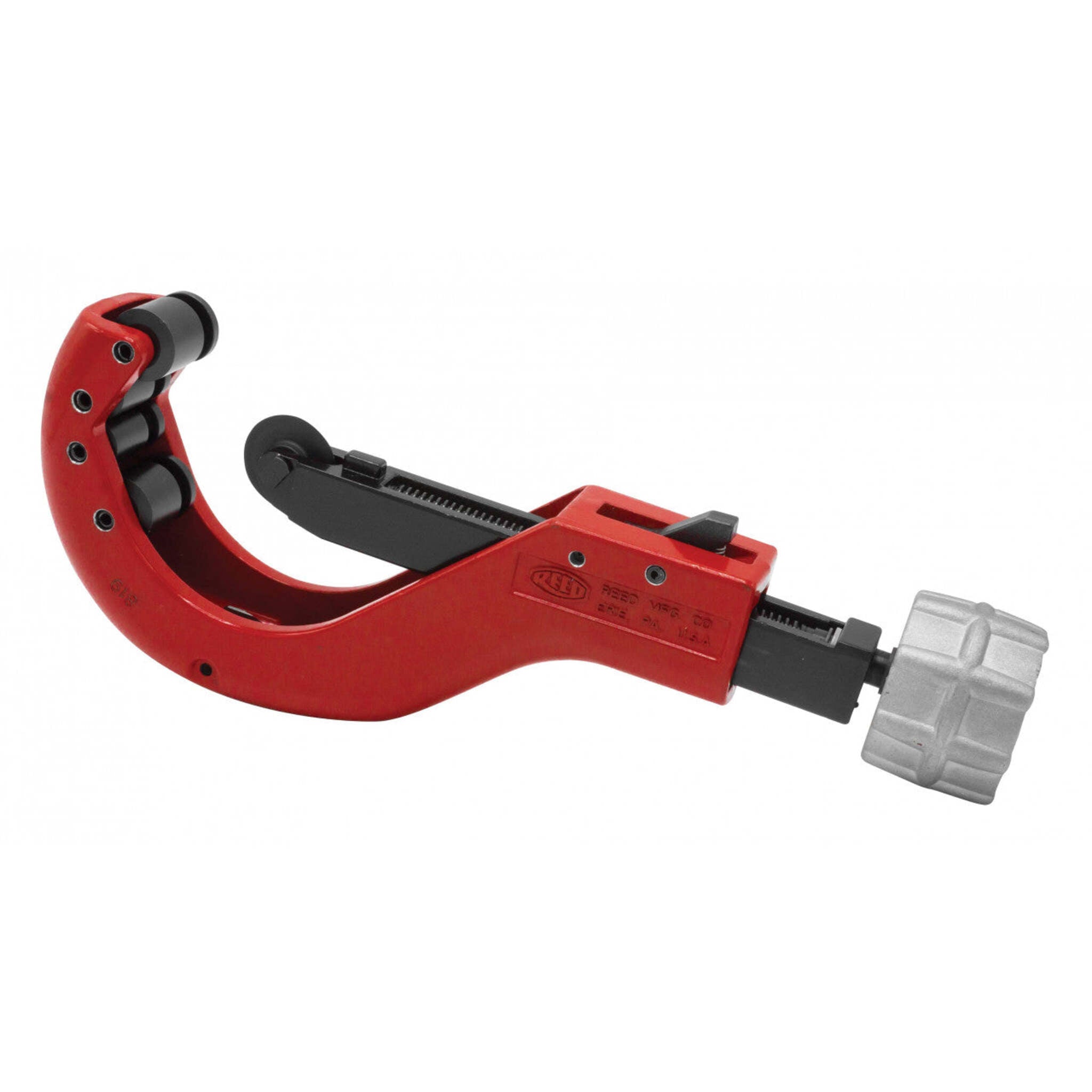

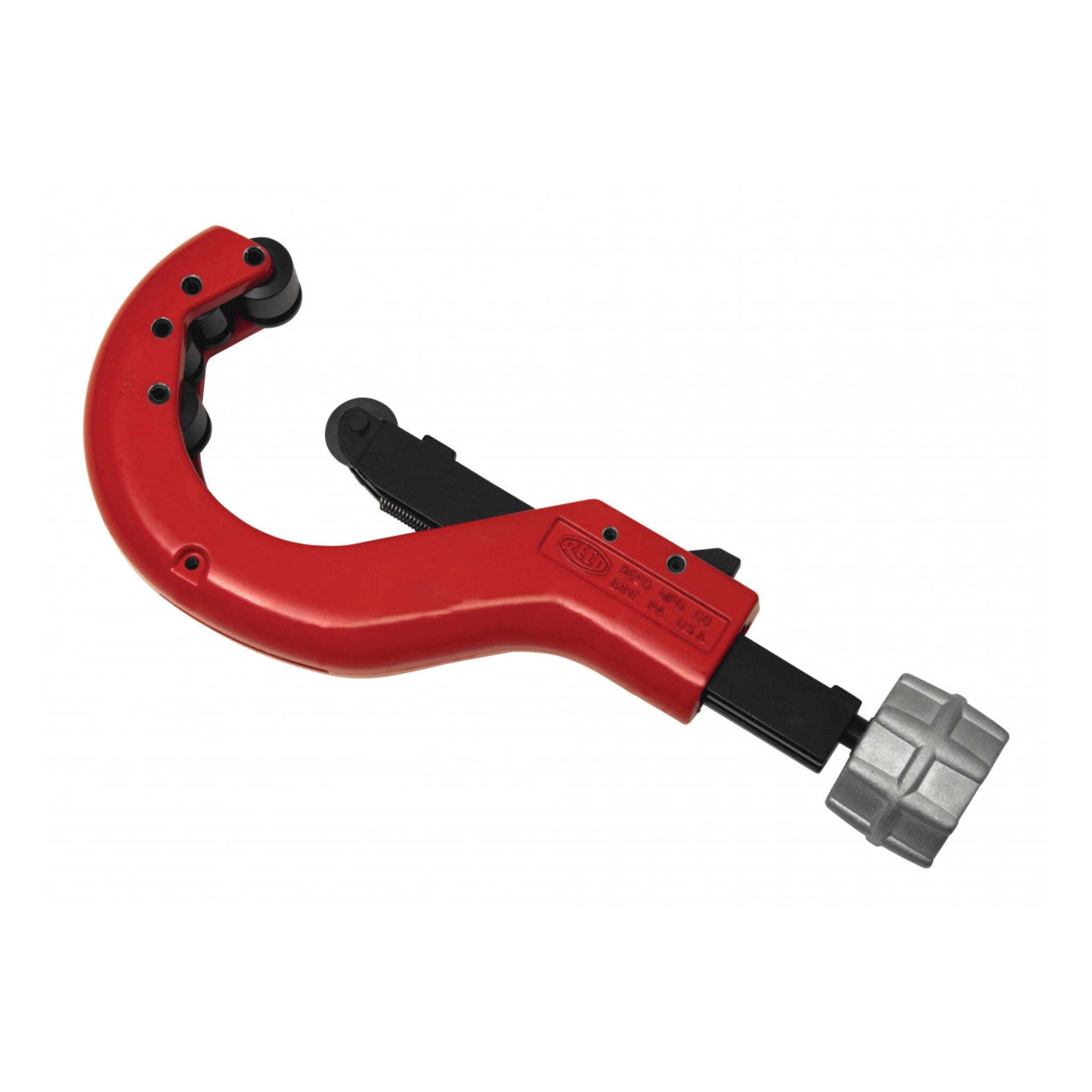

Reed TC2Q Quick Release™ Pipe and Tubing Cutters | 1/4" to 2-5/8" Capacity

Quick Release Tubing Cutter for Copper, Aluminum, Brass, and Steel

Product Overview

Reed invented the quick release tubing cutter, and their mechanism remains the industry standard. The Reed TC2Q tubing cutter is the mid-range model in that family. This pipe and tubing cutter covers 1/4" to 2-5/8" outside diameter on copper, aluminum, brass, and steel. Plumbers and HVAC technicians rely on it as their primary copper tubing cutter for supply lines and refrigerant tubing.

Key Features

• Quick Release Trigger. Press the zip nut on the sliding bar, and this quick-release tubing cutter opens instantly. The Reed TC2Q snaps on and off the pipe without unscrewing the knob or threading it over the end, which saves time when working around installed plumbing.
• Interchangeable Cutter Wheels. Swap wheels in seconds using the ball detent wheel pin. The TC2Q frame accepts wheels for copper, aluminum, brass, steel, stainless steel, PE, PP, PVC, and ABS, turning one metal tubing cutter into a multi-material tool.
• Built-in Fold-Out Reamer. A triangular reamer folds out from the body for deburring cuts on the spot. The TC2Q is a tubing cutter with a built-in reamer, so you can clean each cut without carrying a separate deburring tool.
• Spare Cutter Wheel in the Knob. An extra "O" type cutter wheel is stored under the advance knob. If your wheel wears out mid-job, the replacement is already on the tool.
• Die-Cast Zinc Aluminum Sliding Bars. The sliding bars use die-cast zinc aluminum instead of standard cast construction, adding strength and reducing wear over years of daily use.

How to Use the Reed TC2Q

The Reed TC2Q tubing cutter ships with the "O" type wheel pre-installed for copper, aluminum, brass, and steel. The Reed quick release cutter follows a simple five-step process from the manufacturer instruction manual.

1. Unscrew the advance knob one turn, then press the zip nut to open the cutter.
2. Line up the cutter wheel with your cut mark and push the bar assembly until the wheel touches the pipe.
3. Hand-tighten the knob 1/4 to 1/2 turn after the wheel makes contact.
4. Rotate the cutter around the pipe one full revolution to confirm the wheel is tracking straight.
5. Tighten the knob 1/4 to 3/4 turn per revolution and continue rotating until the cut is complete.

For fewer burrs, use a more gradual feed pressure. Avoid applying side pressure on the cutter wheel to extend wheel life. Use the fold-out triangular reamer to remove inside burrs after each cut.

Specifications

Cutter Wheel Compatibility

One of the TC2Q's strengths is wheel compatibility. The standard frame works as a metal tubing cutter with the included "O" wheel, but swap to an alternate wheel and it handles stainless steel and plastics as well.

Applications

The Reed TC2Q tubing cutter fits a wide range of trade applications:

• Residential plumbing: Cutting copper supply lines from 1/2" to 2" for new installations and repairs. The TC2Q is the copper tubing cutter most plumbers reach for on residential jobs because it handles Type K, L, and M copper in a single tool.
• HVAC installation: Cutting aluminum and copper refrigerant lines to length on site. A reliable tubing cutter for plumbing and HVAC work where multiple metals appear on the same job.
• Equipment maintenance: Cutting steel tubing for hydraulic lines, fuel lines, and mechanical assemblies. With interchangeable wheels, one metal tubing cutter handles the full range without switching tools.
• Light commercial construction: Rough-in and finish work on copper and brass water distribution systems. The quick-release tubing cutter opens and closes fast when you need to reposition between cuts in a crowded mechanical room. For pipes larger than 2-5/8", see the Reed TC3Q Quick Release Tubing Cutter, which covers 3/8" to 3-1/2".

The full line of Reed Quick Release Cutters includes models from the TC1Q through the TC8Q for pipe up to 8-5/8" OD.
