Copper Tubing Cutter Kit for Close-Quarters Pipe Work
Product Overview
Traditional tubing cutters need room to rotate. In wall cavities, mechanical rooms, and crawl spaces, that clearance does not exist. The Reed TCK3SL is a copper tubing cutter kit with three compact C-cutters sized for 1/2, 3/4, and 1-inch pipe. Each C-cutter for copper pipe snaps onto the tube and cuts by rotating around the pipe; no swing space required.
Key Features
- C-Shaped, No-Swing Design. The open C-shape wraps around the pipe without needing handle rotation, making it a copper pipe cutter for tight spaces where traditional wheel cutters cannot operate.
- Spring-Loaded, Self-Feeding Cutter Wheel. The spring-loaded tubing cutter mechanism tightens the blade into the pipe with each rotation. No manual knob adjustment between passes, which means faster, cleaner cuts from first rotation to last.
- Three Sizes in One Kit. This compact tubing cutter set covers 1/2, 3/4, and 1 inch nominal pipe, the three most common sizes in residential and light commercial copper plumbing. One kit replaces three separate tools on the truck.
- Cuts Copper and CPVC. Each Reed copper tubing cutter in the kit handles Type K, L, and M copper along with CTS CPVC, giving you one tool set for two pipe materials.
- Snap-On, One-Hand Operation. The easy-grip frame snaps directly onto the tube, and one hand rotates the cutter while the other steadies the pipe. No helper or extra clearance needed in cramped positions.
For plumbers who handle multiple pipe sizes daily, this compact tubing cutter set keeps all three common residential diameters in a single 1.9 lb kit.
What's Included

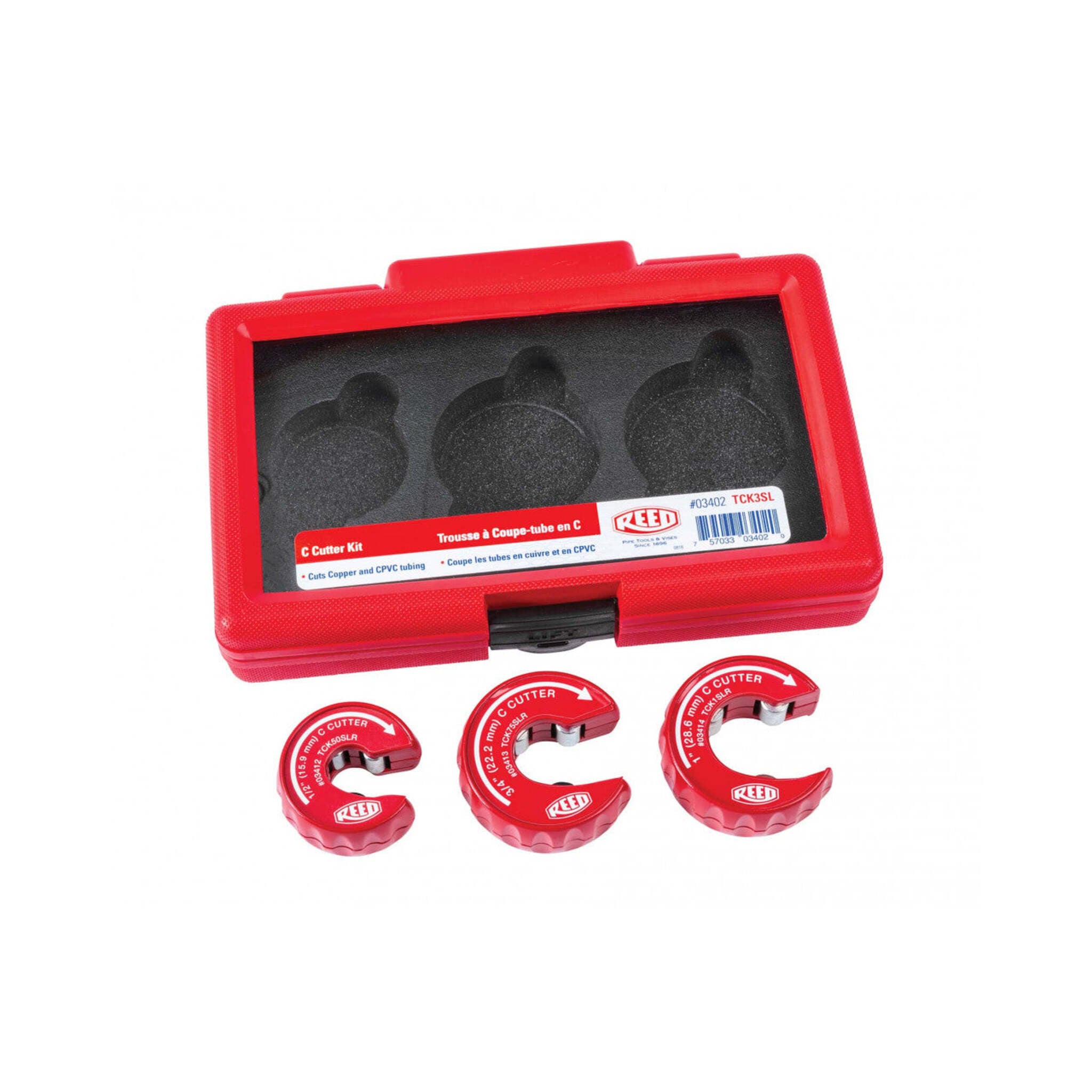

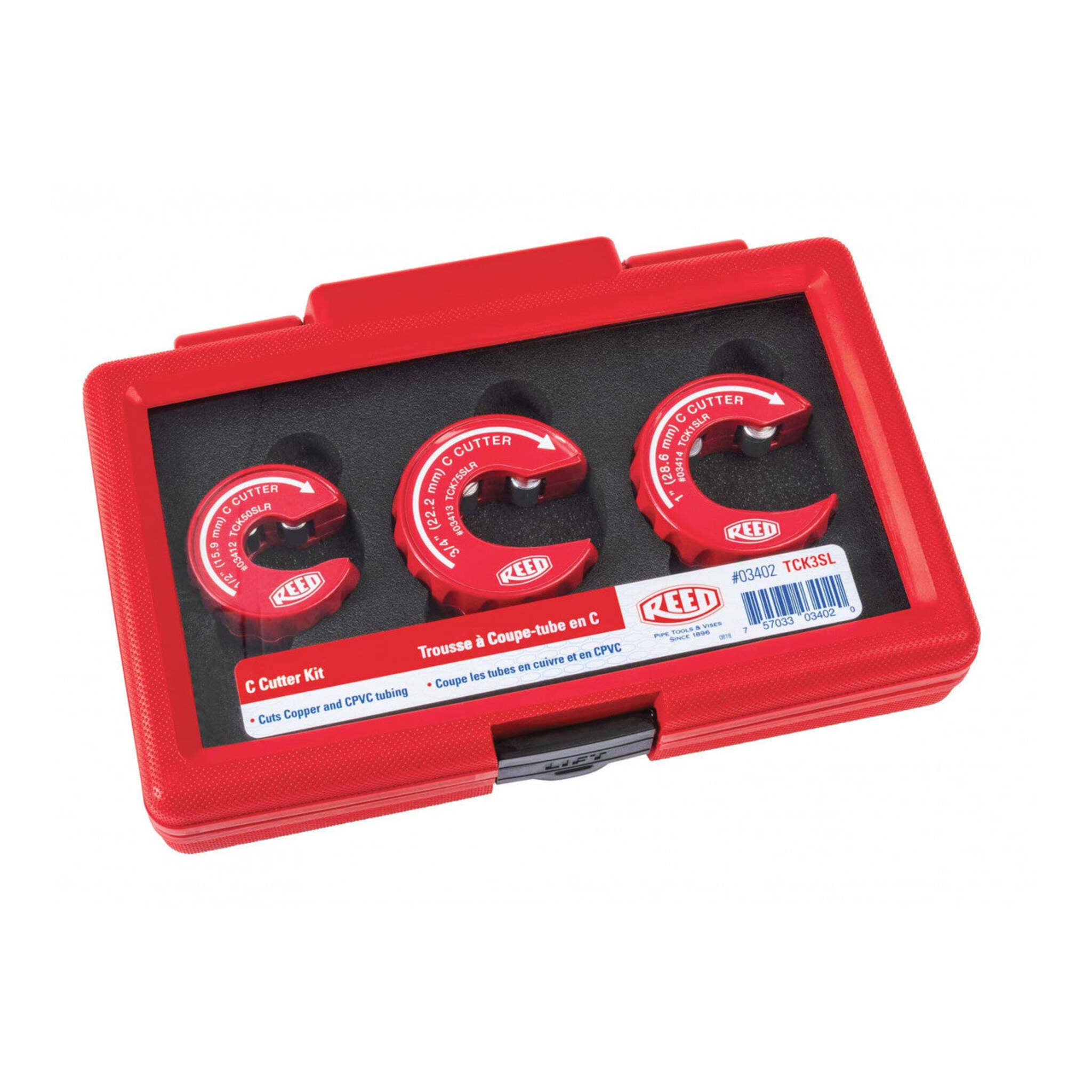

The Reed TCK3SL copper tubing cutter kit includes three individual C-cutters in a molded carrying case:
- C-Cutter for 1/2" copper tubing (15.9mm actual OD)
- C-Cutter for 3/4" copper tubing (22.2mm actual OD)
- C-Cutter for 1" copper tubing (28.6mm actual OD)
Each C-cutter for copper pipe is sized to its specific nominal pipe diameter and fits Type K, L, M copper and CTS CPVC.
Specifications
| Specification | Detail |
|---|---|
| Catalog Number | TCK3SL |
| Item Code | 03402 |
| Manufacturer | Reed Manufacturing |
| Kit Contents | 3 C-Cutters (1/2", 3/4", 1") |
| Pipe Capacity (Nominal) | 1/2", 3/4", 1" |
| Pipe Capacity (Actual OD) | 15.9mm, 22.2mm, 28.6mm |
| Compatible Materials | Copper (Type K, L, M), CTS CPVC |
| Cutter Mechanism | Spring-loaded, self-feeding cutter wheel |
| Design | Compact C-shape (no swing clearance needed) |
| Grip | Easy-grip snap-on |
| Replacement Cutter Wheel | #03376 TCKCW (single) or #63376 2PK-TCKCW (2-pack) |
| Weight | 1.9 lbs (0.9 kg) |
Applications
This copper tubing cutter kit handles close-quarters work where traditional tools cannot reach:
- Residential copper repiping inside finished walls and ceiling cavities
- HVAC refrigerant line connections in tight mechanical closets
- Plumbing repairs behind toilets, sinks, and other fixtures with limited swing clearance
- CTS CPVC water line installations in confined joist bays
- Maintenance and service work in existing buildings with restricted access
The C-shape makes each cutter a copper pipe cutter for tight spaces, from joist bays to mechanical closets. For larger pipe sizes or more clearance, Reed Quick Release Cutters offer a traditional wheel-style design with fast ratcheting action.
Buy Reed TCK3SL Copper Tubing Cutter Kit Online from Cleanflow
As an authorized Reed Manufacturing supplier, Cleanflow Utility Supply Company backs every Reed copper tubing cutter with manufacturer support. Orders ship across Canada and the USA, with free shipping on orders over $199. Returns accepted within 30 days. Email info@cleanflow.ca for returns or exchanges.
Frequently Asked Questions
What is a c-cutter for copper tubing?
A c-cutter is a compact pipe cutter with an open C-shaped frame that wraps around the tube. Unlike traditional wheel cutters, it requires no handle rotation, which allows it to cut copper tubing in spaces too tight for standard tools.
How does a spring-loaded tubing cutter work?
The spring mechanism tightens the cutter wheel with each rotation around the pipe, advancing the blade automatically. Rotate in the direction of the arrows etched on the tool. The Reed TCK3SL completes a cut in approximately 2.5 revolutions without manual tightening.
Does Reed C-Cutter work on CPVC?
Yes. The Reed C-Cutter cuts both copper and CTS (Copper Tube Size) CPVC. CTS CPVC uses the same outside diameter as copper tubing, so the same cutter fits both materials. The kit covers 1/2, 3/4, and 1 inch sizes in both copper and CPVC.
Reed TCK3SL vs individual c-cutters: which should I buy?
The Reed TCK3SL kit includes all three common residential sizes (1/2, 3/4, and 1 inch) in a single purchase. Choose the kit if you work across multiple pipe sizes regularly. Buy individual Reed Compact Copper Tubing Cutters if you only need one size.
What is the best compact copper tubing cutter for tight spaces?
The Reed TCK3SL C-Cutter kit is built for confined areas. Its C-shaped frame needs zero swing clearance, and each spring-loaded tubing cutter advances the blade automatically with each rotation. The kit covers 1/2, 3/4, and 1-inch copper and CTS CPVC.
