Reed Universal Pipe Threading Dies

High-Speed Steel Pipe Threading Dies for Reed and RIDGID Machines

Overview

Most threading machines on a job site are RIDGID 300s or 535s. Reed universal dies drop right into those machines and into Reed's own 5301PDCOMP, giving one pipe threading die set that works across the shop. CNC-produced from high-speed steel in the USA, these HSS threading dies hold their edge at temperatures that soften alloy dies and cut faster at room temperature.

Specifications

Key Features

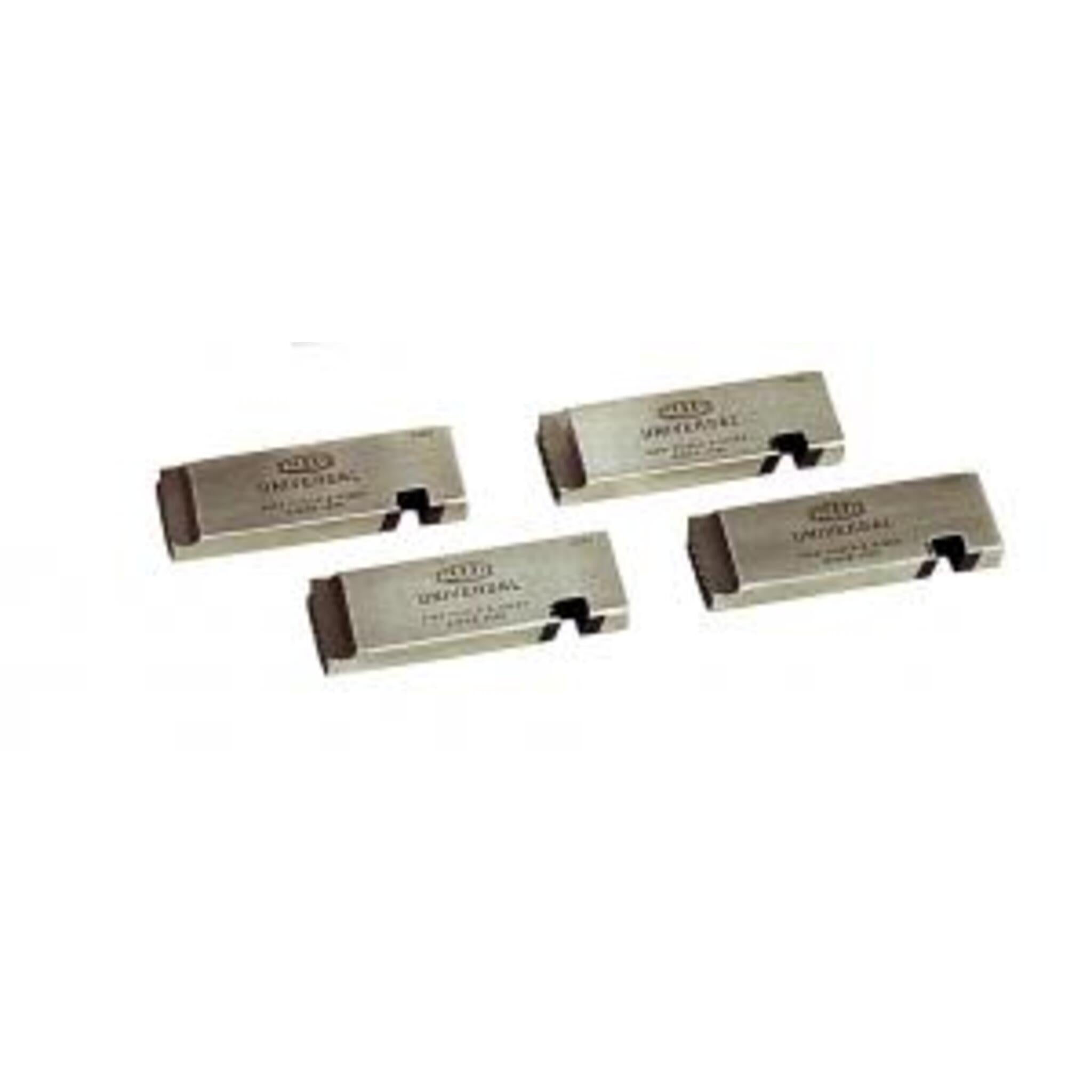

• Each pipe threading die set is CNC-produced from high-speed steel (HSS). When comparing HSS vs alloy pipe threading dies, HSS holds hardness at high temperatures, lasts longer, and cuts faster at room temperature.

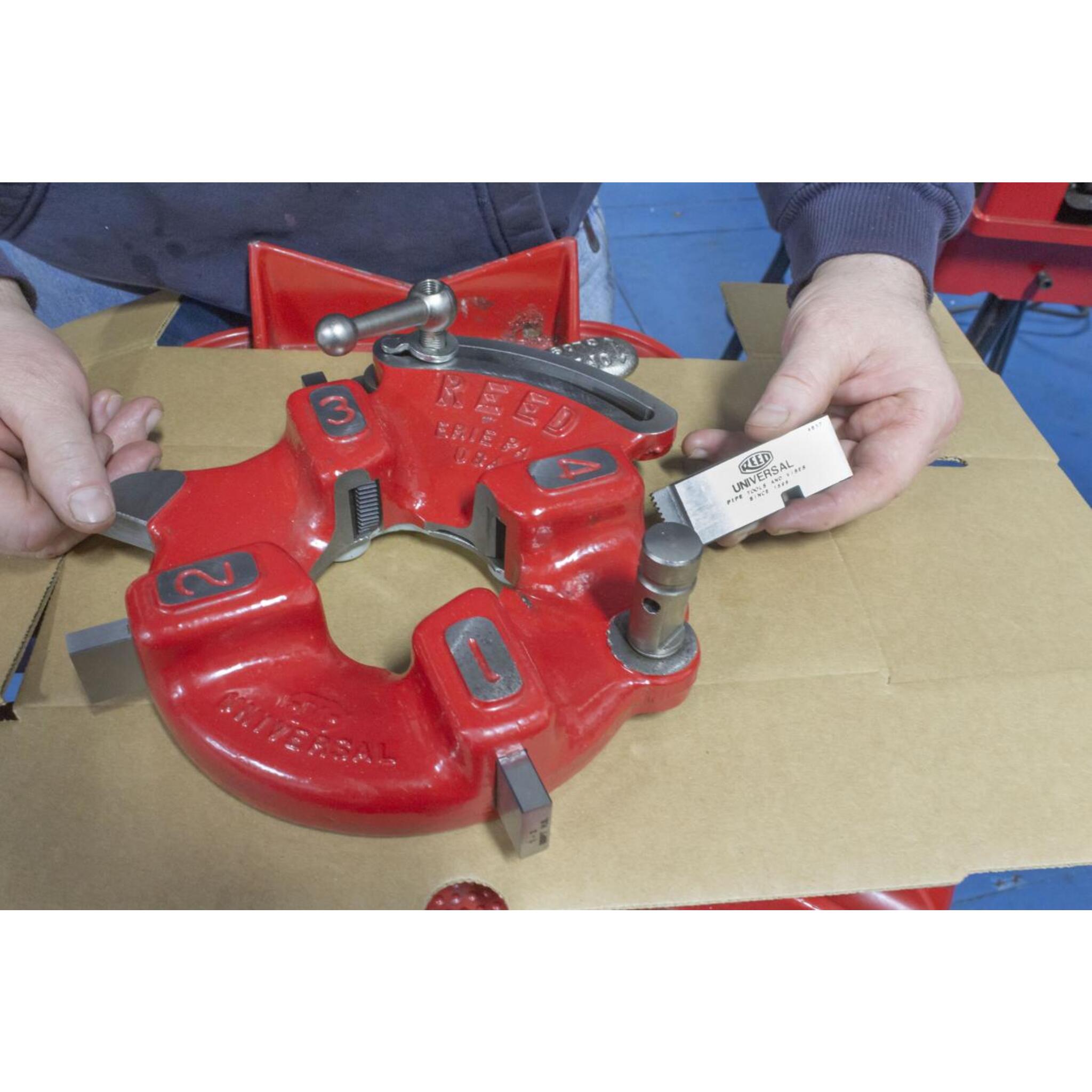

• Reed universal dies fit nine threading machines from two manufacturers without adapters. RIDGID 300, 535, or 1224 owners can use these as universal dies for RIDGID equipment alongside Reed's own 5301PD.
• The UHS series uses an HSS composition formulated for stainless steel. These stainless steel threading dies maintain their cutting edge through the work hardening that stainless develops during threading.

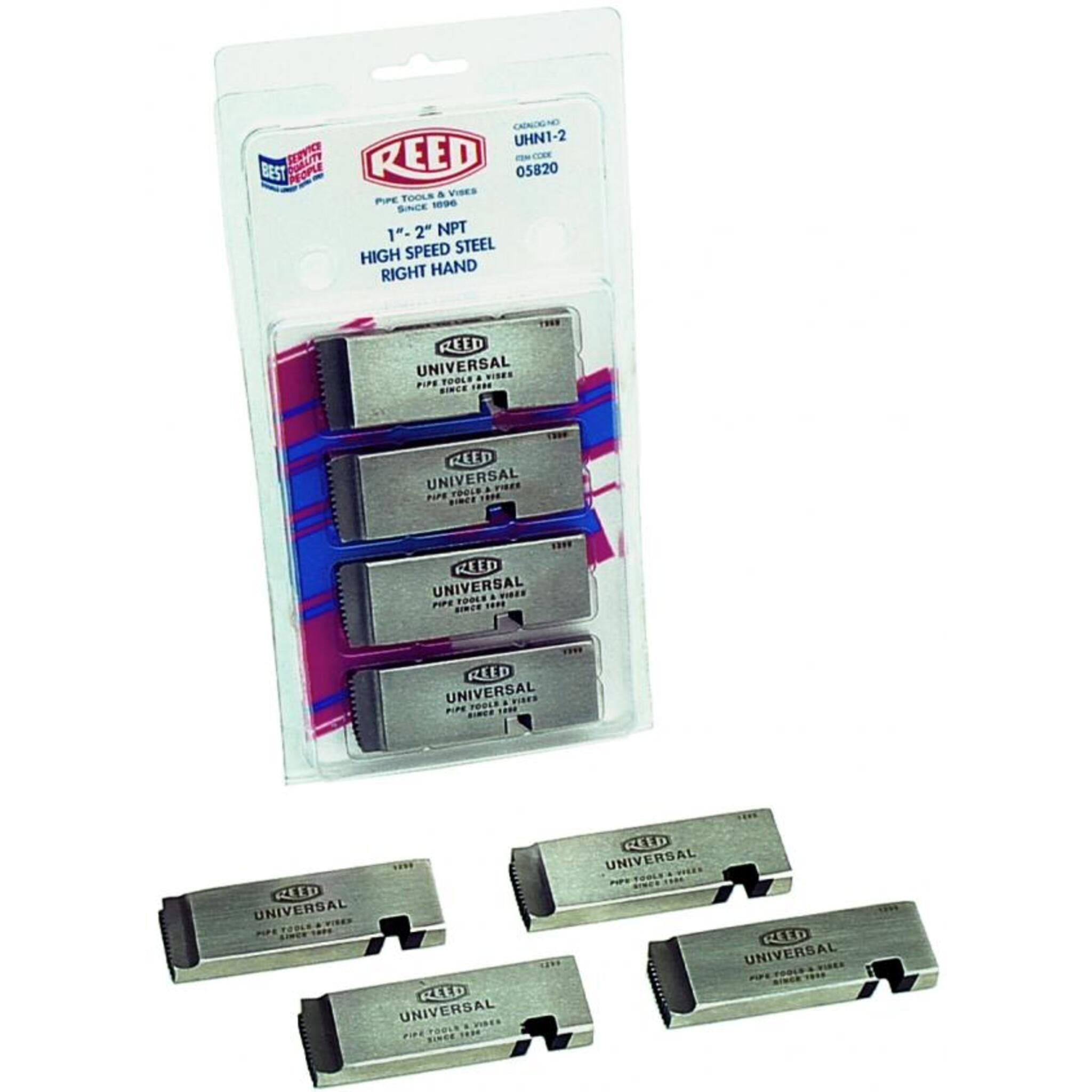

• Five catalog numbers cover NPT threading dies in two size ranges, stainless variants, and a BSPT set. Reed also produces NPSM geometry, covering the three thread standards in North American and international piping.
• Every die is lab tested for thread accuracy and field tested by threading specialist contractors before production approval. Over 120 years of Reed die-making history backs each set.

Machine Compatibility

Reed universal dies compatibility spans both Reed and RIDGID threading equipment. The following table shows every machine that accepts these pipe threading dies. All five die sets (UHN, UHS, and UHB) fit every machine listed.

The Reed 601PD power drive does not use universal pipe threading dies. It uses enclosed dropheads. If you have a 601PD, see the drophead products instead.

Choosing the Right Die Set

The choice between NPT vs BSPT threading dies depends on the thread standard specified for the job. NPT (National Pipe Taper) is the dominant standard in North America for water, gas, and steam lines. BSPT (British Standard Pipe Taper) is used in international projects and some industrial equipment.

For standard carbon steel pipe, choose the UHN series. When threading stainless steel pipe, switch to the UHS series. The UHB series threads BSPT on 1" to 2" pipe.

Applications

As a pipe threading die set for both Reed and RIDGID equipment, Reed universal dies cover shop and field threading across plumbing, mechanical, and industrial piping.

• Commercial plumbing and fire protection threading. UHN series NPT threading dies cover carbon steel pipe from 1/2" to 2".
• Maintenance and rethreading on RIDGID 300 or 535 machines in mechanical rooms, boiler plants, and chiller systems.
• Stainless steel threading dies (UHS series) for food processing, pharmaceutical, and chemical piping where work hardening is a concern.
• BSPT threading for imported equipment, international specifications, or marine piping systems.
• Replacing worn alloy dies with HSS threading dies on a Reed 5301PD or RIDGID machine for longer life and faster cuts.
