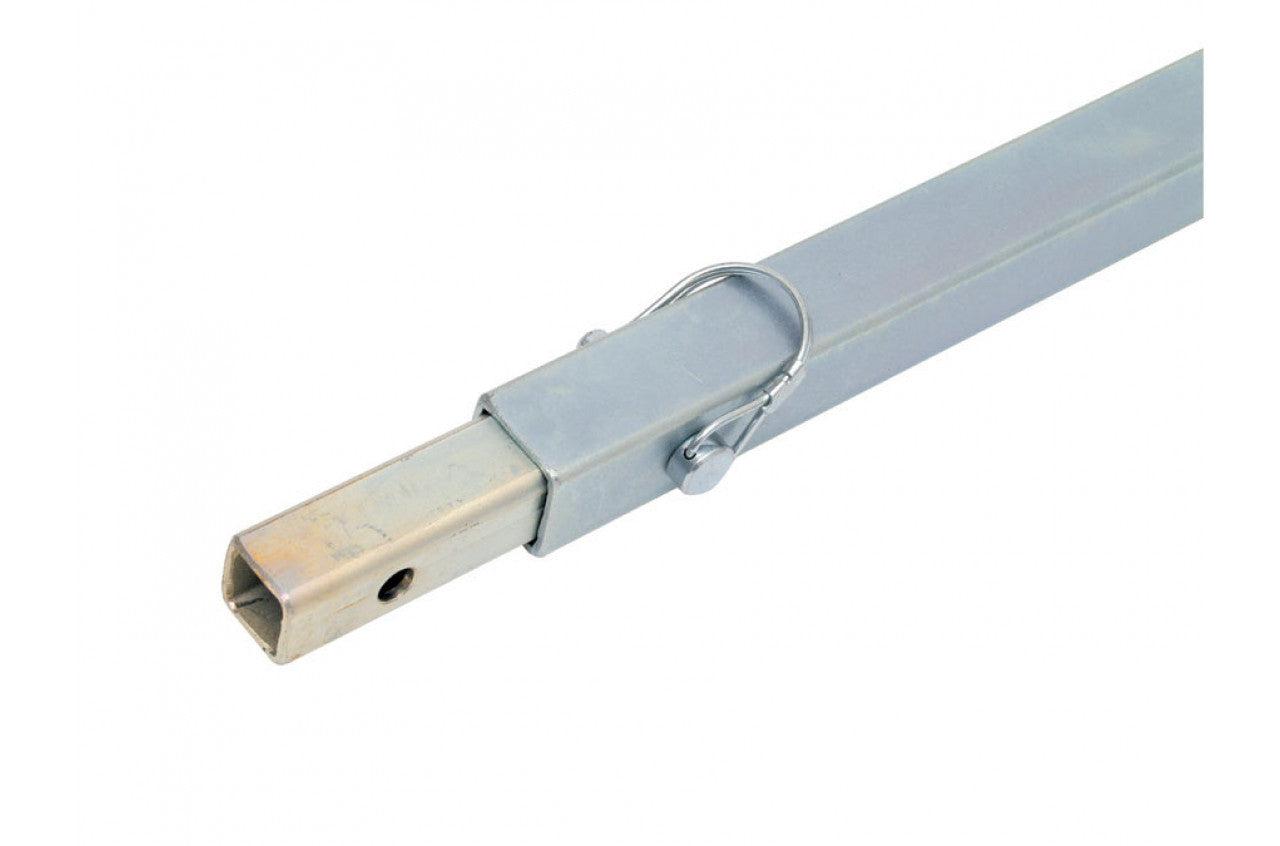

Reed VKEXT Valve Key Extension

Telescoping Valve Key Extension with 6-Position Adjustable Reach

Some buried valves sit beyond the reach of a standard valve key. The Reed VKEXT valve key extension adds up to 70.6 inches of depth with a telescoping valve key extension shaft and six adjustable positions. The entire unit stores at 39.75 inches closed. Pair it with VK2LS or VKPLS lower shafts to build a valve key for deep-buried valves.

Key Features & Benefits of Reed VKEXT Valve Key Extension

• Six Adjustable Positions (10.4" to 70.6"). The adjustable valve key extension locks at six increments, so you can match the exact depth of each valve box without carrying multiple fixed-length shafts.
• 39.75" Closed Storage Length. This 6-foot valve key extension collapses to under 40 inches. It fits behind a pickup seat or in a utility truck compartment alongside other Reed valve key accessories.
• 200 ft-lbs Torque Capacity. Heavy-gauge mechanical steel tubing handles the same 200 ft-lbs as all Reed valve key assemblies. Stuck or corroded operating nuts will not overload the shaft.
• 151.6" Maximum Combined Reach. Pair the VKEXT with a VKA upper handle for over 12 feet of total reach, enough to operate valves in deep vaults and below-frost-line installations from the surface.

Specifications

Applications

• Municipal water utility crews operating gate valves buried below frost line
• Waterworks contractors who need a valve key for deep buried valves during main installations and repairs
• Sewer and stormwater utility teams turning operating nuts in deep vaults
• Emergency shut-off work where standard-length keys cannot reach the valve

Buy Telescoping Valve Key Extension Online from Cleanflow

Cleanflow Utility Supply Company is an authorized Reed Manufacturing supplier. The Reed VKEXT valve key extension ships across Canada and the USA with free shipping on orders over $199. For returns or exchanges, email info@cleanflow.ca.

Browse other Reed valve key accessories and curb and valve keys in our full catalog.

Frequently Asked Questions

How far does the Reed VKEXT extend?

The Reed VKEXT valve key extension shaft reaches up to 70.6 inches at maximum extension. Combined with a VKA upper handle, total assembly length reaches 151.6 inches (12.6 feet), making it the best valve key extension for water utilities with deep infrastructure.

What valve keys work with VKEXT?

The VKEXT connects to VK2LS (standard 2" key), VKPLS (pivoting key), and VKR lower shafts, plus the VKA upper handle and the rod key handle (92345). For powered operation, add a VOKUCLUTCH utility clutch. All components share the same pin connection and 200 ft-lbs torque rating.

What is the difference between Reed VKEXT vs VKEXT3?

The VKEXT is a 6-foot valve key extension that adds up to 70.6 inches of reach. The VKEXT3 is a shorter 3-foot version for shallower applications. Choose the VKEXT when you need to reach deep-buried valves and the VKEXT3 for moderate depths.

How to reach deep-buried valves with a valve key?

Add a telescoping valve key extension between the upper handle and lower shaft. The VKEXT provides six locking positions from 10.4 to 70.6 inches, so you can adjust to the exact depth without replacing the entire key assembly.

Does the VKEXT fit in a standard utility truck?

Yes. The adjustable valve key extension stores at 39.75 inches closed, compact enough to fit behind a truck seat or in a standard service vehicle compartment. When extended, it reaches 73.6 inches at full open length.
