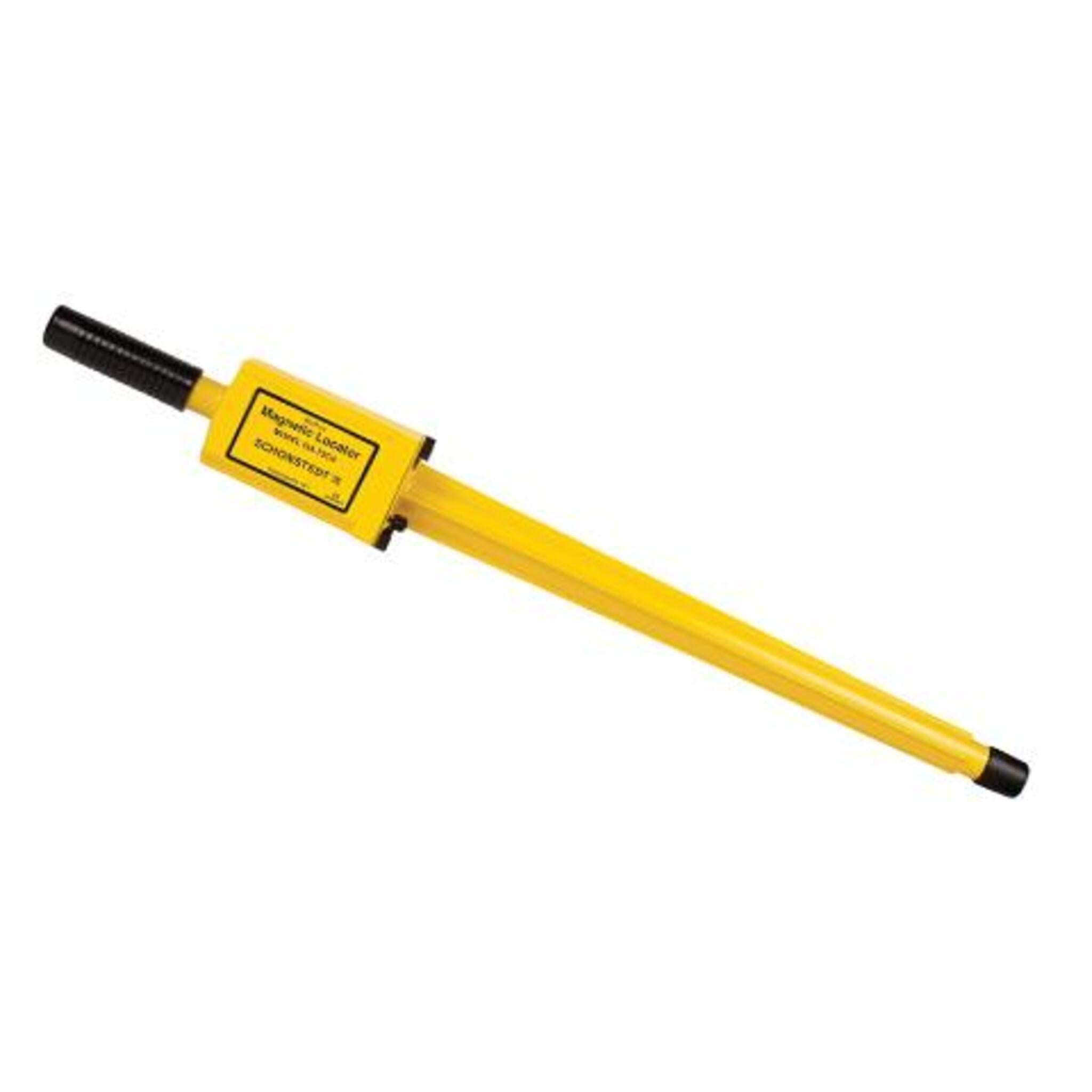

Schonstedt GA-72Cd Magnetic Locator – Precision Detection with Dual Output for Versatile Use

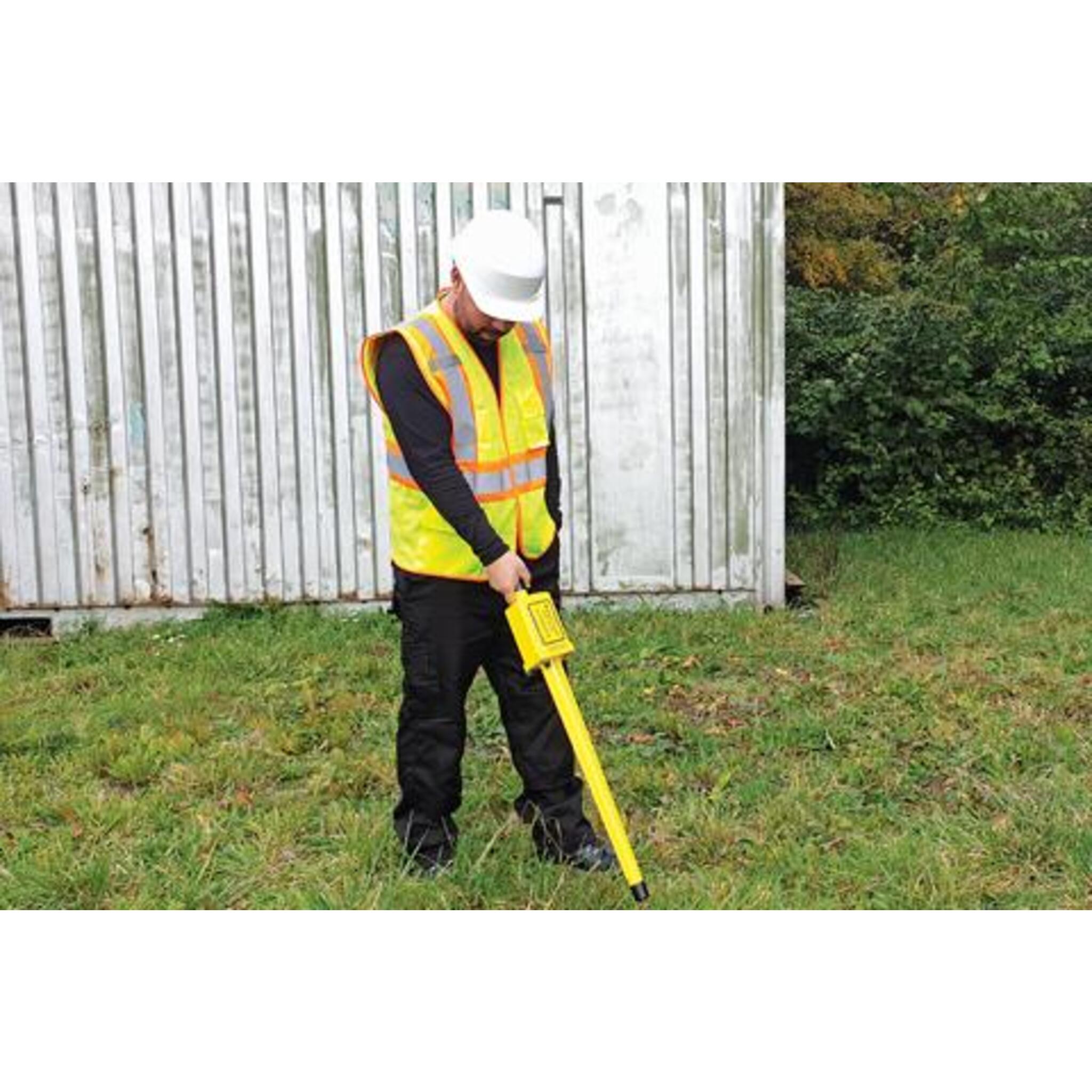

The Schonstedt GA-72Cd Magnetic Locator is designed for professionals who need pinpoint accuracy in detecting iron and steel objects. This highly sensitive locator provides both audio and visual signals, allowing for easy identification of magnetic fields. Featuring only two controls, the GA-72Cd ensures simple, one-hand operation. Whether you're searching for buried utilities or hidden objects, the option to switch between nulling or peaking gives you flexible detection capabilities in various field conditions. Rugged and reliable, this tool is built to withstand tough environments while delivering unmatched accuracy.
Key Features: Dual Detection Modes for Superior Accuracy
- Magnetic Detection with Audio and Visual Feedback: Detects the magnetic field of iron and steel objects with audio signals that peak when over the target, plus a digital readout for polarity and magnetic field strength.
- Dual Audio Modes: Choose between volume-based signal changes in "A" mode or frequency-based changes in "B" mode, for customizable detection based on preference.
- Simple Two-Control Design: On/Off-Sensitivity and Volume controls located under the cover for one-hand operation, protecting the controls while making the locator easy to use.
- Battery Powered: Operates on two 9V batteries, providing up to 40 hours of intermittent usage.
- Lightweight and Portable: Weighs only 2.5 lbs (1.14 kg), making it easy to carry and operate over extended periods.

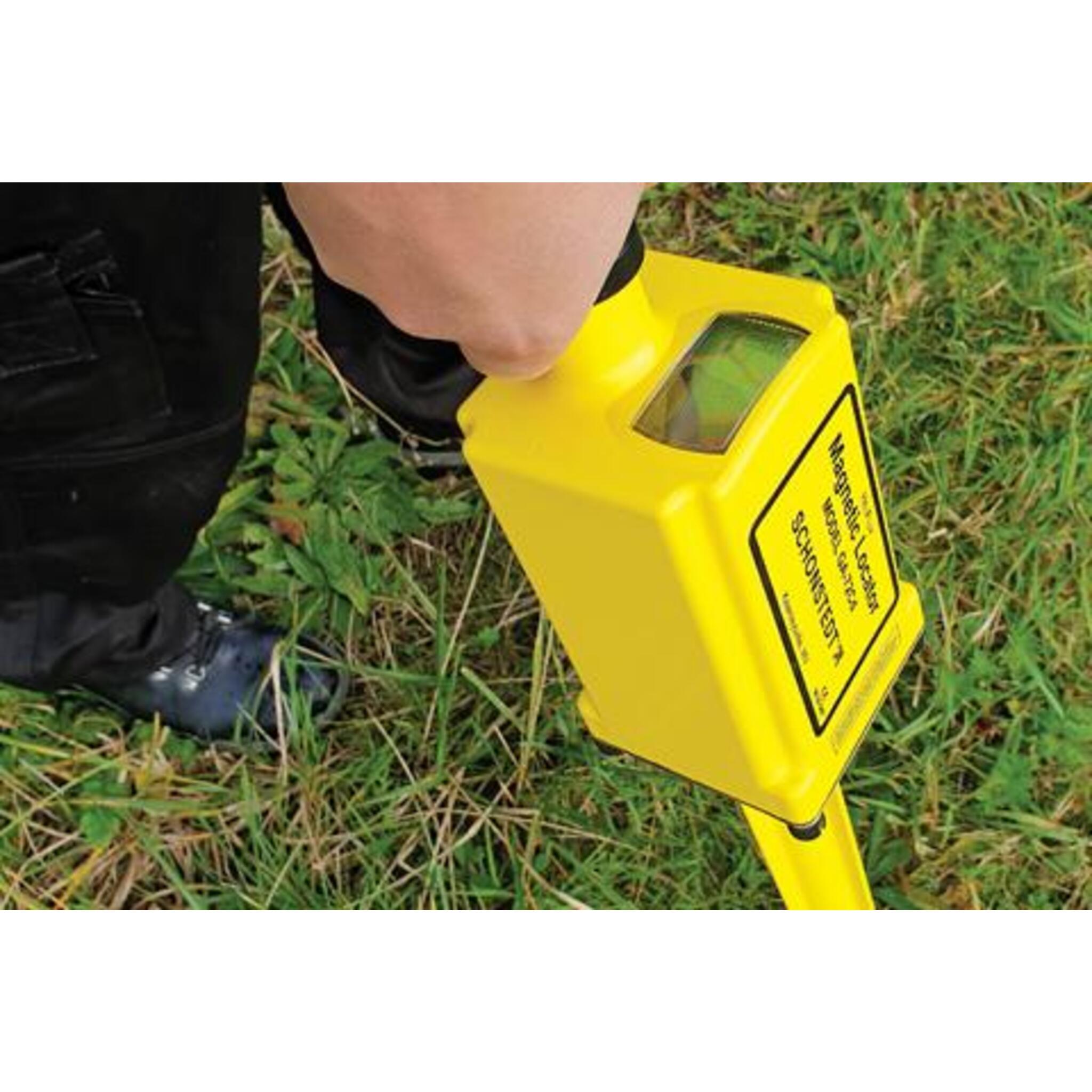

- Digital Readout: Features an LCD screen with expanding bar graphs for easy visualization of polarity (+ or -) and relative magnetic field strength.
- Waterproof Construction: Waterproof length of 21" (53.3 cm), allowing the GA-72Cd to perform in wet or damp environments.
- Rugged Design: Built with a solid-state polycarbonate and ABS casing to endure harsh field conditions.
Experience Reliable, Flexible Magnetic Detection with the GA-72Cd
With the Schonstedt GA-72Cd Magnetic Locator, you'll benefit from both audio and visual feedback for precise detection of iron and steel objects. Whether you're working in dry or wet environments, the GA-72Cd offers unparalleled accuracy and reliability, making it an essential tool for locating utilities, property markers, or other buried metal objects.
AUDIO OUTPUT |
Switch at “A” Signal increases or decreases in volume with gradient-field intensity |
VIDEO OUTPUT |
Digital readout and expanding bar graphs indicate polarity (+ or-) and relative |
INPUT POWER |
Supplied by two 9V batteries |
BATTERY LIFE |
40 Hours (intermittent usage) |
BATTERY CHECK |
4-segment LCD BATT indicator |
OUTPUT |
Approximately 40 Hz audio tone on speaker. |
WEIGHT |
Approximately 2.5 lb (1.14 kg) |
OPERATING TEMP |
-13° to 140°F (-25° to 60°C) |
OVERALL LENGTH |
34.5" (87.6 cm) |
WATERPROOF LENGTH |
21" (53.3 cm) |
NOMINAL SENSOR SPACING |
14" (35.6 cm) |
CONSTRUCTION |
Rugged, all solid state, polycarbonate & ABS casing |
