Description

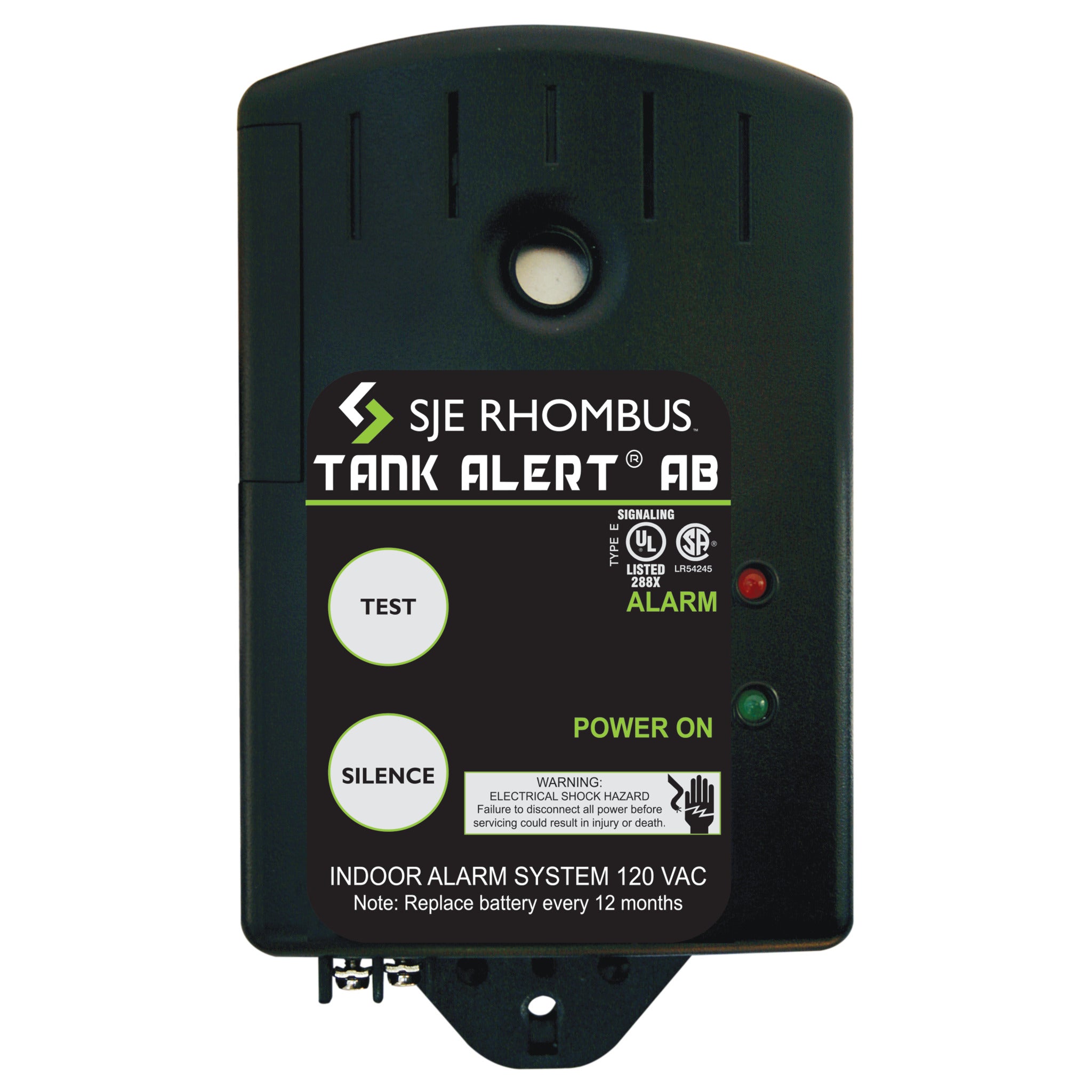

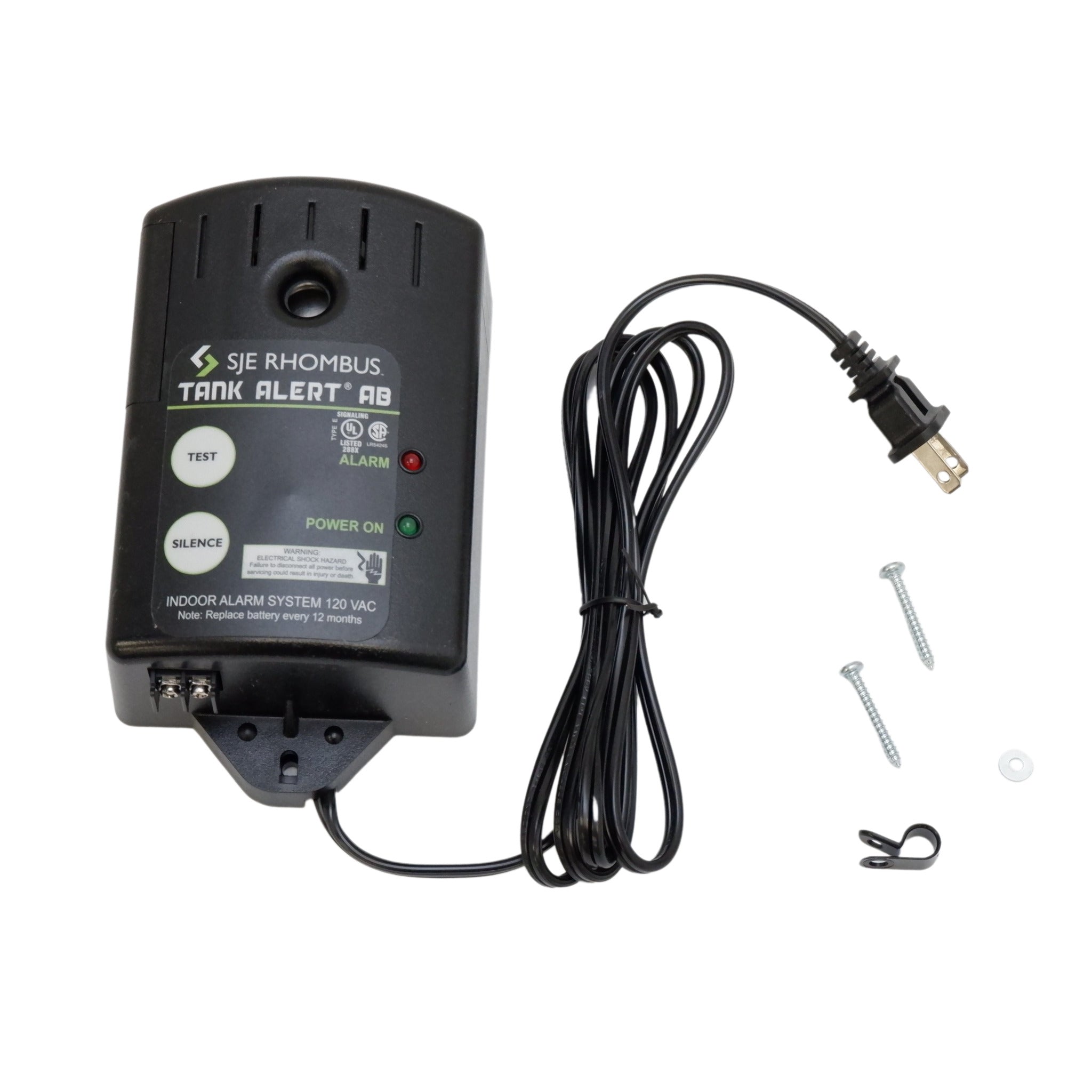

SJE Rhombus Tank Alert AB Alarm System
Experience peace of mind with the Tank Alert® AB High & Low Liquid Level Alarm System, designed to provide audio/visual warnings for potentially dangerous liquid level conditions. This versatile alarm system is perfect for lift pump chambers, sump pump basins, holding tanks, sewage, agricultural, and various water applications, ensuring the safety and efficiency of your liquid management.
Key Features of the Tank Alert AB Alarm System:
- Indoor Compatibility: Enclosed in a NEMA 1 rated enclosure for secure indoor use
- Auto-Reset Function: Automatically resets the alarm once the liquid level issue is resolved
- Dual Alert System: Red alarm light and loud horn (87 decibels at 10 feet) for increased awareness
- Battery Backup: Ensures continuous operation during primary power failures (battery not included)
- Low Battery Indicator: Chirping sound alerts you when it's time to replace the battery
- User-Friendly Controls: Alarm test switch and horn silence switch for easy testing and silencing
- Easy Installation: External terminal block enables quick and simple float switch installation
- Safe & Reliable: UL Listed/Recognized switching mechanism rated for 1 amp, 9 VDC load, with low voltage operation for reduced risk of electrical shock
How it Works:
- Alarm condition triggered when sensor (signaling device) contact is activated
- Red alarm light illuminates solidly, buzzer sounds continuously
- Alarm remains active until the sensor is deactivated
- Test/silence pushbutton can be pressed to silence the buzzer during an alarm; alarm LED stays solidly lit and auxiliary contacts remain activated
- Silence condition resets when the sensor deactivates, allowing the alarm panel to auto-reset for the next alarm cycle
Upgrade your protection
Don't compromise on the safety and performance of your liquid management systems. Invest in the Tank Alert® AB Liquid Level Alarm System today and experience the ultimate in reliability, convenience, and peace of mind.
| Specifications | |
| Primary Power | 120VAC, 60 Hz, 2.4 watts max. (alarm condition) |
| Power Cord | 6 foot (1.8 meter) |
| Battery Backup Power |
9V DC |
| Lights | Green (power), Red (alarm) |
| Switches | Alarm test switch, horn silence switch |
| Alarm Horn |
87 dB at 10 feet (3 meters) |
| Enclosure | Plastic 6 x 4 x 2.25 (inches). NEMA Type 1, Indoor. Removable cover. |
| Certifications | CSA and UL (US and Canada) |
| Warranty | Five-Year Limited Warranty |

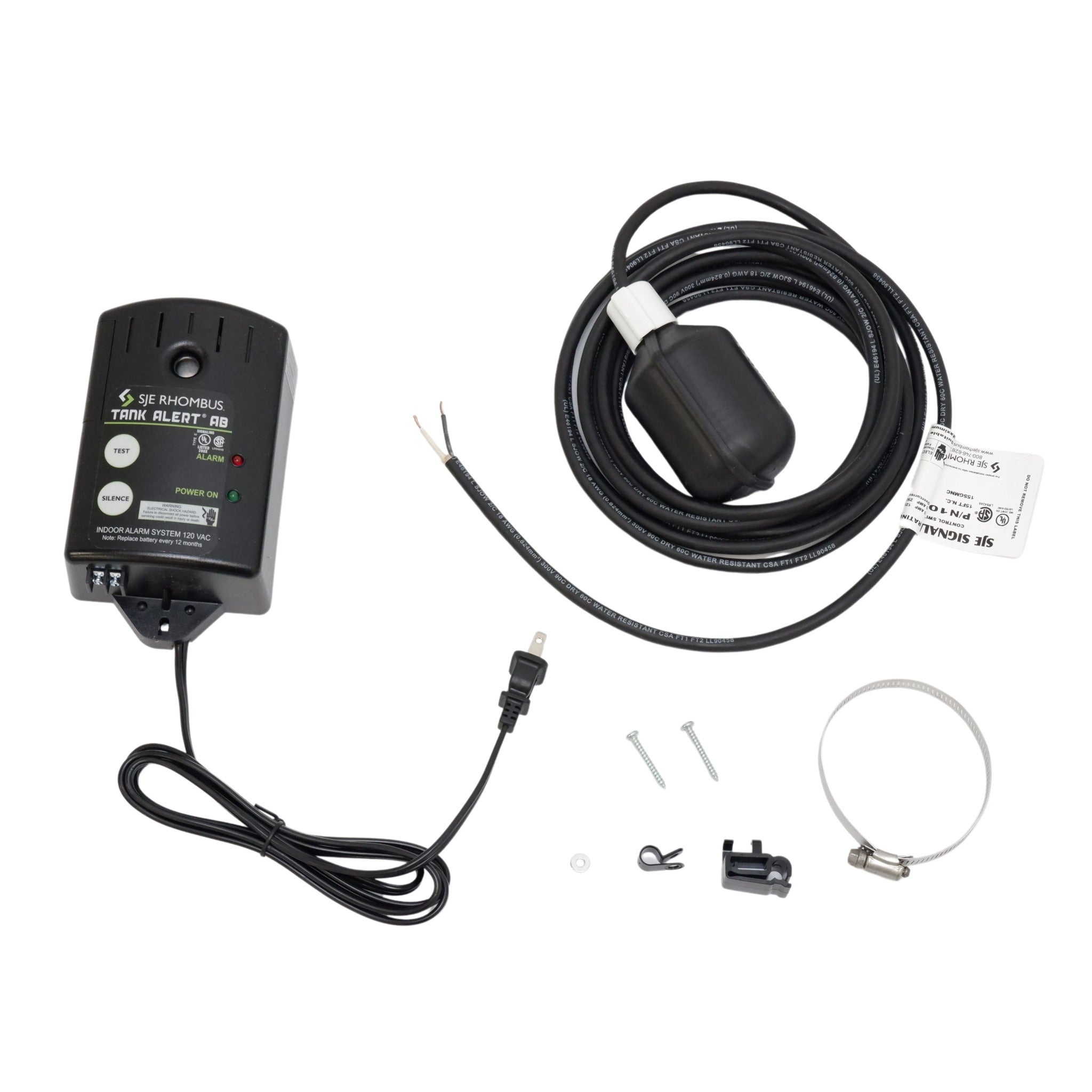

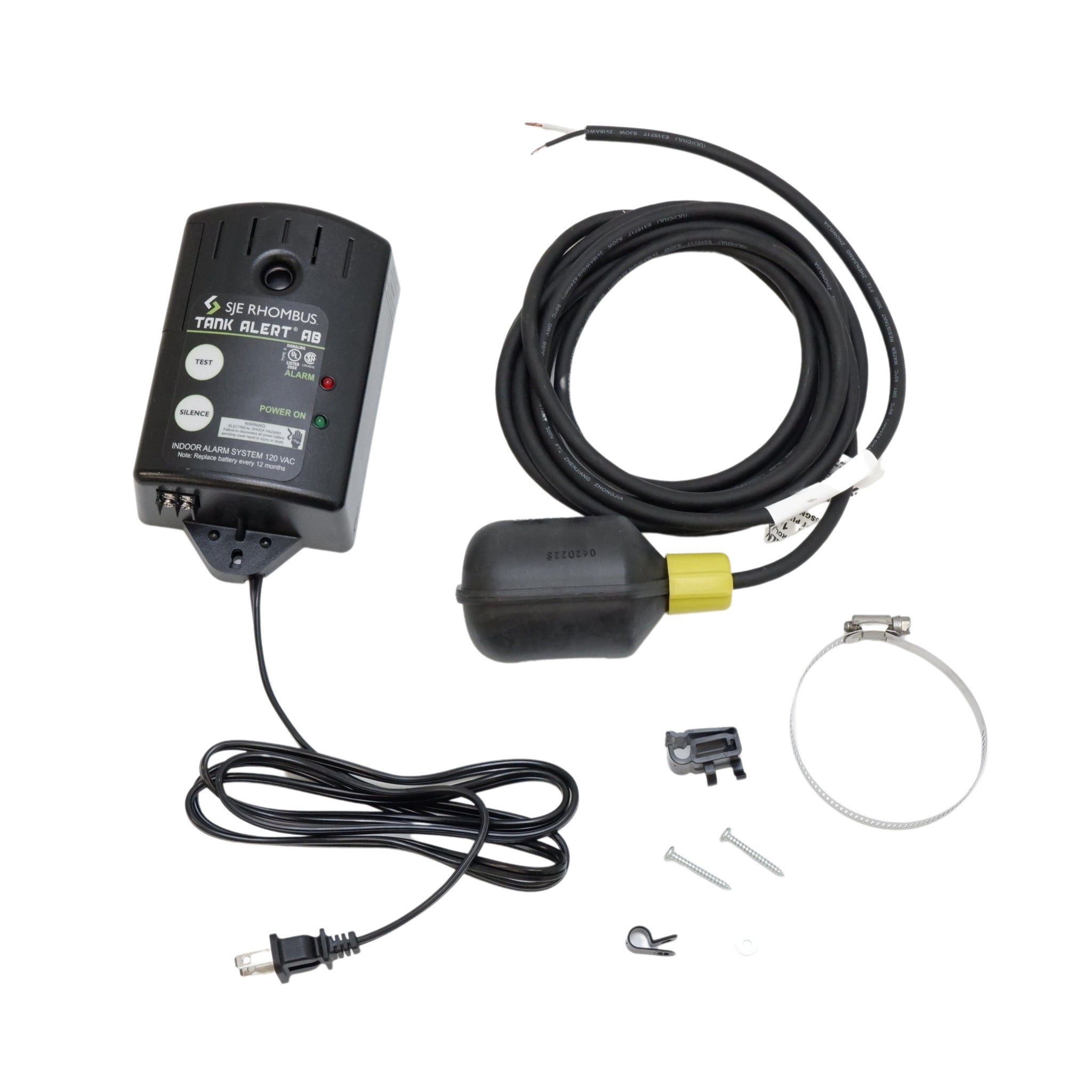

| Float Switch (included with 1011424 + 1011421 only) |
|
