Smart Digital Well Pump Control Panel – Replaces Traditional Pressure Switch Systems

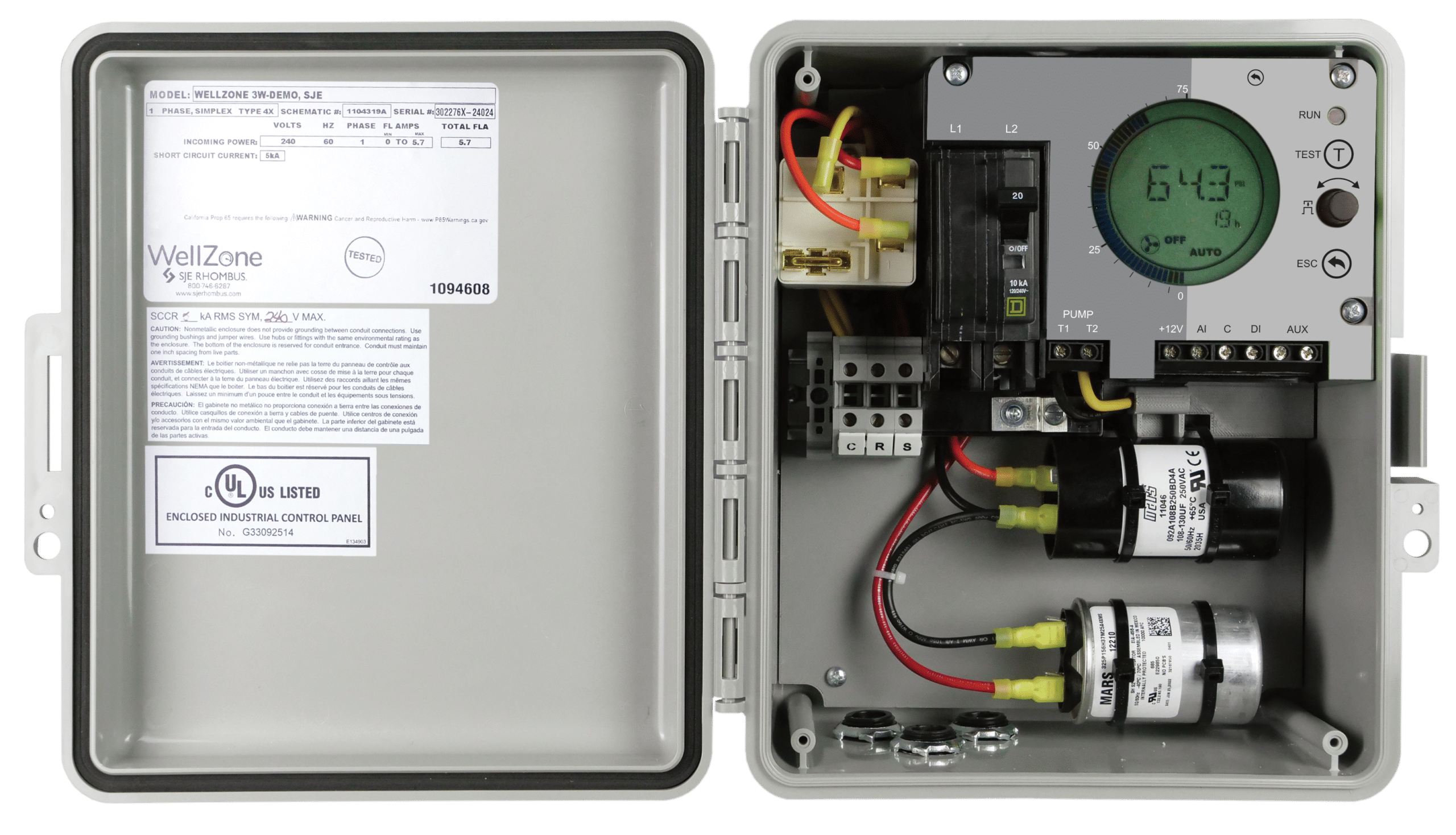

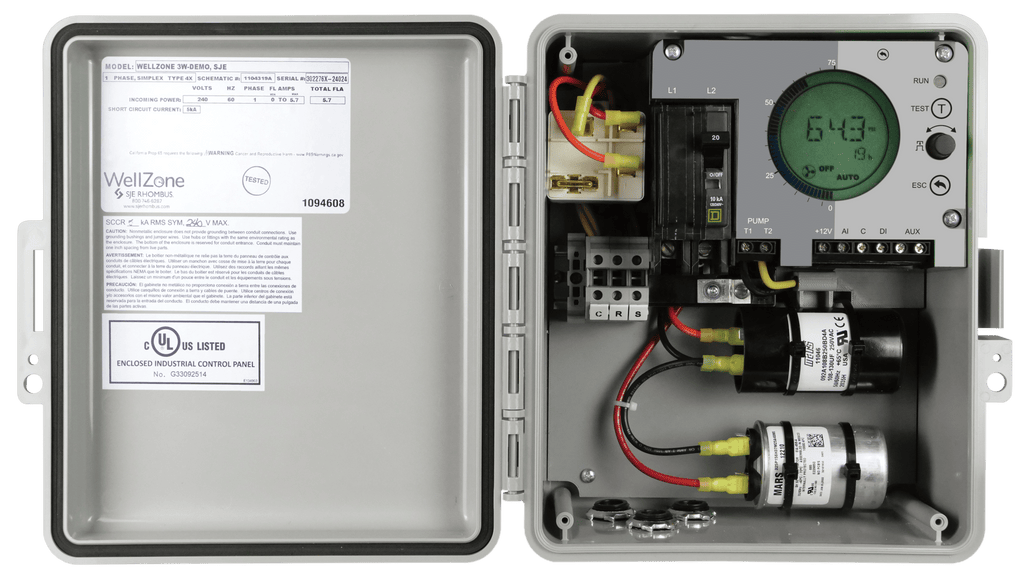

The SJE WellZone® 3-Wire Control Panel is a digital pressure-based controller designed to replace outdated mechanical pressure switches in single-phase, 3-wire submersible well pump systems.
Using an included 0–150 PSI pressure transducer, the WellZone® continuously monitors system pressure and automatically starts and stops the pump based on adjustable setpoints. This results in more accurate pressure control, fewer system issues, and improved pump protection compared to traditional setups.
The built-in LCD display and intuitive rotary control provide real-time system visibility and easy programming, while advanced features like dry run protection, rapid cycle prevention, and alarm tracking help protect your pump and extend system life.
| SFA | Run Cap (MFD) | Start Cap (MFD) | Breaker | |
| 1/2 HP - 230V | 4.3 | 15 | 43-53 | 15A |
| 3/4 HP - 230V | 5.7 | 23 | 59-71 | 20A |
| 1 HP - 230V | 8.1 | 23 | 86-103 | 20A |
Key Features
- Digital pressure-based pump control (no pressure switch required)
- Includes 0–150 PSI pressure transducer
- Adjustable start/stop pressure setpoints
- Factory preset at 40/60 PSI
- LCD display with real-time system data
- Rotary selector for simple navigation and programming
- Built-in pump protection features
- Auxiliary alarm relay with high/low pressure alerts
- NEMA 4X enclosure for indoor/outdoor installation
- Complete motor start components included (capacitors & relay)
Advanced Protection & Monitoring
- Dry Run Protection – prevents pump damage from low water conditions
- Rapid Cycle Protection – reduces wear from short cycling
- Well Recharge Timer – protects low-yield wells
- Pump Amps Monitoring – tracks system performance
- Run Time & Cycle Tracking – helps with maintenance planning
- Alarm History Logging – identifies recurring issues
- Water Filter Replacement Reminder
Specifications
| Attribute | Value |
|---|---|
| Application | 3-Wire Submersible Well Pumps |
| Phase | Single-Phase |
| Pressure Sensor | 0–150 PSI Transducer Included |
| Default Settings | 40 PSI Start / 60 PSI Stop |
| Enclosure | NEMA 4X |
| Enclosure Size | 10" x 8" x 4" |
| Display | LCD with Bar Graph |
| Control Interface | Rotary Encoder + ESC Button |
| Alarm Output | Auxiliary Relay |
| Inputs | Optional float switch or floor sensor |
| Certifications | UL / cUL (typical for SJE panels) |
| Warranty | 5-Year (Panel), 2-Year (Transducer) |
Why This is a Major Upgrade Over Standard Controls
Most well systems still rely on mechanical pressure switches, which:
- Wear out over time
- Drift out of calibration
- Offer zero system feedback
The WellZone® eliminates those issues by providing:
- Precision digital pressure control
- Real-time system visibility
- Built-in pump protection logic
- Fewer service calls and longer pump life
Typical Applications
- Residential well systems
- Rural and agricultural water supply
- Low-yield well protection systems
- Replacement for pressure switch + control box setups
Frequently Asked Questions (FAQs)
Does this replace a pressure switch?
Yes. The included pressure transducer replaces the traditional pressure switch, providing more accurate control.
What type of pumps is this compatible with?
It is designed for single-phase, 3-wire submersible well pumps.
Can I adjust the pressure settings?
Yes. Both start and stop pressures are fully adjustable.
What protection features are included?
It includes dry run protection, rapid cycle protection, well recharge timing, and alarm monitoring.
Does it display system information?
Yes. The LCD shows pressure, pump status, amps, runtime, and cycles.
Is this suitable for outdoor installation?
Yes. The NEMA 4X enclosure is built for indoor or outdoor use.
What happens during a fault condition?
The system will trigger alarms and protect the pump, depending on the fault type.
Does it include motor starting components?
Yes. It includes capacitors and start relay, making it a complete control solution.
