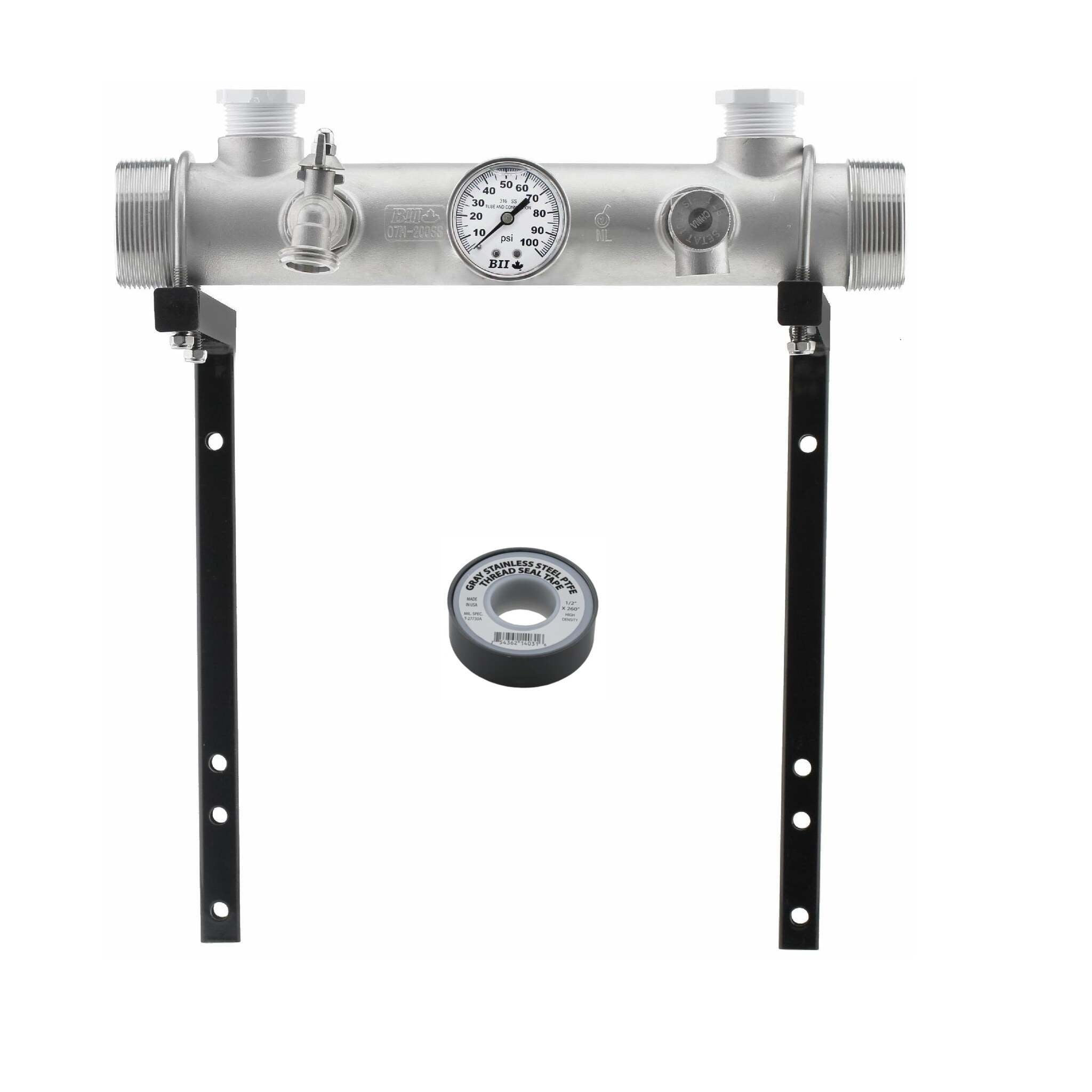

Pressure Tank Manifold Kit Stainless Steel with Wall Bracket, Relief Valve, Sediment Tap & Gauge – Universal Fit for Potable Water Systems

Stainless Steel Pressure Tank Manifold Kit with Wall Bracket & SS Hardware | Universal Fit, Incl Pressure Relief Valve & Sediment Tap, Durable Design

Upgrade your water system with the Stainless Steel Pressure Tank Manifold Kit, engineered for long-lasting performance, system compatibility, and ease of installation. This space-saving kit is ideal for constant pressure systems, cycle stop valve setups, or tight mechanical rooms. Built from high-grade stainless steel, the manifold ensures corrosion resistance and drinking water safety—even in low pH or chemically aggressive environments. Whether you're replacing an old system or building a new one, this all-in-one solution provides the durability and flexibility professionals rely on.

Key Features: Superior Durability and Universal Compatibility

• All-Stainless Steel Construction: Includes manifold, fittings, pressure gauge, relief valve, hose bib, and mounting hardware—all corrosion-resistant and safe for potable water.

• Universal Fit: Supplied with three stainless steel bushings (1" x 3/4", 1" x 1/2", 1/2" x 1/4") to accommodate nearly all pressure switches, transducers, and sensors.

• Compact Manifold Design: 11" (28 cm) long manifold with 1-1/4" MNPT outside thread and 1" FNPT internal connection for flexible system integration.

• Fully Equipped Kit Includes:

  • Stainless Steel Sediment Tap / Hose Bib (3/4")

  • Stainless Steel Pressure Relief Valve (3/4")

  • Stainless Steel Liquid Filled Pressure Gauge (2.5")

  • Teflon Tape (for stainless steel fittings)

  • Wall Mounting Kit with steel “L” brackets, lag screws, U-bolts, nylon nuts & end caps

Illustration Example of Components and Installed Kit

Please refer to the below photos of what the completed kit will look like once installed. Please keep in mind that this is a stainless steel kit, and the brass version is just an illustration to show the finished product.

Bracket Mounting Orientation: Flexible Installation Options

This kit includes a steel wall-mounting bracket that can be installed in two different orientations depending on the pressure tank's size and required wall clearance:

• Short Leg Out: Ideal for smaller tanks or tighter installs.

• Long Leg Out: Provides additional clearance from the wall—supports tanks with outside diameters up to 20.9 inches.

This versatile mounting solution ensures compatibility with a wide range of pressure tanks while optimizing space and accessibility. (Refer to the photo/technical drawing below for bracket orientation options.)

Choose the Right Tank for Your System

This manifold kit is compatible with a range of pressure tanks. Controllers typically recommend:

• 2.1 Gallon Tanks for flow rates under 10 GPM

• 4.8 or 9 Gallon Tanks for higher demand systems

Browse Flexcon Jet-Rite Pressure Tanks – Available in 2.1, 4.8, and 9 gallon sizes for your system requirements.

Complete Your Installation with These Accessories

• Pressure Tank Accessories – Find pressure switches, relief valves, pressure gauges, and more to fine-tune your system.

• Stainless Steel Fittings and Valves – View additional fittings, tees, nipples, and valves to complete your custom layout.

Upgrade Your System with Stainless Steel Confidence

This Stainless Steel Pressure Tank Manifold Kit offers everything you need to connect and mount your pressure tank system. With corrosion-proof construction and compatibility across major sensors and switches, it's an excellent investment for those seeking durability and peace of mind. Install with confidence—your system deserves the best.
