Sure Flow AMS Series Single Sphere Flexible Connector | 150# ANSI Flanged Ends | Vibration Dampening, Thermal Expansion, Pipe Misalignment Correction

Sure Flow AMS Series Single Sphere Flexible Connector | 150# ANSI Flanged Ends

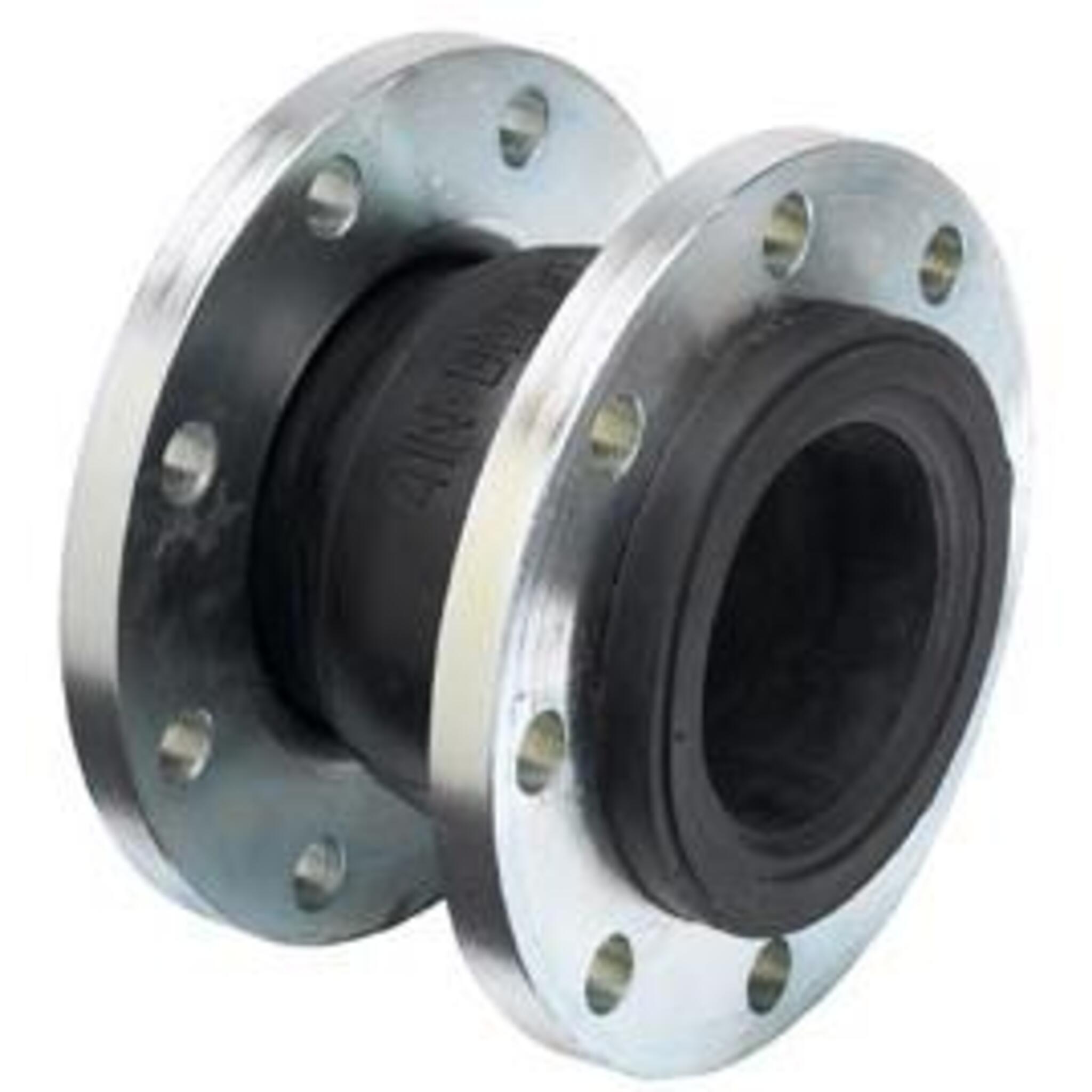

Ensure optimal performance in your piping systems with the Sure Flow AMS Series Single Sphere Flexible Connector. Designed for a wide variety of industrial applications, this connector helps correct slight pipe misalignments, accommodates thermal expansion and contraction, and reduces vibration, ensuring a reliable, long-lasting connection between pipes, pumps, and other equipment. Made with a synthetic fiber-reinforced nylon body and cast steel zinc-plated flanges, it provides strength, durability, and resistance to leakage and pipe damage.

Key Features of the Sure Flow AMS Flexible Connector

• Durable Construction: Cast steel zinc-plated flange ends and synthetic fiber-reinforced nylon body offer durability and corrosion resistance.
• Vibration Dampening: Reduces vibration transmission between equipment and pipes for smoother operation.
• Flexible Operation: Corrects pipe misalignments, accommodates expansion and contraction, and absorbs transverse and angular deflection.
• High Pressure Rating: Capable of handling up to 150 PSI of operating pressure and a burst pressure of 500 PSI.
• Versatile Usage: Suitable for use with water, weak acids, alkalis, and compressed air, offering broad chemical compatibility.

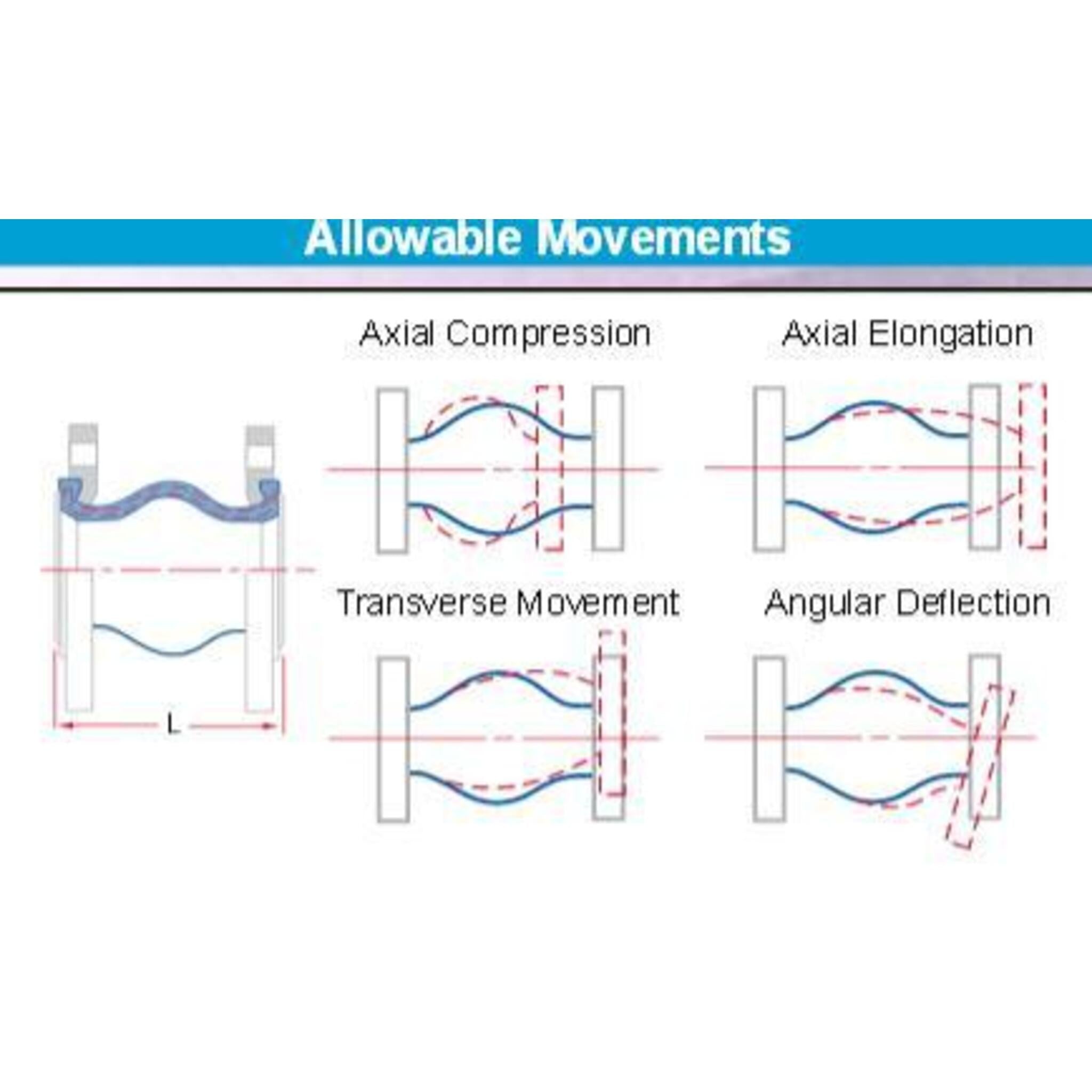

Technical Specifications:

2" Size

• Axial Compression: 1/2"
• Axial Elongation: 3/8"
• Transverse Movement: +/- 1/2"
• Angular Deflection: 15°

3" Size

• Axial Compression: 1/2"
• Axial Elongation: 3/8"
• Transverse Movement: +/- 1/2"
• Angular Deflection: 15°

4" Size

• Axial Compression: 5/8"
• Axial Elongation: 3/8"
• Transverse Movement: +/- 1/2"
• Angular Deflection: 15°

6" Size

• Axial Compression: 5/8"
• Axial Elongation: 3/8"
• Transverse Movement: +/- 1/2"
• Angular Deflection: 15°

Upgrade Your Piping Systems

The Sure Flow AMS Series Single Sphere Flexible Connector is the ideal solution for reducing vibration, correcting alignment issues, and ensuring long-lasting, secure connections. Available in a range of sizes from 2" to 6", it is designed to meet your operational demands across various industries.
