Description

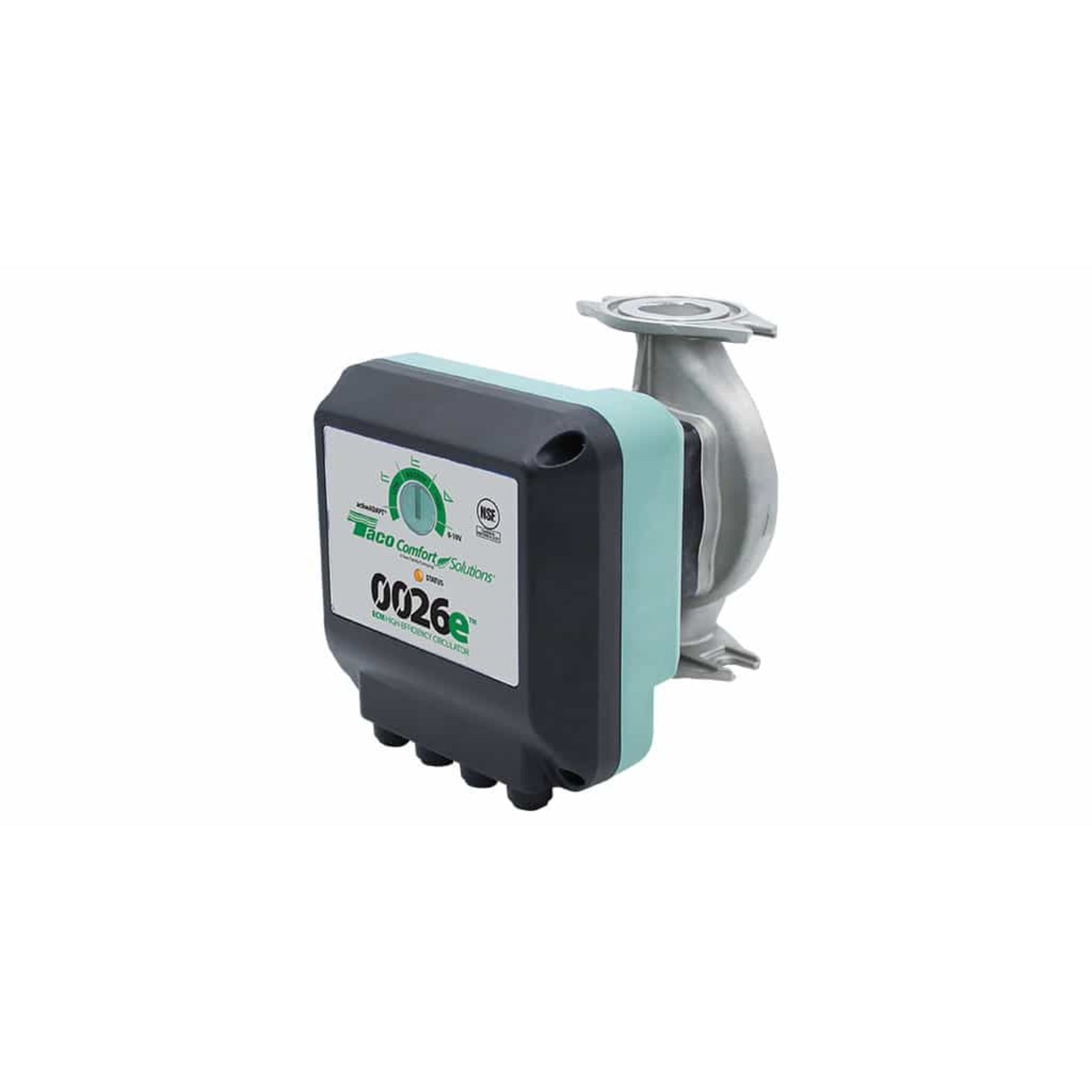

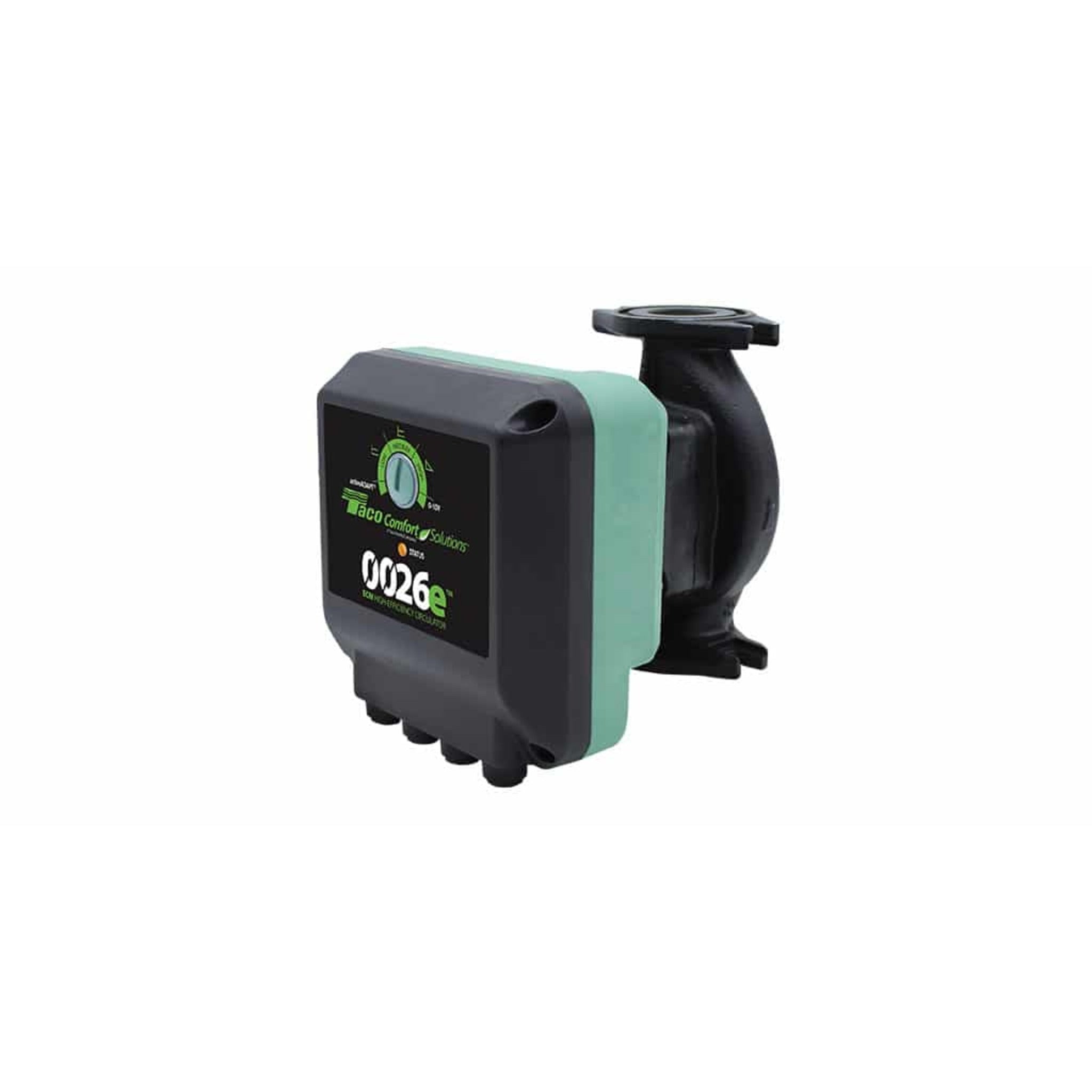

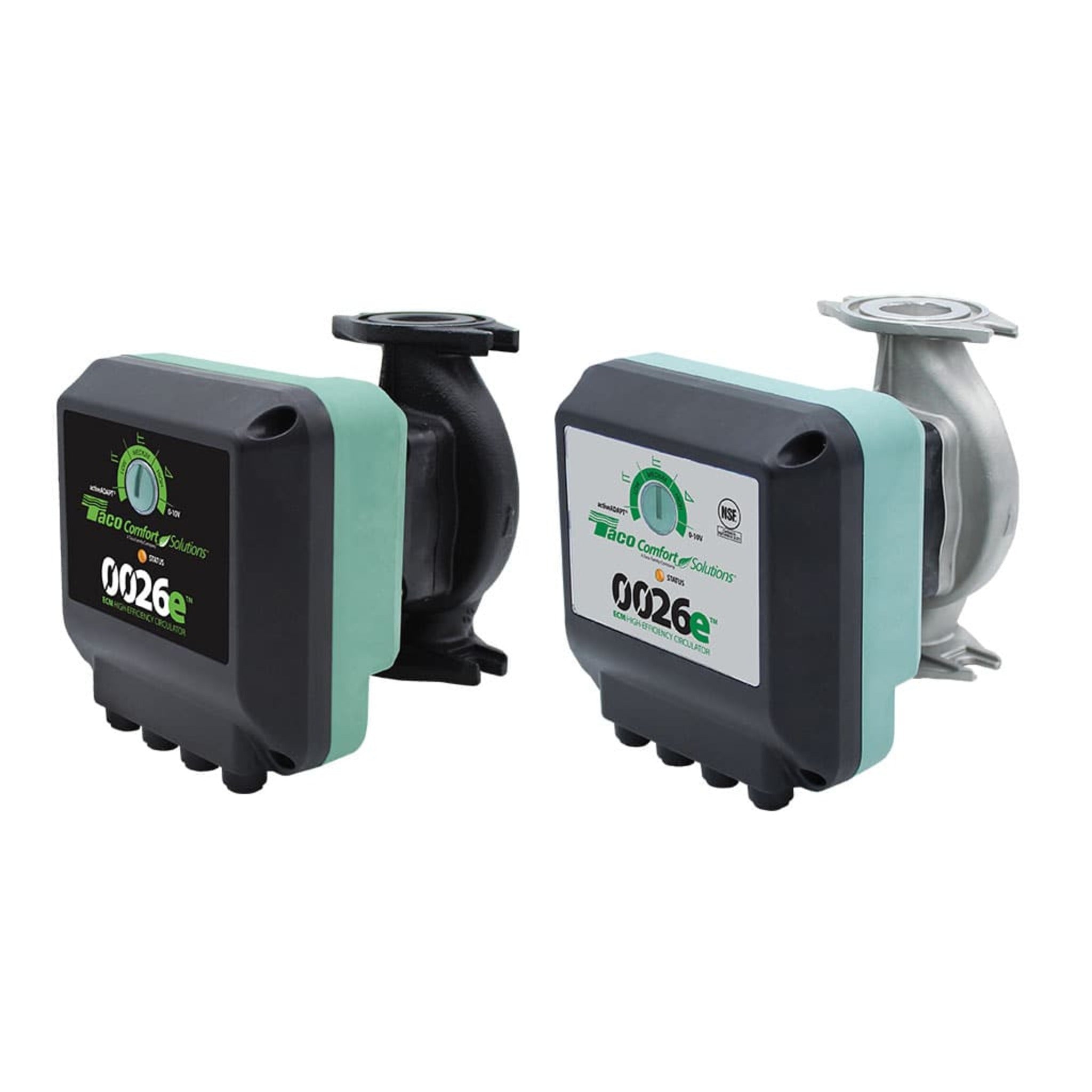

Advanced ECM Circulator Pump for Hydronic Heating, Chilled Water Cooling & Domestic Hot Water Systems
Experience the ultimate in ease and efficiency with the Taco 0026e ECM Variable Speed Circulator Pump. This high-performance, variable speed, wet-rotor circulator features high-efficiency ECM permanent magnet technology, making it easy to install and program. With five easy settings, the 0026e's variable speed performance curves match those of the Taco 0010, 0011, 0012, 0012 3-Speed, and 0014.
Ideal for large residential and light commercial hydronic heating, chilled water cooling, and domestic hot water systems, the 0026e reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators.
Made for High-Performance Circulation
The Taco 0026e is crafted for larger and more demanding systems. It combines ECM technology with variable speed control to match system requirements precisely. Instead of running at constant output, the pump adjusts dynamically. This improves efficiency, reduces wear, and ensures consistent system performance.
Taco 0026e Key Features and Functional Advantages
Replaces All Single Speed and 3-Speed Circulators in Its Class
Simplifies your system upgrades with this ECM variable speed circulator pump.
Rotatable Control Cover
Simplifies installation by allowing flexible positioning, ideal for a variable speed boiler pump setup.
BIO Barrier® Protection
Safeguards the pump from system contaminants, enhancing durability in a hydronic heating circulator pump application.
SureStart® Technology
Automatically unblocks and purges air for hassle-free operation in a high efficiency circulator pump.
Compatible with Taco Controls
Works seamlessly with Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation in an energy efficient circulation pump system.
Nut-Grabber Feature on Flanges
Ensures easier fit-up during installation.
Dual Electrical Knockouts and Removable Quick-Connect Terminal Strip
Simplifies wiring.
Double Insulated
Enhances safety and ease of installation.
Whisper Quiet Operation
Ensures a peaceful environment.
Taco 0026e ECM Speed Circulator Pump Specification
| Specification | Value |
|---|---|
| Max. Shut-off Head | 26 ft |
| Max. Flow | 44 GPM |
| Max. Pressure | 150 psi (10.3 bar) |
| Max. Temperature | 230°F (110°C) |
| Min. Temperature | 14°F (-10°C) |
| Voltage | 115/208/230V, 50/60Hz Single phase |
| Operating Power Range | 10–125W |
| Max. AMP | 1.05A |
| Flange-to-Flange | 6 ½” |
Why Choose the Taco 0026e Circulator
The Taco 0026e is ideal when standard circulators cannot meet system demands.
It delivers:
- Higher capacity for large hydronic systems
- Reduced energy consumption through ECM technology
- Precise flow control with variable speed operation
This combination makes it a reliable hydronic heating circulator pump for residential and commercial use.
Taco 0026e Applications
- Hydronic heating systems
- Chilled water cooling systems
- Domestic hot water recirculation
- Multi-zone HVAC systems
- Boiler systems requiring high head pressure
Performance and Efficiency Benefits
This high efficiency circulator pump for boiler systems from Taco Comfort Solutions improves overall system operation by:
- Reducing energy consumption
- Maintaining consistent flow and pressure
- Preventing over-pumping
- Extending system lifespan
It is a strong upgrade for systems needing more power and smarter control.
Buy Taco 0026e ECM Variable Speed Circulator Pump
The Taco 0026e ECM High-Efficiency Variable Speed Circulator from Cleanflow delivers power, precision, and efficiency. It is built for systems that demand more than standard pumps can provide. Upgrade your system with a smart, energy-efficient solution designed for modern performance.
Shop Taco 0026e ECM High-Efficiency Variable Speed Circulator now and get the performance your system deserves.
Frequently Asked Questions (FAQs)
What actually changes when the Taco 0026e runs at different speeds?
Instead of operating at one constant output, the pump increases or decreases speed depending on system demand. This allows it to deliver just the right amount of flow, avoiding pressure spikes and unnecessary energy use.
Why is variable speed important in hydronic systems?
A fixed-speed pump can over-circulate water when demand is low. The Taco 0026e adjusts in real time, keeping flow balanced across zones and improving overall system efficiency.
How does the circulator maintain stable pressure in the system?
Using constant or proportional pressure modes, the pump responds to changes like zone valves opening or closing. This keeps pressure steady, preventing uneven heating or flow inconsistencies.
In what way does the ECM motor influence daily operation?
The ECM motor continuously optimizes power usage while running. It consumes only the energy needed for the current load, which reduces wear and lowers electricity consumption.
How does the Taco 0026e handle multi-zone heating systems?
When zones activate or shut off, the pump automatically adjusts output to match the new demand. This ensures each zone receives proper circulation without manual recalibration.
What role does this pump play in chilled water cooling systems?
It circulates cooled water efficiently through the system while maintaining consistent flow rates. This helps stabilize temperatures and ensures reliable cooling performance across the entire loop.
