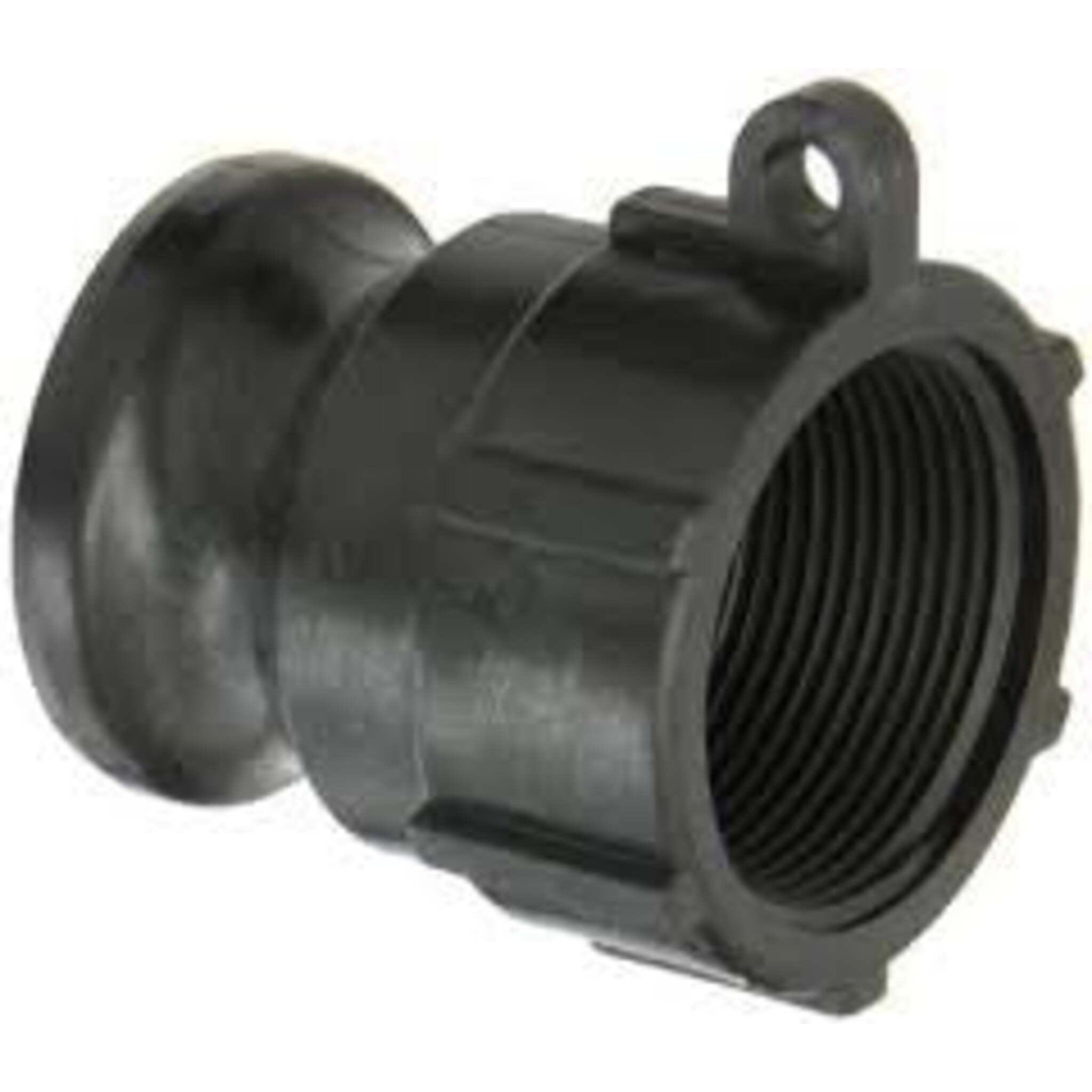

Efficient Chemical Handling with Polypropylene Camlock Type A
Type A Black Polypropylene Camlocks offer a cost-effective and reliable solution for handling a wide range of chemicals. These camlocks feature a male camlock insert on one end and female NPT threading on the other. Their black polypropylene construction makes them particularly suitable for chemical applications due to their resistance to various substances.
Key Features: Chemical Resistance, Low Cost, and Suitable Pressure Ratings
- Male Camlock to Female NPT Threading: Facilitates secure and versatile connections.
- Polypropylene Construction: Provides resistance to a wide range of chemicals.
- Working Pressure and Temperature: Suitable for pressures up to 100 PSI (for sizes 3/4" to 2") and 50 PSI (for sizes 3" and 4"), with a temperature range of -20°C to 70°C.
- Size Availability: Ranging from 3/4" to 4", suitable for various application needs.
Camlock Size Identification Guide
| Nominal Camlock Size | Type A — Male Adapter OD* |
|---|---|
| 3/4" | approx. 1.26" |
| 1" | approx. 1.44" |
| 1-1/4" | approx. 1.79" |
| 1-1/2" | approx. 2.10" |
| 2" | approx. 2.48" |
| 2-1/2" | approx. 2.98" |
| 3" | approx. 3.60" |
| 4" | approx. 4.70" |
* For male camlock adapters, measure straight across the outside of the adapter end that connects into the female coupler.
** For female camlock couplers, measure straight across the outside of the coupler body, excluding the handles.
Enhance Your Fluid Management with Polypropylene Camlock Type A
Type A Black Polypropylene Camlocks are more than just fittings; they are essential for efficient chemical handling in various industries. Whether used in agricultural, manufacturing, or laboratory settings, these camlocks provide a cost-effective and robust solution for managing fluids in systems requiring chemical resistance.
