Description
Connect with Confidence: Polypropylene Camlock Type C

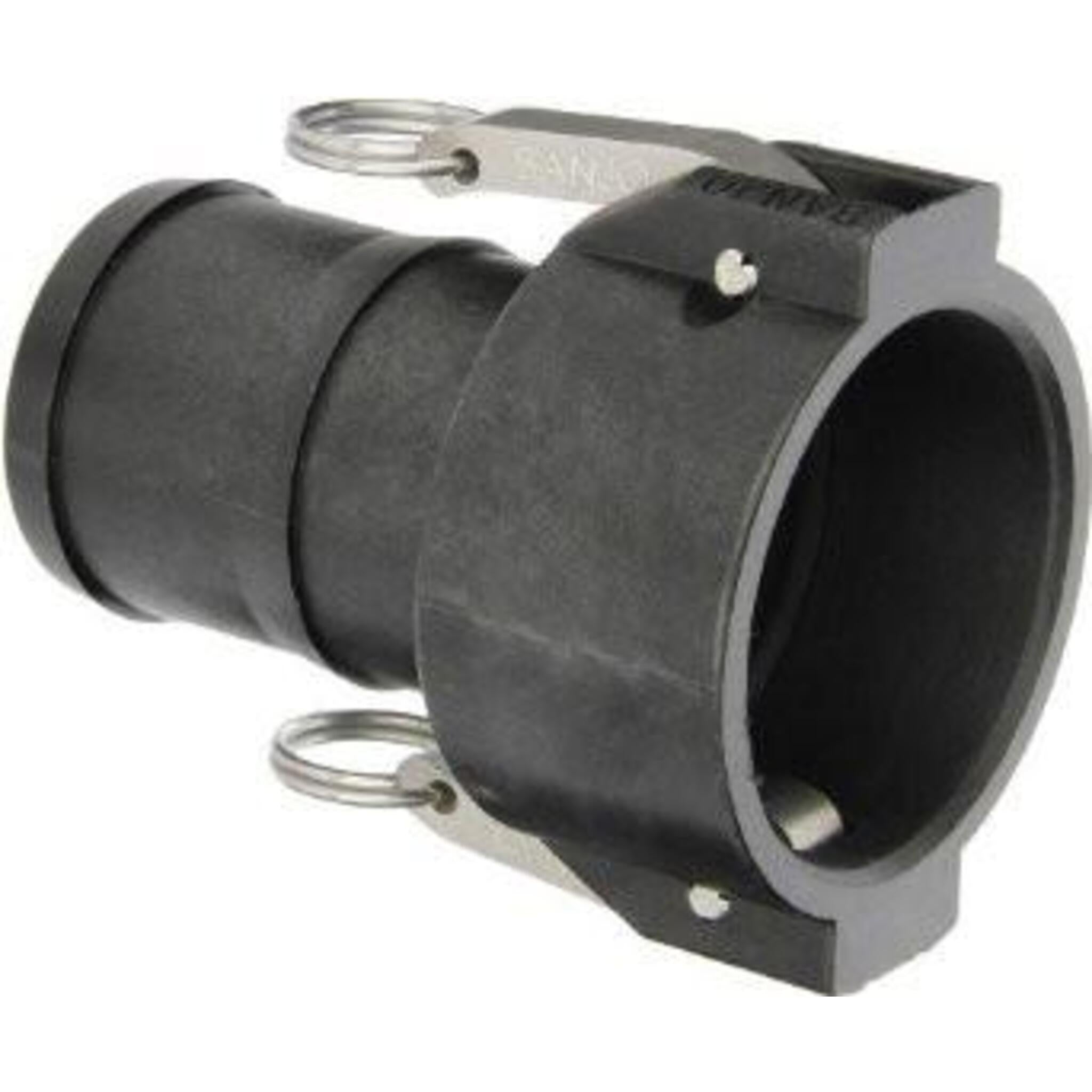

Type C Black Polypropylene Camlocks are an excellent choice for efficient hose connections in a variety of settings. These camlocks feature a female camlock socket on one end and a hose shank on the other, making them perfect for a secure and quick connection to hoses. The black polypropylene material provides low-cost solutions while being suitable for a wide range of chemicals, making these connectors highly versatile.
Key Features: Chemical Resistance, Affordability, and Suitable Pressure Ratings
- Female Camlock to Hose Shank: Enables easy and secure hose connections.
- Polypropylene Construction: Offers resistance to a wide array of chemicals.
- Working Pressure and Temperature: Suitable for 100 PSI (sizes 3/4" to 2") and 50 PSI (sizes 3" and 4"), with a temperature range from -20°C to 70°C.
- Size Range: Available in sizes from 1" to 4", catering to different hose diameters.
Camlock Size Identification Guide
| Nominal Camlock Size | Type C — Female Coupler OD** |
|---|---|
| 3/4" | approx. 1.63" |
| 1" | approx. 1.93" |
| 1-1/4" | approx. 2.30" |
| 1-1/2" | approx. 2.64" |
| 2" | approx. 3.23" |
| 2-1/2" | approx. 3.72" |
| 3" | approx. 4.33" |
| 4" | approx. 5.67" |
* For male camlock adapters, measure straight across the outside of the adapter end that connects into the female coupler.
** For female camlock couplers, measure straight across the outside of the coupler body, excluding the handles.
Enhance Your Fluid Handling with Polypropylene Camlock Type C
Type C Black Polypropylene Camlocks are more than just fittings; they are vital for managing fluids effectively, especially in environments where chemical resistance is crucial. Whether used in agricultural, industrial, or laboratory settings, these camlocks provide a cost-effective and reliable solution for connecting hoses in systems that encounter a variety of chemicals.
