Description

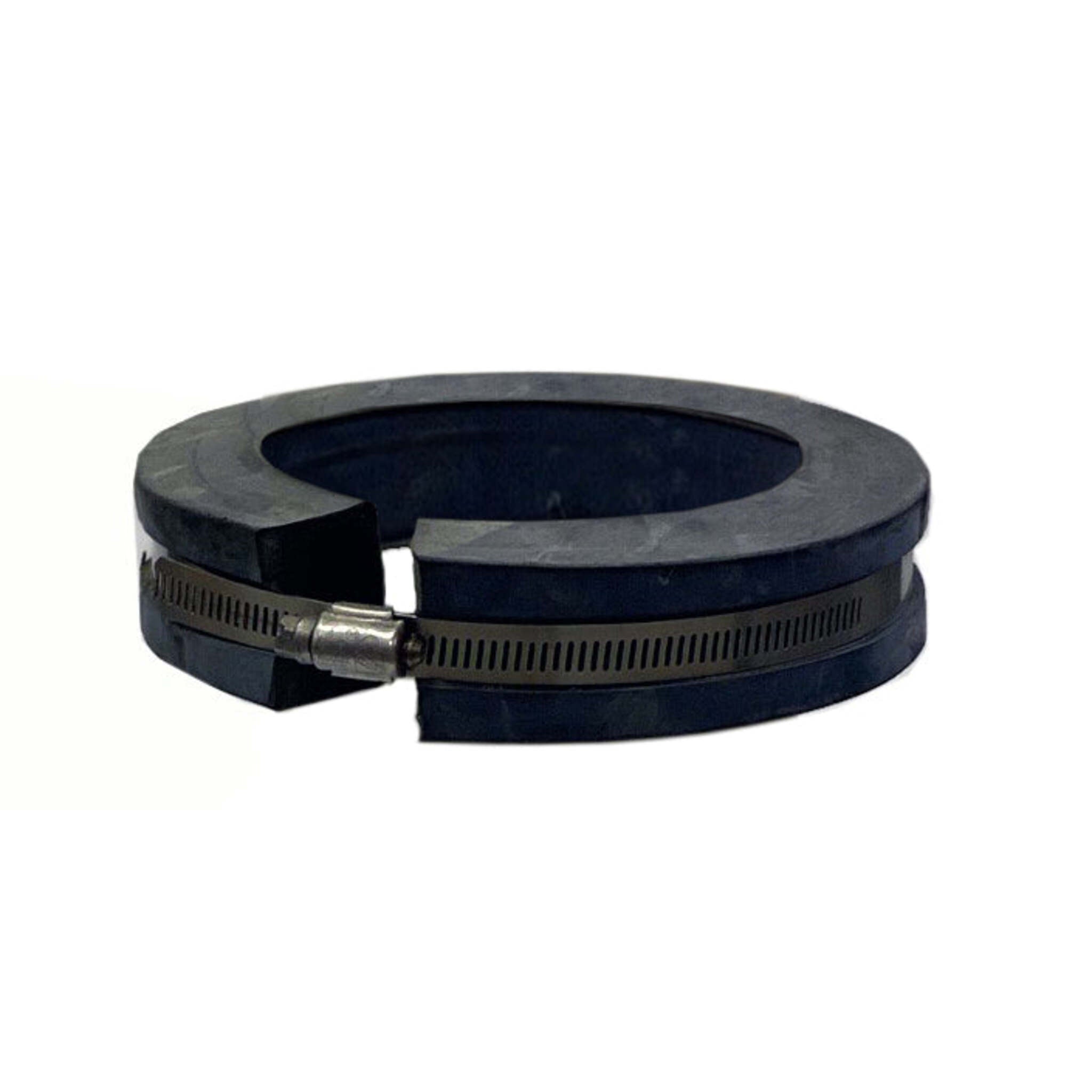

Rubber Adjustment Ring with Gear Clamp for the WD82 Valve Box Riser Pipe
Product Overview
On a WD82 country style valve box, this valve box adjusting ring is what sets the upper casing to grade. The rubber ring clamps around the 5" PVC base riser pipe and the upper casing rests on it, so where you fix the ring is where the casing sits. It is the WD Industrial part for the WD82 and WD82 PI assemblies.
Fit and Function
- Rubber split ring with a gear clamp. Open the ring, place it around the riser pipe and tighten the clamp at the height you need.
- Fits the WD82 cast iron upper and the WD82 PI Pro-Iron upper on the 5" nominal PVC riser of the country style valve box base. WD's Type A PI and Type C PI assembly drawings list the same part.
- Not a cast iron valve box riser, which sits under the lid to lift it to new pavement. This ring sits under the casing and sets the whole upper to grade.
- Order it as a replacement valve box adjustment ring when a box is re-set, or with the base and upper for a new WD82 install.
Specifications
| Specification | Value |
|---|---|
| Product type | Water valve box adjustment ring (WD82 adjusting ring assembly) |
| Fits | WD82 and WD82 PI country style valve boxes, 5" nominal base riser; also used on WD Type A PI and Type C PI assemblies |
| Position | Around the base riser pipe, directly under the upper casing |
| Material | Rubber |
| Clamp | Gear clamp, included |
| Brand | WD Industrial Group, Oak Bluff, Manitoba |
| SKU | W-WD82AR |
Buy a Valve Box Adjustment Ring Online from Cleanflow
Order the valve box adjusting ring with the WD82 base, upper, and other valve box parts from Cleanflow Utility Supply Company. Orders ship from Canada to addresses across Canada and the USA, with free shipping on orders over $199.
Return or exchange within 30 days of purchase under the Cleanflow return policy. Call 1-866-335-1078 (Canada) or 1-204-888-8469 (US) for WD46 boxes.
Frequently Asked Questions
What is a valve box adjusting ring?
On a WD country style valve box, it is a rubber ring with a gear clamp that fixes to the base riser pipe. The upper casing sits on the ring, so the ring sets how deep the casing goes and where the lid finishes.
What size valve box adjustment ring do I need?
One size, made for the 5" nominal PVC riser of the WD82 and WD82 PI, so there is nothing to measure. The WD46 box uses a different ring, WD part WD254, so check the box model before ordering.
Valve box adjusting ring vs valve box riser: what is the difference?
A valve box riser is a cast iron ring that sits under the lid of an existing box to lift the lid to new pavement. This valve box adjustment ring sits under the upper casing on the riser pipe and sets the height of the whole casing during installation.
