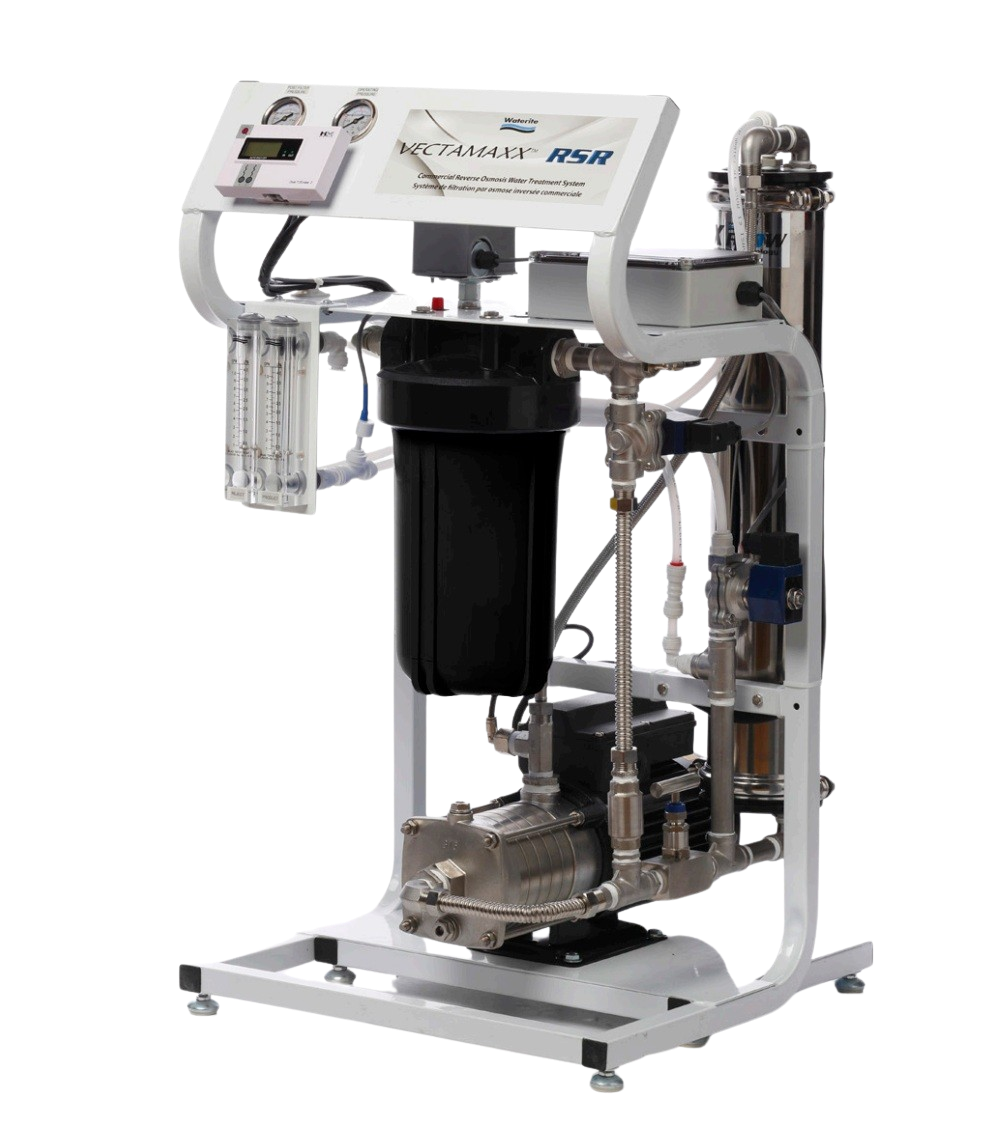

Waterite Vectamaxx RSR2400 Commercial Reverse Osmosis System - 2400 GPD

Waterite Vectamaxx RSR2400 Commercial Reverse Osmosis System – High-Capacity, Low-Energy RO for Clean, Consistent Water

Advanced RO System for Demanding Commercial Applications

The Waterite Vectamaxx RSR2400 Commercial Reverse Osmosis System delivers high-performance water purification for commercial and light industrial applications. Built on a rugged, powder-coated aluminum frame for corrosion resistance, this system features a whisper-quiet stainless steel multi-stage pump, dual TDS meters, and a microprocessor controller with auto-flush capability to maximize membrane life and system efficiency.

Ideal for use in equipment supply, beverage production, and critical processes requiring clean, high-purity water, the RSR2400 is engineered to remove over 98% of dissolved contaminants, including salts, chemicals, heavy metals, and harmful organic compounds.

Key Features: Engineered for Efficiency, Built for Durability

• High Output: Rated for up to 2400 gallons per day (GPD) in optimal conditions.

• Quiet Operation: Equipped with a multi-stage stainless steel pump for powerful yet silent performance.

• Rugged Frame: Powder-coated aluminum for corrosion resistance and longevity.

• Dual TDS Monitoring: Provides real-time readings of both feed and product water quality.

• Advanced Microcontroller: Auto flush, test modes, and programmable parameters for easy operation.

• Integrated Pressure Gauges & Flow Meters: Monitor performance and ensure optimal system tuning.

• 10” Big Blue 5-Micron Prefilter: Traps sediment and protects the membrane.

• Stainless Steel Piping: Durable and hygienic water flow path.

What Makes the Vectamaxx RSR2400 Different?

Unlike basic filtration systems, reverse osmosis removes contaminants at a molecular level, making it highly effective for:
✔ Chlorine and chloramine
✔ Heavy metals like lead, cadmium, and chromium
✔ Salts, sodium, fluoride, and nitrates
✔ Pesticides, herbicides, and VOCs
✔ Bacteria, viruses, and parasites such as Cryptosporidium

Applications & Installation

• Connects to multiple appliances or water delivery systems simultaneously.

• Requires access to a feed water source, standard electrical power, and drain line.

• Should be installed in a protected environment—indoors and shielded from freezing temperatures.

• Compatible with water storage tanks to increase peak-time availability.

Performance Factors

• Pressure: Operates between 100–130 PSI (up to 150 PSI max).

• Temperature: Ideal performance at 25°C (77°F); not to exceed 40°C (104°F).

• TDS & Membrane Type: Uses premium TFC membranes for high removal efficiency, even under challenging water conditions.

• Membrane Lifespan: Varies from 1–5 years, depending on water quality. Soft water may extend life to 8 years.

Maintenance & Warranty

• Prefilter replacement: Monthly under normal commercial use; biweekly in high-volume or untreated water applications.

• Membrane replacement: Based on TDS readings or performance drop.

• Standard Warranty: 1-year limited warranty on parts and in-shop repair labor.

Specifications

• Production Rate: Up to 2400 GPD (actual output varies with feed TDS, pressure, and temperature)

• Construction: Powder-coated aluminum frame, stainless steel pump & piping

• Pre-filtration: 10" Big Blue 5-micron polyspun filter

• Electrical Requirements: Standard 120V AC (contact Waterite for options)

• Footprint: Compact and optimized for commercial spaces

Trust Waterite for Proven Commercial RO Solutions

Backed by Waterite’s reputation for innovation and reliability, the Vectamaxx RSR2400 is the go-to RO solution for high-volume, high-purity water needs. Whether used for industrial processing, equipment feed water, or commercial beverage service, the RSR2400 delivers powerful performance, easy operation, and long-term value.
