Waterite Vectapure RSX II Commercial Reverse Osmosis Systems | 350 & 700 USGPD with Black Max® Membranes, Dual 10" Big Blue Pre-Filtration, SS Housing

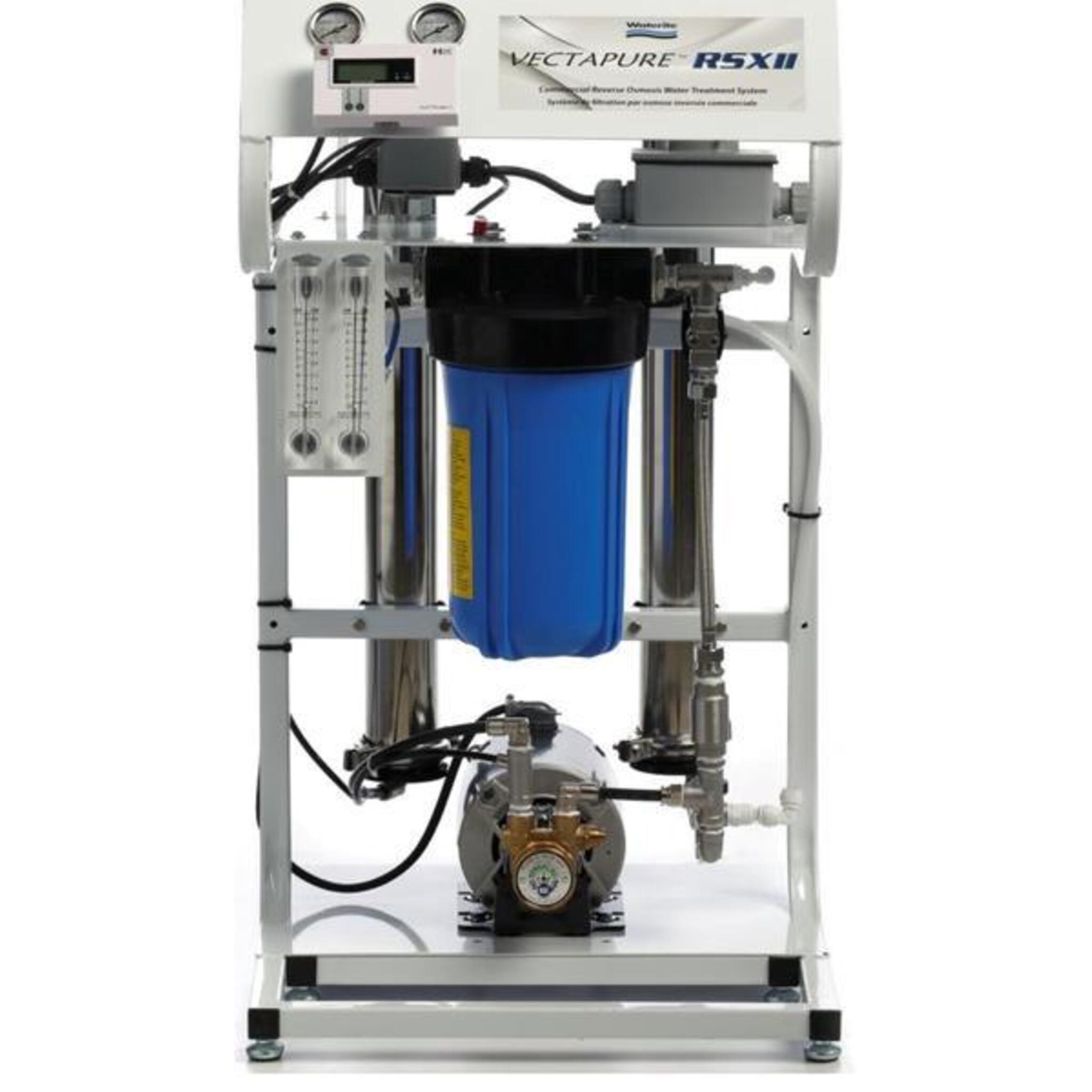

Waterite Vectapure RSX II Commercial Reverse Osmosis Systems

The Waterite Vectapure RSX II Commercial RO System, available in 350 and 700 USGPD sizes, delivers advanced water purification technology for demanding commercial environments. Featuring low pressure shut-off, a feed water solenoid, stainless membrane housing, dual 10" Big Blue pre-filtration housings, and high-performance Black Max® membranes, this system ensures reliable and efficient operation. Ideal for applications requiring a dedicated source of pure water, such as in-plant chemical mixing, bottling, and residential use.

Key Features: Reliable and Efficient Water Purification

• High Production Rate: Offers permeate production rates of 0.21 USGPM (0.85 LPM) for RSX350 and 0.47 USGPM (1.76 LPM) for RSX700, ensuring ample supply for commercial needs.
• Efficient Waste Management: Manages waste production rates effectively, varying based on feed water TDS levels.
• Advanced Membrane Technology: Utilizes Black Max® spiral wound TFC membranes for high performance and durability.
• Robust Pre-Filtration: Dual 10" Big Blue pre-filtration housings with melt-blown spun polypropylene 5-micron filter cartridges remove sediments and impurities.
• Sturdy Construction: Stainless steel membrane housing and recirculation valves ensure long-lasting durability and reliability.
• Energy Efficient: Low energy consumption with high output, using HydroPure rotary vane pumps and operating at nominal pressures of 150 PSI (10.5 bar).
• User-Friendly Design: Equipped with low pressure shut-off, feed water solenoid, and easy-to-use push-on fittings for straightforward operation and maintenance.

Specifications:

• Feed Water Pressure: 40 PSI minimum, 80 PSI maximum
• Feed Water Temperature: Up to 35ºC (95ºF)
• Voltage Options: 110VAC/60Hz (RSX350: 5.1A, RSX700: 7.5A), optional 220VAC/60Hz (RSX350: 2.6A, RSX700: 3.8A)
• Frame Dimensions: Height: 34.25" (87 cm), Width: 19" (48.25 cm), Depth: 19.5" (49.5 cm)
• Recommended Feed Water Pretreatment: TDS < 2000, Hardness < 6 GPG, Total Iron < 0.05 PPM, Tannin < 0.5 PPM, Chlorine < 0.1 PPM, pH 5.5 – 9.5, SDI < 5.0
• System Certifications: Certified by INTERTEK to CSA 22.2 and conforms to ANSI/UL Standard 979 for indoor use only.

Included Components:

• Main RO Unit: Integrated with pre-filter housing, auto shut-off valve, dual channel TDS monitor, permeate and waste flow meters, and inline concentrate flow control.
• Dual 10" Big Blue Pre-Filtration Housings: With melt-blown spun polypropylene 5-micron filter cartridges.
• Drive Pump Motor: Rotary vein type, brass, 1/3 HP for RSX II 350, and ½ HP for RSX II 700.
• Complete Tubing and Fittings: Includes 3/8” LDPE tubing (black) for feed and waste, and all necessary installation hardware.
• Leak Prevention and Safety: Low pressure switch and leak detection systems for secure operation.

Enhance Your Water Purification with Vectapure RSX II

Upgrade to the Waterite Vectapure RSX II Commercial Reverse Osmosis System for unparalleled water quality in commercial applications. Designed for efficiency and reliability, the RSX II series ensures you have access to high-quality, pure water for various industrial and commercial needs. Order your Vectapure RSX II system today and experience the next level of water purification.
