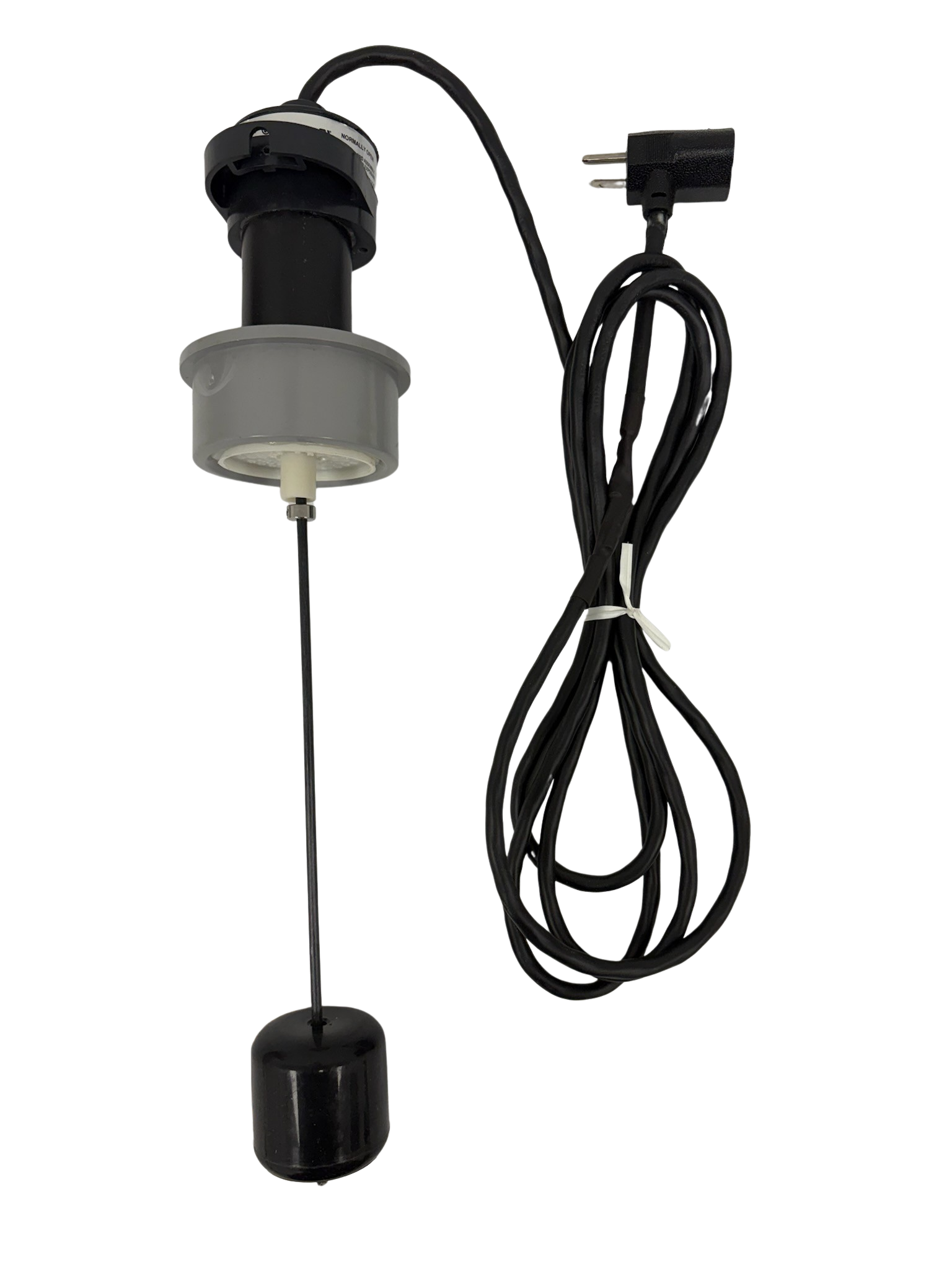

WD Aqua-Flo A-5000 Replacement Float Switch Assembly – Genuine OEM Part

WD Aqua-Flo A-5000 Replacement Float Switch Assembly – Genuine OEM Part

Reliable Replacement for Your WD Aqua-Flo Water Line Freeze Protection System

The WD Aqua-Flo A-5000 Replacement Float Switch Assembly is a genuine OEM component designed to replace worn-out float switch assemblies in the WD Aqua-Flo Water Line Freeze Protection System. Engineered for durability and precision, this float switch ensures seamless operation, helping maintain proper water levels and system efficiency.

Key Features: Durable & Easy to Install

✔ Genuine OEM Replacement: Designed specifically for the WD Aqua-Flo System, ensuring optimal compatibility and performance.
✔ Restores Proper Operation: Replaces faulty or worn-out float switches to keep your system functioning efficiently.
✔ Simple Installation Process: Comes with detailed step-by-step instructions for quick and hassle-free replacement.
✔ High-Quality Materials: Built for long-lasting performance in demanding environments.

Step-by-Step Installation Guide

1️⃣ Power Off & Drain the System

• Disconnect the unit from the power source.
• Fully drain the water tank.

2️⃣ Remove the Existing Float Switch

• Remove the cover plate from the motor by unscrewing two screws.
• Disconnect three pressure switch wires, keeping the ground wire screw.
• Use a wrench to unscrew and remove the old switch from the tank.

3️⃣ Prepare for Installation

• Use a 3½” hole saw to cut a new opening where the previous pressure switch was located.
• Vacuum any plastic debris from the tank.

4️⃣ Install the New Float Switch

• Apply NSF silicone to the lip of the new bushing before installation.
• Allow the silicone to fully dry before resuming operation.

5️⃣ Reconnect the New Float Switch

• Attach the new pressure switch power supply wires (three wires total).
• Secure the green ground wire using the existing screw.

6️⃣ Reassemble & Test the System

• Reinstall the cover plate, ensuring all excess wires are tucked inside.
• Plug the motor supply wire into the piggyback plug.
• Plug the unit into a standard wall outlet and allow water to start flowing normally.
• Confirm the unit completes a full fill-and-drain cycle.

Tools Required for Installation

🔹 Phillips head screwdriver
🔹 3½” (89mm) Hole Saw
🔹 Adjustable wrench
🔹 NSF Silicone

Restore Efficiency with a Genuine OEM Replacement

Ensure your WD Aqua-Flo Water Line Freeze Protection System continues operating at peak efficiency with the A-5000 Replacement Float Switch Assembly. Designed for easy installation and long-lasting reliability, this genuine OEM part is an essential replacement for maintaining optimal water level control.
