Description

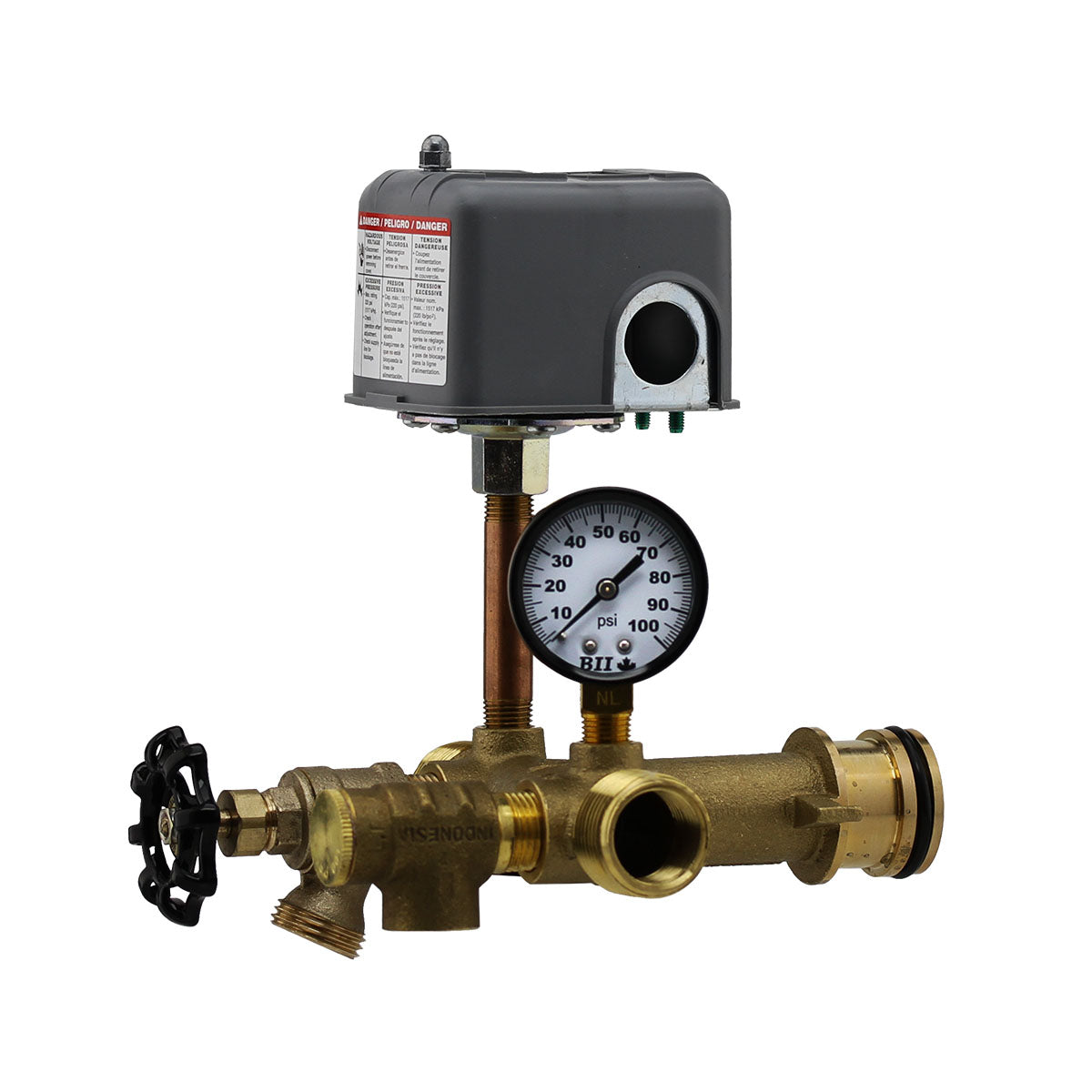

No-Lead Brass Pressure Tank Tee Kit for WellMate WM-4, WM-6, WM-9, and WM-12 Composite Tanks
WellMate pressure tanks use a proprietary Quick Connect inlet that does not accept standard MPT tank tees. This WellMate tank tee kit includes the genuine no-lead brass tank tee, pressure switch, relief valve, gauge, boiler drain, and nipple needed for the connection. The brass pressure tank tee kit ships factory-set at 30/50 PSI and fits WM-4, WM-6, WM-9, and WM-12 tanks (1" NPT models).
Complete Installation Kit
- WellMate Tank Tee: No lead 1" x 4.14" Quick Connect, center-end (Part No. 07TK-25S-2-WMNL)
- Pressure Switch: Square D FSG2J21, 1/4" FPT, 30/50 PSI, field-adjustable
- Pressure Relief Valve: No lead 1/2" brass, non-adjustable, set at 75 PSI (Part No. RVNB05-075NL)
- Pressure Gauge: No lead 2" dry, 1/4" lower mount, 0-100 PSI (Part No. PG-100NL)
- Boiler Drain: No lead 1/2" MPT (Part No. 0853-05NL)
- Brass Nipple: 1/4" x 3" (Part No. BRN-0230)
Key Features and Benefits
Genuine WellMate Quick Connect Tank Tee
The 1" x 4.14" brass tank tee connects to WellMate's proprietary Quick Connect inlet using alignment lugs and an O-ring compression seal. To install a tank tee on a composite pressure tank like the WellMate, align the lugs with the inlet slots, push in, and turn clockwise until the O-ring seats. Standard MPT tank tees are not compatible. When comparing a WellMate quick connect vs. a threaded tank tee, only the Quick Connect type creates the correct seal on WellMate's composite shell.
No-Lead Brass, NSF/ANSI 372 Certified
All brass components in this tank tee package meet NSF/ANSI 372 for potable water use. The no lead brass tank tee resists corrosion in residential water conditions without the dezincification risk found in older brass formulations.
Complete Kit, Single Purchase
All six components in this well tank tee kit are factory-matched, so there is no risk of ordering incompatible fittings. The kit replaces what would otherwise be six separate part numbers from different suppliers.
Factory Set at 30/50 PSI
This 30/50 PSI pressure switch kit ships ready to install. The Square D pressure switch activates the well pump at 30 PSI (cut-in) and stops it at 50 PSI (cut-out). No adjustment is needed for standard residential well water systems.
Field Adjustable Pressure Switch
The Square D pressure switch (FSG2J21) is field-adjustable. To change the setting, disconnect power to the pump and remove the switch cover. Turn the large adjustment nut clockwise to raise both cut-in and cut-out pressures, or counterclockwise to lower them. The differential between cut-in and cut-out stays constant. After adjustment, restore power and verify the operating pressures using the included gauge. Common alternative settings include 20/40 PSI and 40/60 PSI.
Built-In System Protection
The 75 PSI pressure relief valve (RVNB05-075NL) protects the system from overpressure. The valve is non-adjustable and factory-set to open at 75 PSI. If the pressure switch fails to shut off the pump, the relief valve prevents pressure from exceeding safe limits.
Tank Compatibility
This WellMate tank tee kit fits all WellMate tanks with a 1" NPT Quick Connect inlet:
- WellMate WM-4
- WellMate WM-6 (19.6 gallon)
- WellMate WM-9 (30.4 gallon)
- WellMate WM-12 (40.3 gallon)
This kit does not fit WellMate WM-14WB or WM-25WB tanks. Those models use a 1-1/4" MNPT connection and require a different tank tee package.
Not sure what tank tee fits a WellMate pressure tank? Check the model number on the label near the tank's inlet. All WM-series tanks with a 1" Quick Connect inlet are compatible.
Specifications
| Spec | Value |
|---|---|
| Manufacturer | Boshart Industries |
| Product Model | TK25S2WMNL |
| UPC | 777808436569 |
| Compatible Tanks | WellMate WM-4, WM-6, WM-9, WM-12 (1" NPT Quick Connect) |
| Primary Material | No-Lead Brass (Solid Design) |
| Tank Tee Size | 1" x 4.14" Quick Connect, Center-End |
| Pressure Switch | Square D FSG2J21, 30/50 PSI, Field-Adjustable |
| Relief Valve | 75 PSI, Non-Adjustable |
| Pressure Gauge | 0-100 PSI, 2" Dry, 1/4" Lower Mount |
| Boiler Drain | 1/2" MPT, No-Lead |
| Nipple | 1/4" x 3" Brass |
| Certifications | NSF/ANSI 372, No-Lead |
Typical Applications
This well tank tee kit is used in residential well water systems with WellMate composite pressure tanks, cottage and rural water supplies with well pumps, and pressure tank replacements where the existing tank is a WellMate WM-4, WM-6, WM-9, or WM-12. It also fits light commercial water systems with WellMate composite tanks.
For systems using standard threaded tanks instead of WellMate, Cleanflow carries a separate brass pressure tank tee kit and a stainless steel pressure tank installation kit with MPT connections. When choosing between a brass vs. stainless steel tank tee, brass is standard for most residential well water. Stainless steel suits aggressive water conditions or corrosive environments.
Buy the WellMate Tank Tee Kit Online from Cleanflow
Cleanflow Utility Supply Company is an authorized WellMate accessories supplier. This brass pressure tank tee kit ships free across Canada and the USA on orders over $199. The complete 30/50 PSI pressure switch kit includes everything needed for a WellMate tank connection. Returns accepted within 30 days. Email info@cleanflow.ca for questions about compatibility or installation.
Frequently Asked Questions
What is included in this WellMate tank tee kit?
This kit includes a no-lead brass tank tee (1" x 4.14" Quick Connect), a 30/50 PSI pressure switch (Square D FSG2J21), a 75 PSI pressure relief valve, a pressure gauge, a boiler drain, and a brass nipple. All components are NSF/ANSI 372 certified.
Is the pressure switch adjustable?
Yes. The Square D pressure switch is field-adjustable. Disconnect power, remove the switch cover, and turn the large adjustment nut clockwise to increase pressure or counterclockwise to decrease it. The factory setting is 30/50 PSI. Common alternatives include 20/40 and 40/60.
Will this kit fit my WellMate tank?
This pressure tank installation kit fits WellMateWM-4, WM-6, WM-9, and WM-12 tanks, all of which use a 1" NPT Quick Connect inlet. It does not fit WM-14WB or WM-25WB tanks, which use a larger 1-1/4" MNPT connection.
Can you use a standard tank tee on a WellMate tank?
No. WellMate tanks use a proprietary Quick Connect inlet with alignment lugs and an O-ring seal. Standard MPT threaded tank tees will not connect to a WellMate tank. This kit includes the genuine WellMate brass tank tee required for the connection.
Is this kit safe for drinking water systems?
Yes. All brass components are certified to NSF/ANSI 372 for potable water use. The no-lead brass construction meets current lead-free requirements for drinking water system components in both Canada and the United States.
