Description
High-Performance 2.1 Gallon Inline Pressure Tank for Booster and Constant Pressure Systems
Product Overview

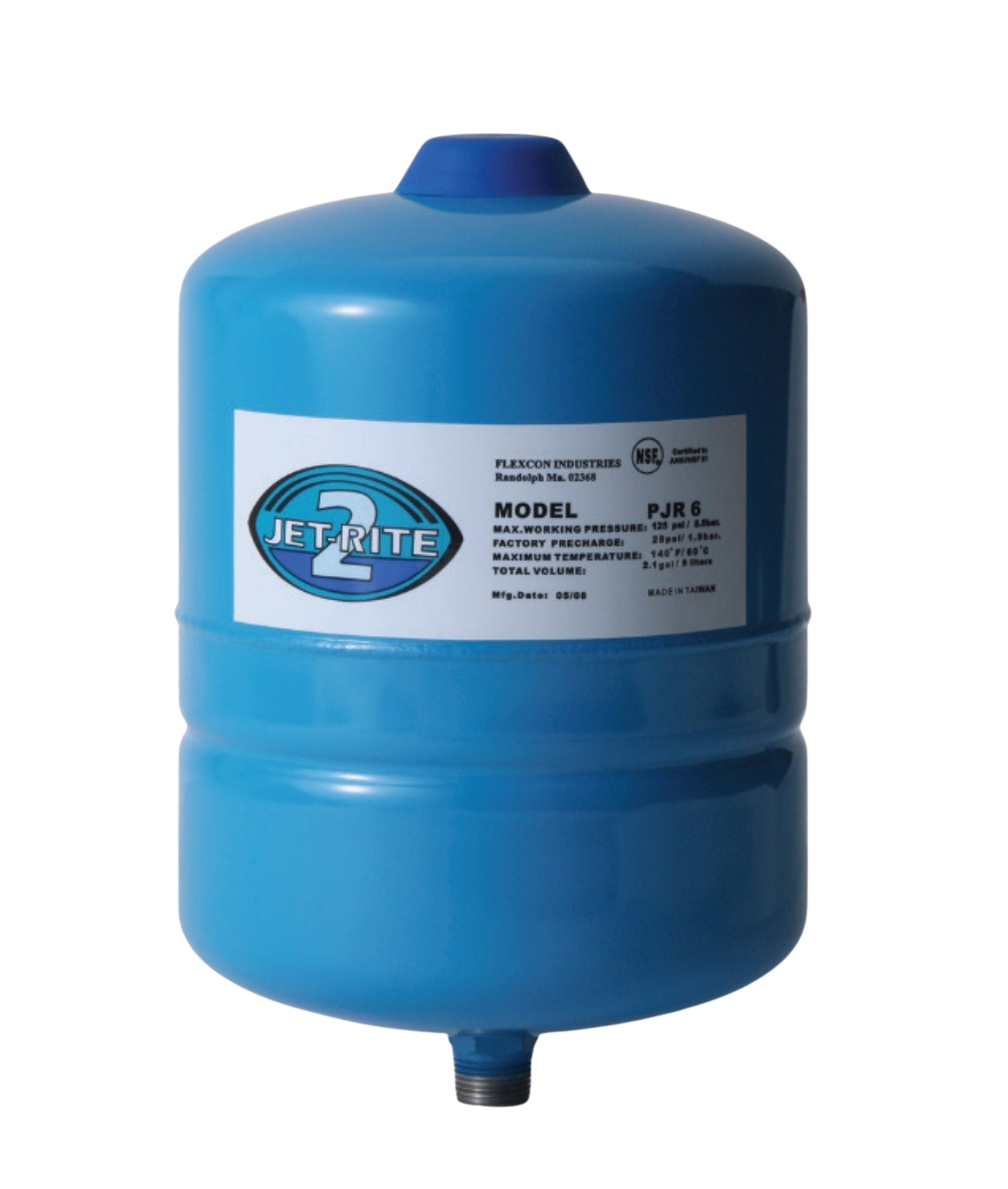

The Flexcon PJR-6 is a compact 2.1-gallon inline pressure tank that is designed to stabilize system pressure and reduce pump cycling in compact booster and constant pressure systems. This inline booster pump pressure tank is commonly installed in residential irrigation applications, shallow well systems, and centrifugal pump configurations for reliable water delivery.
Quick Specs:
- Capacity: 2.1 Gallons
- Maximum Pressure: 125 PSI
- Connection Size: 3/4" NPT Stainless Steel
- Pre-Charge: Factory set to 28 PSI
- Certification: NSF 61 Certified
Key Features of Flexcon PJR-6 Jet-Rite 2 Inline Pressure Tank
- This NSF-certified pressure tank features a 100% butyl rubber diaphragm that ensures maximum air and water separation.
- The water chamber includes a virgin copolymer polypropylene liner that prevents water from touching the internal steel shell.
- The system connection uses a reinforced 3/4" stainless steel NPT fitting that resists corrosion in harsh environments.
- The exterior features a 16-gauge cold-rolled steel shell finished with appliance-quality powder coat paint for indoor or outdoor use.
- The brass air valve includes a secure O-ring seal to prevent air loss and maintain the factory pre-charge.
- Unlike traditional vertical pressure tanks, the PJR-6 is designed for direct inline installation within system piping. This allows for compact installation and is commonly used in space-restricted systems or manifold-based configurations.
Installation Components (Sold Separately)
Recommended Accessory for New Installations
This tank can be paired with an optional stainless steel manifold kit for organized installation. The manifold provides connection points, a pressure gauge, and a relief valve, helping simplify system layout in compact spaces.
Fully equipped kit includes:
- Stainless Steel Sediment Tap / Hose Bib (3/4")
- Stainless Steel Pressure Relief Valve (3/4")
- Stainless Steel Liquid Filled Pressure Gauge (2.5")
- Teflon Tape (for stainless steel fittings)
- Wall Mounting Kit with steel “L” brackets, lag screws, U-bolts, nylon nuts & end caps
Flexcon PJR-6 Specifications
| Category | Details |
|---|---|
| Model Number | PJR-6 |
| Tank Capacity | 2.1 Gallons (8 Liters) |
| Max Working Pressure | 125 PSI |
| Connection Material | Stainless Steel |
| Drawdown (20/40 PSI) | 0.8 Gallons |
| Drawdown (30/50 PSI) | 0.7 Gallons |
| Drawdown (40/60 PSI) | 0.6 Gallons |
| Total Weight | 5.0 lbs (2.3 kg) |
Dimensions
- (A) Height / Length: 12.0 inches (30.5 cm)
- (B) Diameter: 8.0 inches (20.3 cm)
- (C) Connection: 3/4" NPT
Recommended Uses
- Inline pressure tank for booster pumps and constant pressure systems
- Compact booster pump assemblies
- Shallow well jet pump configurations
- Small-scale agricultural irrigation systems
- Centrifugal pump setups
- Systems requiring an NSF-certified inline pressure tank for shallow jet pumps
- Space-restricted mechanical rooms
Common Pressure System Problems
If You're Experiencing:
- Pump turning on and off too frequently (short cycling)
- Low or inconsistent water pressure at fixtures
- Pressure drops while using multiple appliances
- Premature pump failure or overheating
- Air sputtering from faucets
This Flexcon PJR-6 2-gallon inline pressure tank for booster systems stabilizes system pressure, reduces pump cycling, and helps extend the lifespan of your well pump and water delivery system.
Key Benefits of this Inline Pressure Tank
- Compact 12-inch height fits easily into tight installation spaces
- Condensation-reducing design minimizes external shell corrosion
- Maintains drinking water purity through NSF 61 certification
- The sealed diaphragm design minimizes maintenance and prevents waterlogging.
- Reduces pump short-cycling, helping extend pump life and improve overall system efficiency.
Installation & Maintenance Guidelines
Installation:
- Pre-charged to 28 PSI (adjustable based on system requirements)
- Compatible with 20/40, 30/50, and 40/60 pressure switch settings
- Compatible with inline pressure systems, booster pumps, and optional manifold-based installations
Maintenance Guidelines:
- Check air pressure annually with a standard tire gauge
- Maintain tank pre-charge exactly 2 PSI below the pump cut-in pressure setting
- Monitor system cycles for signs of waterlogging or rapid pressure loss
Accessories & Add-Ons
Complete your pressure tank installation with compatible components. Explore our selection of pressure tank accessories to find the right gauges and switches. Secure your plumbing connections using durable stainless steel fittings and valves or traditional bronze pipe fittings and nipples for a leak-free setup.
Get the Flexcon PJR-6 from Cleanflow
This reliable pressure tank is available through Cleanflow, your trusted Canadian water systems supplier. We offer distribution across Canada and the USA, ensuring you receive genuine products quickly.
Upgrade your water system with this premium tank from Flexcon and experience consistent performance.
Frequently Asked Questions
Is a pressure switch included with this tank or manifold kit?
No. Pressure switches are not included and must be selected separately based on your system requirements.
Does the tank come pre-charged?
Yes, the Flexcon PJR-6 ships from the factory with a standard pre-charge of 28 PSI.
How should the tank pre-charge be set?
The tank's air pre-charge must always be set exactly 2 PSI below your pressure switch's cut-in (turn-on) setting while the tank is completely empty of water.
What is the difference between total volume and drawdown?
Total volume (2.1 gallons) is the physical size of the empty tank. Drawdown (e.g., 0.8 gallons at 20/40 PSI) is the actual amount of usable water the tank stores and delivers between pump cycles.
Can this tank be installed outdoors?
Yes, this tank features an appliance-quality powder coat finish that resists external corrosion and UV damage, making it suitable for outdoor installation.
Is this tank safe for drinking water?
Yes, it is an NSF 61 certified pressure tank. The internal 100% butyl rubber diaphragm and polypropylene liner ensure your drinking water never touches the metal tank walls.
What type of connection does this tank use?
It features a highly durable 3/4-inch stainless steel NPT connection that prevents corrosion and cross-threading during installation.
Does this tank require regular maintenance?
The sealed diaphragm design is mostly maintenance-free and prevents waterlogging. However, it is recommended to check the air pre-charge annually to ensure optimal system performance.
