Description

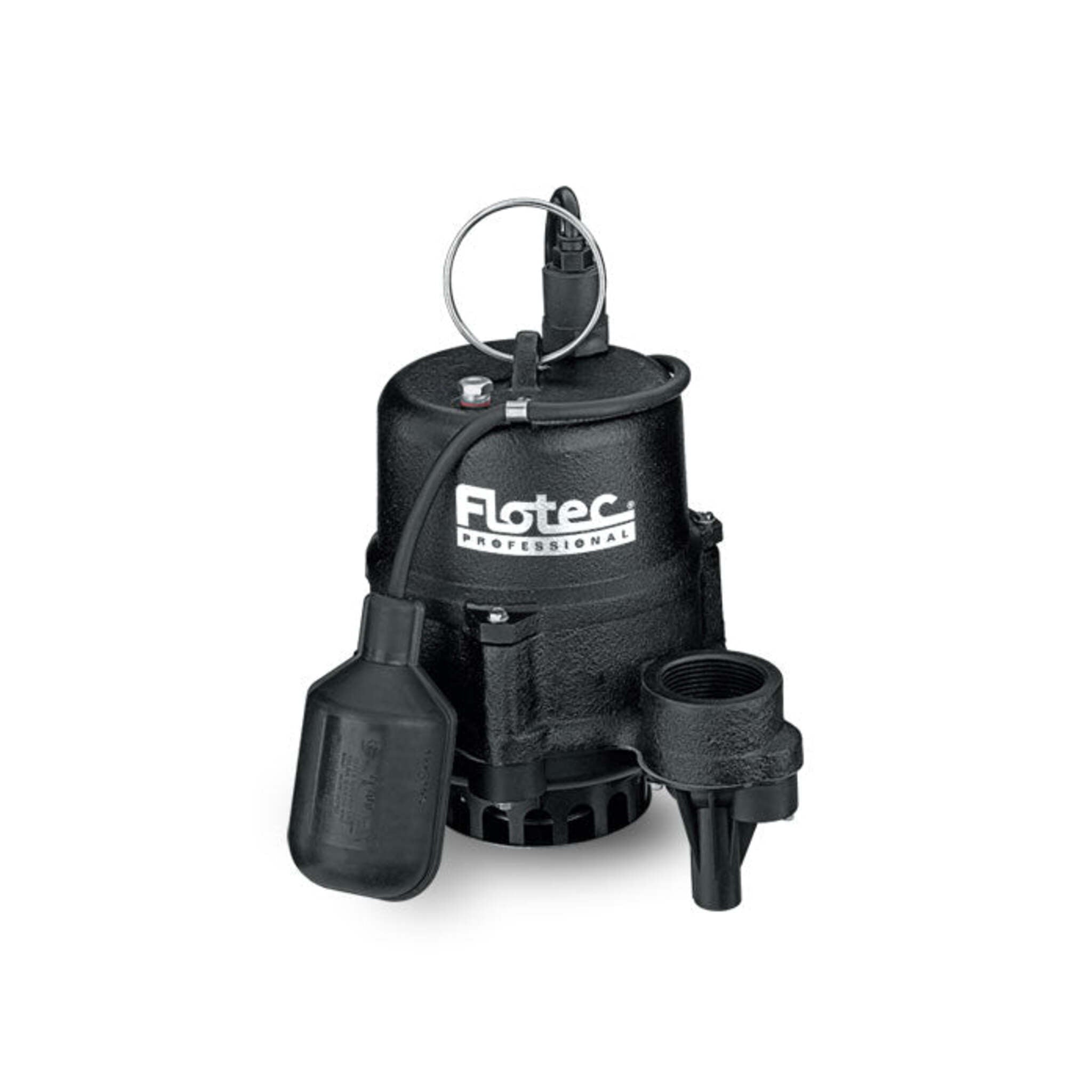

Rugged Submersible Effluent Pump 1/2 HP for Septic and Grey Water Removal
Product Overview
The Flotec E5005TLT effluent pump is a professional-grade submersible unit constructed for demanding residential liquid transfer. Homeowners and contractors use this pump to remove grey water from laundry, bath, and dishwasher systems, or for septic tank applications where liquid must move to a tank or leach field. It features a heavy-duty cast iron housing that ensures longevity and efficient heat dissipation.
Flotec has been the leader in residential water management products at retail locations for over 30 years, making this a trusted choice for home systems.
Key Benefits of the Flotec E5005TLT Effluent Pump
- Delivers up to 62 GPM for rapid liquid transfer and efficient system cycling.
- Passes up to 1/2" solids to prevent clogging in septic and grey water environments.
- Rugged cast iron construction extends pump life in harsh submerged conditions.
- Resists rust and corrosion with durable, thermoplastic impellers.
- Operates automatically with a reliable tethered float switch.
- Supports septic tank, laundry, and dishwasher applications effectively.
Product Specifications
| Category | Details |
| Model | E5005TLT |
| Horsepower | 1/2 HP |
| Body Construction | Cast Iron |
| Voltage | 115V, 60 Hz |
| Amperage | 12.5 Amps (Full Load) |
| Maximum Flow Rate | 62 GPM (235 LPM) |
| Flow at 10' Lift | 53 GPM (201 LPM) |
| Maximum Head | 32' (9.8 m) |
| Discharge Size | 1-1/2" NPT |
| Solids Handling | 1/2" (12 mm) |
| Switch Type | Tethered Float |
| Cord Length | 20' (6.1 m) |
| Minimum Sump Diameter | 14" (356 mm) |
| Max Liquid Temperature | 130°F (54°C) |
View our range of effluent pumps to compare specifications.
What’s Included
- Flotec E5005TLT Submersible Cast Iron Effluent Pump
- Attached 20' power cord
- Tethered float switch
- Owner’s Manual
Flotec E5005TLT Effluent Pump Key Features
Cast Iron Body
The heavy-duty cast iron construction provides superior heat dissipation and durability compared to plastic models, ensuring a longer service life for this cast iron effluent pump.
Tethered Float Switch
The integrated tethered float switch offers reliable automatic operation, turning the pump on and off based on water levels. This design requires a minimum sump diameter of 14 inches to operate without obstruction.
Oil-Filled Motor
The motor is oil-filled and sealed, which lubricates moving parts and facilitates cooling for continuous duty performance in demanding applications.
Rust-Proof Impellers
Designed with thermoplastic impellers that resist corrosion, this pump maintains high flow rates and reliable performance over years of submersion.
Thermal Overload Protection
The motor includes automatic reset thermal protection, which shuts the pump down if it overheats to prevent permanent motor damage.
Performance Overview
The 1/2 HP effluent pump provides a maximum capacity of 62 GPM at 0 feet of head. As vertical lift increases, flow decreases naturally. At 10 feet of lift, the pump maintains a strong flow of 53 GPM. The unit shuts off completely (zero flow) at a maximum head of 32 feet. This performance curve makes it an ideal effluent pump for septic system leach field applications where elevation changes are moderate.
Applications
- Septic tank effluent removal
- Laundry tray discharge
- Grey water transfer
- Dishwasher drainage
- Leach field dosing
- Residential sump pits
Installation & Operation Guidelines
- Solids Limitation: This septic tank effluent pump handles solids up to 1/2". It is not a sewage pump and cannot handle flushable waste or solids larger than 1/2".
- Basin Size: Requires a minimum sump or basin diameter of 14" (356 mm) to allow the tethered float switch to move freely.
- Check Valve: A check valve (sold separately) is recommended for proper installation to prevent backflow.
- Temperature: Do not use in water exceeding 130°F (54°C).
- Usage: Designed for residential effluent and grey water; not intended for hazardous locations or flammable liquids.
Get the Flotec E5005TLT Effluent Pump from Cleanflow
Cleanflow is the one-stop shop for quickly and effortlessly supplying high-quality products across Canada and the USA. We carry a high-quality line of Flotec pumps to ensure you have the right equipment for your residential water management needs.
Shop now and get the Flotec E5005TLT effluent pump delivered to your door. To complete your installation, explore our range of Sump Pump Accessories, including check valves, basins, and discharge fittings.
Frequently Asked Questions
Can this pump handle sewage?
No. This is a grey water effluent pump designed to handle solids up to 1/2 inch. It should not be used for raw sewage or flushable waste.
What is the discharge size?
The discharge pipe size is a standard 1-1/2 inch NPT connection.
Does this pump run automatically?
Yes. The Flotec E5005TLT effluent pump includes a tethered float switch that automatically turns the pump on and off based on liquid level.
What voltage does this pump require?
This pump operates on standard 115V, 60 Hz household electrical power.
How long is the power cord?
The Flotec E5005TLT effluent pump is supplied with a 20-foot (6.1 m) power cord.
What is the warranty period?
The Flotec E5005TLT effluent pump includes a limited 12-month warranty from the original date of consumer purchase.
