Franklin FWXC008 Strong Acid Cation Resin – NSF 44 Certified, Food Grade Water Softening Resin (8% Crosslinked)

NSF 44 Certified Food-Grade Water Softener Resin — 8% Crosslinked

Overview

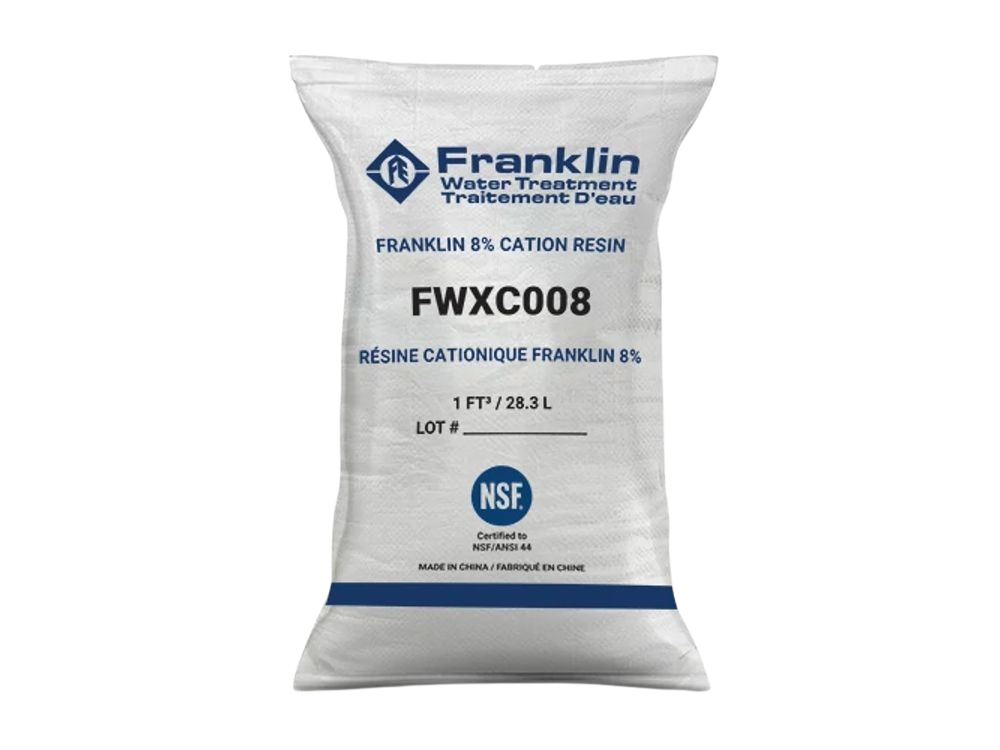

Franklin's FWXC008 passes the extractive tests that separate food-grade water softener resin from industrial stock: under 0.1% extractable residue, controlled color throw, and near-zero odor. This gel-type strong acid cation resin ships in Na⁺ or H⁺ form for potable water softening in regenerable softeners and cartridge systems. Available in 1 cubic foot bags (28.3L).

Specifications

Standard Mesh vs Fine Mesh — Choosing Between FWXC008 and FWXC008F

The most common question when ordering Franklin cation resin: standard mesh or fine mesh?

The FWXC008 uses a standard Gaussian bead distribution (0.315–1.25 mm, ≥95%) optimized for conventional softening columns. Larger beads mean lower pressure drop across the bed, predictable flow characteristics, and suitability for the widest range of residential, commercial, and food & beverage softeners.

The FWXC008F fine mesh resin uses smaller beads for faster ion exchange kinetics. That speed comes at a cost: higher pressure drop and more resistance to flow. Fine mesh is the right choice for mixed-bed deionization, layered-bed configurations, and applications where exchange rate matters more than throughput.

Both resins are 8% crosslinked and use the same sulfonated styrene-DVB polymer matrix. The difference is bead size and the performance trade-off it creates.

Choose FWXC008 (standard mesh) for:

• Residential or commercial water softeners
• Food and beverage processing systems
• Municipal potable water treatment
• Standard regenerable columns
• Non-regenerable cartridge applications

Choose FWXC008F (fine mesh) for:

• Mixed-bed deionization systems
• Layered-bed configurations
• High-kinetics demineralization
• Applications accepting higher pressure drop for faster exchange

Key Features

• NSF/ANSI 44 + FDA 21 CFR 173.25 — eliminates compliance risk for drinking water and food-contact applications without sourcing separate certifications
• Ships in Na⁺ or H⁺ form — drop into a softener (sodium form) or demineralizer (hydrogen form) without pre-conditioning the resin
• ≥2.0 eq/L exchange capacity — removes more hardness per liter of resin, extending the interval between regeneration cycles
• 120°C max operating temperature (Na⁺) — handles hot-water softening and process-water applications that exhaust standard resins
• ≥96% whole beads after attrition — resists mechanical breakdown during backwash and regeneration, reducing fines and maintaining bed integrity over thousands of cycles

Applications

• Residential and commercial water softeners
• Municipal potable water systems
• Food and beverage processing
• Pre-treatment for reverse osmosis membranes
• Non-regenerable cartridge softening systems

Buy FWXC008 Water Softener Resin Online from Cleanflow

Cleanflow Utility Supply Company is an authorized distributor of Franklin Water Treatment products. The FWXC008 ships free across Canada and to the United States. All orders are backed by Cleanflow's 30-day return policy.

For chlorinated systems requiring higher chemical resistance, the FWXC010 (10% crosslinked) handles oxidant exposure that degrades standard 8% resins. For high-NOM water sources prone to organic fouling, the FWXCMP1 macroporous cation resin handles what gel-type resins cannot.

Frequently Asked Questions

What water softeners are NSF 44 certified?

NSF/ANSI 44 certification covers water softening systems including the cation exchange resin inside them that have been independently tested by NSF International for hardness reduction and material safety. The Franklin FWXC008 carries NSF 44 certification, meaning it meets the standard's extraction limits and performance criteria for potable water use. Cleanflow supplies this resin as a direct drop-in for any softener requiring NSF 44 certified media.

What is the best type of resin for a water softener?

For most residential and commercial softeners, a strong acid cation (SAC) resin in sodium form is the industry standard. SAC resins exchange calcium and magnesium ions for sodium, removing hardness from the water. The 8% crosslinked gel-type structure like the FWXC008 balances exchange capacity (≥2.0 eq/L), physical durability (≥96% whole beads), and cost. Higher crosslink levels (10%) add chemical resistance but reduce capacity; fine mesh variants increase exchange speed but raise pressure drop.

What does "8% crosslinked" mean?

The 8% refers to the divinylbenzene (DVB) content in the polystyrene bead matrix. DVB creates the rigid cross-links that hold the resin's structure together. At 8%, the FWXC008 has enough internal pore space for high exchange capacity while maintaining the physical and chemical stability needed for repeated regeneration cycles. Franklin also offers the FWXC010 at 10% crosslink for systems exposed to chlorine or other oxidants that degrade standard resins faster.

How do I choose between standard mesh (FWXC008) and fine mesh (FWXC008F)?

The FWXC008 uses standard-size beads (0.315–1.25 mm) for lower pressure drop and predictable flow. The right choice for conventional softening in residential, commercial, and food & beverage systems. The FWXC008F fine mesh resin has smaller beads for faster ion exchange kinetics, better suited for mixed-bed deionization and layered-bed configurations where exchange speed outweighs flow rate. Both are 8% crosslinked and food-grade.

Can this resin be used in food and beverage processing?

Yes. The FWXC008 is manufactured as a food-grade resin, compliant with FDA 21 CFR 173.25. It passes extractive tests for low TOC (0–30 mg/L), minimal color throw (<10 APHA at 1 hour, Na⁺ form), near-zero odor (0–1), and extractable residue below 0.1%. These numbers confirm the resin will not contribute taste, color, or contaminants to treated water used in food or beverage production.
