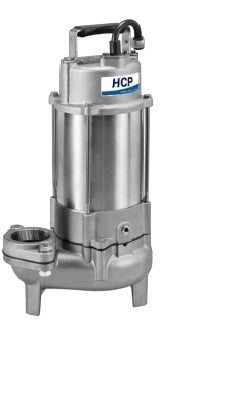

HCP Model 50SFU2.8A 2" Industrial Stainless Steel Submersible Effluent Pump | 1 HP | Single and Three Phase Power

HCP Model 50SFU2.8A Stainless Steel Industrial Submersible Effluent Pump: Ideal for corrosive and seawater applications

The HCP Model 50SFU2.8A effluent pump is constructed with SUS316 stainless steel and Viton O-rings for an industrial grade solution for corrosive and seawater applications.

This stainless steel 1 HP industrial quality pump is available with120 Volt or 240 Volt Single Phase motors as well as 240 Volt or 575 Volt Three Phase motors. These pumps are designed for corrosive dewatering applications that have limited solids. The single phase 120 Volt pump model is highly portable and has a 30' cable with a three prong 120V plug.

Key Features: Reliable and Efficient

• Durable Seals: Equipped with a carbon/ceramic upper side and silicon/carbide lower side seal for long life in dirty water applications. The motors and pump casings use viton o rings.
• Sturdy Construction: The upper cover and volute are made with ASTM A744 CF8M stainless steel alloy and the motor frame is constructed with 316 stainless steel.
• Severe Service Impeller: Vortex impeller is made with ASTM A744 CF8M austenitic stainless steel classified for Castings, Iron-Chromium-Nickel, Corrosion-Resistant for severe service.
• Motor Protection: The air filled 120 Volt and 240 Volt Single Phase motors are equipped with a built-in thermal protector to prevent pump overheating The air filled three phase motors have a moisture sensor to provide an alarm signal to a control panel.
• Optional Float Switch: An optional piggyback float switch can automatically control the 120 Volt pump's on/off function based on water levels.
• Compact Design: Measures 9-5/8" x 6-3/4" x 17-1/8" tall and weighs 35 lbs.
• Powerful Air F

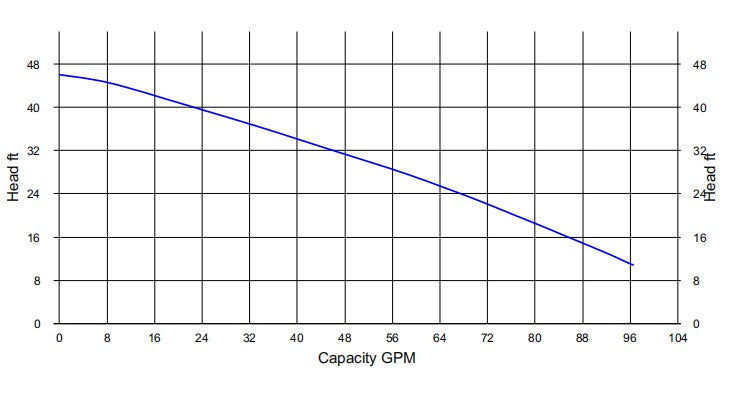

• High Performance: Maximum flow of 96 GPM @ 10' head and maximum head of 46 feet @ 5 GPM.
• Certified: UL778 and CSA c22.2 No 108-14 certified for quality and safety.
• Powerful Air Filled Motors:
  • • 120 Volt 1 Phase: 3420 RPM, 9.6 Amp. 30' cable length with 3 prong plug
    • 240 Volt 1 Phase: 3420 RPM, 4.8 Amp with a 30' cable length.

    • 240 Volt 3 Phase: 3420 RPM, 3.3 Amp with a 30' cable length.

    • 575 Volt 3 Phase: 3420 RPM, 1.3 Amp with a 30' cable length
• High Performance: Maximum flow of 96 GPM @ 10' head and maximum head of 45 feet @ 8 GPM.
• Certified: UL778 and CSA c22.2 No 108-14 certified for quality and safety.

Elevate Your Dewatering Efficiency

Upgrade your dewatering system with the HCP Stainless Steel Industrial Quality Submersible Effluent  Pump. Designed for durability and efficiency, this pump ensures smooth operation in muddy, silty, corrosive and seawater water conditions. With its built-in thermal protector (single phase pumps only) and optional piggyback float switch, you can trust this pump to provide continuous, reliable service in challenging environments.
