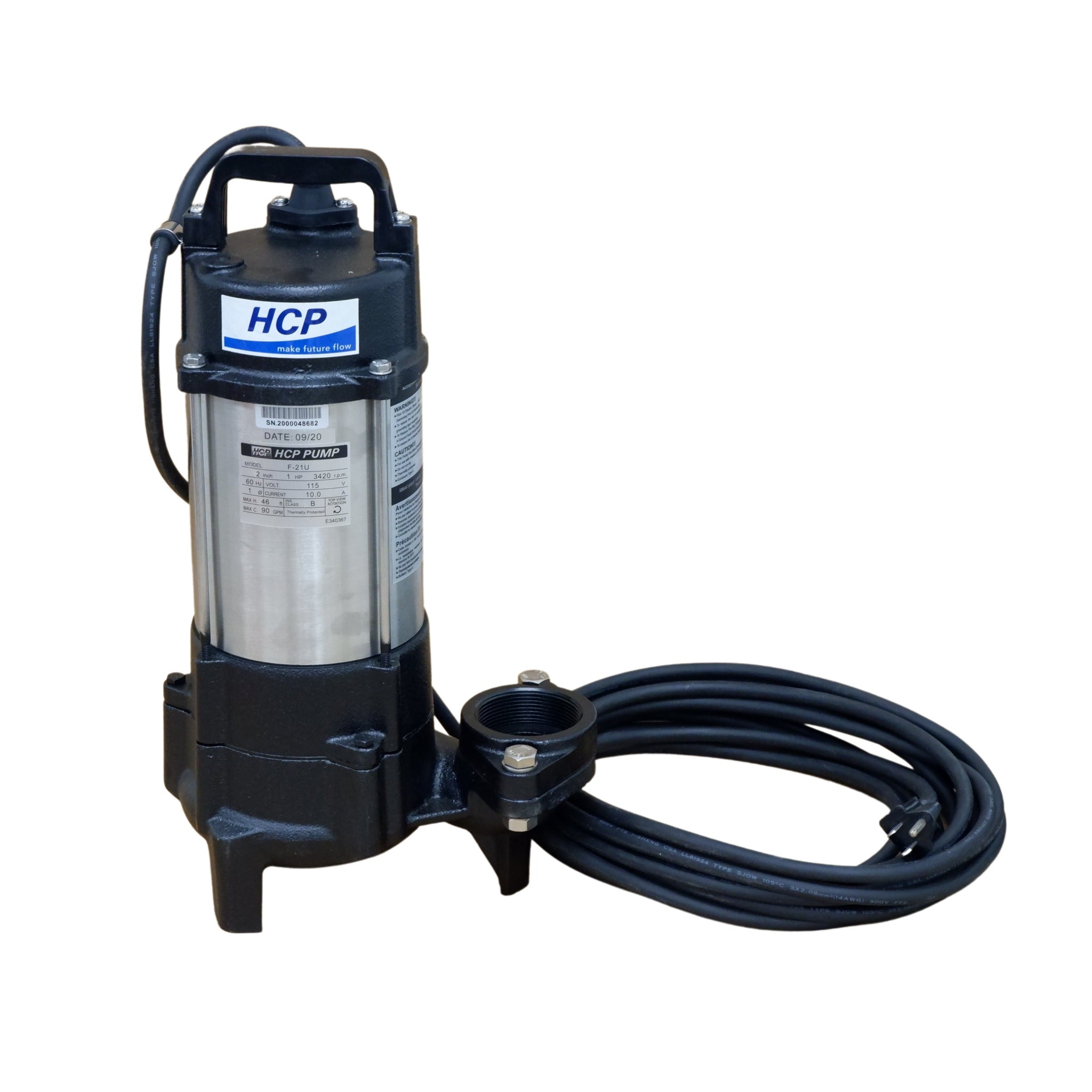

HCP F-21U Submersible Effluent Pump: Reliable and Versatile Effluent Pumping
Introducing the HCP Model F-21U Submersible Effluent Pump – a powerful and reliable solution for effluent pumping into low-pressure sewer systems and efficient dewatering of basements and tanks with limited solids. Designed with high-quality stainless steel and cast-iron materials, this 1 HP, 120V, 90 GPM pump is perfect for handling limited solids and ensuring optimal performance in various applications.
Key Features: Reliable and Efficient
-
High-Performance Effluent Pump: Versatile use in effluent pumping, low-pressure sewer systems, and general dewatering applications.
-
Powerful Motor: 1 HP, 120V motor delivers a powerful 90 GPM flow rate for efficient water management.
-
Durable Construction: Cast iron upper cover, volute, and cast iron vortex impeller ensure long-lasting performance.
-
Corrosion Resistance: 304 stainless steel motor frame provides added durability and resistance to corrosion.
-
Dual Mechanical Seals: Carbon/ceramic upper side and silicon carbide lower side in an oil-filled chamber with food-grade oil for reliable performance.
-
Thermal Protection: Built-in thermal protector prevents pump overheating, enhancing safety and prolonging the life of the pump.
-
Optional Float Switch: An optional piggyback float switch can automatically control the pump's on/off function based on water levels.
Elevate Your Pumping Efficiency
Upgrade your effluent and dewatering systems with the HCP Model F-21U Submersible Effluent Pump. Designed for durability and efficiency, this pump ensures smooth operation in various applications. With its built-in thermal protector and optional float switch, you can trust this pump to provide continuous, reliable service in demanding environments.
Specifications |
|
Impeller Type |
Cast Iron (ASTM 30) Vortex
|
Total Head |
3 GPM @ 44-ft
|
Water Capacity |
90 GPM @ 10' Head
|
Max. Solid Intake |
1-3/8-in (15.85mm) |
Discharge Size
|
2" NPT
|
Motor |
1.0 HP (0.745 kW) | 3420 RPM |
Phase |
Single |
Voltage |
110V/120V AC |
Running Amperage |
10.4A/9.6A |
Start Method |
Capacitor |
Cable Length |
30-Ft (9.1m) |
Certifications |
cUL and UL Certified |
