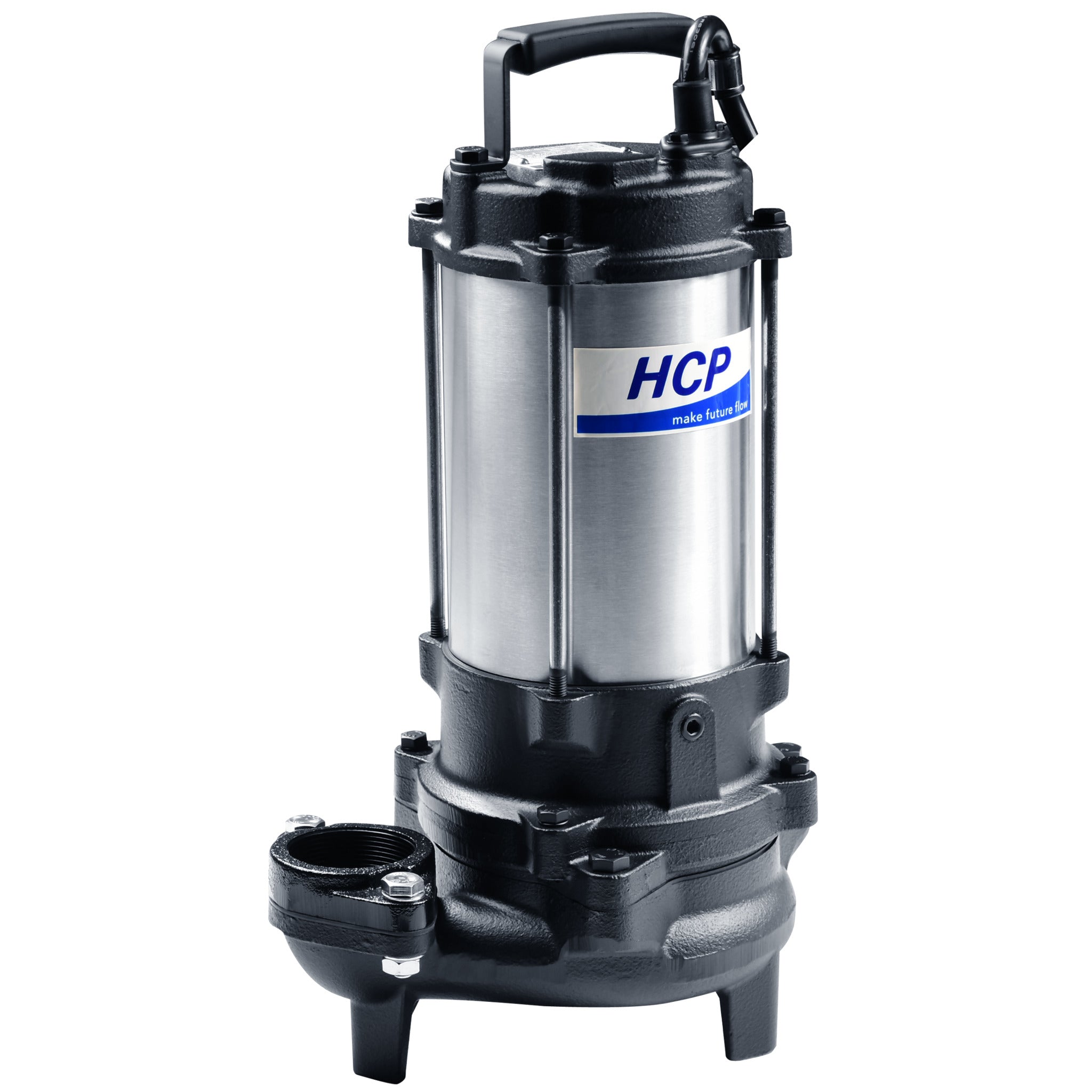

HCP Model FN-22U 2" Submersible Effluent Pump | 2 HP Single and Three Phase Models |112 GPM | Durable, Efficient for Effluent Pumping, Low-Pressure Sewer, and Dewatering

HCP Model FN-22U Submersible Effluent Pump: Enhance Your Pumping System

The Model FN-22U HCP Submersible Effluent Pump is a versatile and reliable solution for effluent pumping, low-pressure sewer applications, and general dewatering of basements and tanks with limited solids. Designed with high-quality materials, this pump ensures optimal performance and long-lasting durability. This pump is available in  single phase and three phase models.

Key Features: Reliable and Efficient

• Versatile Applications: Suitable for effluent pumping, low-pressure sewer applications, and general dewatering.
• Durable Seals: Carbon/ceramic upper side and silicone carbide lower side seal in an oil-filled chamber with food-grade oil for long-lasting performance.
• Sturdy Construction: Upper cover, volute, and impeller made with cast iron; motor frame constructed with 304 stainless steel.
• Thermal Protection: 240 Volt Single Phase pump is equipped with a built-in thermal protector to prevent pump overheating. An optional 30' long 240 Volt float switch can automatically control the single phase pump's on/off function based on water levels.

• Compact Design: Measures 12" x 8" x 22" tall and weighs 73 lbs.
• High Capacity: 2 Inch FPT discharge, handles 1-3/8" solids.
• Powerful Motor: 2 HP, 3420 RPM with a 30' cable length.

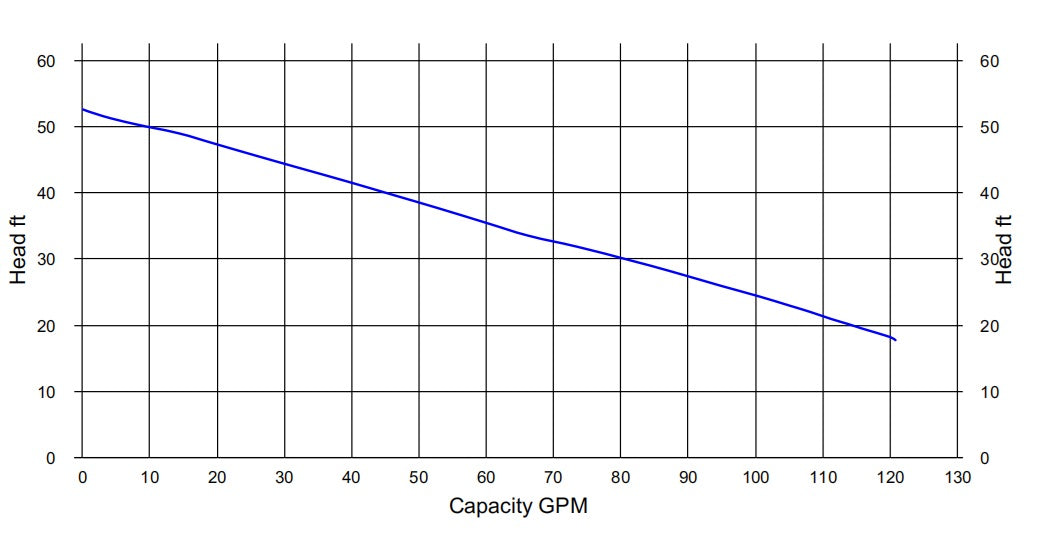

• High Performance: Maximum flow of 120 GPM @ 16' head and maximum head of 52 feet @ 10 GPM.
• Certified: cUL and CSA certified for quality and safety.

Elevate Your Pumping Efficiency

Upgrade your effluent and dewatering systems with the HCP Model FN-22U Submersible Effluent Pump. Designed for durability and efficiency, this pump ensures smooth operation in various applications. With its built-in thermal protector and optional float switch, you can trust this pump to provide continuous, reliable service in demanding environments.
